Speco - N128NR80TB - 128 Channel 4K H.265 NVR with Analytics with 80TB HDD
Part number:
Price:
Product Overview
The Speco N128NR80TB 128 Channel 4K H.265 NVR with 80TB HDD offers advanced surveillance capabilities with intelligent analytics at no additional cost. Designed to work seamlessly with Speco Technologies analytic cameras, this recorder features 128 channels and supports 4K resolution recording, allowing for comprehensive and detailed monitoring for any environment.
Key Configuration
Model: N128NR80TB
Key Features
- • Human and Vehicle Detection help to eliminate false motion alarms.
- • License plate detection and recognition.
- • Object left behind and object removed.
- • Scene tampering alerts.
- • Target counting to help enforce population limits.
Installation Notes
437mm x 483mm x 143mm (17.2” x 19” x 5.6”)
| Specifications | |
| IP Channels | 128 Channels |
| Harddrive Size | 80TB |
| Protocols | speco Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, HD Resolution, Remote I/O Control, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
| Resolution | 8MP/5MP/4MP/3MP/1080P/720P |
| Compression | H.264, H.265 |
| Bandwidth | 384Mbps |
| Operating temperature | 14°F to 122°F (-10°C to 50°C ) |
| Dimensions | 437mm x 483mm x 143mm (17.2” x 19” x 5.6”) |
| SATA | 16 |
| USB | Front: 1 (USB 2.0), Rear: 2 USBs: 1 USB 2.0, 1 USB 3.0 |
| Post-alarm Recording | Max. 10 minutes |
| Pre-alarm Recording | Max. 5 seconds |
| Audio | RCAx1 |
| Frame Rate/Camera | Up to 30fps |
| Compression Supported | Yes |
| HD Resolution | Yes |
| DDNS Functionality | Yes |
| Remote I/O Control | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| Details | |
| Max Storage | 256TB |

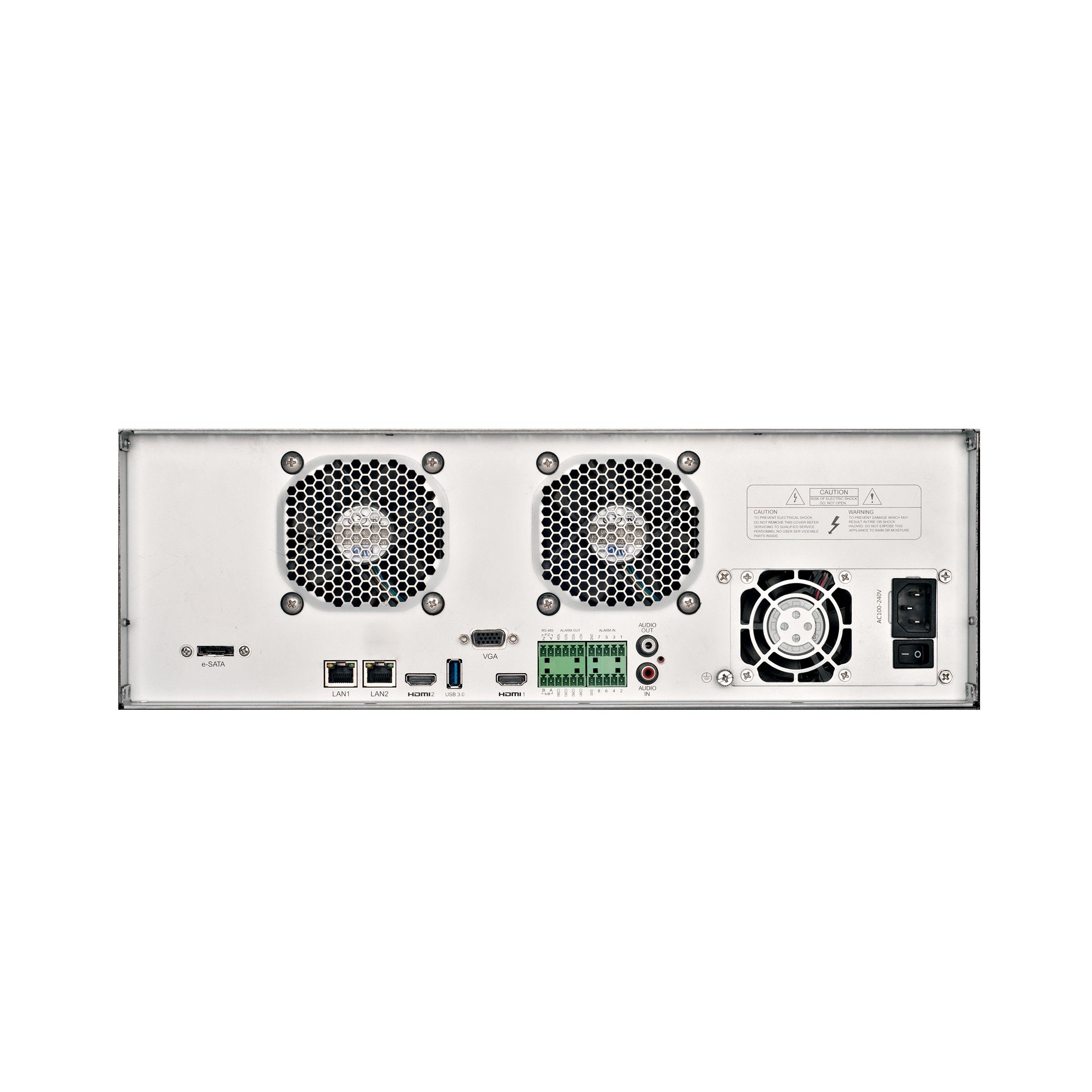

| Output Ports | 1 x 4K HDMI, 1 x VGA |
| Real-time Recording | Captures footage in stunning 4K resolution at 30fps for unparalleled clarity. |
| Multiple Output Options | Features 4K HDMI and VGA outputs for flexible display options. |
| Extensive Storage Capacity | Equipped with 16 SATA ports for up to 256TB of storage to accommodate extensive video footage. |
| EZ Copy | Easily export video to USB for additional storage or sharing. |
| Video Exporting | Effortlessly export footage via USB for easy access. |
| Specification Sheet | |
| Model | N128NR |
| Video Input | Max. IP Channels |
| IP Camera | H.264/H.265 Auto Detection (Max 8MP) |
| Video Output | Main Monitor |
| Main Monitor | HDMI (Max. 8K) and VGA (Max. Full HD) |
| Sub Monitor | 3 HDMI |
| Audio Network Input | 128-CH IPC audio input |
| Audio 2-way Audio | RCAx1 |
| Audio Local Output | RCAx1 |
| Recording Encoding Resolutions | 16MP/8MP/5MP/4MP/3MP/1080P/720P/960H/D1/CIF |
| Recording Codec | H.264/H.265 (Auto Detection) |
| Recording Max Frame Rate per Channel | Any Resolution @ 30fps |
| Recording Recording Mode | AI/Continuous/Motion/Sensor/Schedule/Manual |
| Recording Pre-Recording | Max. 5 seconds |
| Search & Playback Search | EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log |
| Search & Playback Simultaneous Playback | Max 16-CH |
| Search & Playback Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Search & Playback Playback Resolutions | 16MP/8MP/5MP/4MP/3MP/1080P/720P/960H/D1/CIF |
| Search & Playback Playback Functions | Play, Pause, FF, REW, Digital zoom, etc. |
| Backup Media | USB drive, USB Portable HDD, Network |
| Backup Format | JPG, AVI, ZIP (Player+Proprietary Data) |
| Storage HDD Max Capacity of each HDD | 20TB |
| Storage HDD Internal SATA ports | 16 |
| Storage USB Front | 2 (USB 2.0) |
| Storage USB Rear | 2 USBs: 1 USB 2.0, 1 USB 3.0 |
| Alarm Mode | Manual, Sensor, Motion, Exception, AI |
| Alarm Input | 24-CH local |
| Alarm Output | 8-CH local |
| Alarm Linkage | Record/Snapshot/Preset/Email/Pop-up Window |
| User I/F Input Method | IR Remote, Mouse |
| Network Network Bandwidth | 768Mbps |
| Network P2P/Dynamic DNS | Free US-Based Speco P2P and DDNS Service |
| Network Network Protocols | TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP |
| Network Dual Network Card | Yes |
| Network LAN 1 | Recorder |
| Network LAN 2 | Cameras |
| Network Access Mobile | iOS/Android via Speco Blue App, SecureGuard® Client |
| Network Access Web Viewer | Google Chrome®, Microsoft Edge®, Safari®, FireFox®, Windows® IE |
| Network Access VMS | SecureGuard®, Speco Blue VMS |
| Network Access Max. User Access | Max 128 users online (web client) |
| Smart Analytics People/Vehicle Detection | Line Crossing and Intrusion |
| Smart Analytics Facial Recognition | Face Search up to 128-CH / Face Recognition Trigger Event up to 16-CH |
| Smart Analytics LPR | Yes |
| Features Digital Zoom | Live and Playback, Free Size |
| Features Fisheye Dewarping® S.M.A.R.T. (Self-Monitoring, Analysis, & Reporting Technology) | Temperature, Power On Time, Bad Sectors and Health |
| Power Power Consumption | ≤ 15W (without HDD) |
