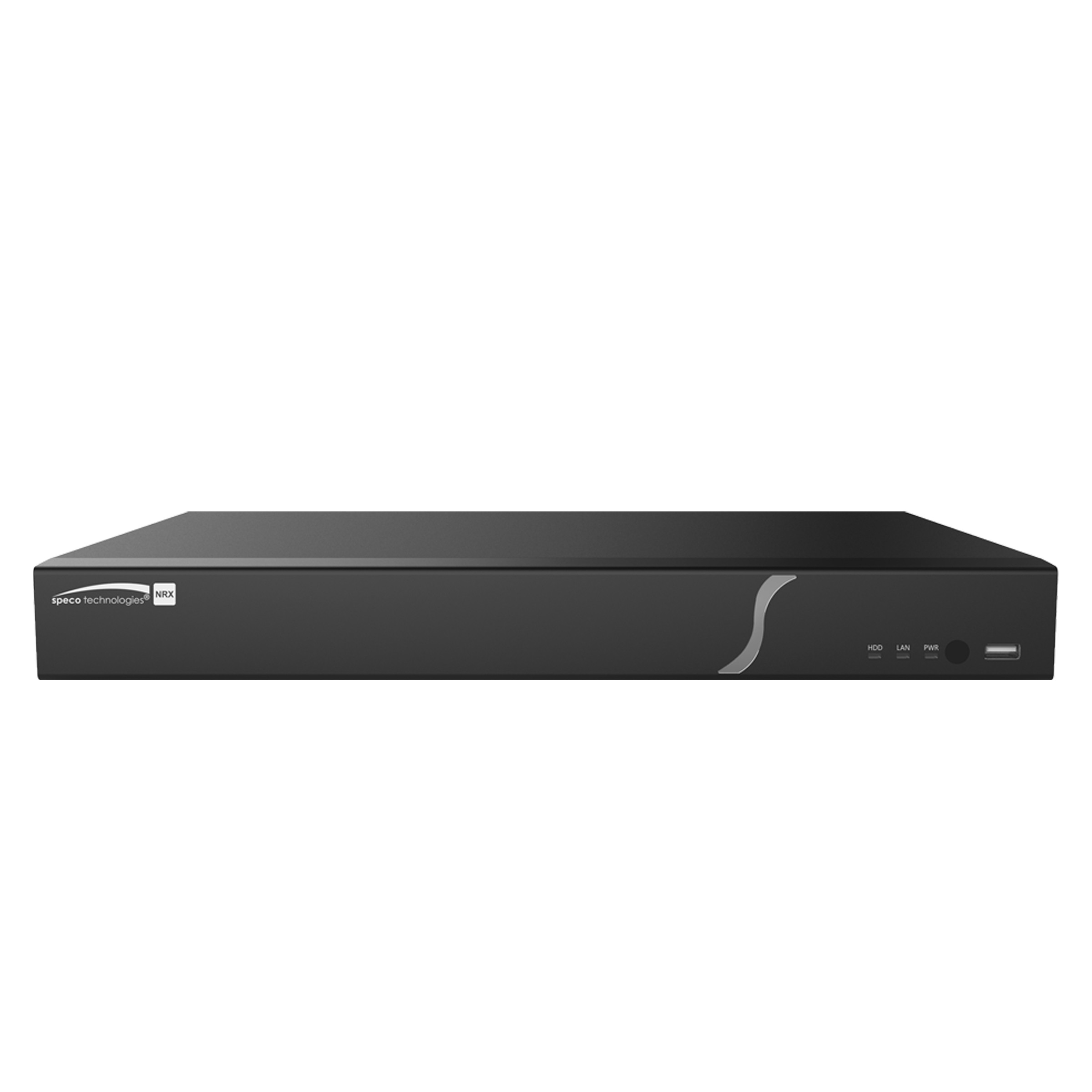

Speco - N16NRX12TB - 16 Channel Facial Recognition Recorder with Smart Analytics, 12TB
Part number:
Price:
Product Overview
Speco’s NDAA compliant NRX recorder elevates your surveillance experience with exceptional footage quality, supporting up to 16MP cameras at 30 fps, ensuring you capture every detail in real-time.
Key Configuration
Model: N16NRX12TB
Key Features
- • Real-time recording: Capture high-quality footage at up to 16MP resolution (8K) at 30fps, providing clear and detailed images for enhanced security.
- • H.265 compression: Store up to 2x more footage than traditional H.264, maximizing storage efficiency and allowing for longer recording times.

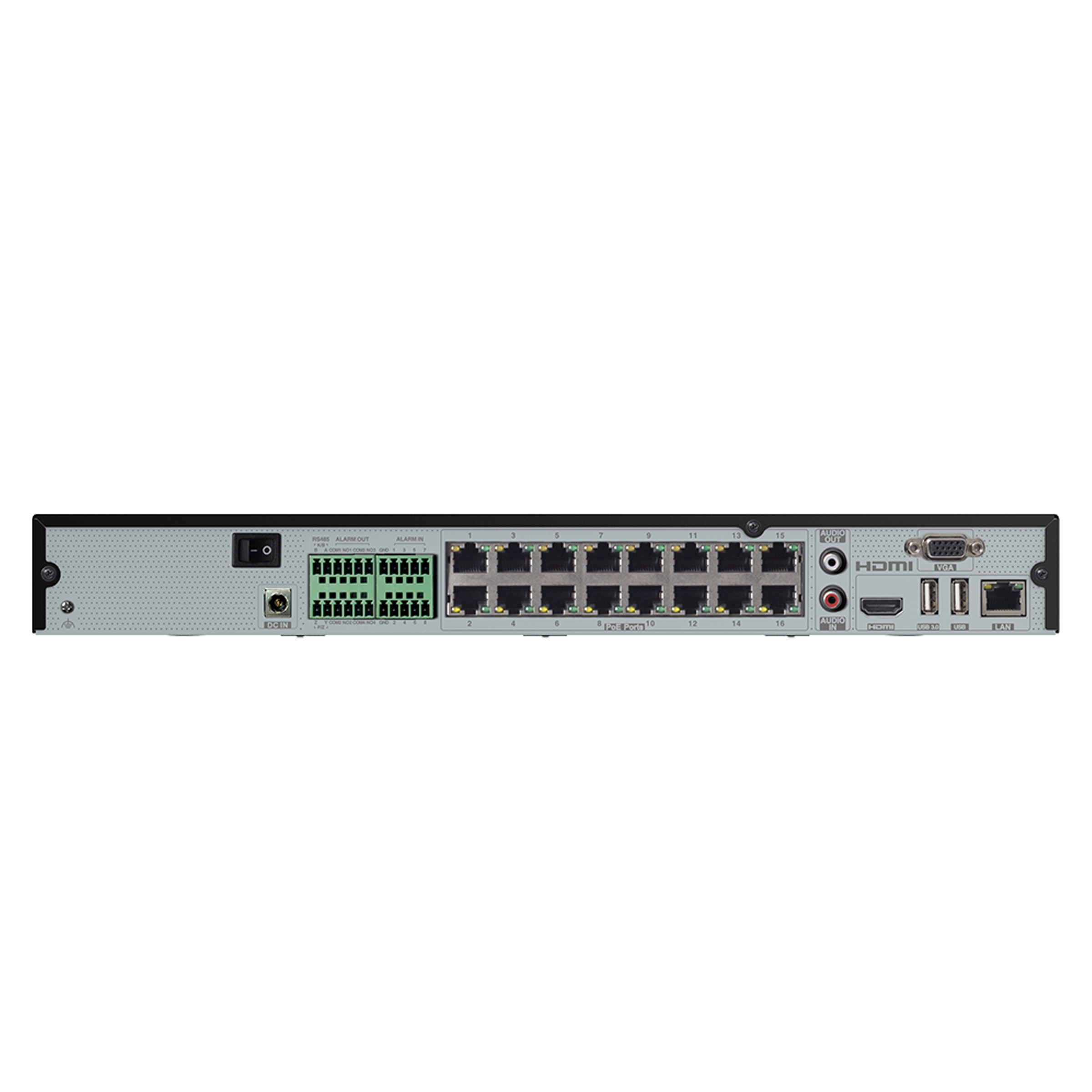

- • Multiple video outputs: Equipped with 4K HDMI out and one VGA monitor output, making it easy to connect to various display setups for monitoring.
- • Facial Recognition: Advanced facial recognition and comparison features enhance security by identifying individuals quickly and accurately.
- • Smart detection alerts: Object and line crossing detection alerts you to specific movements or breaches, enhancing situational awareness.
Installation Notes
380mm x 268mm x 45mm (15.0" x 10.6" x 2.0")
| Full Specifications | |
| Model | Speco N16NRX12TB |
| Channels | 16 |
| Storage Capacity | 12TB |
| Recording Resolution | Up to 16MP (8K) at 30fps |
| Compression Format | H.265 |
| Video Outputs | 4K HDMI, VGA |
| Remote Access | Web browser, mobile device |
| Smart Features | Facial Recognition, Object Detection, Smart Search |
| Export Method | USB |
| Included Accessories | Remote control, Rack ears |
| Video | |
| Max. IP Channels | 16 |
| IP Camera | H.265/H.264 auto detection (max. 16MP) |
| Main Monitor | HDMI (max. 4K) and VGA (max. full HD) |
| Audio | |
| Network Input | 16-CH IPC audio input |
| Local Input | RCAx1 |
| Local Output | RCAx1 |
| Recording | |
| Resolutions | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P |
| Codec | H.264/H.265 (auto detection) |
| Max Frame Rate per Channel | 16MP @ 30fps |
| Recording Mode | Analytics/continuous/motion/sensor/schedule/manual |
| Pre-Recording Max. | 5 seconds |
| Post Recording Max. | 10 minutes |
| Search & Playback | |
| Search | EZ search, motion, specific date/time, event, museum, bookmarks, snapshots, log |
| Simultaneous Playback | Max. 16-CH |
| Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Playback Functions | Play, pause, fast forward, rewind, digital zoom, etc. |
| Backup | |
| Media | USB drive, network |
| Format | MP4, JPG, AVI, proprietary format (player included) |
| Storage | |
| Max Capacity of each HDD | 40TB |
| Internal SATA ports | 2 |
| USB Front | 1 (USB 2.0) |
| USB Rear | 1 USB 2.0 1 USB 3.0 |
| Alarm | |
| Mode | Manual, sensor, motion, exception, intelligence |
| Input | 8-CH local |
| Output | 4-CH local |
| Linkage | Record/snapshot/preset/email/pop-up window |
| Network | |
| Network Bandwidth | 192Mbps |
| P2P/Dynamic DNS | Free US-Based Speco P2P and DDNS service |
| Network Protocols | TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP |
| Mobile | iOS®/Android™ via Speco Blue App, SecureGuard® Client |
| Web Viewer | Google Chrome®, Microsoft Edge®, Firefox®, Safari® |
| VMS/CMS | Speco Blue VMS, SecureGuard® |
| Max. User Access | Max 10 users online (web client) |
| Features | |
| Digital Zoom | Live and playback, free size |
| Fisheye Dewraping* | Yes |
| S.M.A.R.T (Self-Monitoring, Analysis & Reporting Technology) | Temperature, power on time, bad sectors, and health |
| People/Vehicle Detection | Line crossing and intrusion |
| Facial Recognition | Face search up to 8-CH (N8NRX) and up to 16-CH (N16NRX) |
| LPR | 16-CH |
| Power | |
| Power Consumption | ≤ 15W (without HDD) |
| PoE Ports | 16 |
| Power per PoE Port Max (802.3at) | 30W |
| Total PoE Power Budget (802.3af/at) | 150W |
| Environment | |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C ) |
| Operating Humidity | 10% ~ 90% humidity |
| Dimensions Unit | 380mm x 268mm x 45mm (15.0" x 10.6" x 2.0") |
