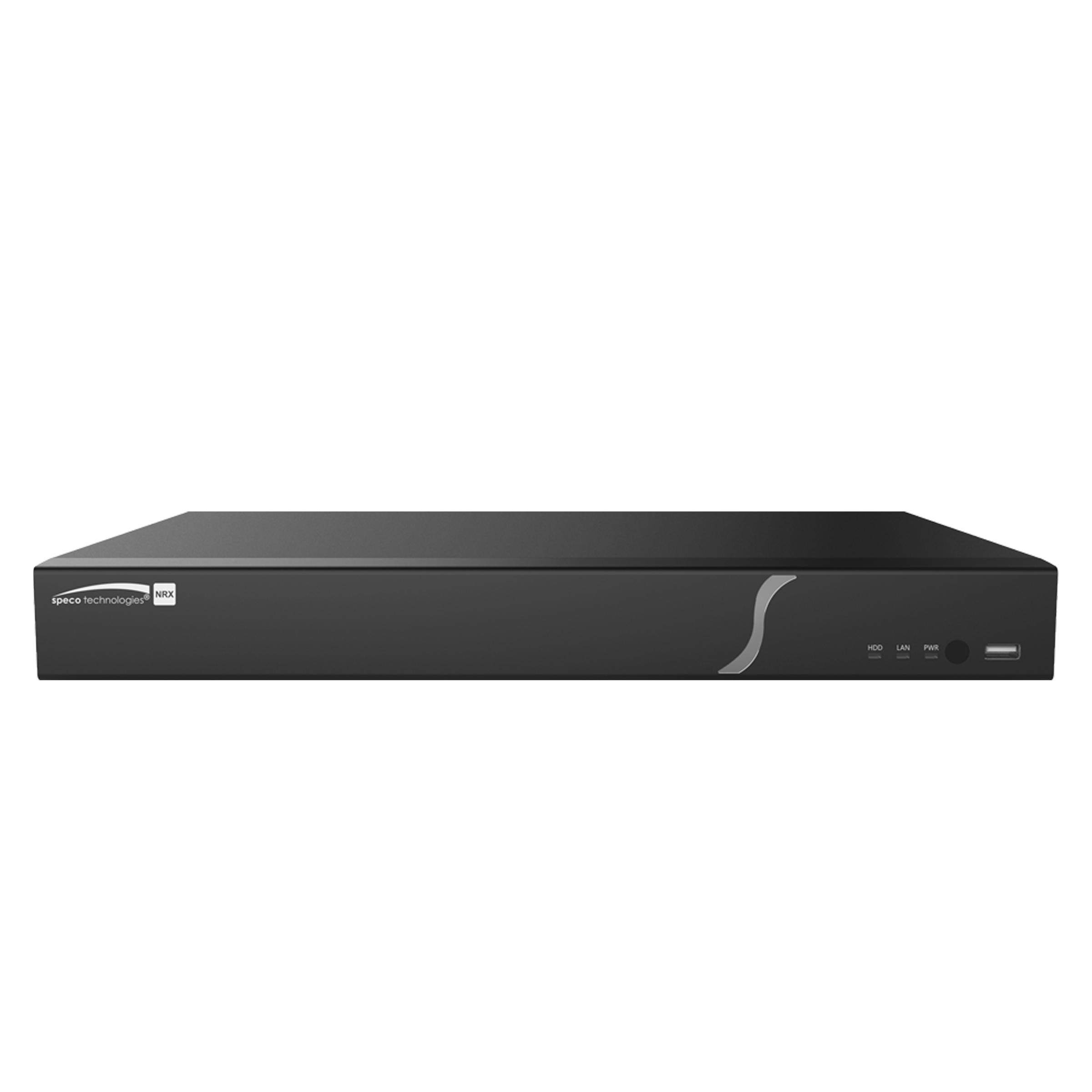

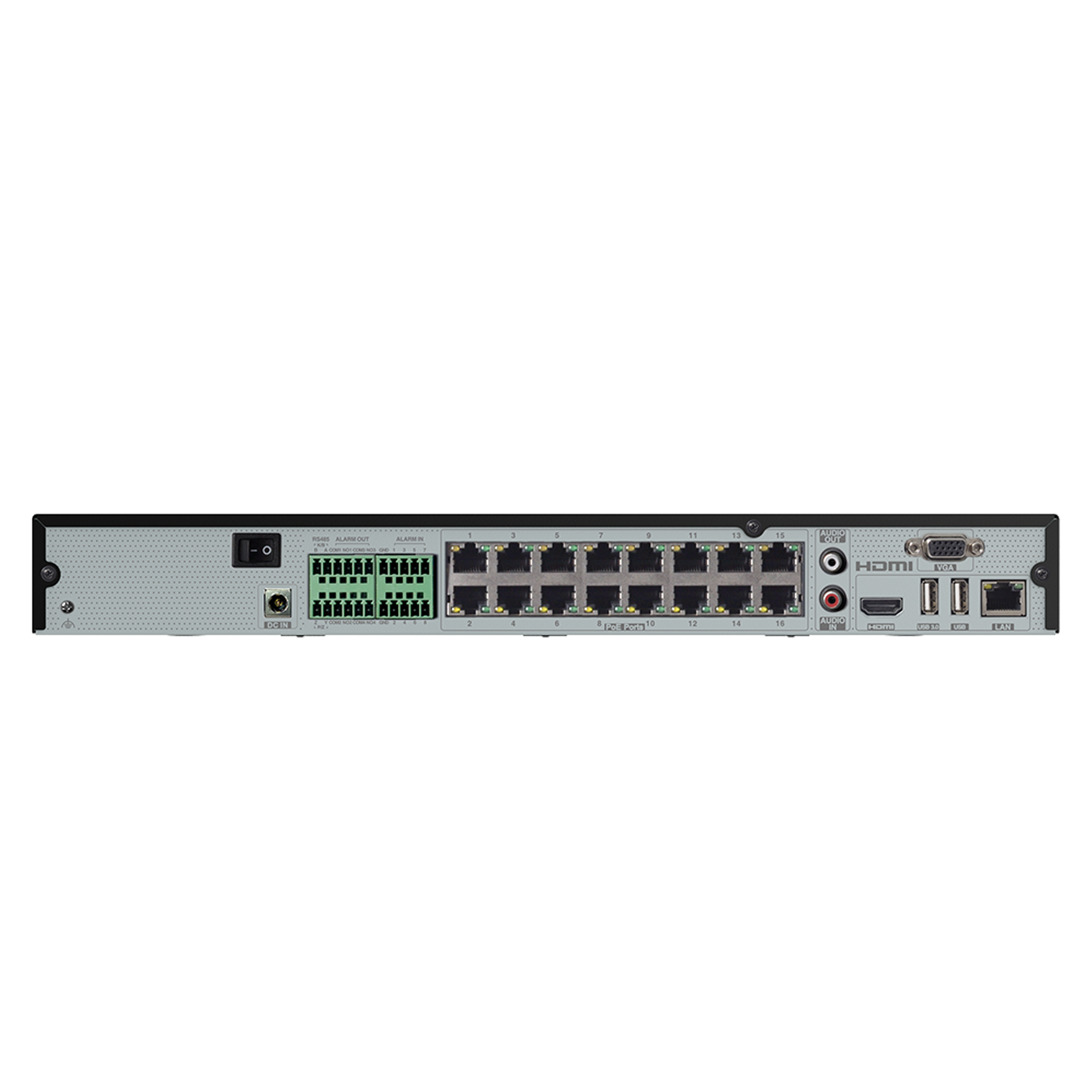

Speco - N16NRX24TB - 16 Channel Facial Recognition Recorder with Smart Analytics, 24TB
Part number:
Price:
Product Overview
Speco’s NDAA compliant NRX recorder enhances your security experience with advanced features including support for 16MP camera resolution at 30 fps, ensuring crisp and clear footage. It offers significant storage efficiency with H.265 compression, along with smart analytics such as facial recognition and motion detection for enhanced surveillance.
Key Configuration
Model: N16NRX24TB
Key Features
- • Real time recording up to 16MP resolution (8K) at 30fps.
- • H.265 compression 'Store up to 2x more than H.264.
- • 4K HDMI out and one VGA monitor output.
- • Facial Recognition and Comparison.
- • Object and line crossing detection and alerts.
Installation Notes
380mm x 268mm x 45mm (15.0” x 10.6” x 2.0”)
| Full Specifications | |
| Model | Speco N16NRX24TB |
| Channel Capacity | 16 Channels |
| Storage Capacity | 24TB |
| Recording Resolution | Up to 16MP (8K) |
| Frame Rate | 30 FPS |
| Compression Type | H.265 |
| HDMI Output | 4K HDMI |
| VGA Output | 1 VGA output |
| Smart Analytics | Facial Recognition, Object Detection, Line Crossing Detection |
| Remote Viewing | Web Browser, Mobile Devices |
| Export Method | USB |
| Included Accessories | Remote Control, Rack Ears (N16NRX only) |
| Video | |
| Max. IP Channels | 16 |
| IP Camera | H.265/H.264 auto detection (max. 16MP) |
| Main Monitor | HDMI (max. 4K) and VGA (max. full HD) |
| Audio | |
| Network Input | 16-CH IPC audio input |
| Local Input | RCAx1 |
| Local Output | RCAx1 |
| Recording | |
| Resolutions | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P |
| Codec | H.264/H.265 (auto detection) |
| Max Frame Rate per Channel | 16MP @ 30fps |
| Recording Mode | Analytics/continuous/motion/sensor/schedule/manual |
| Pre-Recording Max. | 5 seconds |
| Post Recording Max. | 10 minutes |
| Search & Playback | |
| Search | EZ search, motion, specific date/time, event, museum, bookmarks, snapshots, log |
| Simultaneous Playback | Max. 16-CH |
| Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Playback Functions | Play, pause, fast forward, rewind, digital zoom, etc. |
| Backup | |
| Media | USB drive, network |
| Format | MP4, JPG, AVI, proprietary format (player included) |
| Storage | |
| Max Capacity of each HDD | 40TB |
| Internal SATA ports | 2 |
| USB Front | 1 (USB 2.0) |
| USB Rear | 1 USB 2.0 1 USB 3.0 |
| Alarm | |
| Mode | Manual, sensor, motion, exception, intelligence |
| Input | 8-CH local |
| Output | 4-CH local |
| Linkage | Record/snapshot/preset/email/pop-up window |
| Network | |
| Network Bandwidth | 192Mbps |
| P2P/Dynamic DNS | Free US-Based Speco P2P and DDNS service |
| Network Protocols | TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP |
| Mobile | iOS®/Android™ via Speco Blue App, SecureGuard® Client |
| Web Viewer | Google Chrome®, Microsoft Edge®, Firefox®, Safari® |
| VMS/CMS | Speco Blue VMS, SecureGuard® |
| Max. User Access | Max 10 users online (web client) |
| Features | |
| Digital Zoom | Live and playback, free size |
| Fisheye Dewraping* | Yes |
| S.M.A.R.T (Self-Monitoring, Analysis & Reporting Technology) | Temperature, power on time, bad sectors, and health |
| People/Vehicle Detection | Line crossing and intrusion |
| Facial Recognition | Face search up to 8-CH (N8NRX) and up to 16-CH (N16NRX) |
| LPR | 16-CH |
| Power | |
| Power Consumption | ≤ 15W (without HDD) |
| PoE Ports | 16 |
| Power per PoE Port Max (802.3at) | 30W |
| Total PoE Power Budget (802.3af/at) | 150W |
| Environment | |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C ) |
| Operating Humidity | 10% ~ 90% humidity |
| Dimensions Unit | 380mm x 268mm x 45mm (15.0" x 10.6" x 2.0") |
Name
Description
Size
Downloads
File
Quick Installation Guide
1.8mb
File
Specification Sheet
1mb
File
User Manual
4.7mb
