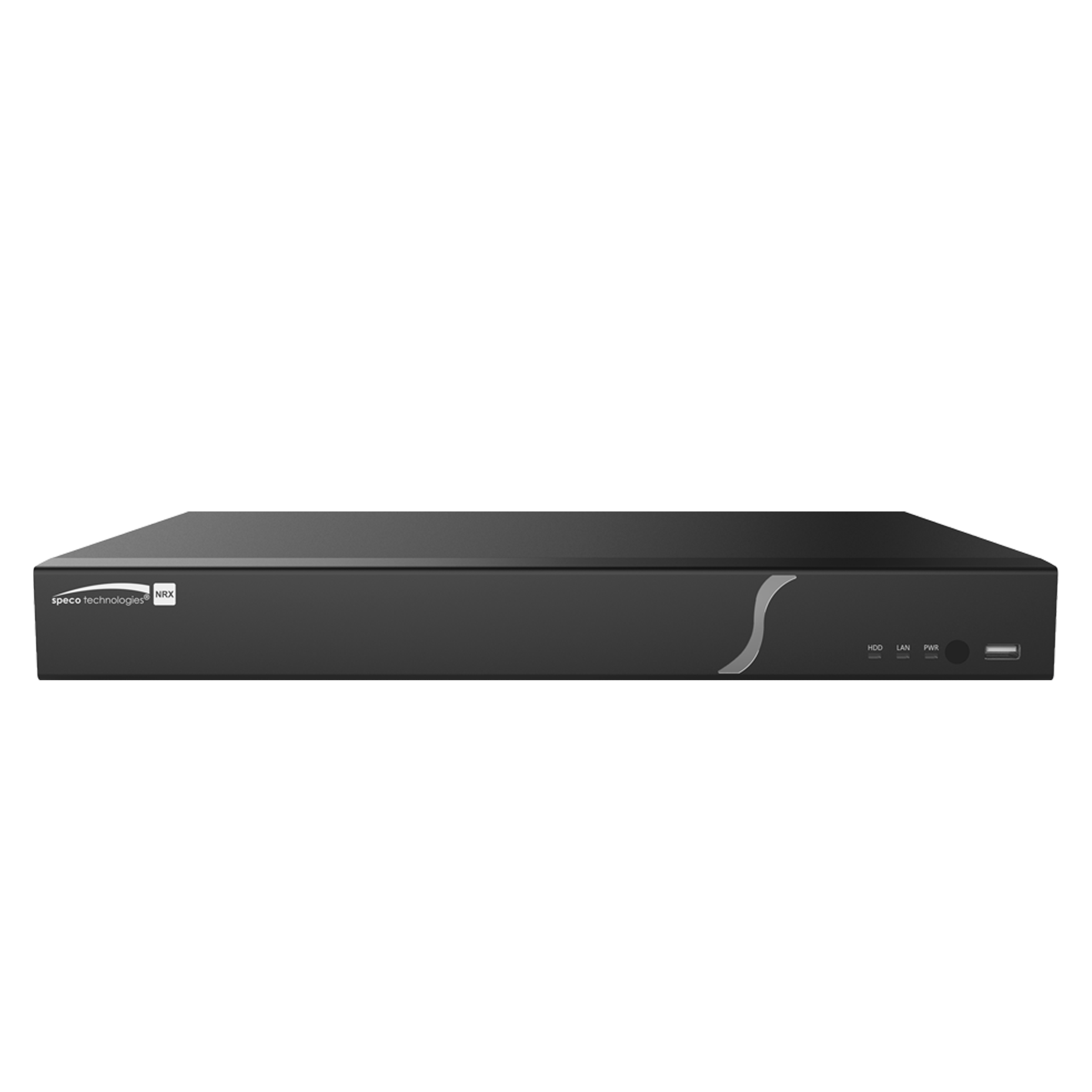

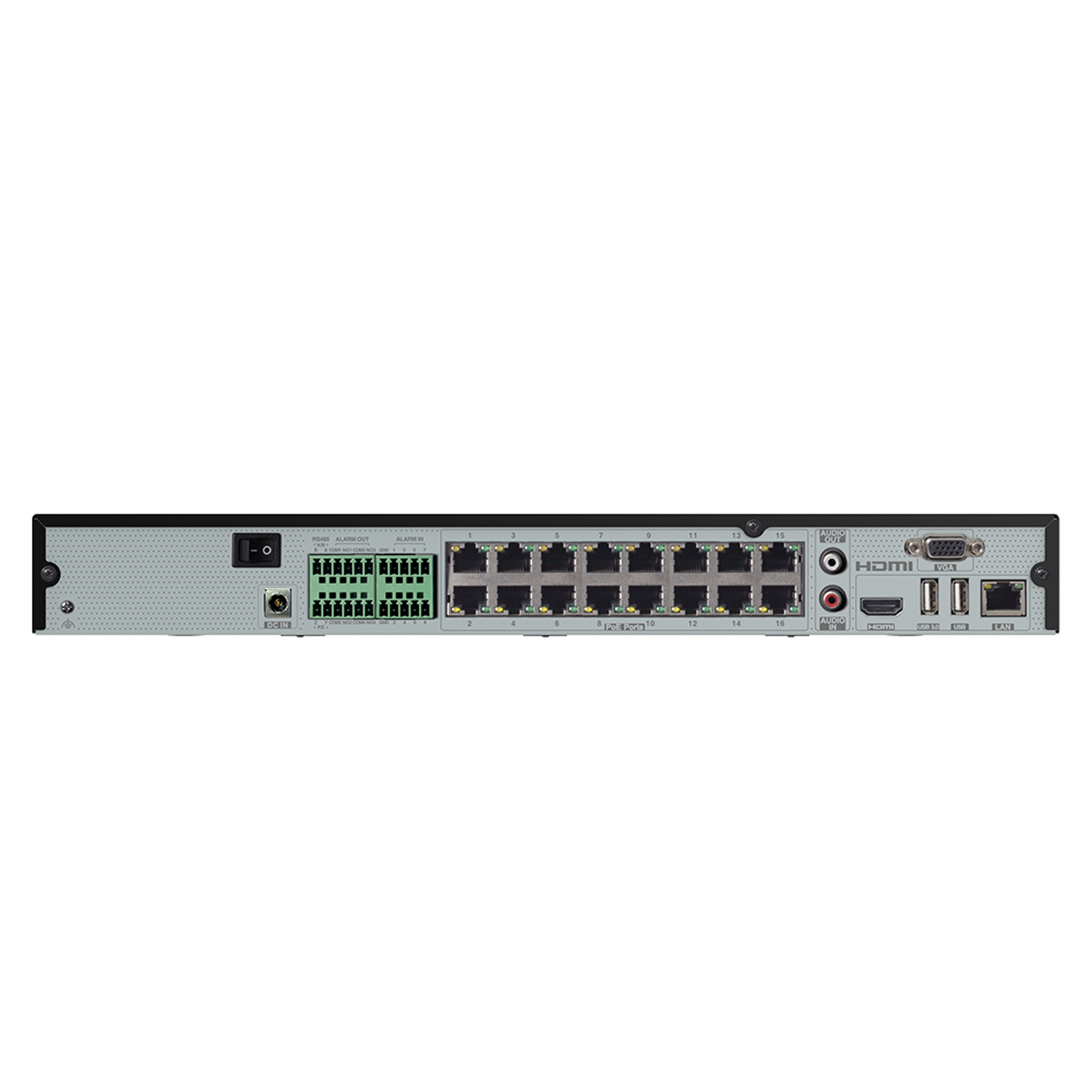

Speco - N16NRX4TB - 16 Channel Facial Recognition Recorder with Smart Analytics, 4TB
Part number:
Price:
Product Overview
Speco’s NDAA compliant NRX recorder allows you to elevate your footage quality significantly, supporting up to 16MP cameras at 30 fps. This advanced system brings smart analytics, including facial recognition and smart search capabilities, all while offering extensive recording time thanks to H.265 compression.
Key Configuration
Model: N16NRX4TB
Key Features
- • Real time recording up to 16MP resolution (8K) at 30fps.
- • H.265 compression ′ 'Store up to 2x more than H.264.
- • 4K HDMI out and one VGA monitor output.
- • Facial Recognition and Comparison.
- • Object and line crossing detection and alerts.
Installation Notes
380mm x 268mm x 45mm (15.0” x 10.6” x 2.0”)
| Full Specifications | |
| Model | Speco N16NRX4TB |
| Camera Support | Up to 16MP at 30fps |
| Compression Format | H.265 |
| Output Options | 4K HDMI, VGA |
| Analytics Features | Facial recognition, object detection, alert notifications |
| Smart Search Capability | Customizable region search |
| Remote Access | Web browser, mobile device |
| Export Method | USB |
| Included Accessories | Remote control, rack ears (N16NRX only) |
| Network Service | Free US-based DDNS and P2P |
| Storage Capacity | 4TB |
| Video | |
| Max. IP Channels | 16 |
| IP Camera | H.265/H.264 auto detection (max. 16MP) |
| Main Monitor | HDMI (max. 4K) and VGA (max. full HD) |
| Audio | |
| Network Input | 16-CH IPC audio input |
| Local Input | RCAx1 |
| Local Output | RCAx1 |
| Recording | |
| Resolutions | 16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080P/960P/720P |
| Codec | H.264/H.265 (auto detection) |
| Max Frame Rate per Channel | 16MP @ 30fps |
| Recording Mode | Analytics/continuous/motion/sensor/schedule/manual |
| Pre-Recording Max. | 5 seconds |
| Post Recording Max. | 10 minutes |
| Search & Playback | |
| Search | EZ search, motion, specific date/time, event, museum, bookmarks, snapshots, log |
| Simultaneous Playback | Max. 16-CH |
| Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Playback Functions | Play, pause, fast forward, rewind, digital zoom, etc. |
| Backup | |
| Media | USB drive, network |
| Format | MP4, JPG, AVI, proprietary format (player included) |
| Storage | |
| Max Capacity of each HDD | 40TB |
| Internal SATA ports | 2 |
| USB Front | 1 (USB 2.0) |
| USB Rear | 1 USB 2.0 1 USB 3.0 |
| Alarm | |
| Mode | Manual, sensor, motion, exception, intelligence |
| Input | 8-CH local |
| Output | 4-CH local |
| Linkage | Record/snapshot/preset/email/pop-up window |
| Network | |
| Network Bandwidth | 192Mbps |
| P2P/Dynamic DNS | Free US-Based Speco P2P and DDNS service |
| Network Protocols | TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP |
| Mobile | iOS®/Android™ via Speco Blue App, SecureGuard® Client |
| Web Viewer | Google Chrome®, Microsoft Edge®, Firefox®, Safari® |
| VMS/CMS | Speco Blue VMS, SecureGuard® |
| Max. User Access | Max 10 users online (web client) |
| Features | |
| Digital Zoom | Live and playback, free size |
| Fisheye Dewraping* | Yes |
| S.M.A.R.T (Self-Monitoring, Analysis & Reporting Technology) | Temperature, power on time, bad sectors, and health |
| People/Vehicle Detection | Line crossing and intrusion |
| Facial Recognition | Face search up to 8-CH (N8NRX) and up to 16-CH (N16NRX) |
| LPR | 16-CH |
| Power | |
| Power Consumption | ≤ 15W (without HDD) |
| PoE Ports | 16 |
| Power per PoE Port Max (802.3at) | 30W |
| Total PoE Power Budget (802.3af/at) | 150W |
| Environment | |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C ) |
| Operating Humidity | 10% ~ 90% humidity |
| Dimensions Unit | 380mm x 268mm x 45mm (15.0" x 10.6" x 2.0") |
