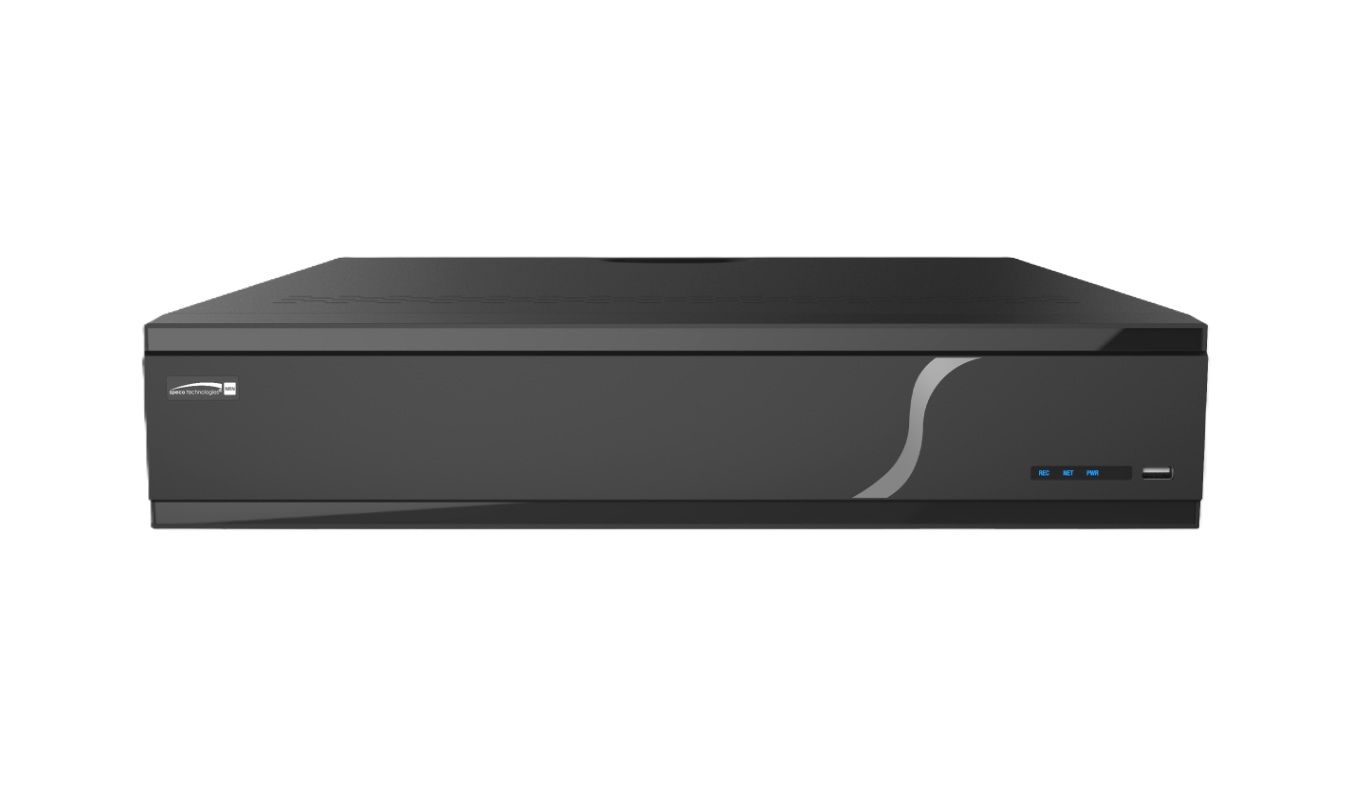

Speco - N32NRN40TB - 32 Channel 4K H.265 NVR - NDAA Compliant with 40TB HDD
Part number:
Price:
Product Overview
Introducing the Speco N32NRN40TB 32 Channel 4K H.265 NVR, designed for seamless integration with Speco Technologies analytic cameras, offering advanced features without extra costs. Experience rapid setup, intelligent analytics, remote viewing capabilities, and robust recording options, all while ensuring compliance with NDAA regulations.
Key Configuration
Model: N32NRN40TB
Key Features
- • Supports different recording types: Continuous, Motion, Analytics, and Sensor.
- • Create bookmark pins on playback for easy reference.
- • Instant playback for individual channels directly from the live view screen.
- • Customizable channel view placement.
- • Remote monitoring, recording, playback, configuration, upgrades, and PTZ control via the internet.
Installation Notes
17.2”(w) x 17.1”(d) x 3.54”(h)
| Specifications | |
| NDAA | Compliant |
| IP Channels | 32 Channels |
| Harddrive Size | 40TB |
| Protocols | speco Protocols, ONVIF Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, HD Resolution, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF |
| Compression | H.264, H.265 |
| Operating temperature | 50°F ~ 122°F (10°C ~ 50°C) |
| Dimensions | 17.2”(w) x 17.1”(d) x 3.54”(h) |
| SATA | SATA × 8, max 12TB per HDD; e-SATA × 1 |
| USB | USB 2.0 x2, USB 3.0 x1 |
| Frame Rate/Camera | 30fps |
| Compression Supported | Yes |
| HD Resolution | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| Details | |
| Storage | 40TB HDD |
| Audio Support | 2-way audio communication |
| EZ Copy | Effortlessly copy recordings to a USB flash drive for convenient sharing. |
| Easy Video Exporting | Streamlined export process via USB, making it easy to retrieve important footage. |
| Technical Specifications NVR Video Recorder | |
| Model | N32NRN |
| Video Input Max. IP Channels | 32 |
| Video Input IP Camera | H.264/H.265 Auto Detection (Max. 8MP) |
| Video Output Main Monitor | HDMI (Max. 4K) and VGA (Max. Full HD) |
| Video Output VGA | VGA |
| Audio Network Input | 32 Ch. audio input |
| Audio 2-way Audio | RCAx1 |
| Audio Local Output | RCAx1 |
| Recording Encoding Resolutions | 12MP/8MP/5MP/4MP/3MP/1080P/720P |
| Recording Codec | H.264/H.265 (Auto Detection) |
| Recording Max Frame Rate per Channel | 12MP 20fps/8MP or lower @30fps |
| Recording Recording Mode | Analytics/Continuous/Motion/Sensor/Schedule/Manual |
| Recording Pre-Recording | Max. 5 seconds |
| Recording Post Recording | Max. 10 minutes |
| Search & Playback Search | EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log |
| Search & Playback Simultaneous Playback | Max. 16 Ch. |
| Search & Playback Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Search & Playback Playback Functions | Play, Pause, FF, Rew, Digital Zoom, etc. |
| Backup Media | USB drive, Network |
| Backup Format | JPG, AVI, Proprietary Format (Includes Player) |
| Storage HDD Max Capacity of each HDD | 20TB |
| Storage HDD Internal SATA ports | 8 |
| Storage USB Front | 1 USB 2.0 |
| Storage USB Rear | 1 USB 2.0, 1 USB 3.0 |
| Alarm Mode | Manual, Sensor, Motion, Exception, AI |
| Alarm Input/Output | 16ch local inputs, 9ch output |
| Alarm Linkage | Record/Snapshot/Preset/Email/Pop-up Window |
| User I/F Input Method | IR Remote, Mouse |
| Network Network Bandwidth | 320Mbps |
| Network P2P/Dynamic DNS | Free US-Based Speco P2P and DDNS Service |
| Network Network Protocols | TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP |
| Network Access Mobile | iOS/Android via Speco Blue App, SecureGuard Client |
| Network Access VMS/CMS | Speco Blue VMS, SecureGuard |
| Network Access Max. User Access | Max 10 users online (web client) |
| Features Digital Zoom | Live and Playback, Free Size |
| Features Fisheye Dewraping | Yes (Web client and mobile app) |
| Features S.M.A.R.T (Self-Monitoring, Analysis Temperature & Reporting Technology) | Temperature, Power On Time, Bad Sectors and Health |
| Smart Analytics People / Vehicle Detection | Line Crossing, Intrusion, People Counting |
| Smart Analytics Facial Recognition | Store up to 10,000 face images Up to 6CH for event Face Search up to 32CH |
| Smart Analytics LPR | LPR on all 32CH, store up to 50,000 License Plate images |
| Smart Analytics Others | Object abandoned/missing, trip wire |
| Power Power Consumption | ≤ 30W (without HDD) |
| Environment Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Environment Operating Humidity | 10% - 90% humidity |
