Speco - N32NRN60TB - 4K 32 Channel NDAA Compliant NVR with Smart Analytics
Product Overview
The NRN Family, in conjunction with specific Speco Technologies analytic cameras, offers a suite of intelligent analytics at no extra charge and no licensing: Human and Vehicle Detection, license plate detection and recognition, object left behind/removed, scene tampering alerts, target counting, line crossing and intrusion alerts, Digital Deterrent and 2-way audio, and Smart Search.
Key Configuration
Model: N32NRN60TB | Resolution/Capacity: Up to 8MP (4K) @ 30fps, up to 12MP @ 20fps; 60TB installed | Storage/Channels: 32 channels; 8 SATA ports supporting up to 20TB per port | Connectivity: 4K HDMI and VGA output, free US-based DDNS and P2P, web and mobile remote viewing, PTZ control | Protection: NDAA Section 889 Part B compliant; 5-year limited warranty
Key Features
- • Human and Vehicle Detection — eliminates false motion alarms.
- • License plate detection and recognition.
- • Object left behind and object removed.
- • Scene tampering alerts.
- • Target counting to help enforce population limits.
Technical Context
H.265 encoding stores roughly twice the footage of H.264 for the same drive capacity, which is what makes long retention practical across 32 channels at 4K. The analytics suite runs in conjunction with Speco analytic cameras and is licensed at no extra charge: human and vehicle detection removes the false motion alarms that foliage and weather generate, while licence plate recognition, object left behind or removed, scene tampering, target counting, and line crossing and intrusion alerts each raise events that Smart Search can then query by region of the camera view.
Installation Notes
The recorder provides 8 SATA ports accepting up to 20TB per port; this variant ships with 60TB installed, and the same chassis is offered from 4TB to 160TB. Hard drives are excluded from the 5-year limited warranty. Setup is handled through the EZ wizard suite covering camera, setup, network, record, search, copy and mobile configuration.
| System | |
| Recording Resolution | Up to 8MP (4K) @ 30fps; up to 12MP @ 20fps |
| Compression | H.265 |
| Channels | 32 |
| Software Suite | EZ Camera; EZ Setup; EZ Network; EZ Record; EZ Search 2.0; EZ Copy; EZ Mobile |
| Storage | |
| Installed Capacity | 60TB |
| Storage Interface | 8 SATA ports, up to 20TB per port |
| Available Capacities | 4TB, 6TB, 8TB, 12TB, 16TB, 20TB, 24TB, 32TB, 40TB, 60TB, 64TB, 80TB, 96TB, 100TB, 120TB, 128TB, 140TB, 160TB |
| Max Capacity of each HDD | 20TB |
| Internal SATA ports | 8 |
| Interface | |

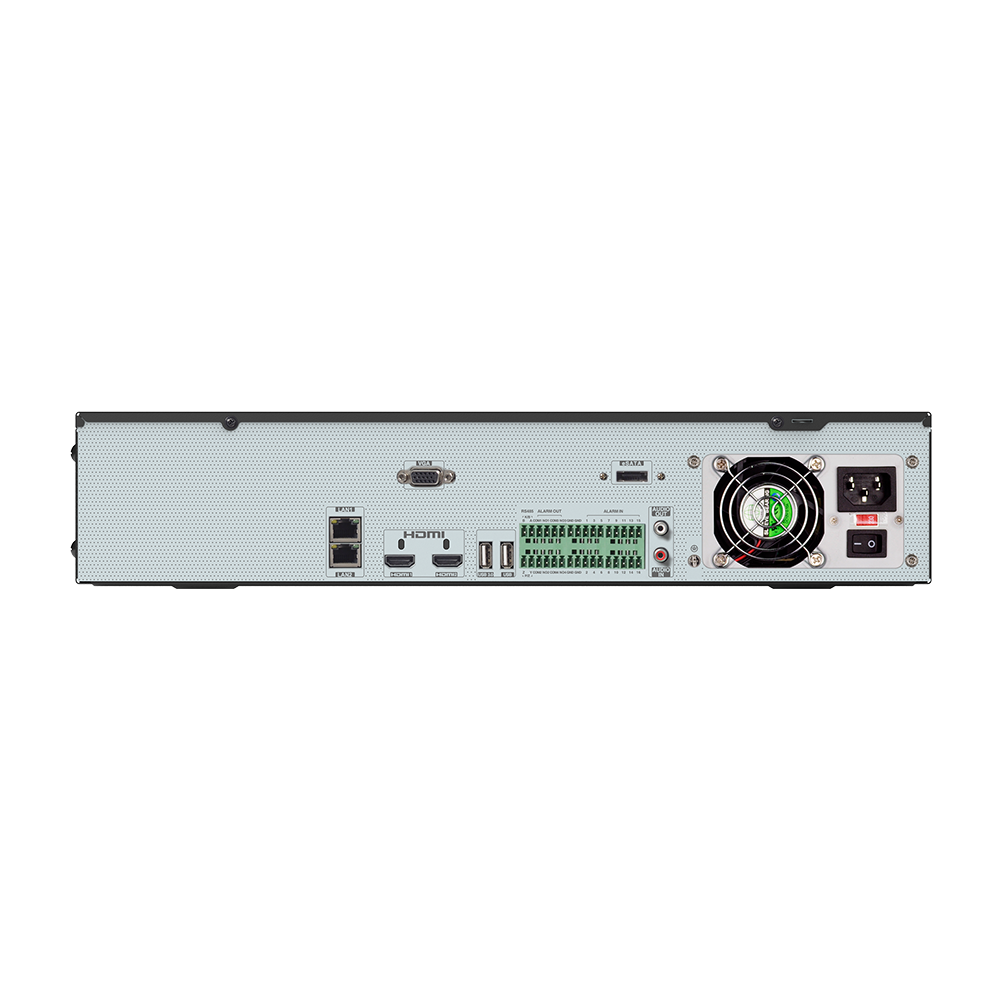

| Video Output | 4K HDMI out; 1 x VGA monitor output |
| Network | |
| Remote Access | Free US-based DDNS and P2P; web and mobile remote viewing |
| Camera Control | PTZ control |
| Network Bandwidth | 320Mbps |
| P2P/Dynamic DNS | Free US-Based Speco P2P and DDNS Service |
| Network Protocols | TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP |
| General | |
| Warranty | 5-year limited |
| Video | |
| Max. IP Channels | 32 |
| IP Camera | H.264/H.265 Auto Detection (Max. 8MP) |
| Output | |
| Main Monitor | HDMI (Max. 4K) and VGA (Max. Full HD) |
| VGA | VGA |
| Audio | |
| Network Input | 32 Ch. audio input |
| 2-way Audio | RCAx1 |
| Local Output | RCAx1 |
| Recording | |
| Encoding Resolutions | 12MP/8MP/5MP/4MP/3MP/1080P/720P |
| Codec | H.264/H.265 (Auto Detection) |
| Max Frame Rate per Channel | 12MP 20fps/8MP or lower @30fps |
| Recording Mode | Analytics/Continuous/Motion/Sensor/Schedule/Manual |
| Pre-Recording | Max. 5 seconds |
| Post Recording | Max. 10 minutes |
| Search & Playback | |
| Search | EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log |
| Simultaneous Playback | Max. 16 Ch. |
| Smart Search | Highlighted color to display camera records in certain period; different colors refer to different record events |
| Playback Functions | Play, Pause, FF, Rew, Digital Zoom, etc. |
| Backup | |
| Media | USB drive, Network |
| Format | JPG, AVI, Proprietary Format (Includes Player) |
| USB | |
| Front | 1 USB 2.0 |
| Rear | 1 USB 2.0, 1 USB 3.0 |
| Alarm | |
| Mode | Manual, Sensor, Motion, Exception, AI |
| Input/Output | 16ch local inputs, 9ch output |
| Linkage | Record/Snapshot/Preset/Email/Pop-up Window |
| User I/F | |
| Input Method | IR Remote, Mouse |
| Network Access | |
| Mobile | iOS/Android via Speco Blue App, SecureGuard® Client |
| VMS/CMS | Speco Blue VMS, SecureGuard® |
| Max. User Access | Max 10 users online (web client) |
| Features | |
| Digital Zoom | Live and Playback, Free Size |
| Fisheye Dewraping | Yes (Web client and mobile app) |
| S.M.A.R.T | Temperature, Power On Time, Bad Sectors and Health |
| Smart Analytics | |
| People / Vehicle Detection | Line Crossing, Intrusion, People Counting |
| Facial Recognition | Store up to 10,000 face images; Up to 6CH for event; Face Search up to 32CH |
| LPR | LPR on all 32CH, store up to 50,000 License Plate images |
| Others | Object abandoned/missing, trip wire |
| Power | |
| Power Consumption | ≤ 30W (without HDD) |
| Environment | |
| Operating Humidity | 10% ~ 90% humidity |
| Dimensions | |
| Unit | 445mm x 436mm x 90mm (2u) (17.5" x 17.2" x 3.5") |
| Hard drives are excluded from the 5-year limited warranty. | |
| Certifications | |
| Compliance | NDAA Section 889 Part B compliant |
| Physical | |
| Dimensions | 445 x 436 x 90 mm (2U) (17.5" x 17.2" x 3.5") |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Physical measurements are published in the N32NRN Specification Sheet, not on the product page. | |
