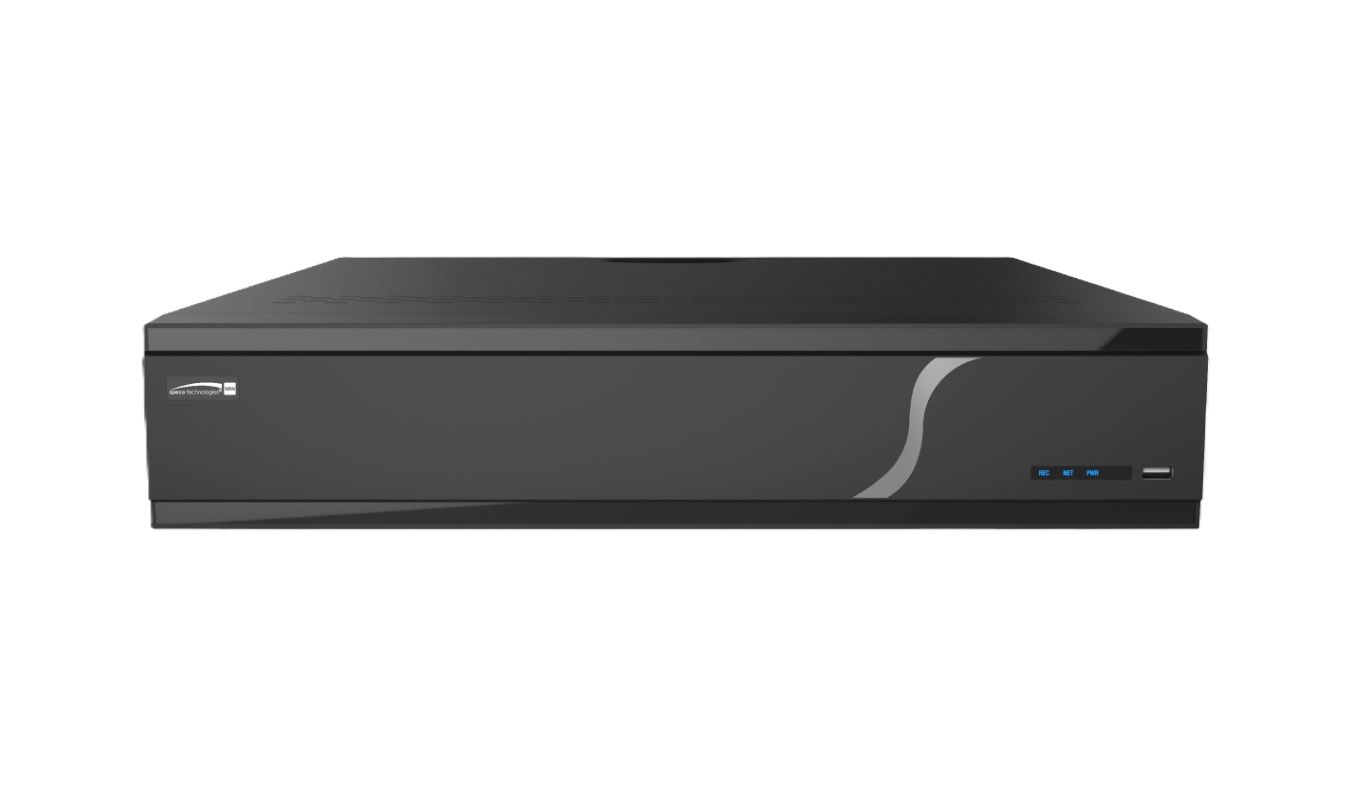

Speco - N32NRN6TB - 32 Channel 4K H.265 NVR - NDAA Compliant with 6TB HDD
Part number:
Price:
Product Overview
The Speco N32NRN6TB 32 Channel 4K H.265 NVR is a powerful and versatile network video recorder designed for intelligent video surveillance. With NDAA compliance and a generous 6TB HDD, this NVR allows users to manage up to 32 channels of high-resolution video seamlessly, featuring a range of EZ setup tools for quick installation and user-friendly operation.
Key Configuration
Model: N32NRN6TB
Key Features
- • Supports different recording types: Continuous, Motion, Analytics, and Sensor.
- • Create bookmark pins on playback for easy reference.
- • Instant playback for individual channels directly from the live view screen.
- • Customizable channel view placement.
- • Remote monitoring, recording, playback, configuration, upgrades, and PTZ control via the internet.
Installation Notes
17.2”(w) x 17.1”(d) x 3.54”(h)
| Specifications | |
| NDAA | Compliant |
| IP Channels | 32 Channels |
| Harddrive Size | 6TB |
| Protocols | speco Protocols, ONVIF Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, HD Resolution, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
| Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/1280×1024/960P/ 720P/960H/D1/CIF |
| Compression | H.264 , H.265 |
| Operating temperature | 50°F ~ 122°F (10°C ~ 50°C) |
| Dimensions | 17.2”(w) x 17.1”(d) x 3.54”(h) |
| SATA | SATA × 8, max 12TB per HDD; e-SATA × 1 |
| USB | USB 2.0 x2, USB 3.0 x1 |
| Frame Rate/Camera | 30fps |
| Compression Supported | Yes |
| HD Resolution | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| Details | |
| Product Type | 32 Channel NVR |
| Video Resolution | 4K |
| Storage Capacity | 6TB HDD |
| Channel Support | Up to 32 Channels |
| Audio Support | 2-way audio communication |
| Connectivity | Ethernet, USB |
| EZ Copy | Facilitates easy copying of video files to USB flash drives for simple archival. |
| Free US-based DDNS | Includes DDNS and P2P services at no additional cost. |
| Easy Video Exporting | Allows hassle-free video exporting via USB for sharing and backups. |
| Technical Specification | |
| Model | N32NRN |
| Video Input Max. IP Channels | 32 |
| Video Input IP Camera | H.264/H.265 Auto Detection (Max. 8MP) |
| Video Output Main Monitor | HDMI (Max. 4K) and VGA (Max. Full HD) |
| Video Output VGA | VGA |
| Audio Network Input | 32 Ch. audio input |
| Audio 2-way Audio | RCAx1 |
| Audio Local Output | RCAx1 |
| Recording Encoding Resolutions | 12MP/8MP/5MP/4MP/3MP/1080P/720P |
| Recording Codec | H.264/H.265 (Auto Detection) |
| Recording Max Frame Rate per Channel | 12MP 20fps/8MP or lower @30fps |
| Recording Recording Mode | Analytics/Continuous/Motion/Sensor/Schedule/Manual |
| Recording Pre-Recording | Max. 5 seconds |
| Recording Post Recording | Max. 10 minutes |
| Search & Playback Search | EZ Search, Motion, Specific Date/Time, Event, Museum, Bookmarks, Snapshots, Log |
| Search & Playback Simultaneous Playback | Max. 16 Ch. |
| Search & Playback Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Search & Playback Playback Functions | Play, Pause, FF, Rew, Digital Zoom, etc. |
| Backup Media | USB drive, Network |
| Backup Format | JPG, AVI, Proprietary Format (Includes Player) |
| Storage HDD Max Capacity of each HDD | 20TB |
| Storage HDD Internal SATA ports | 8 |
| Storage USB Front | 1 USB 2.0 |
| Storage USB Rear | 1 USB 2.0, 1 USB 3.0 |
| Alarm Mode | Manual, Sensor, Motion, Exception, AI |
| Alarm Input/Output | 16ch local inputs, 9ch output |
| Alarm Linkage | Record/Snapshot/Preset/Email/Pop-up Window |
| User I/F Input Method | IR Remote, Mouse |
| Network Network Bandwidth | 320Mbps |
| Network P2P/Dynamic DNS | Free US-Based Speco P2P and DDNS Service |
| Network Network Protocols | TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP |
| Network Access Mobile | iOS/Android via Speco Blue App, SecureGuard* Client |
| Network Access VMS/CMS | Speco Blue VMS, SecureGuard* |
| Network Access Max. User Access | Max 10 users online (web client) |
| Features Digital Zoom | Live and Playback, Free Size |
| Features Fisheye Dewraping* | Yes (Web client and mobile app) |
| Features S.M.A.R.T (Self-Monitoring, Analysis Temperature & Reporting Technology) | Temperature, Power On Time, Bad Sectors and Health |
| Smart Analytics People / Vehicle Detection | Line Crossing, Intrusion, People Counting |
| Smart Analytics Facial Recognition | Store up to 10,000 face images Up to 6CH for event Face Search up to 32CH |
| Smart Analytics LPR | LPR on all 32CH, store up to 50,000 License Plate images |
| Smart Analytics Others | Object abandoned/missing, trip wire |
| Power Power Consumption | ≤ 30W (without HDD) |
| Environment Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
| Environment Operating Humidity | 10% - 90% humidity |
