Speco - N32WNRN24TB - 32Ch 4K H.265 NVR Wall Mount with Analytics & Facial Recognition 24TB

Part number:
Price:

Product Overview

The Speco N32WNRN24TB is a state-of-the-art 32 channel NVR designed for high-performance surveillance. With its advanced facial recognition technology and smart analytics, this NDAA compliant system offers exceptional video quality and reliability. Dual LAN ports enhance network management while ensuring efficient traffic handling, making it an ideal choice for both commercial and residential applications.



Key Configuration

Model: N32WNRN24TB



Key Features

  • • Two LAN Ports to help isolate camera traffic from the main network.
  • • Real-time recording up to 12MP resolution (4K) at 20fps and 8MP resolution at 30fps.
  • • H.265 compression—Store up to 2x more than H.264.
  • • 2 HDMI out and one VGA monitor output.
  • • 4 SATA ports for up to 20TB of storage per SATA for a maximum of 80TB.



Installation Notes

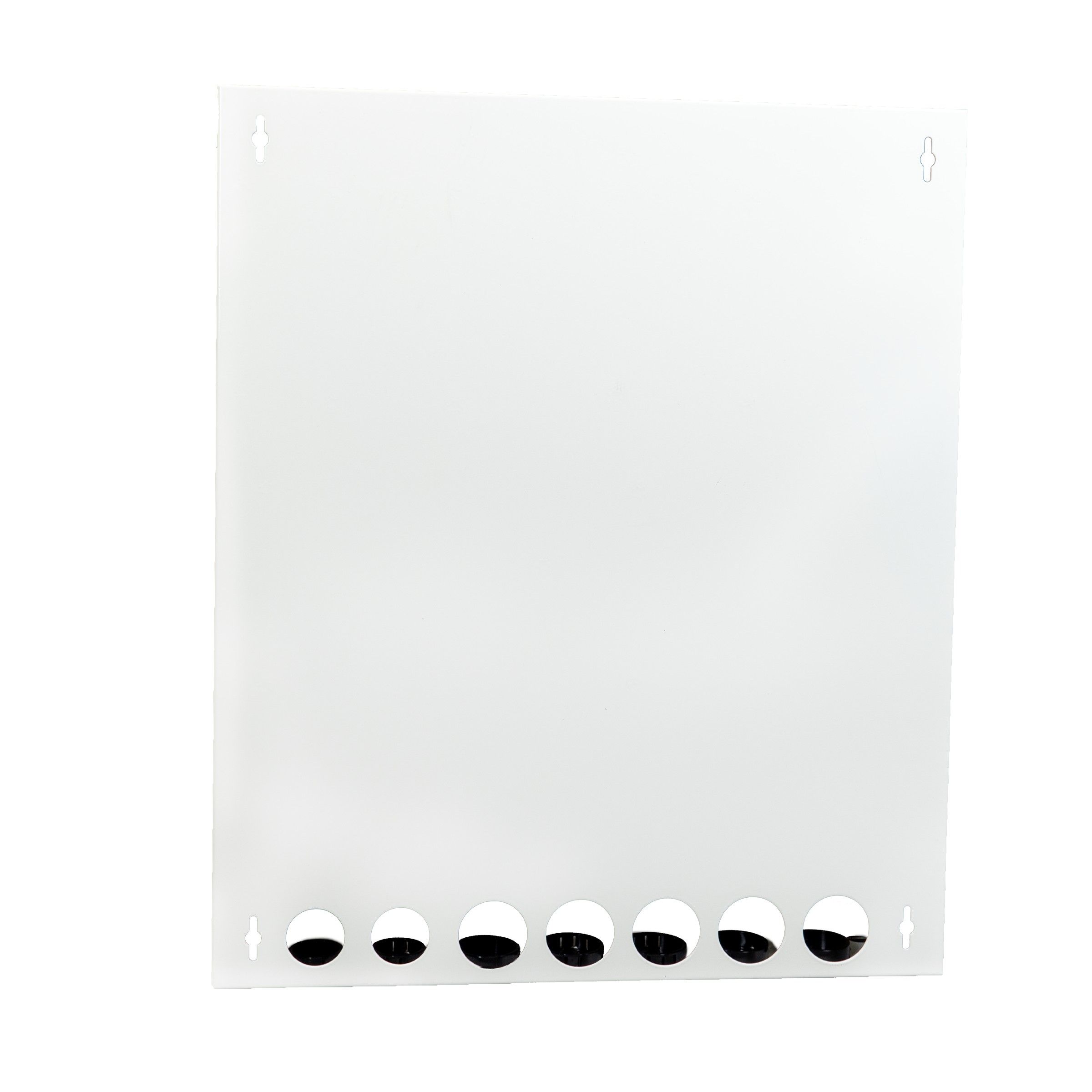

489mm x 413mm x 89mm (19.25” x 16.25” x 3.5”)

Full Specifications
ModelSpeco N32WNRN24TB
Channels32
Resolution12MP (4K) at 20fps, 8MP at 30fps
Compression FormatH.265
Storage CapacityUp to 80TB (4 SATA ports, 20TB each)
Network Ports2
Video Outputs2 HDMI, 1 VGA
RAID Levels Supported0, 1, 5, 6, 10
Smart Analytics FeaturesFacial Recognition, Object Detection, Line Crossing Alerts
Remote AccessWeb browser, mobile device
Included AccessoriesRemote Control
Power Consumption60W
Input Voltage100-240V AC
Frequency50/60Hz
Capacity24TB
Name
Description
Size
Downloads
File
Specification
1mb
File
Quick Installation Guide
1.1mb
File
User Manual
4.7mb
