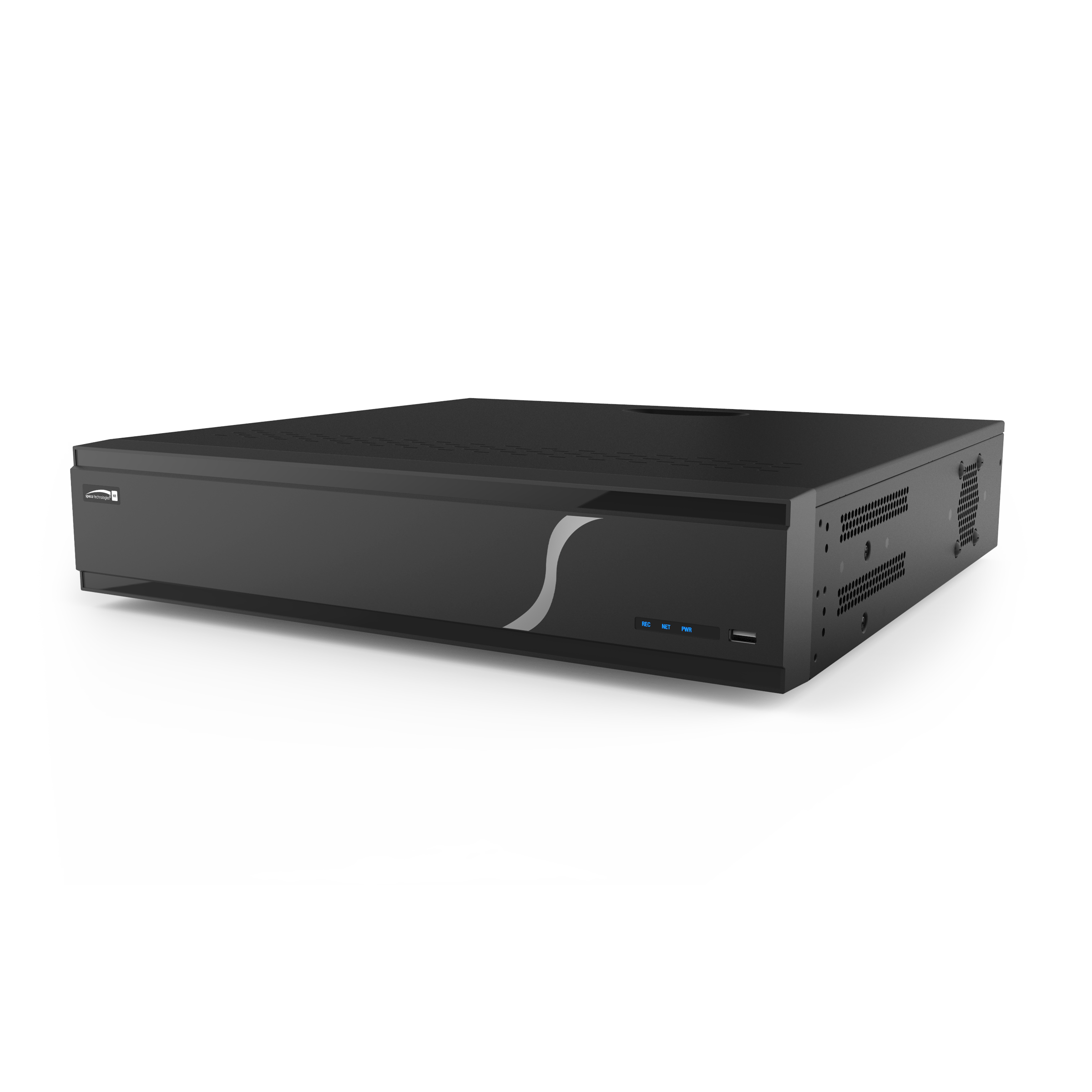

Speco - N64NR20TB - 64 Channel 4K H.265 Network Video Recorder with Smart Analytics, 20TB
Part number:
Price:
Product Overview
The N64NR20TB from Speco is a 64 Channel 4K H.265 Network Video Recorder with Smart Analytics and a whopping 20TB storage capacity, designed to provide high-quality video management and analytics for security needs. It supports advanced features like real-time recording at 30fps, H.265 compression for efficient storage, easy remote access, and flexible installation options, making it an ideal choice for both residential and commercial surveillance applications.
Key Configuration
Model: N64NR20TB
Key Features
- • Real-time Recording: Captures video up to 8MP resolution (4K) at 30fps for sharp, clear footage.
- • H.265 Compression: Store up to 2x more than H.264, maximizing your storage capacity without compromising quality.
- • Multiple Outputs: 4K HDMI and VGA monitor outputs allow for versatility in display options.
- • Extensive Storage: 8 SATA ports support up to 112TB of total storage, ensuring plenty of room for recordings.
- • Smart Analytics: Features like object and line crossing detection enhance security monitoring capabilities.
Installation Notes
430mm x 453mm x 89mm (16.9" x 17.8" x 3.5")
| Specifications | |
| IP Channels | 64 Channels |
| Harddrive Size | 20TB |
| Protocols | Onvif Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.265 Compression, Supports PTZ Control, Supports the Full HD Output (HDMI), Two-way Audio |
| Resolution | 8MP/5MP/4MP/3MP/1080P/720P |
| Compression | H.265 |
| Bandwidth | 320Mbps |
| Operating temperature | -4°F ~ 122°F(-10°C ~ 50°C) |
| Dimensions | 430mm x 453mm x 89mm (16.9" x 17.8" x 3.5") |
| SATA | 8 |
| USB | Front 1 (USB 2.0), Rear 2 USBs: 1 USB 2.0, 1 USB 3.0 |
| Audio | 2-Way Audio |
| Frame Rate/Camera | Any Resolution @30fps |
| Compression Supported | Yes |
| Alarm Notification by E-mail | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| Two Way Audio | Yes |
| Supports PTZ Control | Yes |
| H.265 Compression | Yes |
| Details | |
| Video Resolution | Up to 8MP (4K) at 30fps |
| Storage Capacity | 20TB (Expandable up to 112TB) |
| Outputs | 1 x 4K HDMI, 1 x VGA |
| eSATA Ports | 2 |
| Network Protocols | DDNS, P2P |
| Audio Support | 2-way audio (speaker required) |
| Camera Compatibility | ONVIF Profile S compliant |
| Real-time Recording | Captures video up to 8MP resolution (4K) at 30fps for sharp, clear footage. |
| Multiple Outputs | 4K HDMI and VGA monitor outputs allow for versatility in display options. |
| Extensive Storage | 8 SATA ports support up to 112TB of total storage, ensuring plenty of room for recordings. |
| Easy Video Export | Export video footage easily via USB for sharing or archiving. |
| Simultaneous Outputs | Supports both HDMI and VGA video output for multi-display setups. |
| ONVIF Compatibility | Works with a majority of ONVIF Profile S compliant cameras, providing flexibility in system configuration. |
| Technical Specifications Video Recorder | |
| Model | NR Series |
| Video Input Max. IP Channels | 64 |
| Video Input IP Camera | H.264/H.265 auto detection (max. 16MP) |
| Video Output Resolutions | HDMI 1: 7680x4320 @ 60, 7680x4320 @ 30, 3840x2160 @ 60, 3840x2160 @ 30, 1920x1080, 1280x1024, 1024x768 (when the resolution of HDMI 1 output is 8K, HDMI 2 is unavailable and the maximum resolution of HDMI 3 output is 1920x1080) HDMI 2: 3840x2160 @ 60, 3840x2160 @ 30, 1920x1080, 1280x1024, 1024x768 HDMI 3: 3840x2160 @ 60, 3840x2160 @ 30, 1920x1080, 1280x1024, 1024x768 HDMI 4: 1920x1080, 1280x1024, 1024x768 |
| Video Output Max. Live View Channels | HDMI 1: 64 HDMI 2: 36 HDMI 3: 16 HDMI 4: 16 |
| Audio Network Input | 64-CH IPC audio input |
| Audio 2-way Audio | RCAx1 |
| Audio Local Output | RCAx1 |
| Recording Encoding Resolutions | 16MP/12MP/8MP/5MP/4MP/3MP/1080P/720P/960H/D1/CIF |
| Recording Codec | H.264/H.265 (auto detection) |
| Recording Recording Mode | AI/continuous/motion/sensor/schedule/manual |
| Search & Playback Search | EZ search, motion, specific date/time, event, museum, bookmarks, snapshots, log |
| Search & Playback Simultaneous Playback | Max 16-CH |
| Search & Playback Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Backup Media | USB drive, USB portable HDD, network |
| Backup Format | JPG, AVI, ZIP (player+proprietary data) |
| Storage HDD Max Capacity of each HDD | 20TB |
| Storage HDD Internal SATA ports | 8 |
| Storage USB Front | 1 (USB 2.0) |
| Storage USB Rear | 2 USBs: 1 USB 2.0, 1 USB 3.0 |
| Storage Raid Type | RAID 0, 1, 5, 6, 10 |
| Storage eSata | 2 |
| Alarm Mode | Manual, sensor, motion, exception, AI |
| Alarm Input | 16-CH local |
| Alarm Output | 4-CH local |
| Alarm Linkage | Record/snapshot/preset/email/pop-up window |
| User I/F Input Method | IR remote, mouse |
| Network Network Bandwidth | 640Mbps |
| Network P2P/Dynamic DNS | Free US-based Speco P2P and DDNS service |
| Network Dual Network Card | Yes |
| Network LAN 1 | Recorder: RJ45 10/100/1000Mbps |
| Network LAN 2 | Cameras: RJ45 10/100/1000Mbps |
| Network Access Mobile | iOS*/Android™ via Speco Blue App, SecureGuard® Client |
| Network Access Web Viewer | Google Chrome*, Microsoft Edge*, Safari*, FireFox*, Windows® IE |
| Network Access VMS | SecureGuard®, Speco Blue VMS |
| Network Access Max. User Access | Max. 128 users online (web client) |
| Features Digital Zoom | Live and playback, free size |
| Features Fisheye Dewarping* | Yes |
| Features S.M.A.R.T (Self-Monitoring, Analysis & Reporting Technology) | Temperature, power on time, bad sectors and health |
| Smart Analytics People / Vehicle Detection | Line crossing, intrusion, people counting |
| Smart Analytics Facial Recognition | Store up to 10,000 face images; up to 16-CH for event trigger; face Search up to 64-CH |
| Smart Analytics LPR | LPR on all 64-CH, store up to 50,000 license plate images |
| Smart Analytics Others | Object abandoned/missing, trip wire |
| Power Power Consumption | ≤ 50W (without HDD) |
| Environment Operating Temperature | 14°F to 122°F (-10°C to 50°C) |
