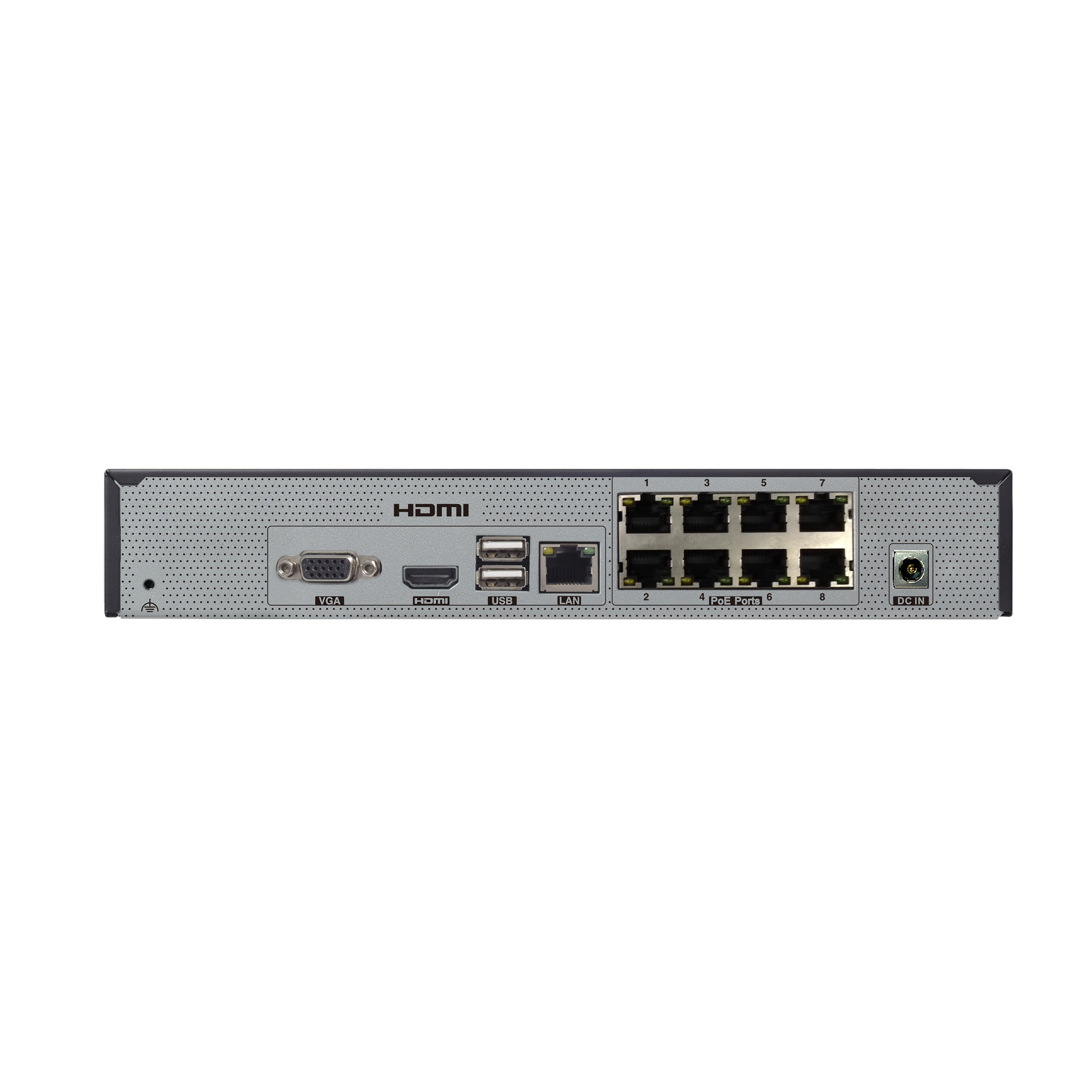

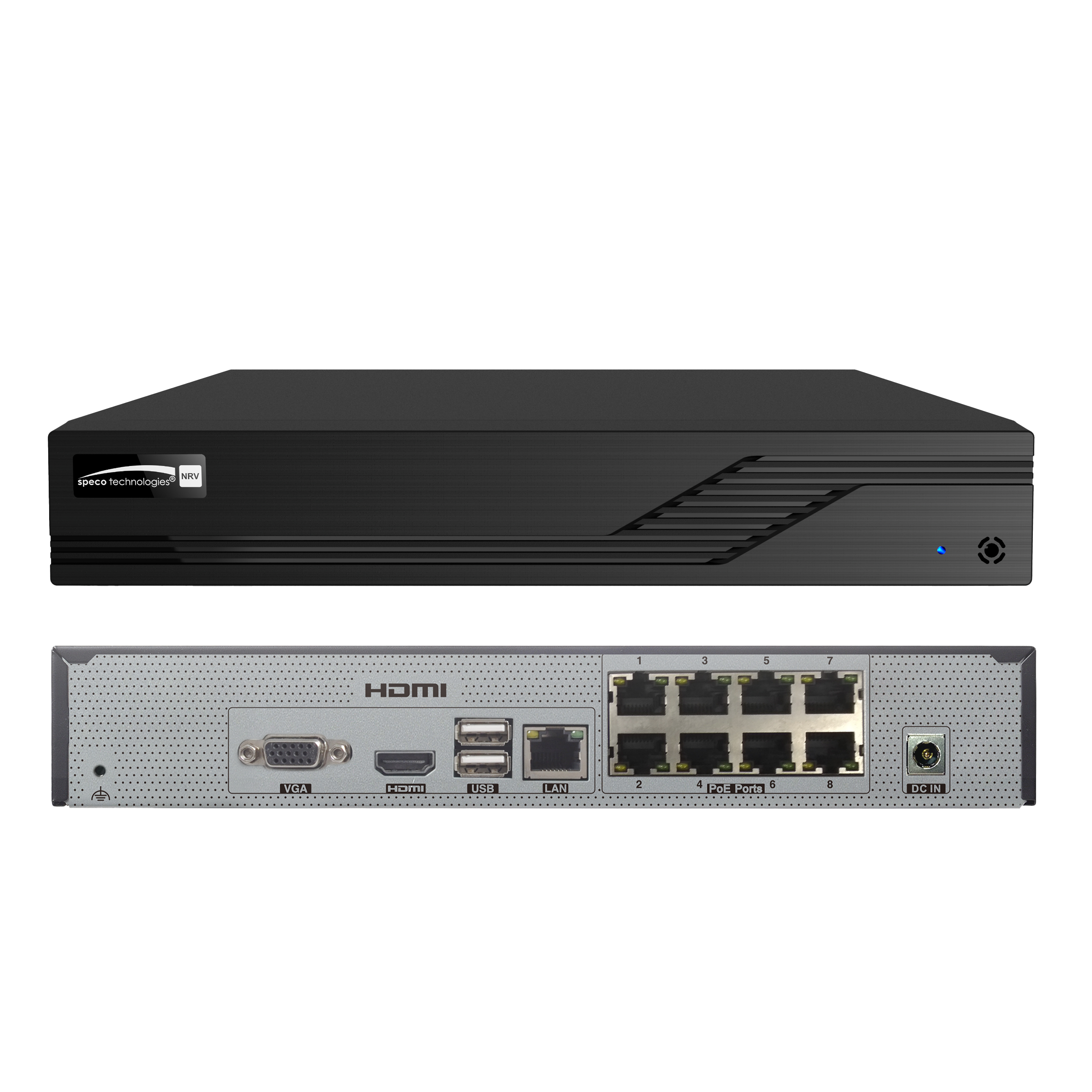

Speco - N8NRV10TB - 8 Channel Network Video Recorder with 8 Built-In PoE Ports, 10TB
Part number:
Price:
Product Overview
The N8NRV10TB from Speco is a 8 channel network video recorder with 8 built-in PoE ports, 10TB. Speco’s NDAA compliant NRV recorders, will take your footage quality supporting up to 8MP cameras @ 30 fps.
Key Configuration
Model: N8NRV10TB
Key Features
- • Real time recording up to 8MP resolution (4K) @ 30fps.
- • H.265 compression – Store up to 2x more than H.264!.
- • 4K HDMI output and one VGA monitor output.
- • N8NRV: 1 SATA port for up to 10TB of storage.
- • Line crossing detection.
Installation Notes
255mm x 222mm x 42mm
| Specifications | |
| IP Channels | 8 Channels |
| Harddrive Size | 10TB |
| Protocols | speco Protocols |
| Features | Alarm Notification by E-mail, Audio, Compression Supported, DDNS Functionality, H.264 Compression, H.265 Compression, Supports the Full HD Output (HDMI), Facial Recognition |
| Resolution | 8MP/6MP/4MP/3MP/1080P/720P/960H/DI/CIF |
| Compression | H.264/H.265 auto detection (max. 8MP) |
| Bandwidth | 64Mbps |
| Operating temperature | 14°F to 122°F (-10°C to 50°C ) |
| Dimensions | 255mm x 222mm x 42mm |
| Voltage | Power per PoE Port Max (802.3at) 30W |
| Power Consumption | ≤ 10W (without HDD) |
| SATA | 1 |
| USB | 2 (USB 2.0) |
| Post-alarm Recording | Max. 10 minutes |
| Pre-alarm Recording | Max. 5 seconds |
| Audio | 8-CH IPC |
| Compression Supported | Yes |
| Alarm Notification by E-mail | Yes |
| DDNS Functionality | Yes |
| Supports the Full HD Output (HDMI) | Yes |
| H.264 Compression | Yes |
| H.265 Compression | Yes |
| Details | |
| N8NRV | 1 SATA port for up to 10TB of storage |
| Specification Sheet | |
| Video Input IP Camera | H.264/H.265 auto detection (max. 8MP) |
| Video Output Main Monitor | HDMI (max. 4K) and VGA (max. Full HD) |
| Audio Network Input | 8-CH IPC |
| Recording Encoding Resolutions | 8MP/6MP/4MP/3MP/1080P/720P/960H/DI/CIF |
| Recording Codec | H.264/H.265 (auto detection) |
| Recording Max Frame Rate per Channel | 8MP @ 30fps |
| Recording Recording Mode | Analytics/continuous/motion/schedule/manual |
| Recording Pre-Recording | Max. 5 seconds |
| Search & Playback Search | EZ search, motion, specific date/time, event, museum, bookmarks, snapshots, log |
| Search & Playback Smart Search | Highlighted color to display camera records in a certain period of time, different colors refer to different record events |
| Search & Playback Playback Resolutions | 1 x 8MP @ 30 FPS, 4 x 1080P @ 30 FPS |
| Search & Playback Playback Functions | Play, pause, fast forward, rewind, digital zoom, etc. |
| Backup Media | USB drive, network |
| Backup Format | MP4, JPG, AVI, proprietary format (includes player) |
| Storage HDD Max Capacity of each HDD | 8-CH - 10TB |
| Storage HDD Internal SATA ports | 1 |
| Storage USB Rear | 2 (USB 2.0) |
| Alarm Mode | Manual, motion |
| Alarm Linkage | Record/snapshot/preset/email/pop-up window |
| User I/F Input Method | Mouse |
| Network Network Bandwidth | 64Mbps |
| Network P2P/Dynamic DNS | Free US-Based Speco P2P and DDNS service |
| Network Network Protocols | TCP/IP, PPPoE, DHCP, DNS, UPnP, NTP, SMTP |
| Network Access Mobile | iOS+/Android™ via Speco Blue App |
| Network Access Web Viewer | Google Chrome+, Microsoft Edge+, Firefox+ |
| Network Access VMS/CMS | Speco Blue VMS |
| Network Access Max. User Access | Max 64 users access |
| Features Digital Zoom | Live and playback, free size |
| Features S.M.A.R.T. | Temperature, power on time, bad sectors, and health |
| Smart Analytics (if supported by camera) People/vehicle detection, video metadata, LPR | 8 |
| Power PoE Ports | 8 |
| Power Power per PoE Port Max (802.3at) | 30W |
| Power Total PoE Power Budget (802.3af/at) | 72W |
| Environment Operating Humidity | 10% - 90% humidity |
