Speco - O12B1M - 12MP IP Bullet Camera with Advanced Analytics
Part number:
Price:
Product Overview

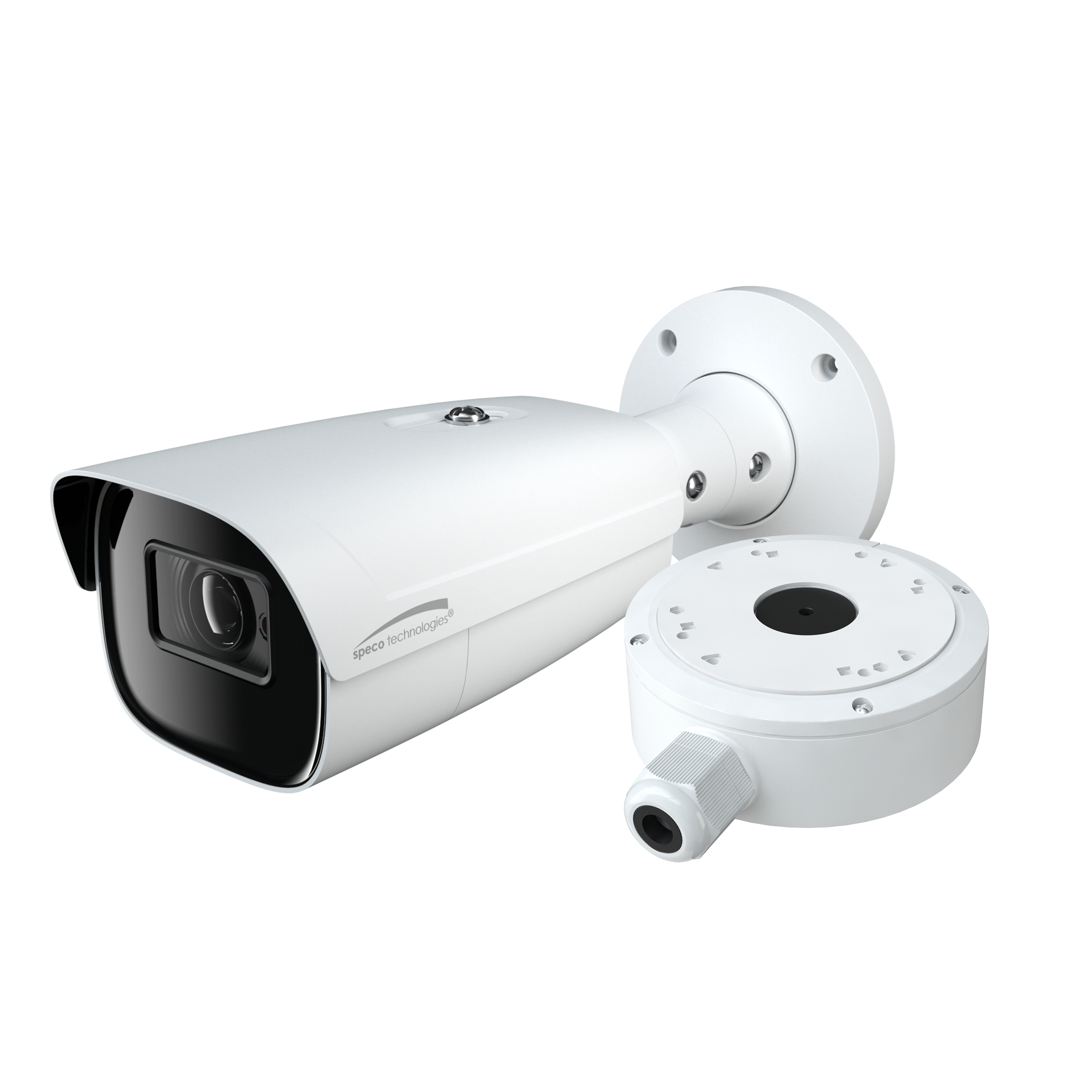

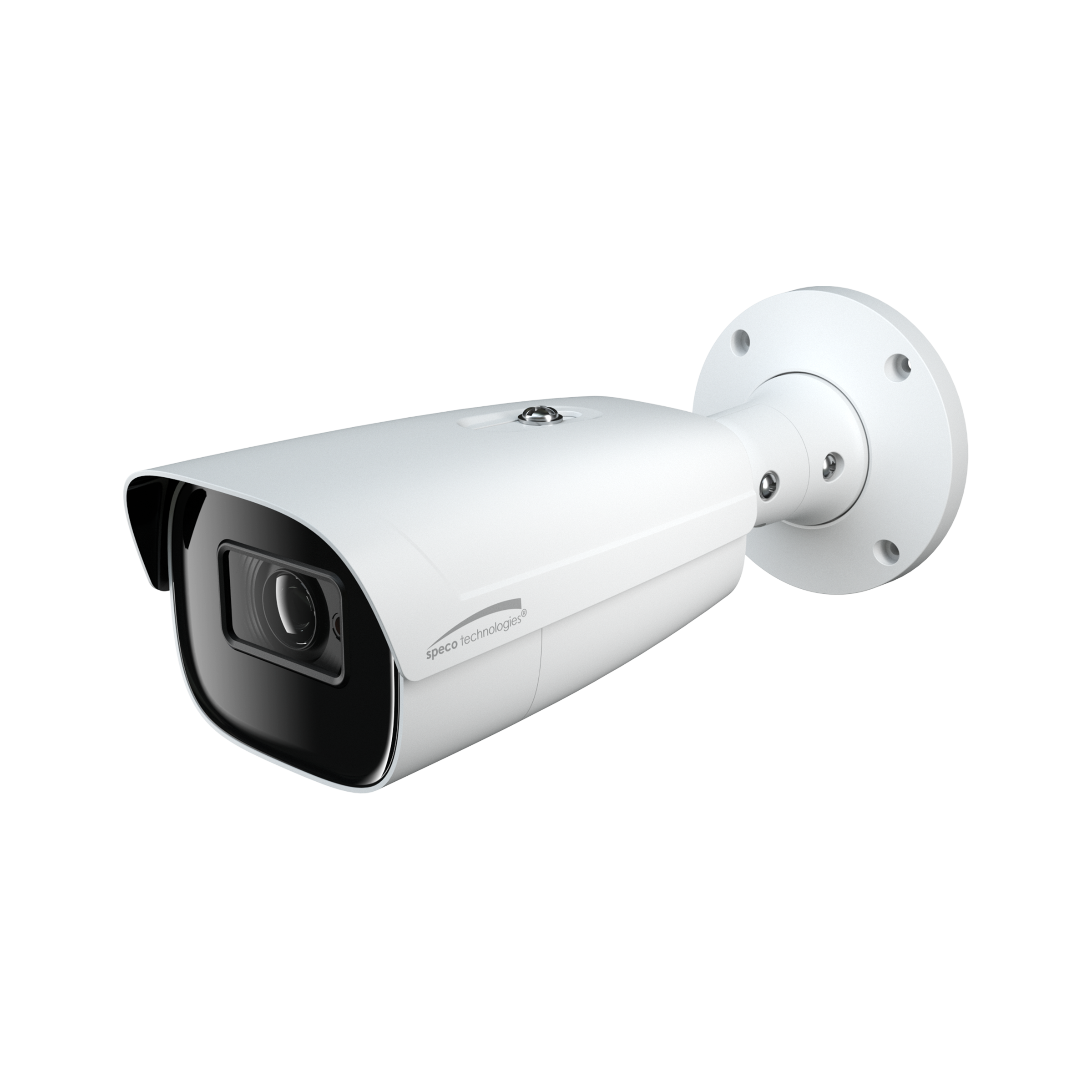

12MP IP Bullet Camera IP 2.8-12mm motorized lens, white housing
Key Configuration
Model: O12B1M
Key Features
- • Line crossing and people counting.
- • People and vehicle detection.
- • Tampering detection.
- • Intrusion alerts.
- • Object detection.
Installation Notes
10.95 (W) x 3.94 (D) x 3.49 (H)
| Camera Specifications | |
| Image Sensor | Progressive scan 1/1.7" CMOS, 6MP |
| Maximum Resolution | 4000 x 3000 |
| Field of View | 108° ~ 36°(H), 57° ~ 20°(V), 129° ~ 42°(D) |
| Minimum Illumination | 0.006 Lux @F1.4 0 Lux with IR |
| Day/Night | Smart IR |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Compensation | True WDR (120dB), BLC, HLC |
| Electronic Shutter Speed | 1/3 - 1/100000 sec. |
| DNR | 3D DNR |
| Video Specifications | |
| Main Resolution | 12MP (4000 x 3000), 8MP (3840 x 2160), 6MP (3200 x 1800), 4MP (2688 x 1520) |
| Sub Stream | 1080P(1920 x 1080), 720P (1280 x 720), D1, VGA (640 x 480), 640 x 360, CIF, 480 x 240 |
| Third Stream | D1/ CIF/ 480x240 @ 30 fps |
| Fourth Stream | D1/VGA/640 x 360/CIF/480 x 240 60Hz: 1 ~ 30fps |
| Fifth Stream | D1/VGA/640 x 360/CIF/480 x 240 60Hz: 1 ~ 30fps |
| Compression | H.265, H.264 (HP/MP/BP), MJPEG (substream only) |
| Video Settings | Region of interest, privacy masking, brightness, contrast, hue, saturation, denoise, antiflicker, day/night mode, infrared settings, exposure, gain, corridor pattern, image flip/mirror |
| Bitrate Control | VBR, CBR (64Kpbs to 16Mpbs) |
| Multiple Streaming | 5 streams |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 10 simultaneous users, actual number of users may vary depending on bandwidth |
| Interface | |
| Ethernet | 10/100 Mbps |
| Video | CVBS output (BNC x 1) |
| Power | DC jack |
| Microphone Input | Mono 3.5mm + Built-in mic |
| Audio Output | Mono 3.5mm |
| Card Slot | MicroSD, up to 512GB (not included) |
| Alarm | 1-CH alarm input, 1-CH alarm output |
| Reset | Yes |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion, exception, line crossing, region intrusion, object detection, vehicle/people detection, face detection, people/vehicle counting, loitering, tampering detection, and heat map |
| Alarm Triggers | Analytics, SD card error |
| Alarm Events | FTP upload, email upload |
| Image Settings | Watermark, IP address filtering, video mask, password protection |
| Client Specifications | |
| Web Browser Support | Google Chrome, Edge, Safari, Fire Fox, Windows (Internet Explorer 8 and up) |
| PC Application | Speco Blue VMS |
| Mobile | Speco Blue (iPhone® and Android™) |
| Operating & Unit Specifications | |
| Power Consumption | < 12W |
| Operating Temperature | -22°F ~ 140°F |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 10.95 (W) x 3.94 (D) x 3.49 (H) |
| Unit Weight | 2.29 lb. |
| Certifications | FCC |
| D.O.R.I (m) | |
| (wide) Detection (25px/m) | 86m (187 ft.) |
| (telephoto) Detection (25px/m) | 190m (374 ft.) |
| (wide) Observation (63px/m) | 34m (93 ft.) |
| (telephoto) Observation (63px/m) | 76m (169 ft.) |
| (wide) Recognition (125px/m) | 17m (63 ft.) |
| (telephoto) Recognition (125px/m) | 38m (100 ft.) |
| (wide) Identification (250px/m) | 9m (48 ft.) |
| (telephoto) Identification (250px/m) | 19m (66 ft.) |
