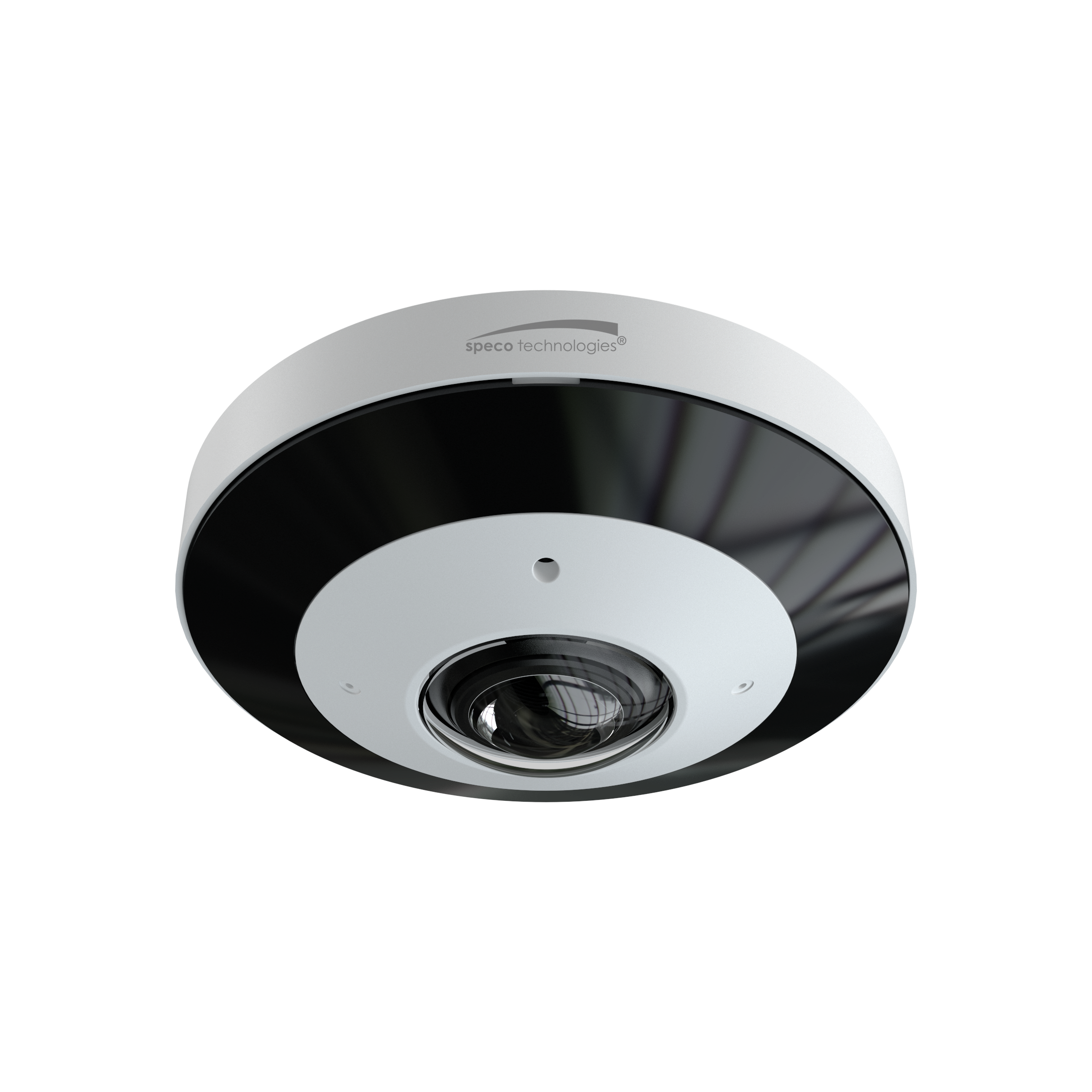

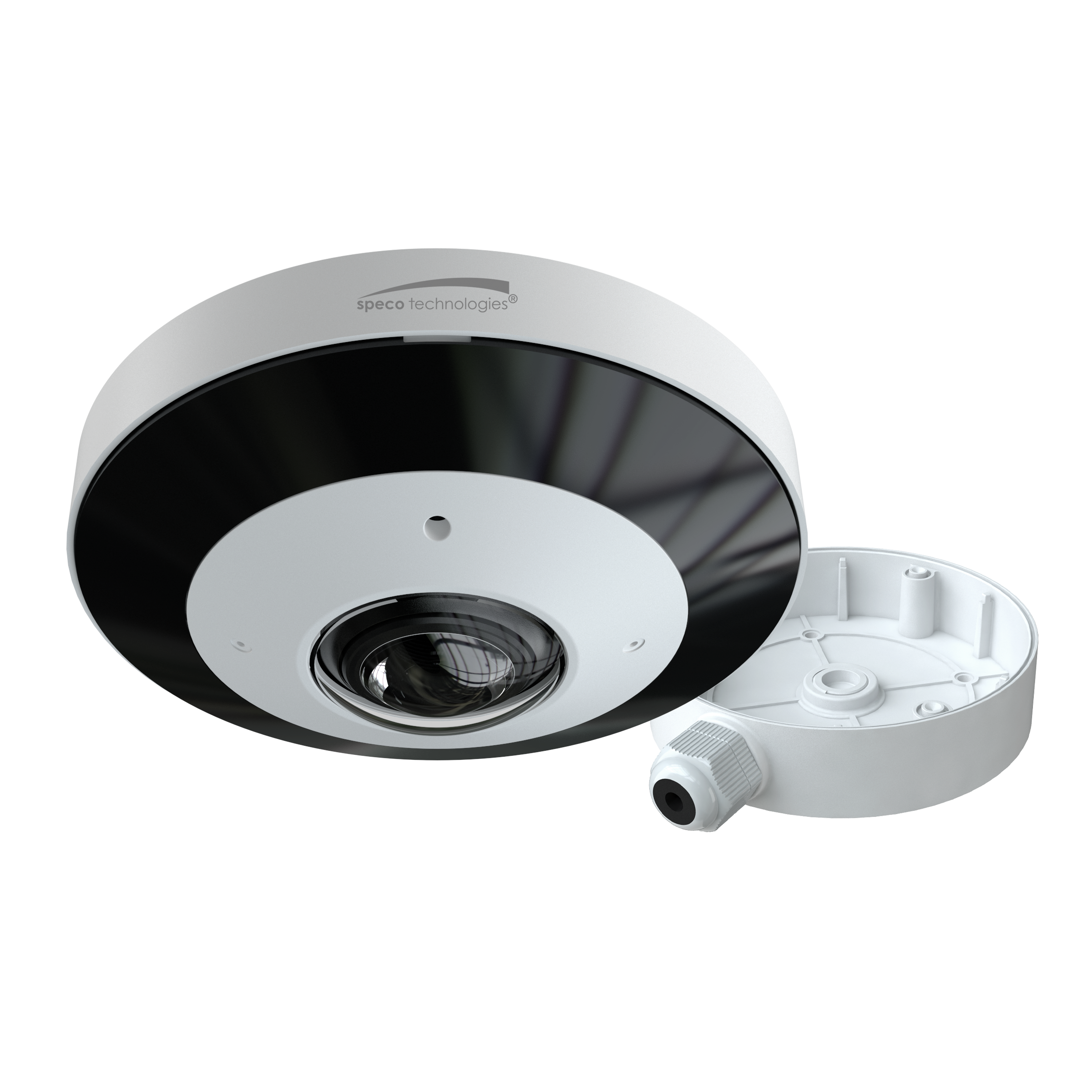

Speco - O12MDP4 - 12MP IP Indoor/Outdoor 360° Fisheye Camera with People and Vehicle Detection – Includes Junction Box

Product Overview

The Speco O12MDP4 is a 12MP indoor/outdoor network fisheye camera with a 1.65mm lens and included junction box. It provides 360° ceiling-mounted or 180° wall-mounted coverage, Smart IR night vision, people and vehicle detection, and IP67 weather-resistant protection.

Key Configuration

Model: O12MDP4 | Resolution: 12MP | Sensor: 1/1.7-inch progressive scan CMOS | Lens: 1.65mm fisheye | Field of view: 360° ceiling / 180° wall | Compression: H.265, H.264, MJPEG | Connectivity: IEEE 802.3af PoE and 12VDC | Storage: microSD up to 256GB | Protection: IP67 | Color: White

Key Features

• · 12MP fisheye network camera with 30fps support
• · 360° ceiling-mounted or 180° wall-mounted field of view
• · 1.65mm fisheye fixed lens
• · Selectable fisheye, panoramic, PTZ, and fusion viewing modes
• · Camera-side or recorder-side dewarping support
• · Smart IR illumination up to 100 feet, depending on scene reflection
• · People detection, vehicle detection, crowd density, and heat-map analytics
• · H.265, H.264, and MJPEG video compression
• · Built-in standard PoE with IEEE 802.3af support
• · MicroSD recording support up to 256GB
• · Two-way audio-ready design with built-in microphone support
• · IP67 weather-resistant housing with included junction box

Technical Context

The fisheye lens captures a hemispherical scene that can be dewarped into panoramic and PTZ-style views. Integrated people, vehicle, crowd-density, and heat-map analytics provide camera-based event information, while H.265 compression helps reduce bandwidth and storage requirements.

Installation Notes

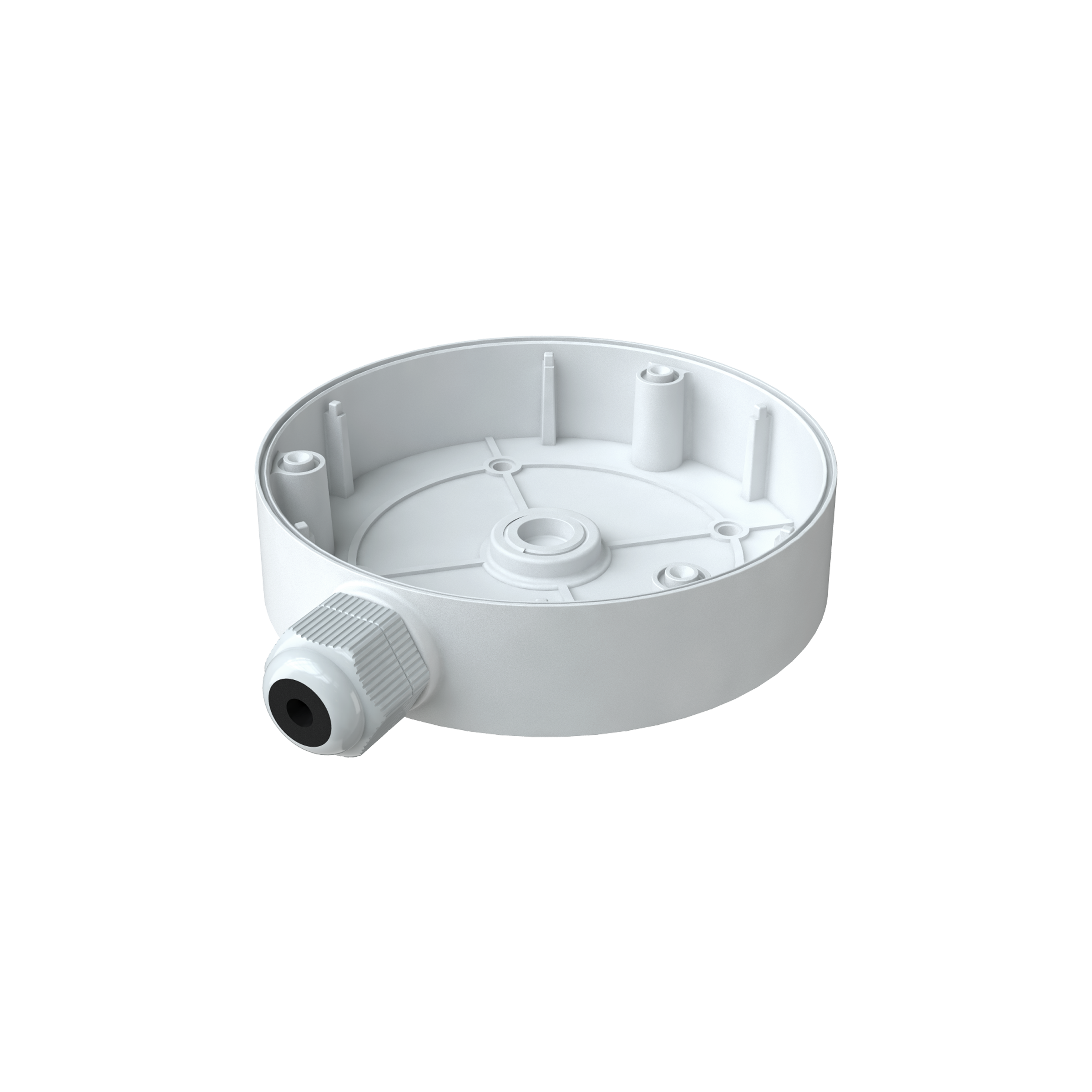

Mount the camera on a ceiling for 360° coverage or on a wall for 180° coverage. Connect it using IEEE 802.3af PoE or 12VDC power, install the included junction box, and add a compatible microSD card if local recording is required.
