Speco - O2562 - 2MP Discreet Ceiling Mounted Color Camera with Advanced Analytics IP Encoder
Product Overview

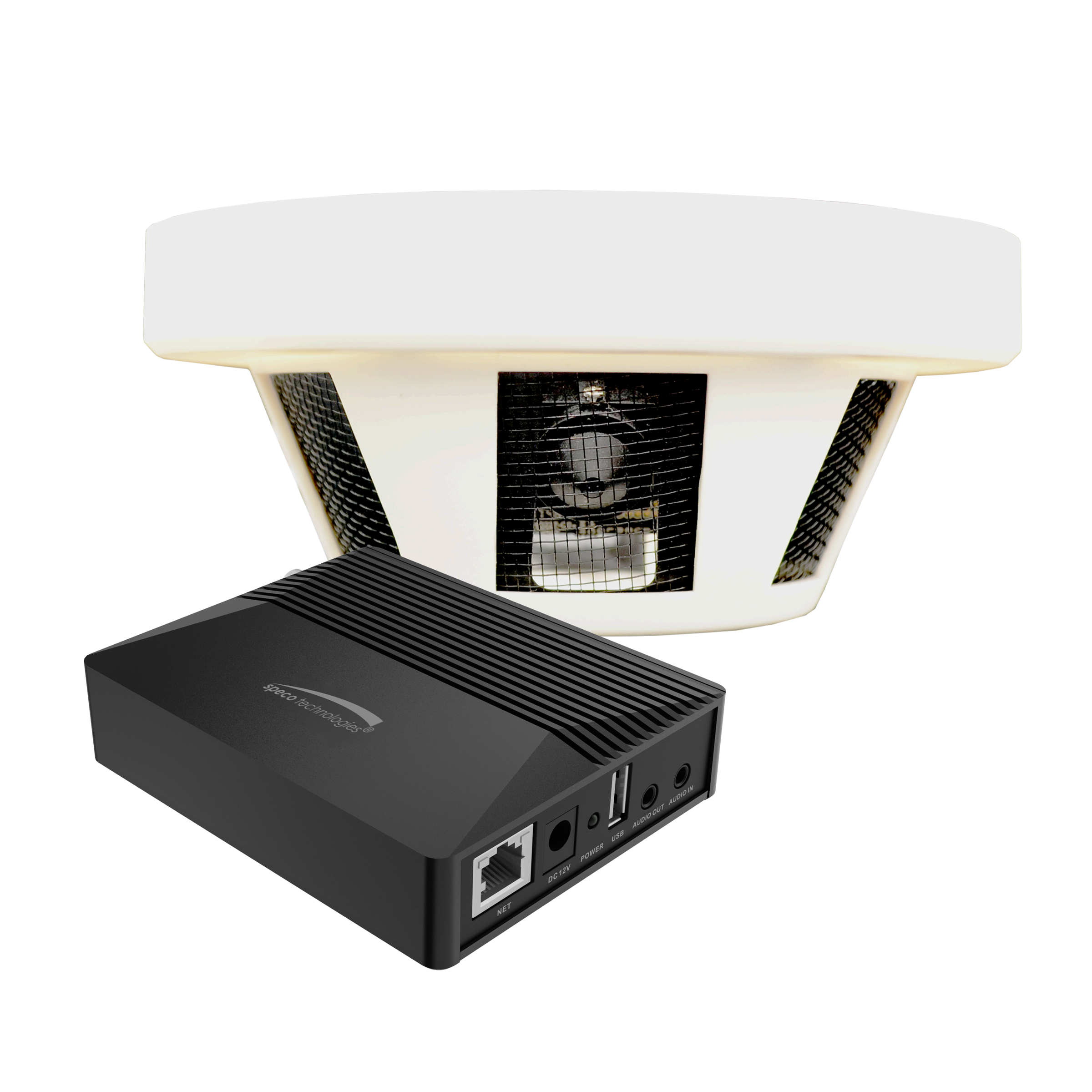

The Speco O2562 is a discreet 2MP ceiling-mounted color camera with a 3.7mm pinhole lens and integrated advanced analytics IP encoder. It delivers Full HD 1080p video at 30fps, supports PoE or 12VDC power, and is designed for indoor surveillance installations requiring a compact, concealed camera profile.
Key Configuration
Model: O2562 | Resolution: 2MP, 1920 × 1080 at 30fps | Sensor: 1/2.9-inch CMOS | Lens: 3.7mm pinhole | Compression: H.265, H.264, MJPEG | Connectivity: IEEE 802.3af PoE and 12VDC | Storage: microSD up to 256GB | Camera dimensions: 3.4-inch diameter × 1.75-inch height | Environment: Indoor use
Key Features
- · 2MP Full HD video at up to 30fps
- · 3.7mm pinhole lens for discreet ceiling-mounted surveillance
- · Minimum illumination of 0.001 lux with sense-up enabled
- · Motion detection and advanced video analytics
- · Analytics include object removal, abnormality, line crossing, intrusion, target counting, face detection, missing-object detection, and heat maps
- · H.265, H.264, and MJPEG compression support
- · Three simultaneous video streams
- · Standard IEEE 802.3af PoE support
- · MicroSD recording support up to 256GB
- · HD-TVI, CVI, AHD, and 960H video output compatibility
- · Alarm interface with one sensor input and one relay output
- · White housing with compact discreet form factor
Technical Context
The O2562 combines a concealed pinhole camera with an IP encoder that handles compression, streaming, storage, and analytics. Its analytics engine can identify activity such as line crossings, intrusions, people or object changes, target counts, and heat-map events for compatible monitoring workflows.
Installation Notes
Install the camera in an indoor ceiling location, connect the encoder through IEEE 802.3af PoE or regulated 12VDC power, and insert a compatible microSD card if local recording is required. Configure the encoder through a supported web browser, Speco Blue, or SecureGuard VMS/CMS environment.
| Full Specifications | |
| Megapixel | 2MP |
| Housing Color | White |
| Camera Specifications | |
| Image Sensor | 1/2.9" 2MP CMOS |
| Resolution | 1920 x 1080 |
| Minimum Illumination | 0.001 lux (sense-up on) |
| Scanning System | Progressive |
| S/N Ratio | More than 52dB |
| Video Output | *HD-TVI, CVI, AHD, 960H |
| Output | Video - BNC, Power - DC jack |
| Compression | H.265, H.264 (HP/MP/BP), MJPEG |
| Bitrate Control | VBR, CBR |
| Bitrate Range | 64Kbps-8Mbps |
| Multiple Streaming | 3 streams |
| Audio Compression | G.711A / G.711U |
| Operating Temperature / Humidity | -22° F - 140° F / within 90% RH |
| Power Consumption | 95mA |
| Power Supply | 12VDC regulated |
| Dimensions | 3.4" (Dia.) x 1.75" (H) |
| Weight | 10.58 oz. |
| Interfaces | |
| Ethernet | 10/100 Mbps |
| Power Input | DC jack |
| Power Output | 12VDC Terminal block |
| Video Input | BNC |
| Audio Input | 1CH 3.5mm |
| Audio Output | 1CH 3.5mm |
| Storage | Micro SD slot, up to 256GB |
| Alarm | 1 sensor input, 1 relay output (Terminal block) |
| Network Specifications | |
| Protocol | IPv4, IPv6, TCP, UDP, RTP, RTSP, HTTP, SMTP, FTP, DHCP |
| DDNS Support | Speco DDNS (free of charge) |
| Security | User ID & Password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 8 simultaneous users Actual number of users may vary depending on bandwidth |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion detection, object removal, abnormality, line crossing, intrusion, target counting, face detection, missing object detection, and heat map. |
| Alarm Triggers | Analytics |
| Alarm Events | FTP upload, email upload |
| Image Settings | Privacy mask, (8) region of interests, OSD |
| Client Specifications | |
| Web Browser Support | Edge, Chrome, Firefox, Safari, |
| PC Application | SecureGuard® VMS/CMS, Speco Blue VMS |
| Mobile | Speco Blue App, SecureGuard® Mobile (iPhone® and Android™) |
| IP Encoder Operating & Unit Specifications | |
| Power | PoE, 12VDC (power supply not included) |
| Operating Temperature | -22°F - 140°F |
| Operating Humidity | 10% - 95% relative humidity, Indoor-use only |
| Certifications | FCC, RoHS |
