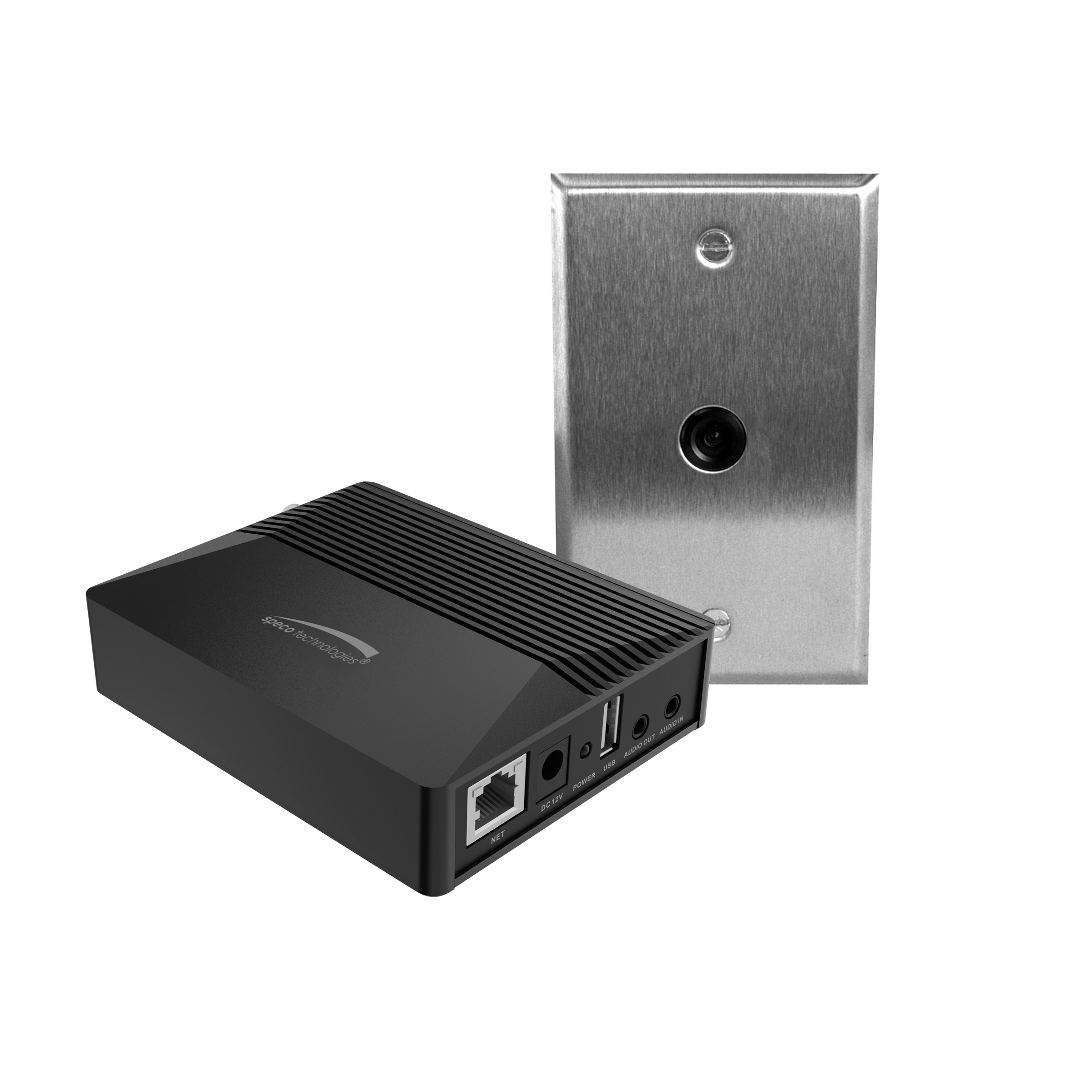

Speco - O2675T - 2MP In-Wall Camera with Advanced Analytics IP Encoder
Part number:
Price:
Product Overview
Features - Fits into a single gang electrical box (included) - Brushed stainless steel faceplate - Full HD 1080p @ 30fps - Additional 960H analog output - 12VDC operation - 5 year warranty *with compatible Speco recorder **Products are in compliance with NDAA Section 889 Part B Guidelines 2MP In-Wall Camera with IP 3.6mm lens with IP Encoder
Key Configuration
Model: O2675T
Installation Notes
2.75" (W) x 4.25" (H) x 2.75" (L)
| Full Specifications | |
| Megapixel | 2MP |
| Housing Color | Stainless Steel |
| Camera Specifications | |
| Image Sensor | 1/3" Progressive Scan CMOS, 2MP |
| Resolution | 1920 x 1080 |
| Effective Pixels | 1984 (H) x 1105 (V) |
| Scanning System | Progressive |
| Angle of View | Horizontal: 72° / Vertical: 53° |
| Electronic Shutter Speed | Auto: 1/30 sec. - 1/30,000 sec. |
| Video S/N Ratio | Greater than 50dB |
| Video Output Level | Progressive |
| Video Output | 1.0Vp-p / 75 ohms |
| Compression | H.265, H.264 (HP/MP/BP), MJPEG |
| Bitrate Control | VBR, CBR |
| Bitrate Range | 64Kbps-8Mbps |
| Multiple Streaming | 3 streams |
| Audio Compression | G.711A / G.711U |
| Power Consumption | 200mA |
| Power Supply | 12VDC (power supply not included) |
| Operating Temperature | 14° F - 122° F / within 90% RH |
| Housing | Stainless steel |
| Dimensions | 2.75" (W) x 4.25" (H) x 2.75" (L) |
| Weight | 3.45 oz. |
| Communication | UTC |
| IP Encoder Operating & Unit Specifications | |
| Power | PoE, 12VDC (power supply not included) |
| Operating Humidity | 10% - 95% relative humidity, Indoor-use only |
| Certifications | FCC, RoHS |
| Client Specifications | |
| Web Browser Support | Edge, Chrome, Firefox, Safari, |
| PC Application | SecureGuard® VMS/CMS, Speco Blue VMS |
| Mobile | Speco Blue App, SecureGuard® Mobile (iPhone® and Android™) |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion detection, object removal, abnormality, line crossing, intrusion, target counting, face detection, missing object detection, and heat map. |
| Alarm Triggers | Analytics |
| Alarm Events | FTP upload, email upload |
| Image Settings | Privacy mask, (8) region of interests, OSD |
| Interfaces | |
| Ethernet | 10/100 Mbps |
| Power Input | DC jack |
| Power Output | 12VDC Terminal block |
| Video Input | BNC |
| Audio Input | 1CH 3.5mm |
| Audio Output | 1CH 3.5mm |
| Storage | Micro SD slot, up to 256GB |
| Alarm | 1 sensor input, 1 relay output (Terminal block) |
| Network Specifications | |
| Protocol | IPv4, IPv6, TCP, UDP, RTP, RTSP, HTTP, SMTP, FTP, DHCP |
| DDNS Support | Speco DDNS (free of charge) |
| Security | User ID & Password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 8 simultaneous users Actual number of users may vary depending on bandwidth |
