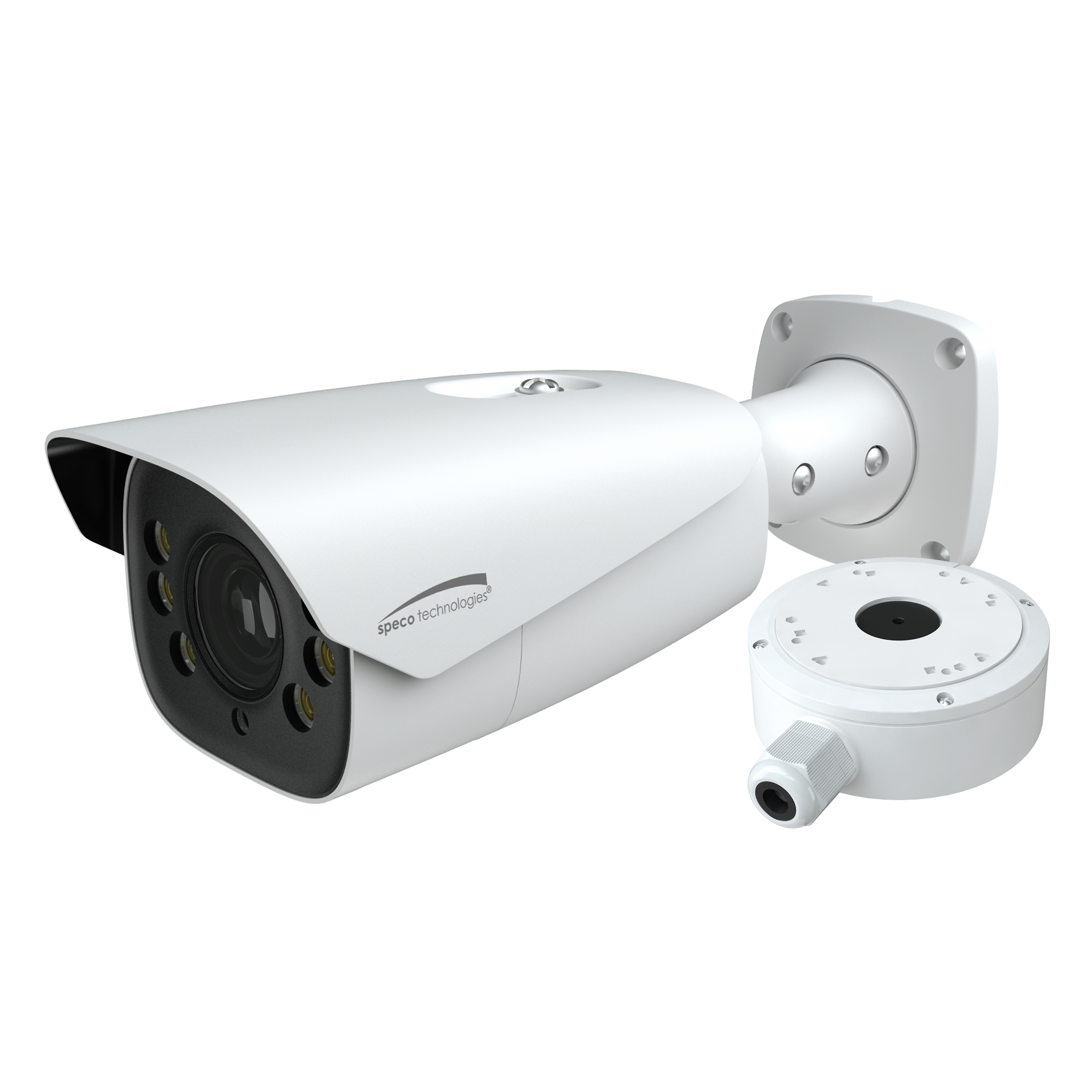

Speco - O2BFRM - 2MP H.265 Facial Recognition IP Bullet Camera with Junction Box
Part number:
Price:
Product Overview
Supports up to 2MP @ 30fps, built-in standard PoE, built-in Face Detection and Recognition, built-in white LED for optimum face capture, built-in Analytics for object detection and line crossing, IP67 compliant, weather resistant. 7-22mm motorized lens, white housing
Key Configuration
Model: O2BFRM | 7-22mm motorized Lens | Built-in MicroSD slot up to 128GB | Conformant with ONVIF Profile S | Two-way audio | Junction box included
Key Features
- • H.265/H.264/MJPEG compression supported.
- • Face Recognition Search with compatible Speco Recorder.
- • 5 year warranty.
- • Built-in standard PoE (IEEE 802.3af).
- • Built-in MicroSD slot up to 128GB (card not included).
Installation Notes
3.9" (Φ) × 11.0" (H)
| Full Specifications | |
| Megapixel | 2MP |
| Housing Color | White |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/2.8" CMOS, 2MP |
| Maximum Resolution | 1920 x 1080 |
| Field of View (H) | 37° - 22.5° |
| Recommended Capture Distance | 5-20ft |
| 3-axis Adjustment | Pan: 0° - 360°, Tllt: 0° - 90°, Rotate: 0° - 360° |
| Minimum Illumination | F1.4, 0 lux (White LED On) |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Compensation | WDR, BLC, HLC |
| Electronic Shutter Speed | 1/25 ~ 1/100000 sec |
| DNR | 3D |
| Video Specifications | |
| Main Resolution | 1080P (1920x1080) / 720P (1280x720) @ 30fps |
| Compression | H.265+/H.265/H.264+/H.264/MJPEG |
| Bitrate Control | VBR, CBR |
| Multiple Streaming | 3 streams |
| Audio Specifications | |
| Audio | 1ch input and output |
| External Terminal Specifications | |
| Ethernet | 10/100 Mbps |
| Power | DC jack |
| Analog Video Output | CVBS video output (BNC x 1) |
| Microphone Input | 3.5mm |
| Storage | Built-in micro SD card clot, up to 128GB |
| Network Specifications | |
| Protocols | IPv4, IPv6, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTPS, QoS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & Password protection, IP/MAC address filtering, digest authentication |
| User Access | Max. 6 simultaneous users. Actual number of users may vary depending on bandwidth |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | *Face Detection and Recognition, Motion detection, object removal, abnormality, line crossing, intrusion |
| Alarm Triggers | Analytics, sensor |
| Alarm Events | FTP upload, email upload |
| Image Settings | Privacy mask, region of interest, OSD |
| Client Specifications | |
| Web Browser Support | Windows (Internet Explorer 8 and up) |
| PC Application | SecureGuard® VMS |
| Mobile | SecureGuard® Client (iPhone® and Android™) |
| Other Viewing Platforms | Apple TV and Amazon Fire TV |
| Operating & Unit Specifications | |
| Power Consumption | 12W (max) |
| Operating Temperature | -22°F - 140°F |
| Operating Humidity | Lass than 95% (non-condensing) |
| Unit Dimensions | 3.9" (Φ) × 11.0" (H) |
| Unit Weight | 2.3 lbs |
