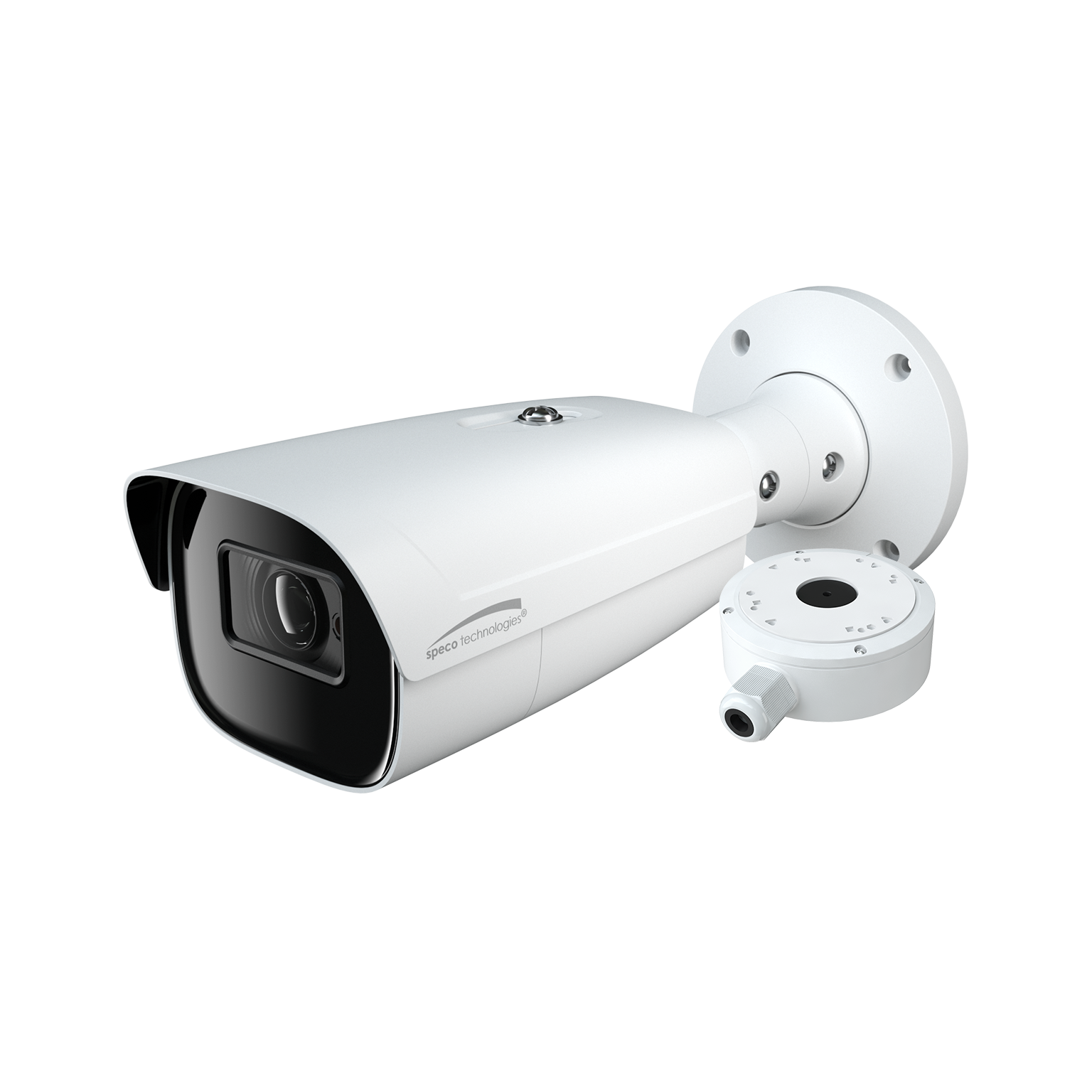

Speco - O2BLP3M - 2MP H.265 IP License Plate Recognition Bullet Camera with Junction Box
Part number:
Price:
Product Overview

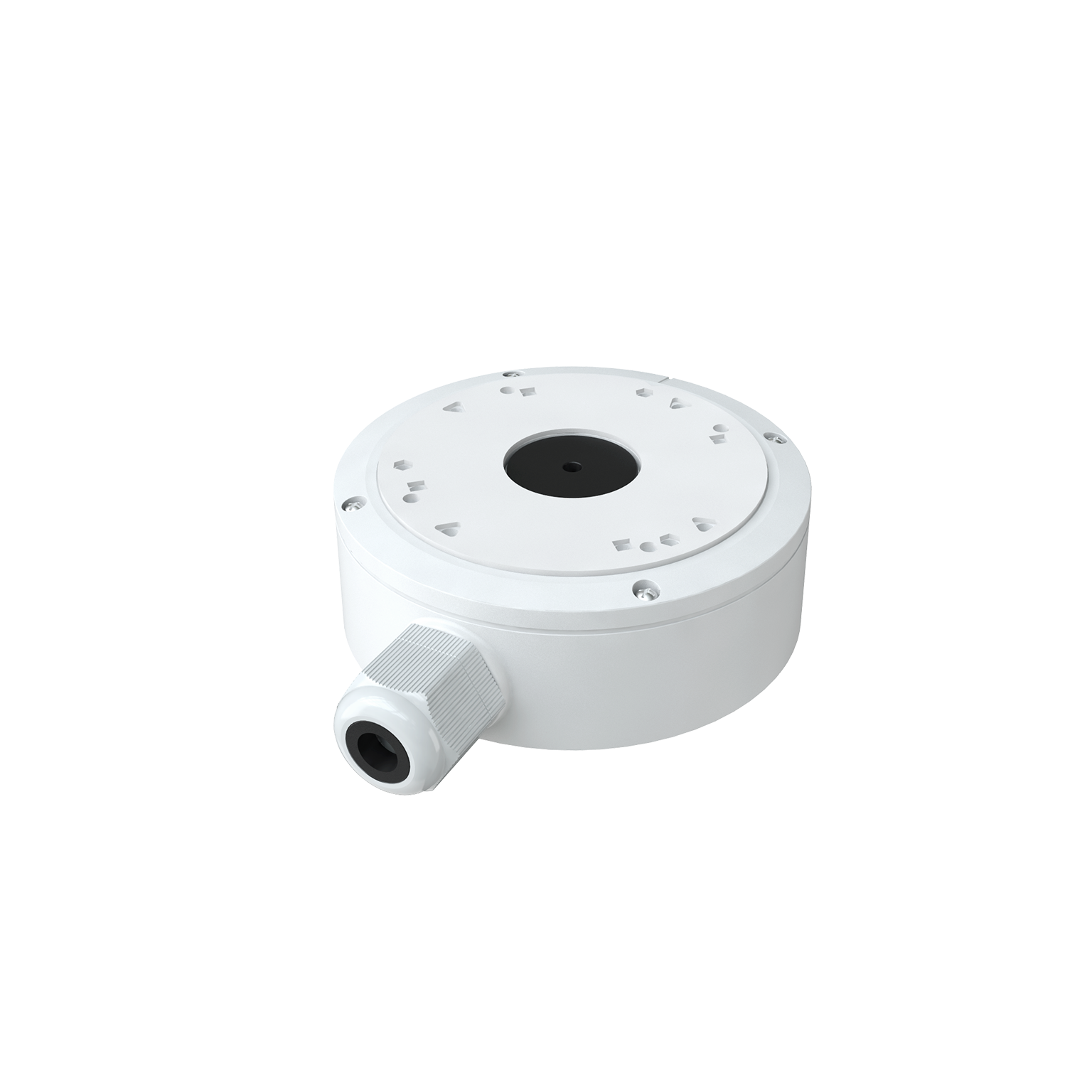

Captures License Plates up to 40mph, Search and Match Captured Plates with Recorder, Captures up to 2MP @ 30fps (60fps in High Frame Rate Mode), Built-in Standard PoE (IEEE 802.3af), Smart IR with Range up to 230′ (Depending on Scene Reflection), Micro SD Card Slot up to 256GB (Card Not Included), Two-way Audio Support, Alarm Input/Output, Conformant with ONVIF G/S/T/M, IP67 Weather Resistance, Junction Box Included (Works with NPT Specification)
Key Configuration
Model: O2BLP3M
Installation Notes
11.0" (L) x 3.94" (W) x 3.5" (H)
| Full Specifications | |
| Lens | 5 – 50mm motorized lens |
| Weather Resistance | IP67 |
| H.265 Compression | Yes |
| True WDR | Yes |
| Micro SD Card Slot | Up to 256GB (Card Not Included) |
| Camera Specifications | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 1920 x 1080 (2MP) |
| Field of View | H8.5° - 49.5°, D5° - 27° 57.5° - 10° |
| Minimum Illumination | 0.001 lux @ F1.6, AGC ON; 0 lux with IR |
| Day/Night | Smart IR |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Electronic Shutter Speed | 1/1s/1/100000s |
| DNR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~90°; Rotation: 0°~360° |
| Recommended Capture Distance | 15 - 200 ft. |
| Video Specifications | |
| Main Resolution | 1080P / 720P (1-30fps) ; HFR Mode: 1080P/720P (1-60fps) |
| Compression | H.265, H.264, MJPEG |
| Bitrate Control | VBR, CBR (64 Kbps-6 Mbps) |
| Multiple Streaming | 3 Streams |
| Audio Specifications | |
| Audio Input | 3.5mm Input |
| Audio Output | 3.5mm Output |
| Interfaces | |
| Ethernet | 10/100 Mbps RJ45 |
| Power | DC Jack |
| Microphone Input | 3.5mm |
| Audio Out | 3.5mm |
| Card Slot | MicroSD, up to 256GB (not included) |
| Alarm | 1-CH Alarm Input; 1-CH Alarm Output |
| RS485 | Yes |
| Wiegand | Yes (26bit) |
| Reset | Yes |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, QoS, NAT, P2P |
| DDNS support | Speco DDNS (Free of Charge) |
| Security | Watermark, IP Address Filtering, Video Mask, Heartbeat, Password Protection, Non-Photosensitive Switch, Image Distortion Correction |
| User Access | Max. 10 Simultaneous Users Actual Number Of Users May Vary Depending On Bandwidth |
| License Plate Detection | |
| Snapshot | Original image (2MP Resolution) and plate image |
| Vehicle Plate Database | 10,000 |
| License Plate Detection & recognition | Capture of vehicles with license plate and vehicles without license plate, Support plate exposure, travel direction recognition, plate character fault tolerance, plate comparison, snapshot time display. Vehicle feature extraction: including vehicle color, plate color, vehicle type, vehicle brand/model, etc. |
| Capture Speed Range | up to 75 mph with ideal conditions. |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Video Tampering Detection, Scene Change Detection, License Plate Recognition |
| Alarm Triggers | Motion Detection, Sensor Alarm, SD Card Error, SD Card Full, IP Address Conflict, Cable Disconnection |
| Image Settings | Region Of Interest, Saturation, Brightness, Chroma, Contrast, Noise Reduction |
| Client Specifications | |
| Web Browser Support | Chrom, Edge, Safari, Firefox, Windows (Internet Explorer 8 and Up) |
| PC Application | Speco Blue VMS |
| Mobile | Speco Blue App (iPhone* and AndroidTM) |
| Operating & Unit Specifications | |
| Power Consumption | <10W (Max) |
| Operating Temperature | -22°F - 140°F |
| Operating Humidity | Less than 95% (Non-Condensing) |
| Unit Dimensions | 11.0" (L) x 3.94" (W) x 3.5" (H) |
| Unit Weight | 2.59 lbs. |
| Certifications | FCC, RoHS |
| 5 - 50mm Lens Installation Recommendations | |
| Overhead | Recommended Installation Height: 13 ~ 20 ft. Recommended Recognition Distance: 16 ~ 164 ft. |
| Entrance/Exit | Recommended Installation Height: 4.2 ~ 5 ft. Recommended Recognition Distance: 8 ~ 10 ft. |
