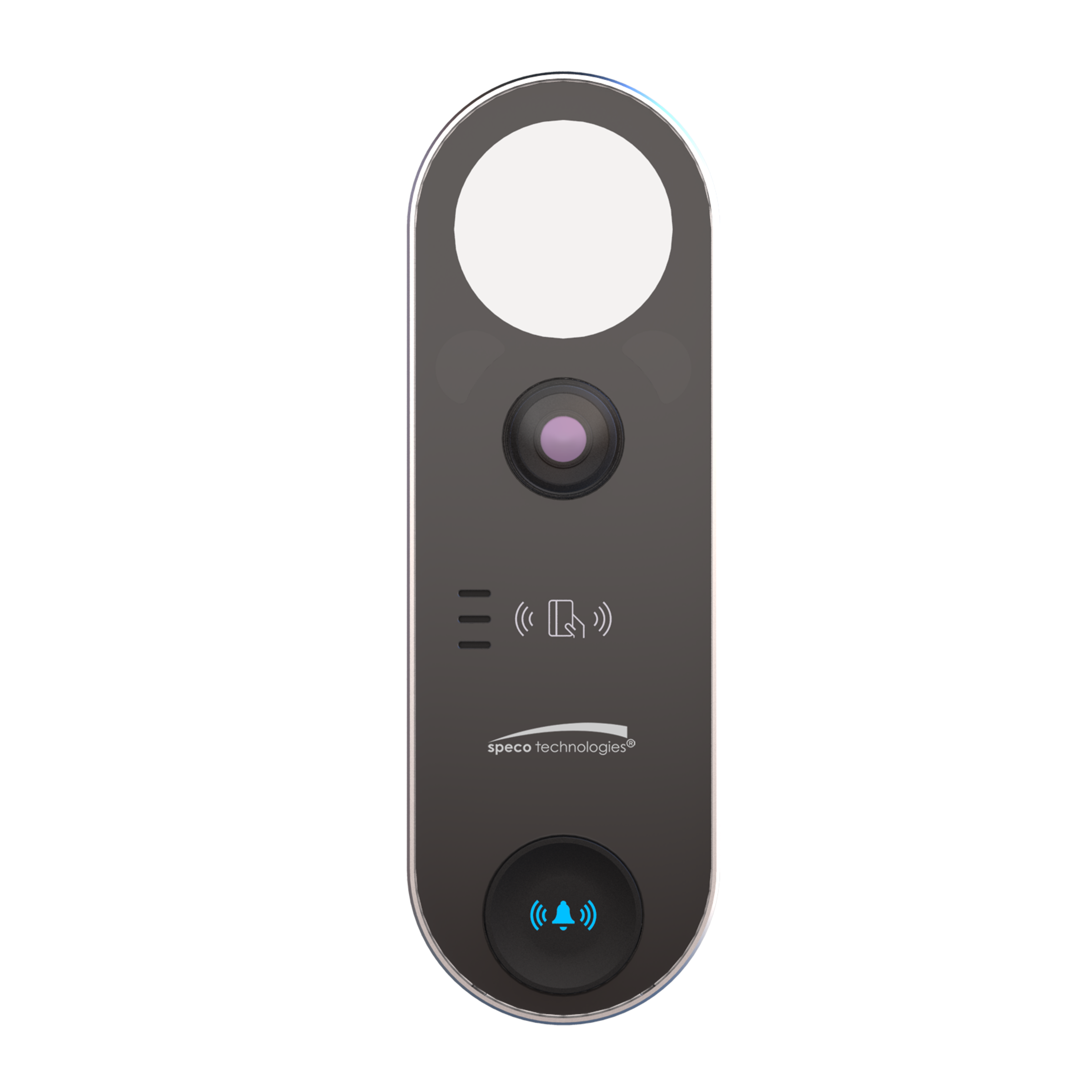

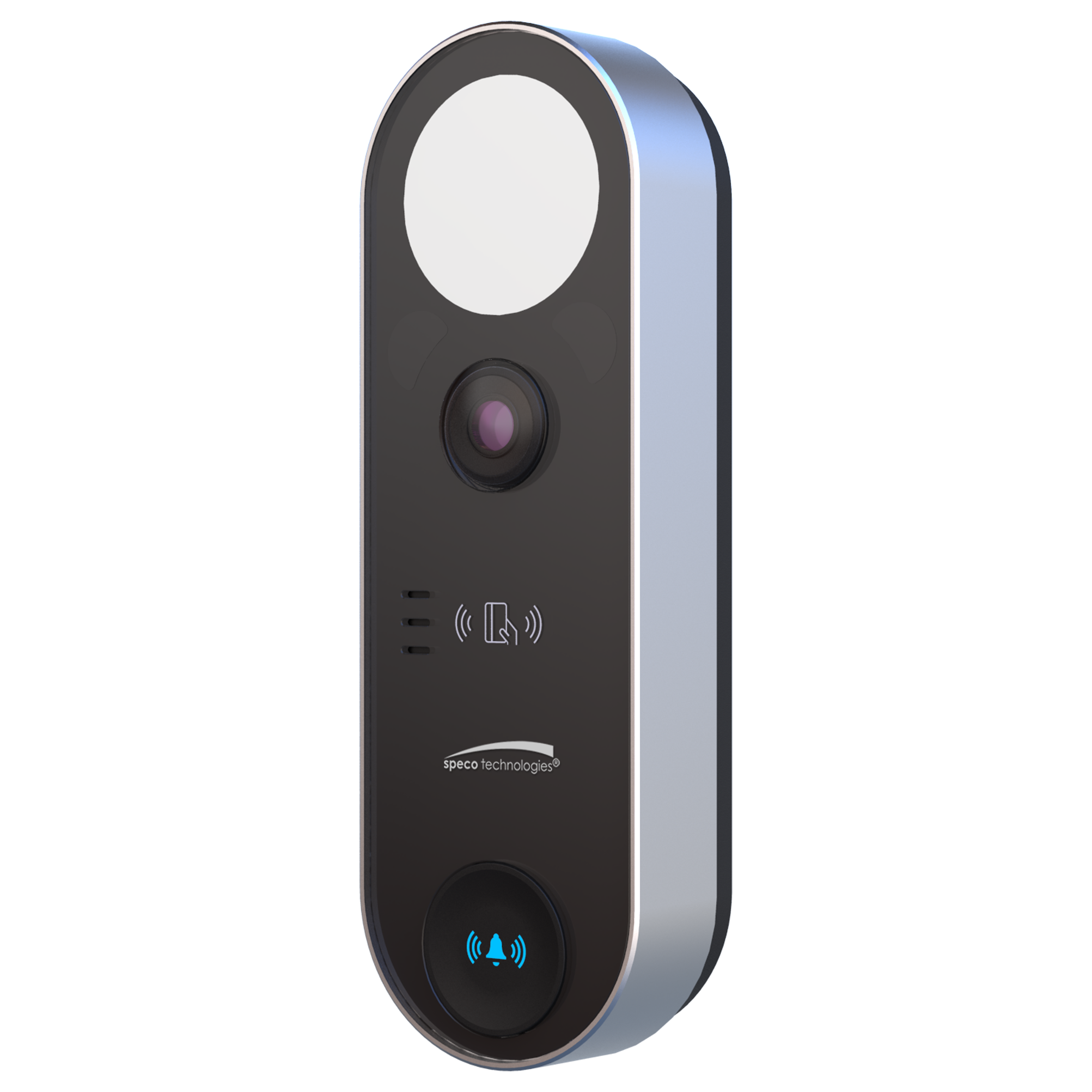

Speco - O2DB1 - Wi-Fi PoE Video Doorbell with Face Detection
Product Overview

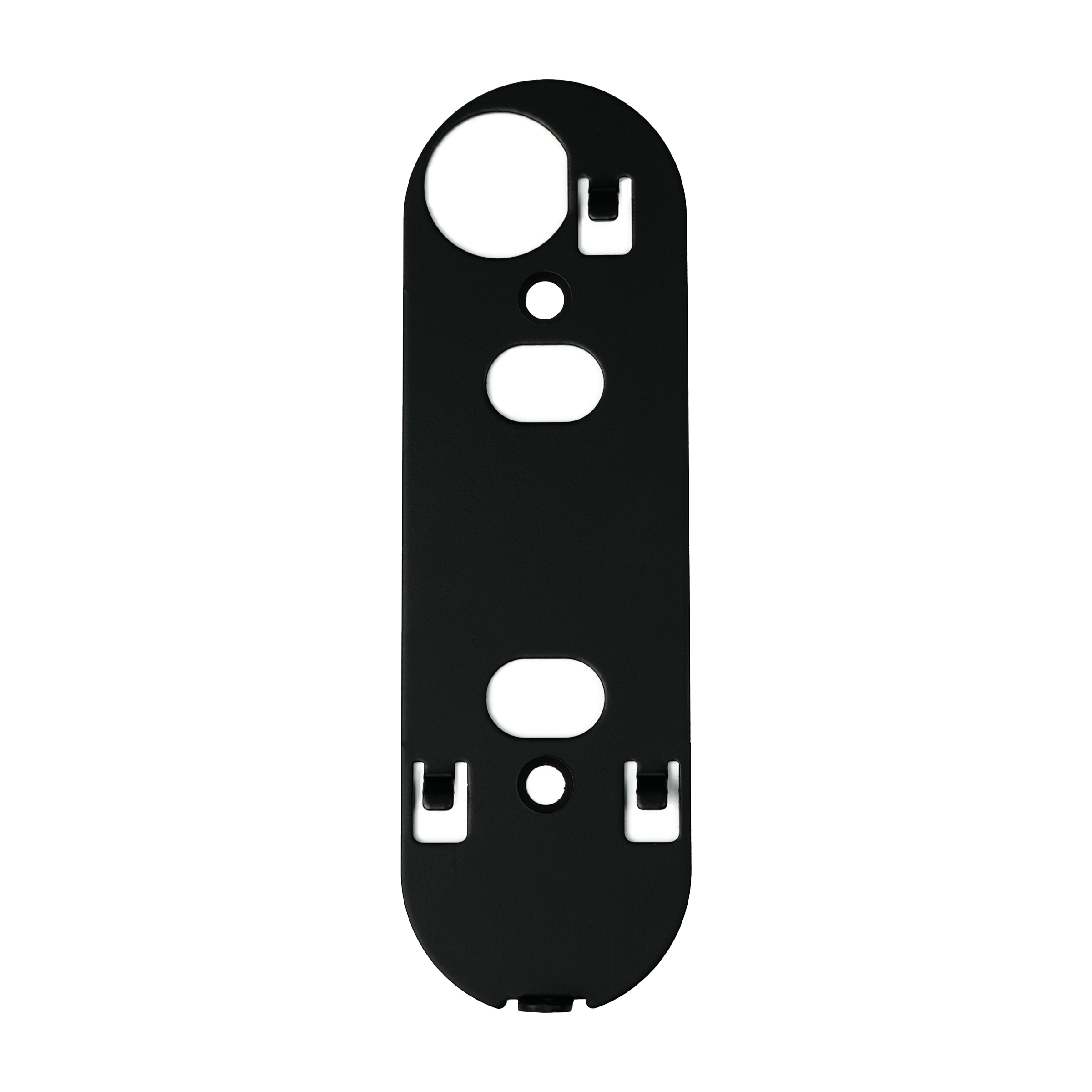

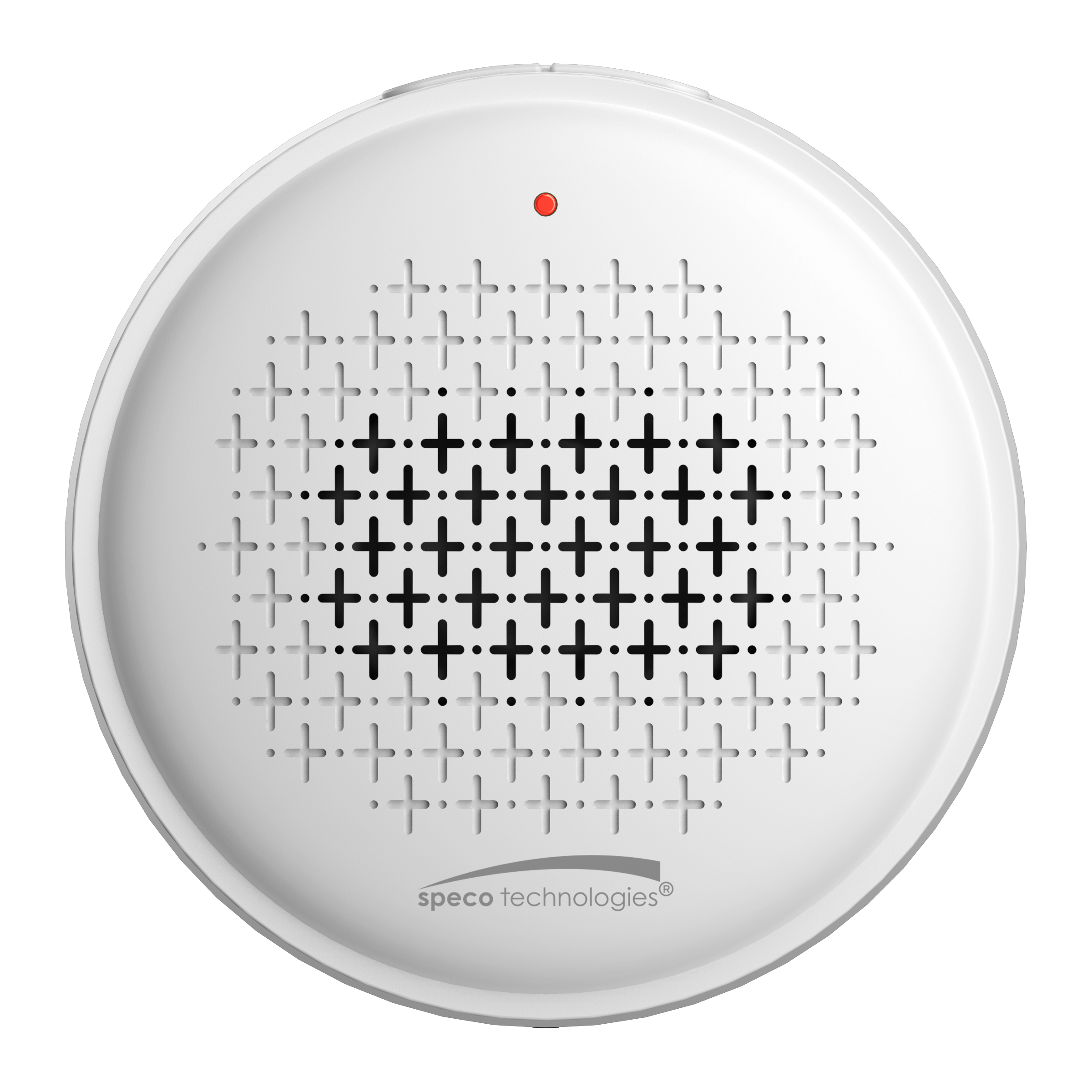

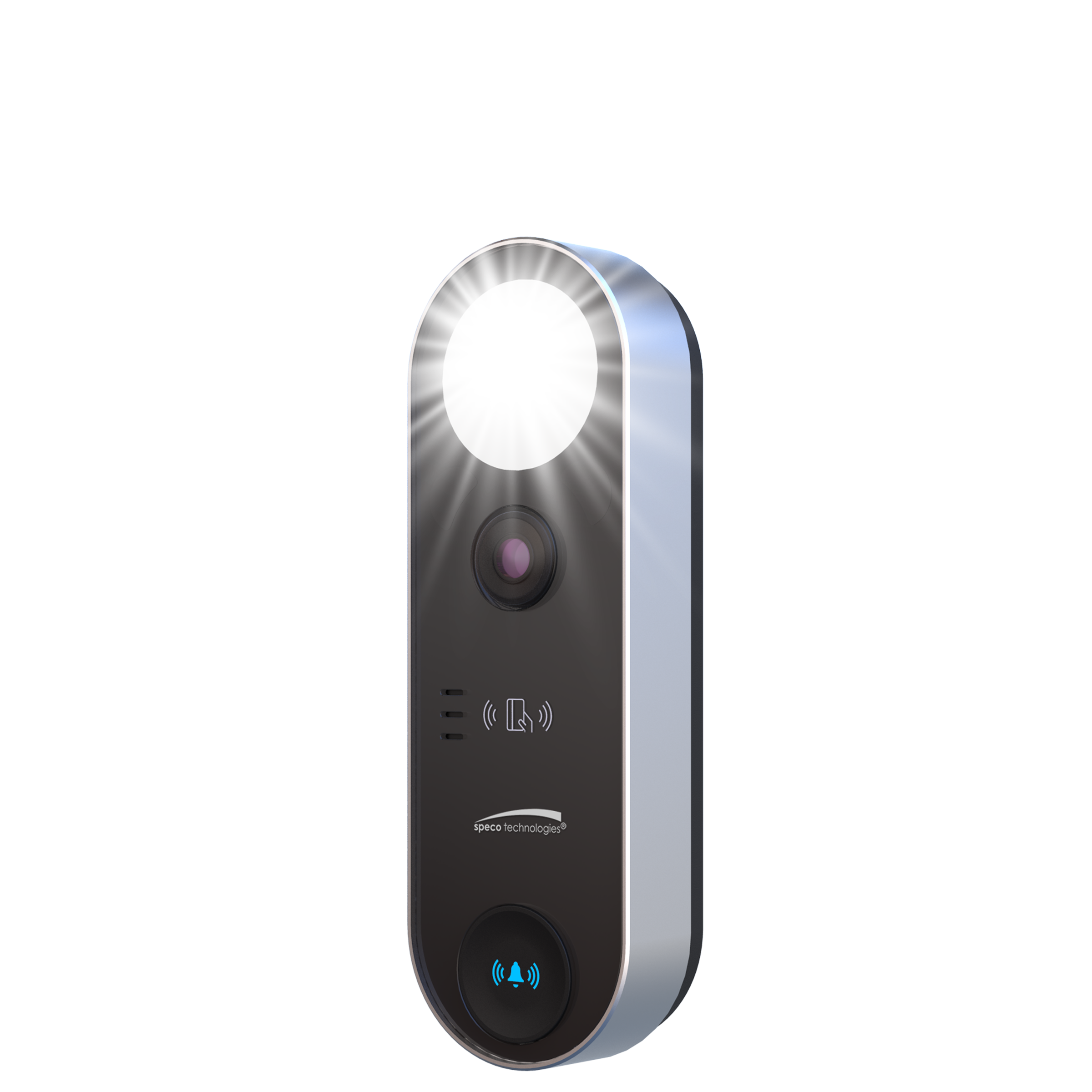

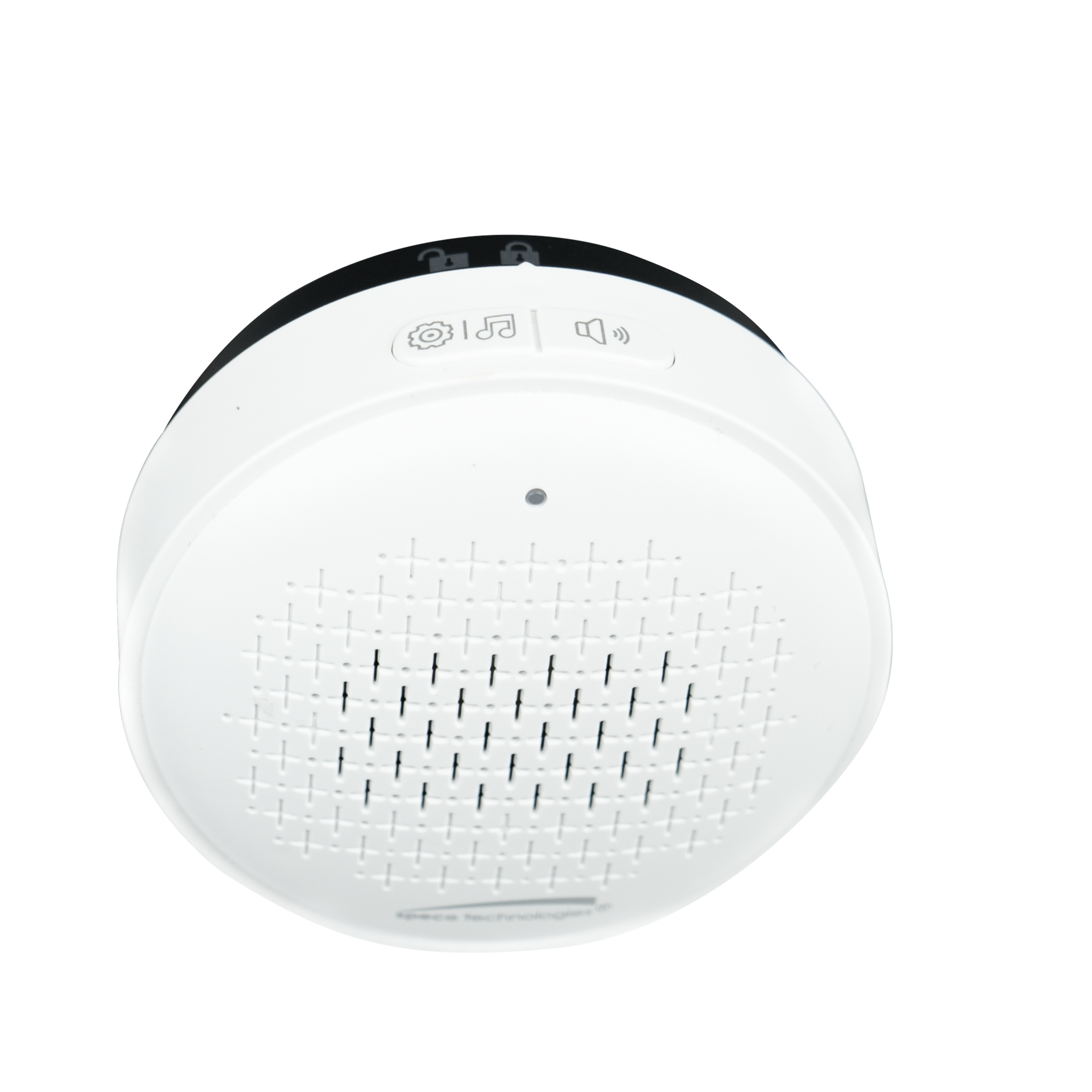

Comprehensive Doorway Security: Achieve full coverage with a wide field of view. Cost-Effective Recording: Save footage directly to an NVR without subscription fees. Clear Communication: Benefit from noise suppression and echo cancellation for crystal-clear audio. Remote Interaction: Use the Speco Blue App for two-way communication with your doorbell. Enhanced Night Vision: Utilize IR and white LED lights for superior low-light performance. Advanced Security Features*: Includes tampering and door contact alarms, plus door unlock functions. Reliable Connectivity: Connect seamlessly with 2.4GHz Wi-Fi. Ample Storage: Built-in micro SD-card slot supports up to 256GB. Smart Video Analysis*: Features like video exception detection, face detection, and face capture. Complete Package: Comes with a wireless chime and mounting plate for easy installation.
Key Configuration
Model: O2DB1
Key Features
- • NDAA compliant.
- • 2.3mm fixed lens.
- • Black and silver housing.
Installation Notes
150mm × 50mm × 29.8mm 5.9"(h) × 1.96"(w) × 1.17"(d)
| Full Specifications | |
| Housing Color | Black and Silver |
| Camera Specifications | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Image Size | 1920 x 1080 |
| Electronic Shutter | 1/2s - 1/100000s |
| IRIS Type | Fixed IRIS |
| MIN. Illumination | 0 lux (white LED ON) |
| Lens | 2.3mm @F2.2; vertical FOV:74° horizontal FOV: 139°, diagonal FOV: 170° |
| Network Specifications | |
| Network | 100M RJ45 |
| Audio | Built-in MIC x 1, built-in speaker x 1 |
| Video Specifications | |
| Main Stream | 1920x1080/1280x720(1-30fps) |
| Sub Stream | 720P/D1/CIF(1-30fps) |
| Third Stream | D1/CIF/480x240(1-30fps) |
| Compression | H.265+/H.265/ H.264+/H.264/MJPEG |
| Resolution | 1080P(1920x1080), 720P(1280x720), D1, CIF, 480x240 |
| System Specifications | |
| Alarm Triggers | Motion, sensor, analytics |
| Alarm Events | MicroSD recording, FTP upload |
| Analytics | Face detection, tampering |
| Operating & Unit Specifications | |
| Power | DC12V/0.5A or PoE |
| PoE Power Supply | Yes |
| Power Consumption | < 6W |
| Working Environment | -4°F to 122°F, humidity: less than 95% (non-condensing) |
| Unit Dimensions | 150mm × 50mm × 29.8mm 5.9"(h) × 1.96"(w) × 1.17"(d) |
| Client Specifications | |
| Web Browser Support | Google Chrome®, Microsoft Edge®, Internet Explorer®, Apple Safari®, Firefox® |
| PC Application | Speco Blue VMS |
| Mobile | SecureGuard® Client, Speco Blue (iPhone® and Android®) |
| Audio Specifications | |
| Audio Compression | G711A/U |
| Proximity Reader | |
| Frequency | 13.56 mHz |
| Interface | Weigand 26-bit output |
| Interface Specifications | |
| RS485 | Yes |
| Alarm | 1-CH alarm input |
| Door Lock Output | Yes |
| Exit Button | Yes |
| Door Contact Input | Yes |
| Storage | Built-in micro SD card slot, up to 256GB (SD-card not included) |
