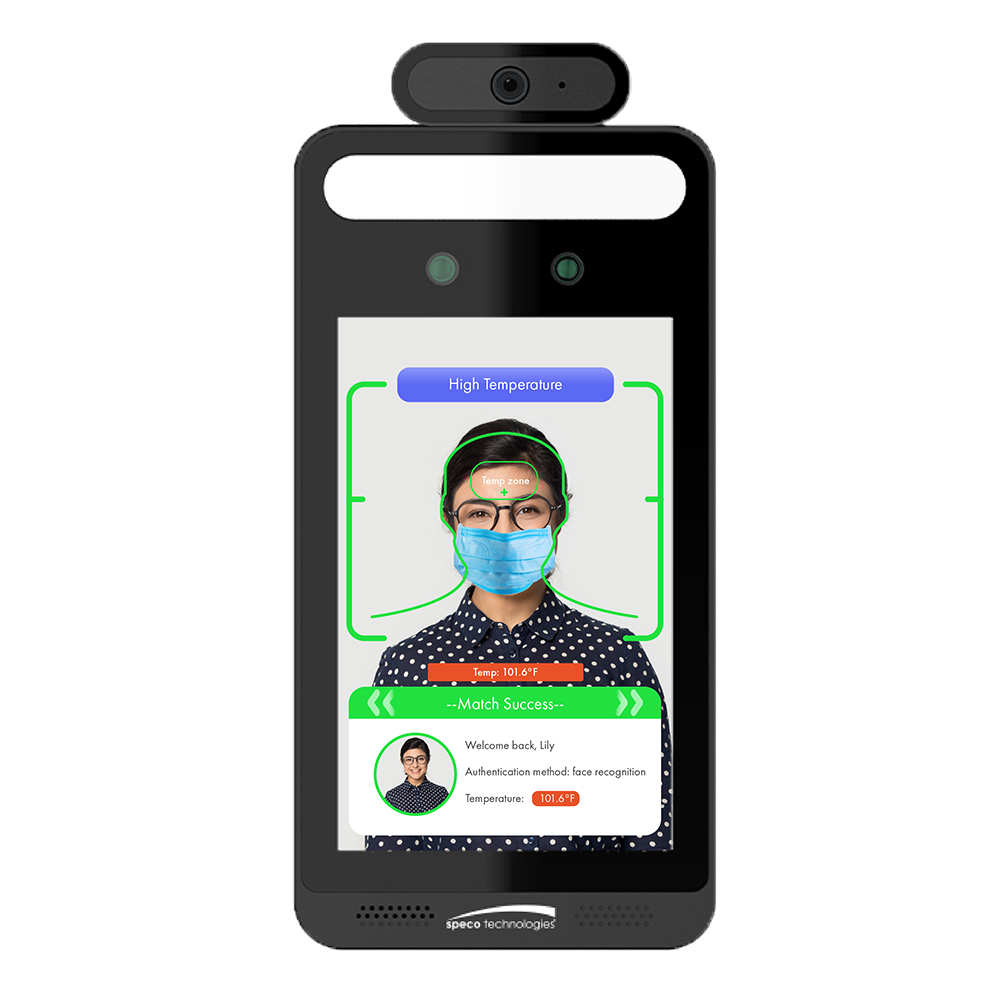

Speco - O2TML - 2MP Indoor Facial Recognition Scanner
Part number:
Price:
Product Overview
8-inch LCD screen, Supports IR high-accuracy body temperature measurement, Can recognize faces with masks, Triggers voice alarm when abnormal temperature or mask-less face is detected, Deep learning algorithm with high face recognition accuracy rate, Supports remote live view and two-way talk, 12VDC power supply included, 1 year warranty
Key Configuration
Model: O2TML
Installation Notes
301.8mm x 138.6mm x 34.2mm, 11.8"(H) x 5.4"(W) x 1.3"(D)
| Full Specifications | |
| Latest Firmware Version | V5.0.1_2021_3_30 |
| Performance | |
| OS | Embedded Linux |
| Storage | 8Gb DDR3 + 16Gb EMMC |
| Display Screen | 8inch LCD screen; resolution: 1280x800; contrast: 500:1 |
| Brightness | 500 lux |
| Temperature Measuring Range | 0~50°C (32°~122°F) |
| Accuracy | ± 0.3°C (0.5°F) |
| Measuring Distance | 0.3~0.5m (1ft~1.6ft) |
| Sensor | 1/2.7 |
| Lens | 2MP dual-lens, f=3.97mm @ F1.6 |
| WDR | 120db |
| Height Range of Face | 1.2m-2.2m (3.9ft - 7.2ft) (the recommended installation height is 1.45m) (4.75ft) |
| Recognition | 0.3m-2m (1ft - 6.5ft) |
| Face Recognition Mode | Face: 1 : N |
| Recognition Duration | ≤ 0.5 s per person |
| Face Capacity | 20,000 |
| Recognition Accuracy | 99.7% |
| Fill-in Light | Soft white light, IR light |
| White Light Distance | 1-3m (3.2ft - 10ft) |
| Screen Wakeup | Yes |
| Light Adjustment | Yes |
| Snapshot | Yes |
| Audio | |
| Two-way Talk | Yes (noise reduction and echo cancellation) |
| Audio Input | 1CH built-in MIC |
| Audio Output | Built-in speaker |
| Interface | |
| Network Interface | 10/100Mbps self-adaptive Ethernet port x1 |
| Maximum simultaneous remote users | 10 |
| Alarm Input | 2 CH |
| Alarm Output | 2 CH |
| Wiegand Interface | Wiegand input/output (26/34) |
| RS485 | RS485x1 (half duplex) |
| Door Lock Output | Relay output, NO/NC (optional), delay setting supported |
| SD Card Interface | 1 micro SD card slot, up to 128GB |
| USB Interface | USB x1 |
| Anti-Tamper Interface | 1 button |
| Exit Button | 1 |
| Reset Button | 1 |
| Others | |
| Power | 12V @1A (not included) |
| Power Management | Screen sleep, screen protection |
| Power Consumption | <12W |
| Installation | Wall Mounting, Pole Mounting, Embedded Installation, Desktop |
| Protection | IP66, Surge Protection and Voltage Transient Protection |
| Working Environment | -20°C~60°C (-4°F~140°F), <95% (non-condensing) |
| Optional Accessories | |
Name
Description
Size
Downloads
File
Specification
0.4mb
File
User Manual
5.4mb
File
Quick Installation Guide
1mb
File
Quick Start Guide
3.9mb
