Speco - O4B9M - 4MP H.265 IP Bullet Camera with Advanced Analytics
Product Overview

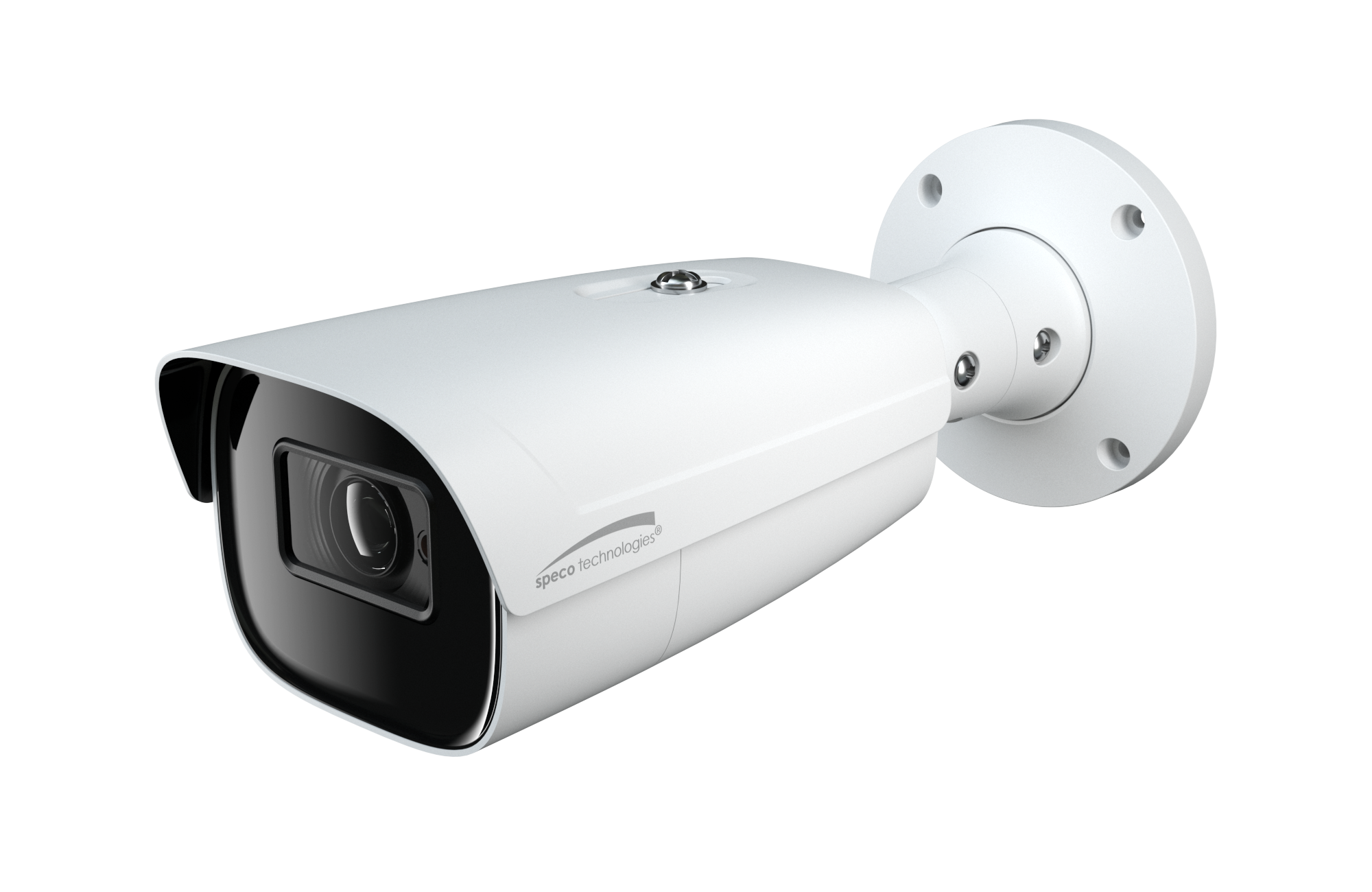

The Speco O4B9M is a 4MP outdoor IP bullet camera with a 2.8-12mm motorized varifocal lens and advanced video analytics. It combines 30fps high-definition imaging, adaptive IR illumination, True WDR, two-way audio support, PoE connectivity, and IP67 weather-resistant protection for demanding surveillance installations.
Key Configuration
Model: O4B9M | Resolution: 4MP, up to 2592 × 1520 at 30fps | Sensor: 1/3-inch progressive scan CMOS | Lens: 2.8-12mm motorized varifocal | Zoom: 4x optional | Field of view: 100° to 28.9° horizontal | Connectivity: IEEE 802.3af PoE and 12VDC | Storage: microSD up to 256GB | Protection: IP67 | Housing: White
Key Features
- · 4MP video at up to 30fps
- · 2.8-12mm motorized varifocal lens
- · 4x optional zoom capability
- · True Day/Night operation with IR cut filter
- · Adaptive IR illumination up to 230 feet, depending on scene reflection
- · True WDR with BLC and HLC support
- · People, vehicle, face, counting, intrusion, line-crossing, and object analytics
- · H.265, H.264, and MJPEG compression
- · Built-in IEEE 802.3af PoE support
- · MicroSD recording support up to 256GB
- · Two-way audio-ready with microphone and audio output connections

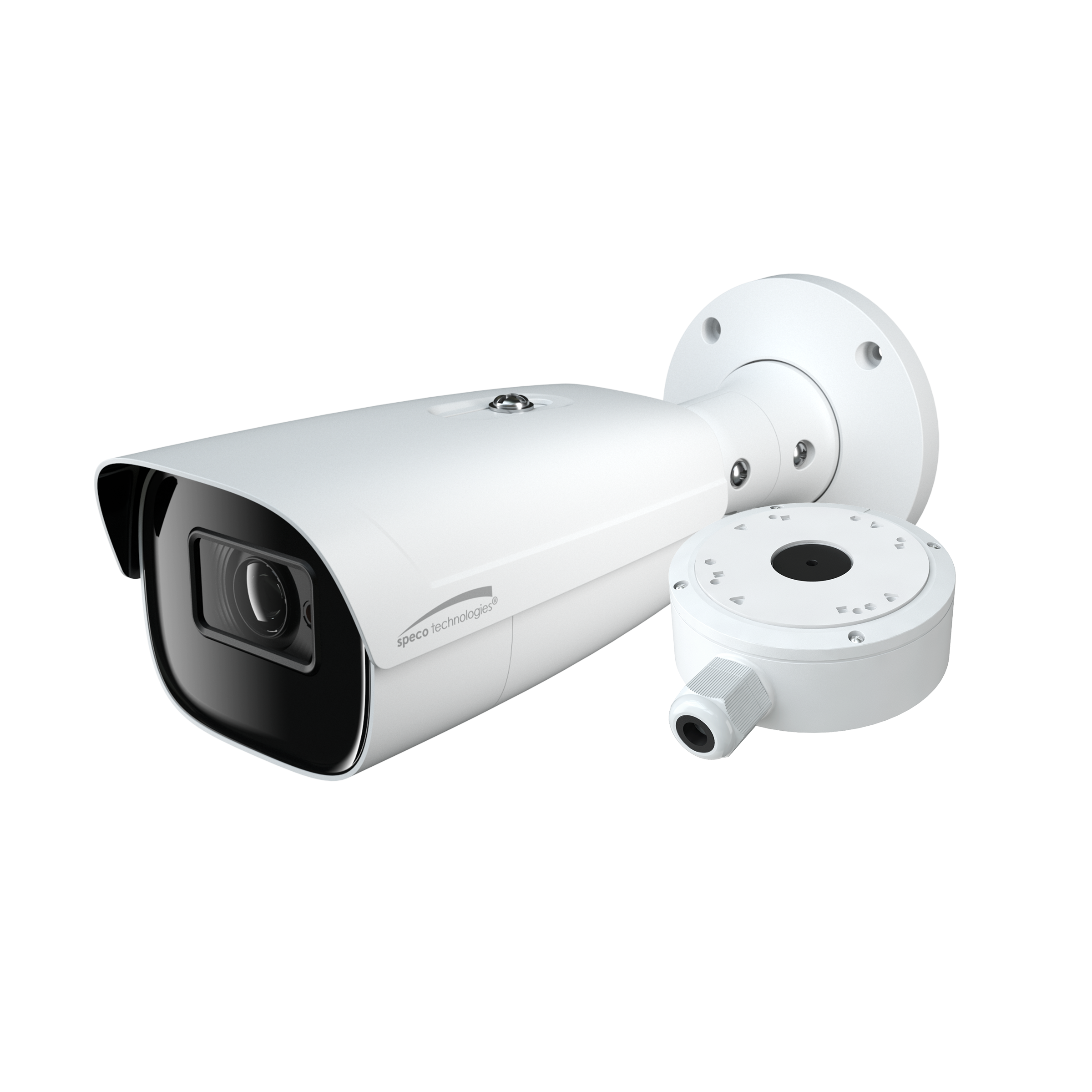

- · IP67 weather-resistant housing and included junction box
Technical Context
The motorized varifocal lens allows installers to adjust the viewing angle and zoom for different monitoring distances. Advanced analytics can identify people, vehicles, faces, counting events, intrusions, line crossings, and object changes, while H.265 compression helps manage bandwidth and storage usage.
Installation Notes

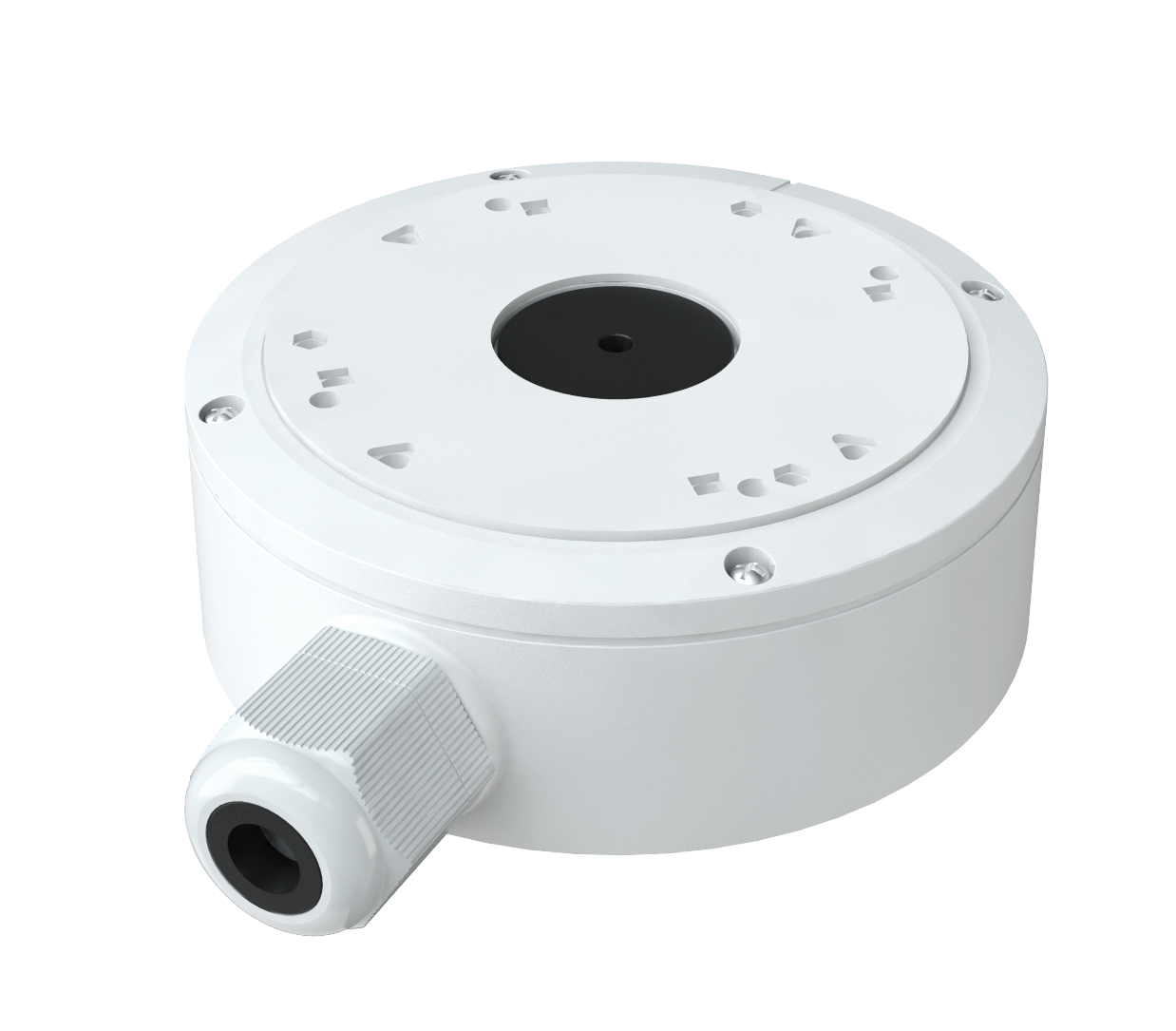

Install the camera outdoors using the included junction box, connect it through IEEE 802.3af PoE or regulated 12VDC power, adjust the motorized lens, and configure the required analytics and microSD recording settings.
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/3" CMOS, 4MP |
| Maximum Resolution | 2592 x 1520 |
| Field of View | 100° ~ 28.9°(H), 54.5° ~ 16.7°(V), 104.8° ~ 33.1°(D) |
| Minimum Illumination | 0.003 lux @ F1.3, AGC ON, 0 lux (IR LED on) |
| Day/Night | Smart IR |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Compensation | True WDR (120dB), BLC, HLC |
| Electronic Shutter Speed | 1/3 - 1/100000 sec. |
| DNR | 3D DNR |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion, exception, line crossing, region intrusion, object detection, vehicle/people detection, face detection, people/vehicle counting and tampering detection All listed analytics may be triggered simultaneously, except face detection |
| Alarm Triggers | Analytics, SD card error |
| Alarm Events | FTP upload, email upload |
| Image Settings | Watermark, IP address filtering, video mask, password protection |
| Interfaces | |
| Ethernet | 10/100 Mbps (PoE) |
| Video | CVBS output (BNC x 1) |
| Power | DC jack |
| Microphone Input | Mono 3.5mm |
| Audio Output | Mono 3.5mm |
| Card Slot | MicroSD, up to 256GB (not included) |
| Alarm | 1-CH alarm input, 1-CH alarm output |
| Reset | Yes |
| Audio Specifications | |
| Audio Codec | G.711A / G.711U |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 10 simultaneous users, actual number of users may vary depending on bandwidth |
| Video Specifications | |
| Main Resolution | 2592x1520 / 2560x1440 / 2304x1296 / 1920x1080 / 1280x720 @ 30fps |
| Sub Stream | 720P/ D1, CIF |
| Third Stream | D1/ CIF/ 480 X 240 |
| Compression | H.265, H.264 (HP/MP/BP), MJPEG |
| Video Settings | Region of interest, privacy masking, brightness, contrast, hue, saturation, denoise, antiflicker, day/night mode, infrared settings, exposure, gain, corridor pattern, image flip/mirror |
| Bitrate Control | VBR, CBR (64Kbps ~ 10Mbps) |
| Multiple Streaming | 3 streams |
| Client Specifications | |
| Web Browser Support | Google Chrome®, Edge®, Safari, Fire Fox®, Windows ®(Internet Explorer® 8 and up) |
| PC Application | SecureGuard® VMS, SecureGuard® CMS |
| Mobile | SecureGuard® Client, Speco Blue (iPhone® and Android™) |
| Operating & Unit Specifications | |
| Power Consumption | < 9.5W |
| Operating Temperature | -40°F ~ 140°F |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 3.95" (W) x 11.0" (D) x 3.5" (H) |
| Unit Weight | 1.52 lb. |
| Certifications | FCC, UL Listed. |
| Dori Distance | |
| Lens | 2.8mm |
| Detect | 193ft(58m) |
| Observe | 77ft(23m) |
| Recognize | 38ft(11m) |
| Identify | 19ft(5m) |
