Speco - O4BDD2 - 4MP IP Bullet Camera with AI, Audio, and Visual Deterrent, NDAA
Product Overview

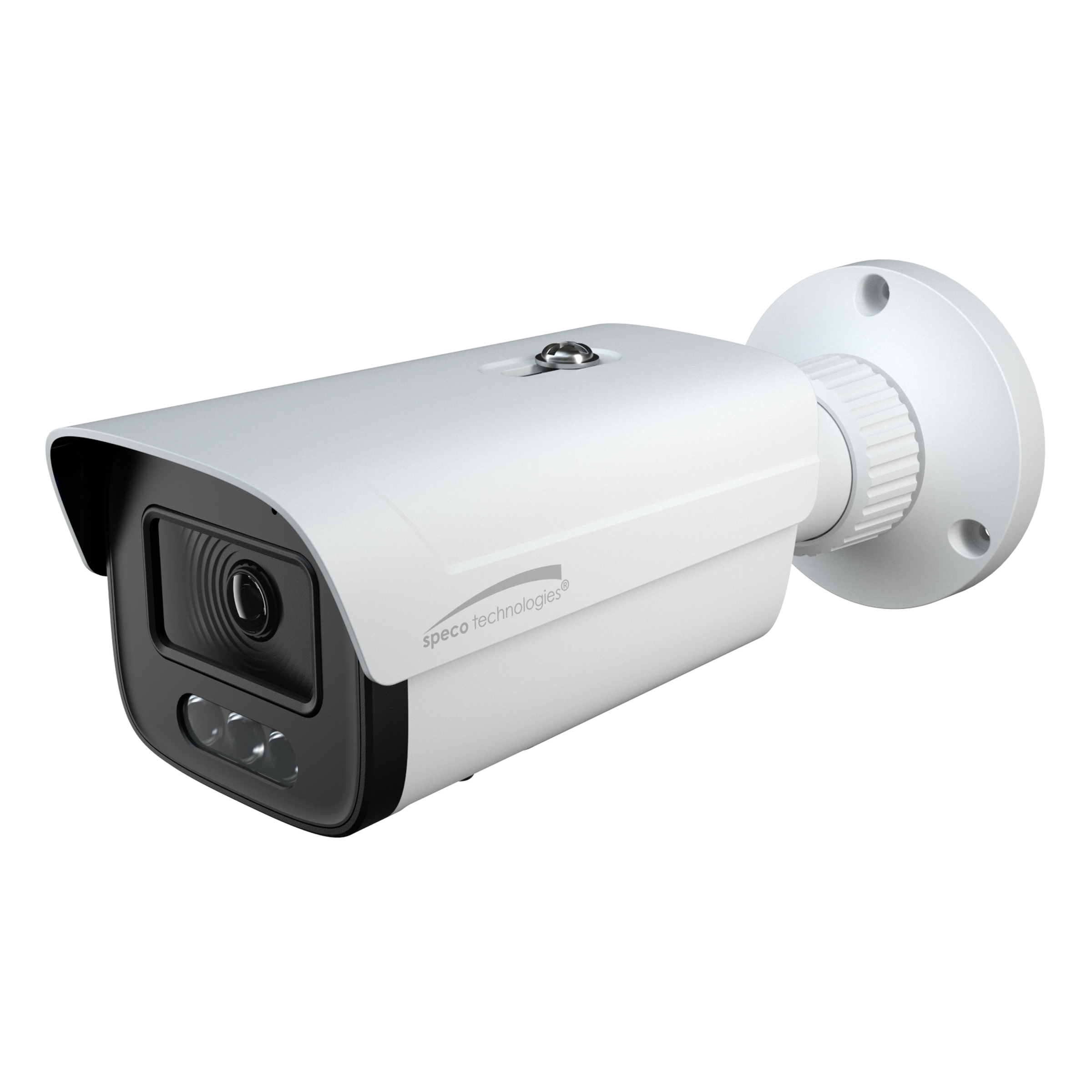

The Speco O4BDD2 is a 4MP outdoor IP bullet camera with AI analytics, built-in audio, and visual deterrence. Its 2.8mm fixed lens captures 2592 × 1520 video at 30fps, while the integrated speaker, red and blue warning lights, white LED, IR illumination, and IP66 housing support proactive outdoor security.
Key Configuration
Model: O4BDD2 | Resolution: 4MP, 2592 × 1520 at 30fps | Sensor: 1/3-inch progressive scan CMOS | Lens: 2.8mm fixed | Field of view: 96° horizontal, 54.5° vertical, 113° diagonal | Compression: H.265+, H.265, H.264+, H.264, MJPEG | Connectivity: IEEE 802.3af PoE and 12VDC | Storage: microSD up to 256GB | Protection: IP66 | Housing: White
Key Features
- · 4MP video resolution at up to 30fps
- · 2.8mm fixed lens with 96° horizontal field of view
- · Built-in speaker with preset and custom audio deterrence sounds
- · High-power red and blue lights for visual deterrence
- · White LED and IR illumination up to 164 feet, depending on scene reflection
- · True WDR with BLC and HLC support
- · Face, person, vehicle, line-crossing, counting, and intrusion analytics
- · H.265+, H.265, H.264+, H.264, and MJPEG compression
- · Built-in IEEE 802.3af PoE support
- · MicroSD recording support up to 256GB
- · Built-in microphone, speaker, and 3.5mm audio connections
- · IP66 weather-resistant housing with included junction box
Technical Context
The O4BDD2 combines camera analytics with audio and visual deterrence. Compatible analytics can identify people, vehicles, faces, line crossings, counting events, intrusions, and object changes, while the integrated speaker and warning lights can provide an active response to detected activity.
Installation Notes

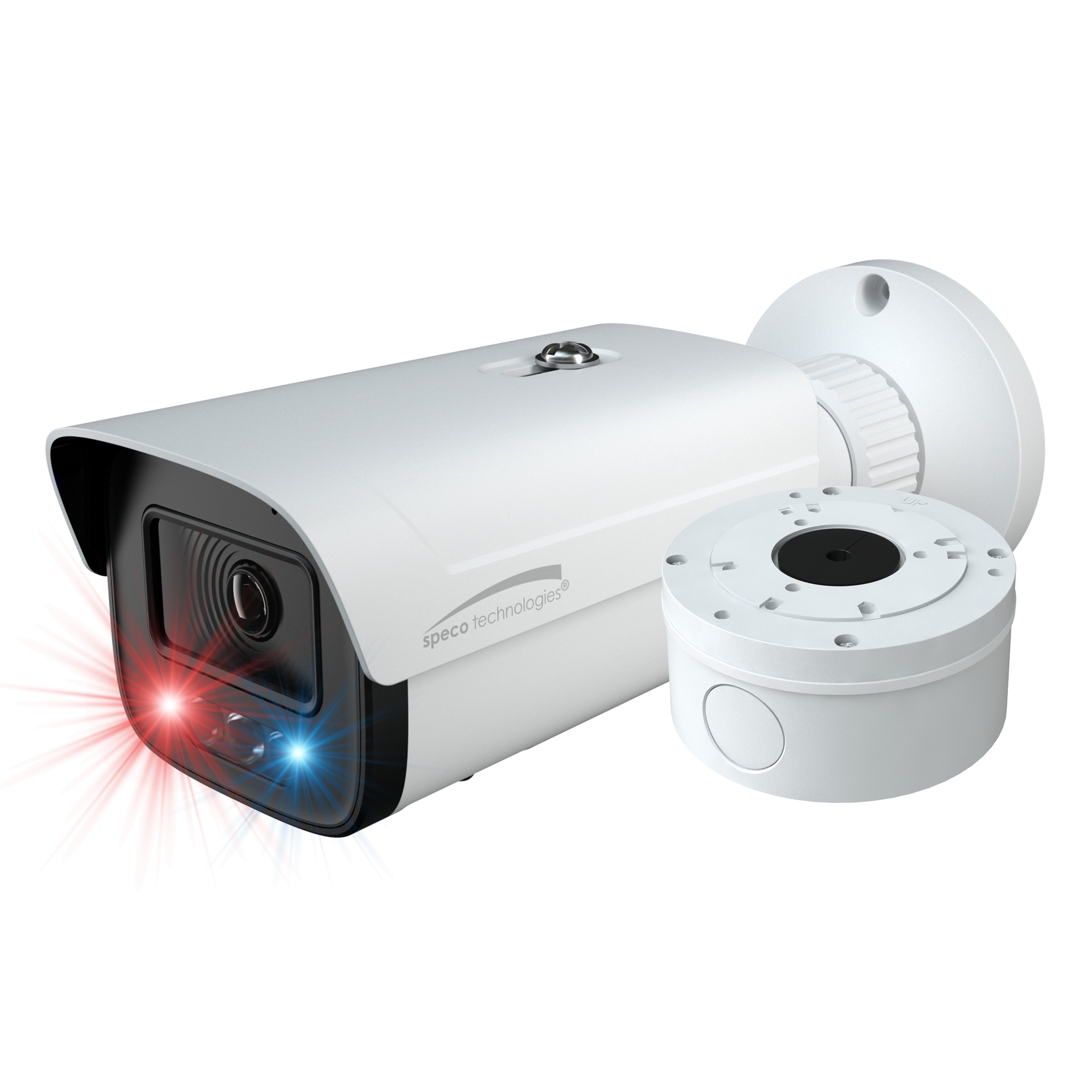

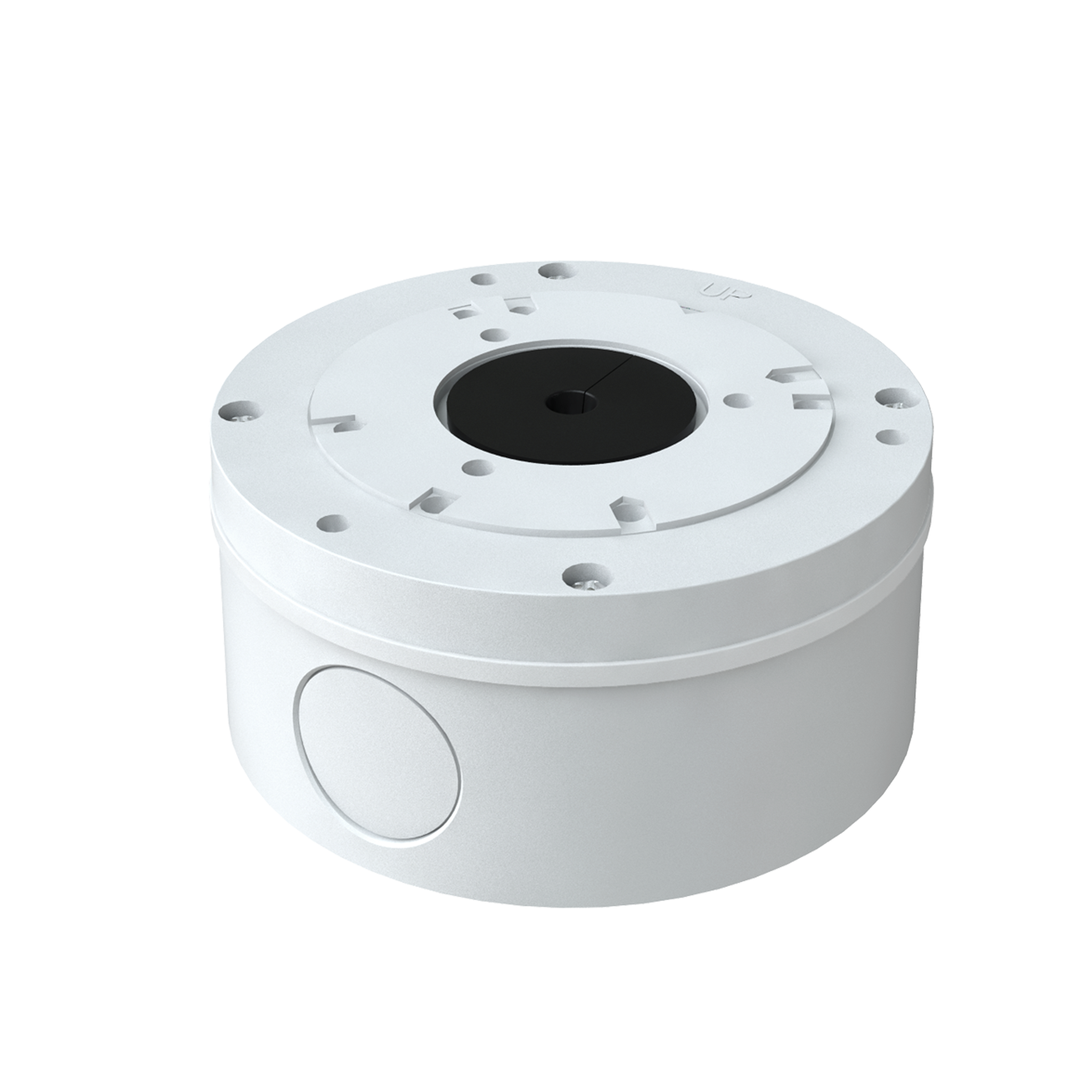

Install the camera outdoors using the included junction box, connect it through IEEE 802.3af PoE or regulated 12VDC power, adjust the three-axis mounting position, and configure deterrence, analytics, alarm, and microSD recording settings.
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/3" CMOS |
| Maximum Resolution | 2592 x 1520 (4MP) |
| Field of View | Horizontal: 96°, vertical: 54.5°, diagonal: 113° |
| Minimum Illumination | 0.03lux @ F1.4(AGC ON); 0 lux @ LED ON |
| White Balance | Auto, indoor, outdoor, manual |
| Compensation | True WDR (120dB), BLC, HLC |
| Day/Night | Smart IR or supplemental white LED |
| Electronic Shutter Speed | 1/3s - 1/100000s |
| Angle Adjustment | Pan: 0° ~ 360°; tilt: 0° ~ 90°; Rotation: 0° ~ 360° |
| Interfaces | |
| Ethernet | RJ45 Jack, 10/100 Mbps, PoE |
| Power | 12VDC input jack |
| Audio | Built-in mic and speaker, 3.5mm input, 3.5mm output |
| Card slot | MicroSD, up to 256GB (not included) |
| Alarm | 1-CH alarm in, 1-CH alarm out |
| Reset | Yes |
| Audio Specifications | |
| Audio Compression | G.711A / G.711U |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & Password protection, IP/MAC address filtering, digest authentication |
| User Access | Max. 10 simultaneous users |
| Video Specifications | |
| Main Resolution | 2592x1520, 2560x1440 2304x1296, 1920x1080, 1280x720, D1, CIF, 480x240 @ 30fps |
| Substream | 1280x720, D1, CIF @ 30fps |
| Third Stream | D1, CIF, 480x240 @30fps |
| Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Bitrate Control | VBR, CBR (64Kbps - 8Mbps) |
| Multiple Streaming | 3 streams |
| Video Settings | Region of interest, privacy masking, brightness, contrast, hue, saturation, de-noise, anti-flicker, day/night mode, exposure, gain, corridor pattern, image flip/mirror |
| Client Specifications | |
| Web Browser Support | Google Chrome®, Microsoft Edge®, Internet Explorer®, Apple Safari® |
| PC Application | SecureGuard® VMS and SecureGuard® CMS |
| Mobile | SecureGuard® Client, Speco Blue |
| Other Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion detection, object abandoned/ missing detection, region entrance/ exiting/intrusion detection (face/people/vehicle classification), line crossing detection (people/vehicle classification), video tampering detection, scene change detection. All listed analytics may be triggered simultaneously, except face detection. |
| Alarm Triggers | Motion detection, sensor detection, SD card error, SD card full, IP address conflict, cable disconnection |
| Alarm Events | FTP upload, email upload |
| Image Settings | Watermark, IP address filtering, video mask, heartbeat, illegal login lock, image distortion correction |
| Operating & Unit Specifications | |
| Power Consumption | 12.0W (max) |
| Operating Temperature | -40°F - 140°F |
| Operating Humidity | less than 95% (non-condensing) |
| Unit Dimensions | 5.125"Ø × 4.1"(H) |
| Unit Weight | 1.48 lbs. |
| Certifications | FCC, ONVIF Profile G/M/S/T |
