Speco - O4BXLP1M - 4MP IP License Plate Recognition Box Camera with White Light Intensifier®
Product Overview

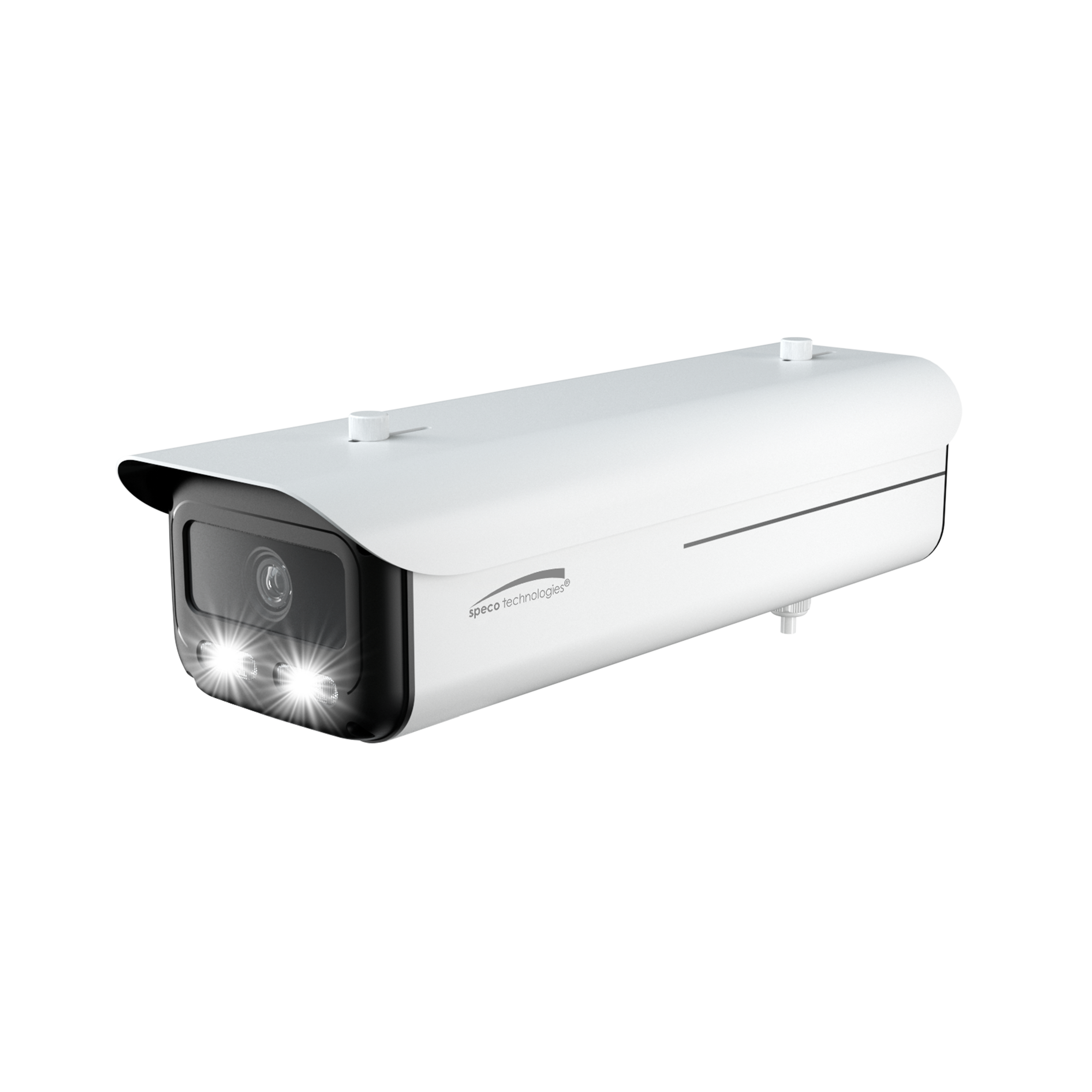

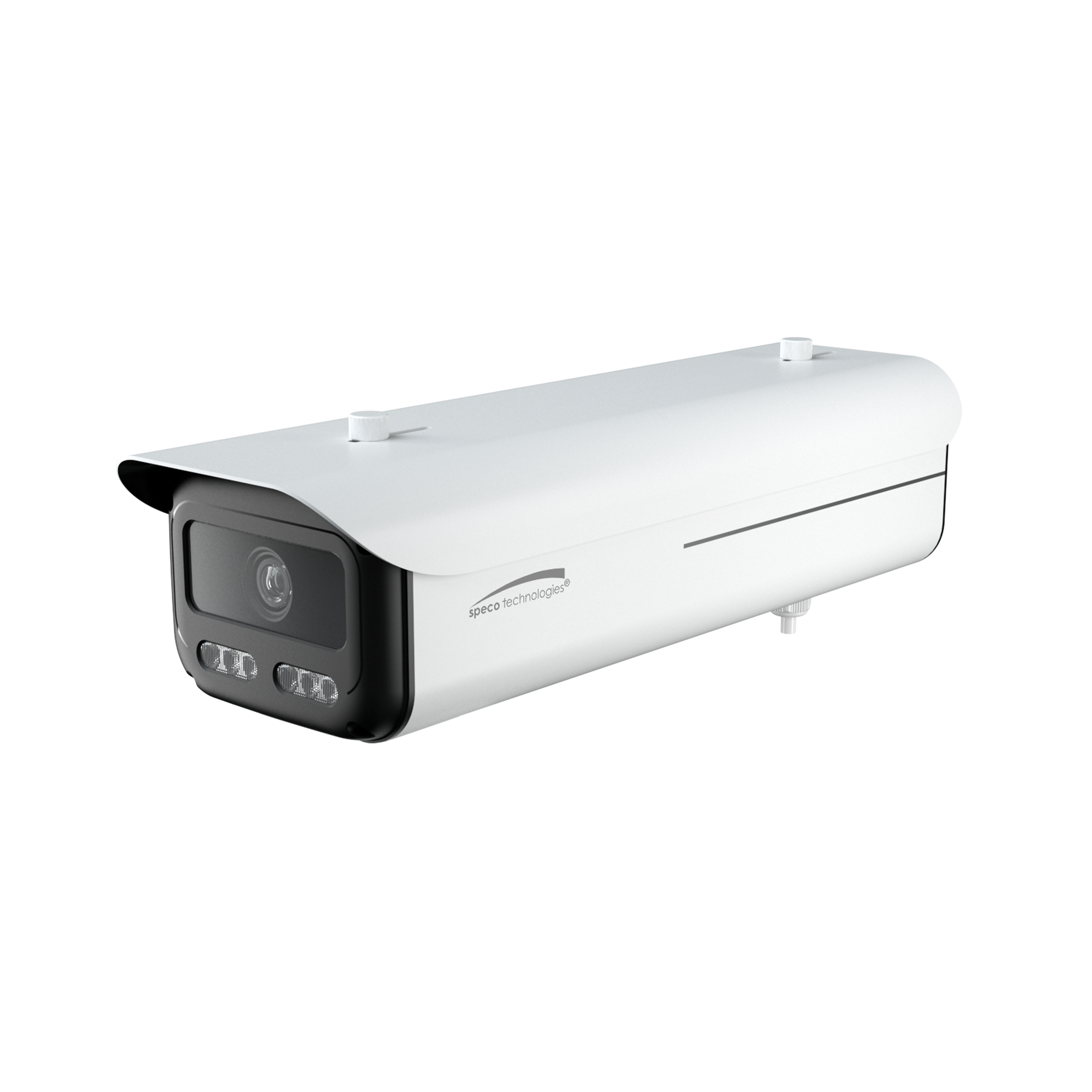

The Speco O4BXLP1M is a 4MP IP license plate recognition box camera with an 8-32mm motorized lens and White Light Intensifier. It is designed for outdoor LPR applications, capturing plates in low light, supporting vehicle metadata and travel-direction analytics, and providing IP67 weather-resistant protection.
Key Configuration
Model: O4BXLP1M | Resolution: 4MP, 2560 × 1520 | Sensor: 1/1.8-inch progressive scan CMOS | Lens: 8-32mm motorized | Capture distance: 22-98 feet recommended | Plate capture: Up to 75mph in optimal conditions | Connectivity: IEEE 802.3bt PoE++ and 24V AC/DC | Storage: microSD up to 256GB | Protection: IP67 | Color: White
Key Features
- · 4MP license plate recognition camera with 30fps support
- · 60fps high-frame-rate mode
- · 8-32mm motorized lens with remote zoom and focus
- · White LED illumination up to 330 feet, depending on scene reflection
- · Captures license plates up to 75mph in optimal conditions
- · Searches and matches plates against a database of up to 10,000 plates
- · License plate recognition, travel-direction, and vehicle-metadata analytics
- · IEEE 802.3bt PoE++ support and 24V AC/DC input
- · Two-way audio support with microphone and audio output connections
- · MicroSD recording support up to 256GB
- · Two-channel alarm inputs and outputs with RS485, RS232, CVBS, and Wiegand interfaces
- · IP67 weather-resistant housing and ONVIF Profiles G, S, and T support
Technical Context
The motorized 8-32mm lens supports long-range plate capture by allowing remote adjustment of focal length and focus. White LED illumination improves plate visibility in low-light scenes, while the built-in database and recorder search support help operators match captured plates against watchlists.
Installation Notes
Install the camera outdoors with a clear view of the vehicle approach, maintain the recommended 22-98-foot capture distance, connect it through PoE++ or 24V AC/DC power, and configure LPR, plate matching, analytics, and alarm interfaces for the installation.
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | 1/1.8" Progressive Scan CMOS |
| Maximum Resolution | 2560 x 1520 (4MP) |
| Field of View | Horizontal: 41°~15.5° Vertical: 23°~9.5° Diagonal: 46.5°~18° |
| Minimum Illumination | 0 lux with white LED |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Day/Night | White LED |
| Electronic Shutter Speed | 1s ~ 1/100000s |
| DNR | 3D DNR |
| Angle Adjustment | Pan: 0°~360° Tilt:0°~90° Rotation: 0°~360° |
| Interfaces | |
| Ethernet | 10/100 Mbps RJ45 |
| Power | 24V AC/DC wire input |
| Microphone Input | Yes, 1-CH |
| Audio output | Yes, 1-CH |
| Card slot | MicroSD, up to 256GB (not included) |
| Alarm | 2-CH alarm input; 2-CH alarm output |
| CVBS Out | Yes, 1-CH |
| Wiegand | Yes, 26-bit |
| RS485 | Yes |
| RS232 | Yes |
| Reset | Yes |
| System Specifications | |
| PoE | Standard (IEEE 802.3bt) |
| Analytics | License plate recognition, travel direction, vehicle metadata, video tampering detection |
| Alarm Triggers | Motion detection, analytics, video tampering detection, SD card error, IP conflict, sensor alarm, IP address conflict, cable disconnection |
| Image Settings | Region of interest, saturation, brightness, chroma, contrast, noise reduction, corridor mode, video masking |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, QoS |
| DDNS support | Speco DDNS (free of charge) |
| Security | Watermark, IP address filtering, video mask, heartbeat, password protection, non-photosensitive switch, image distortion correction |
| User Access | Max. 10 simultaneous users Actual number of users may vary depending on bandwidth |
| Operating & Unit Specifications | |
| Power Consumption | 21.5W (max) |
| Operating Temperature | -40°F ~ 140°F |
| Operating Humidity | Less than 95% (non-condensing) |
| Unit dimensions | 16.9"(L) × 5.43"(W) × 4.25"(H) |
| Unit Weight | 5.51 lbs. |
| Certifications | FCC |
| Video Specifications | |
| Main Resolution | 4MP/2K/3MP/1080P (up to 30fps); HFR Mode: 1080P/720P (1 ~ 60fps) |
| Sub Stream | 720P/D1/CIF (up to 30fps) |
| Third Stream | D1/CIF (up to 30fps) |
| Compression | H.265, H.264, MJPEG |
| Bitrate Control | VBR, CBR (64 Kbps ~ 8 Mbps) |
| Multiple Streaming | 3 streams |
| Client Specifications | |
| Web Browser Support | Chrome, Edge, Safari, Firefox, Internet Explorer 8 and up |
| PC Application | SecureGuard* VMS SecureGuard* CMS Speco Blue VMS |
| Mobile | Speco Blue App, SecureGuard* App (iPhone* and AndroidTM) |
| Audio Specifications | |
| Audio Compression | G.711A / G.711U |
| Audio Interface | 1-CH in/ 1-CH out |
| 8 - 32mm Lens Installation Recommendations | |
| Overhead | Recommended Installation Height: 15 ~ 20 ft. |
| Entrance/Exit | Recommended Installation Height: 4.2 ~ 5 ft. |
