Speco - O4D9 - 4MP H.265 IP Dome Camera with Advanced Analytics
Product Overview

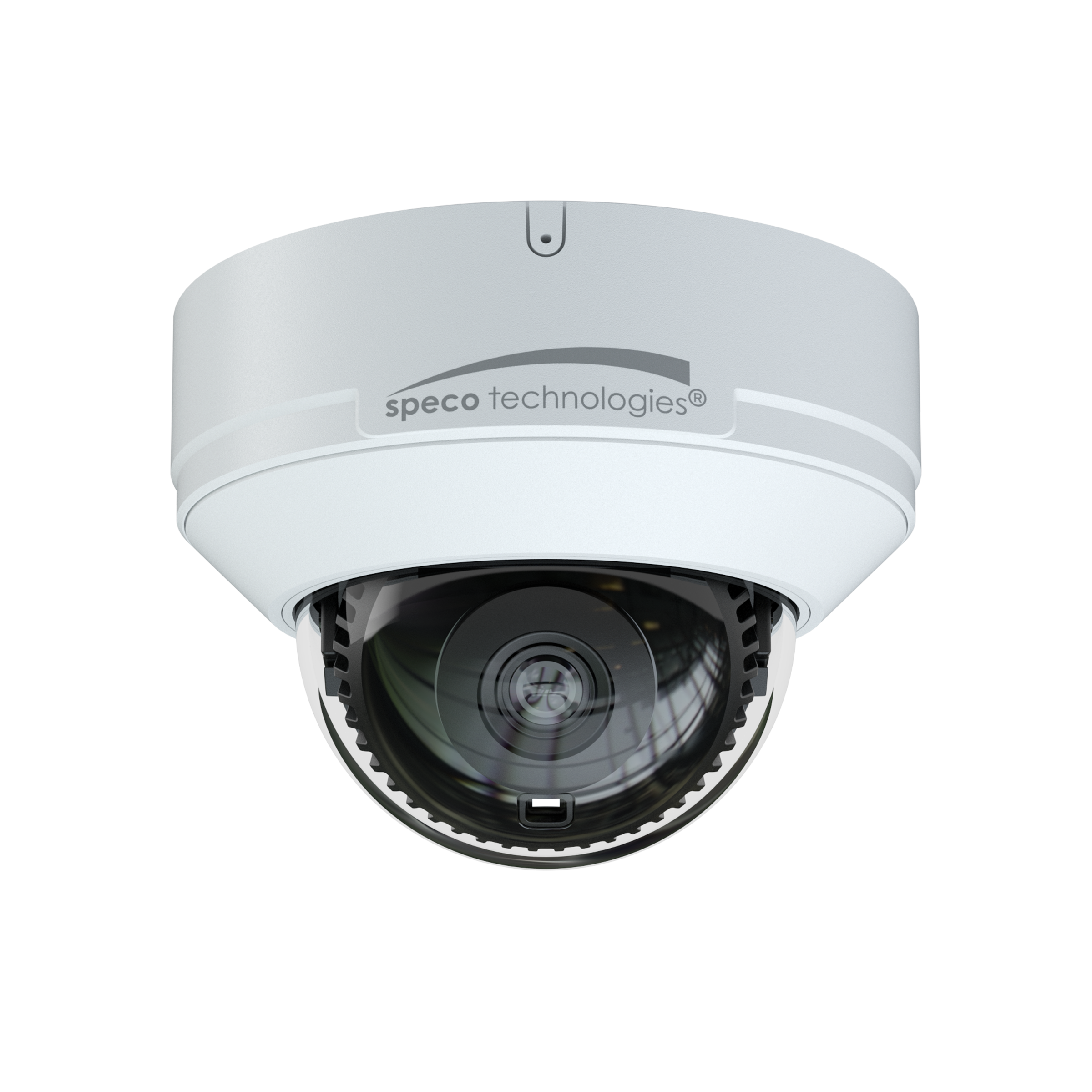

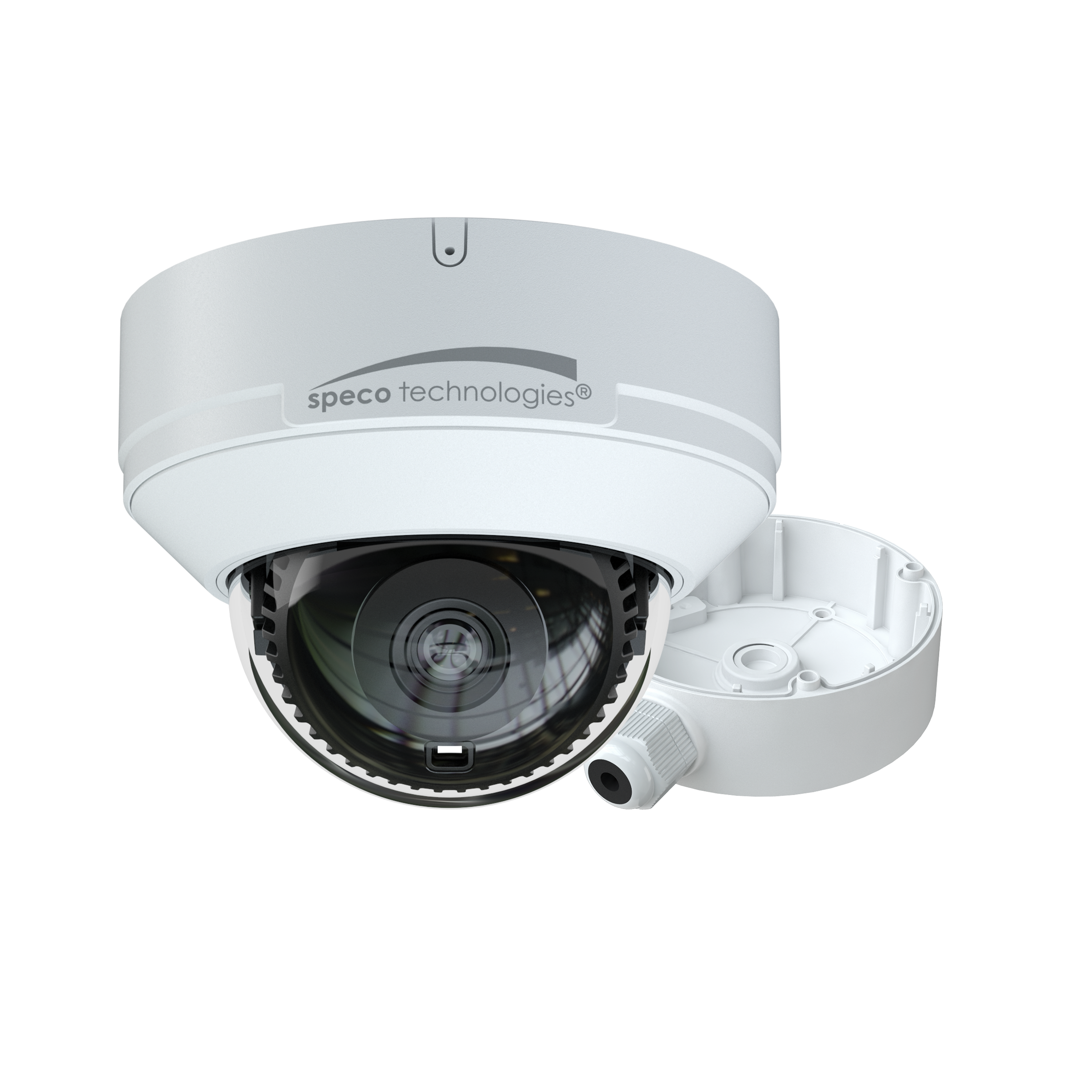

Now Integrated with CHeKT 4MP IP Dome Camera with Advanced Analytics IP Integrated with CHeKT and immix Professional Virtual Security O4D9 2.8mm fixed lens, white housing.
Key Configuration

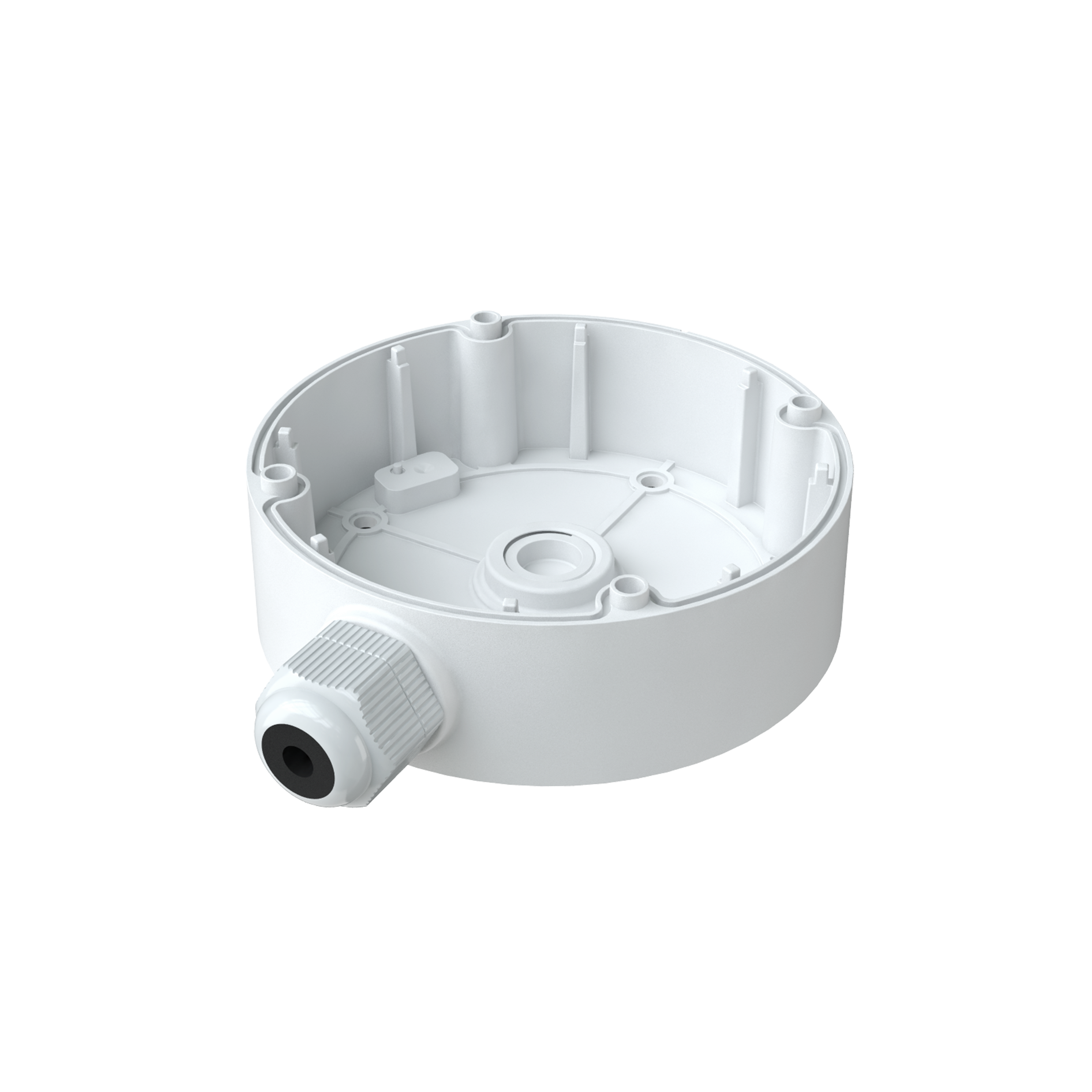

Model: O4D9 | Supports up to 4MP @ 30fps | Built-in standard PoE (IEEE 802.3af) | H.265/H.264/MJPEG compression supported | True Day/Night operation (IR cut filter) | Adaptive IR LEDs reduce IR saturation | IR range: Up to 100FT (depending on scene reflection) | Micro SD slot up to 256GB (card not included) | True WDR (wide dynamic range) operation | IP67 compliant, weather resistant | IK10 compliant, vandal resistant | Junction box included (works with NPT/BSP specifications) | Conformant with ONVIF Profile G/M/S/T | 5 year warranty | NDAA Compliant* | UL Listed
Key Features
- • Supports up to 4MP @ 30fps.
- • Built-in standard PoE (IEEE 802.3af).
- • H.265/H.264/MJPEG compression supported.
- • True Day/Night operation (IR cut filter).
- • Adaptive IR LEDs reduce IR saturation.
Installation Notes
4.7" (φ) × 3.5" (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/3" CMOS, 4MP |
| Maximum Resolution | 2592 x 1520 |
| Field of View | 95.3°(H), 53.2°(V), 115°(D) |
| Minimum Illumination | 0.005 lux @ F1.6, AGC ON, 0 lux (IR LED on) |
| Day/Night | Smart IR |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Compensation | True WDR (120dB), BLC, HLC |
| Electronic Shutter Speed | 1/3 - 1/100000 sec. |
| DNR | 3D DNR |
| Angle Adjustment | Pan 0° ~ 355°, Tilt 0° ~ 67°, Rotation 0° ~ 180° |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion, exception, line crossing, region intrusion, object detection, vehicle/people detection, face detection, people/vehicle counting and tampering detection All listed analytics may be triggered simultaneously, except face detection |
| Alarm Triggers | Analytics, SD card error |
| Alarm Events | FTP upload, email upload |
| Image Settings | Watermark, IP address filtering, video mask, password protection |
| Interfaces | |
| Ethernet | 10/100 Mbps (PoE) |
| Power | DC jack |
| Microphone Input | Built-in mic and Mono 3.5mm input |
| Audio Out | No |
| Card Slot | MicroSD, up to 256GB (not included) |
| Alarm | 1-CH alarm input; 1-CH alarm output |
| Reset | Yes |
| Audio Specifications | |
| Audio Codec | G.711A / G.711U |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 10 simultaneous users, actual number of users may vary depending on bandwidth |
| Video Specifications | |
| Main Resolution | 2592x1520 / 2560x1440 / 2304x1296 1920x1080 / 1280x720 @ 30fps |
| Sub Stream | 720P/ D1, CIF |
| Third Stream | D1/ CIF/ 480 X 240 |
| Compression | H.265, H.264 (HP/MP/BP), MJPEG |
| Video Settings | Region of interest, privacy masking, brightness, contrast, hue, saturation, denoise, antiflicker, day/night mode, infrared settings, exposure, gain, corridor pattern, image flip/mirror |
| Bitrate Control | VBR, CBR (64Kbps ~ 10Mbps) |
| Multiple Streaming | 3 streams |
| Client Specifications | |
| Web Browser Support | Google Chrome®, Edge®, Safari, Fire Fox®, Windows ®(Internet Explorer® 8 and up) |
| PC Application | Speco Blue VMS, SecureGuard® CMS |
| Mobile | SecureGuard® Client, Speco Blue (iPhone® and Android™) |
| Operating & Unit Specifications | |
| Power Consumption | < 7.0W |
| Operating Temperature | -40°F ~ 140°F |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 4.7" (φ) × 3.5" (H) |
| Unit Weight | 1.43 lb. |
| Certifications | FCC, UL Listed, ONVIF Profile G/M/S/T |
| D.O.R.I (m) | |
| Detection (25px/m) | 199ft (60.7m) |
| Observation (63px/m) | 80ft (24.3m) |
| Recognition (125px/m) | 40ft (12.1m) |
| Identification (250px/m) | 20ft (6.1m) |
