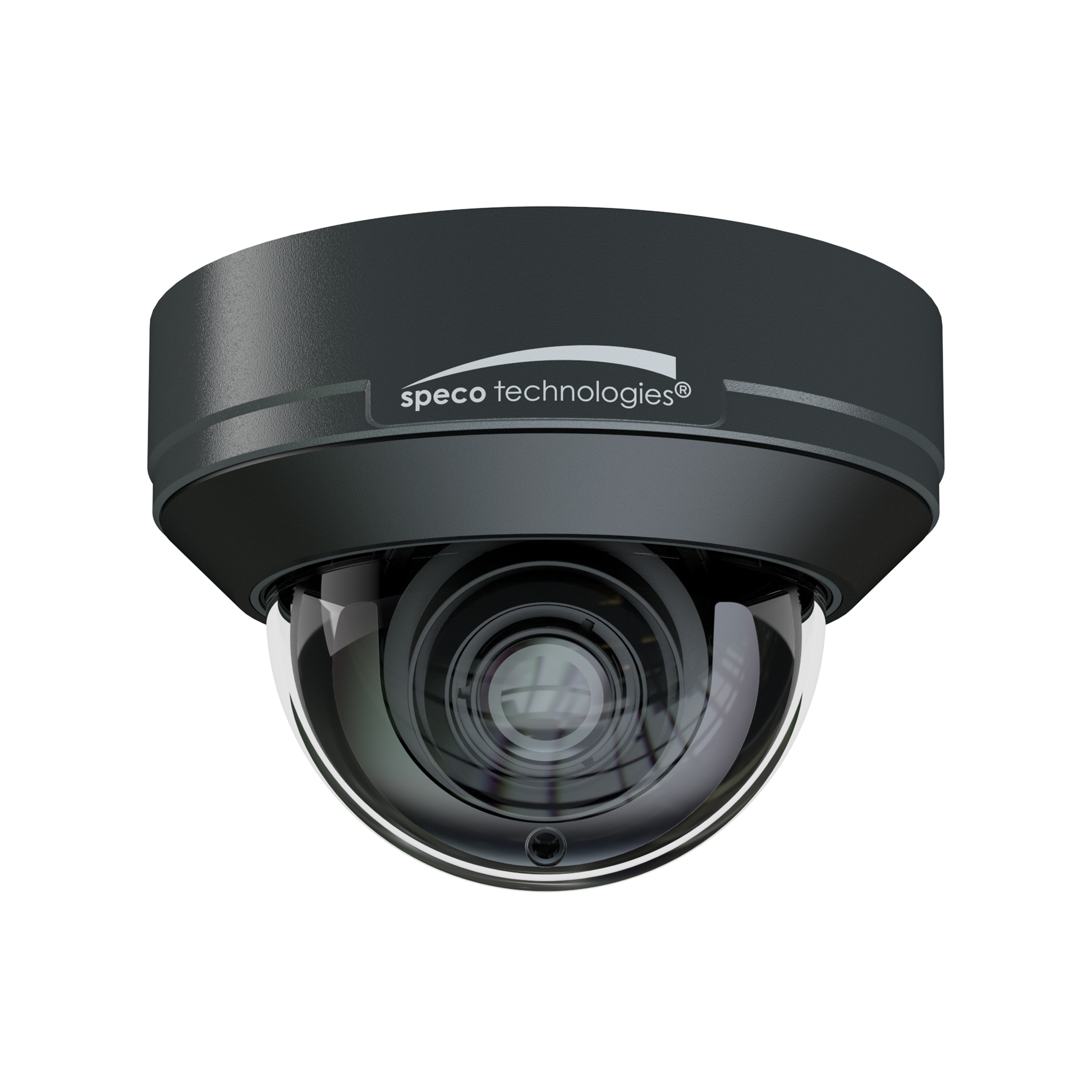

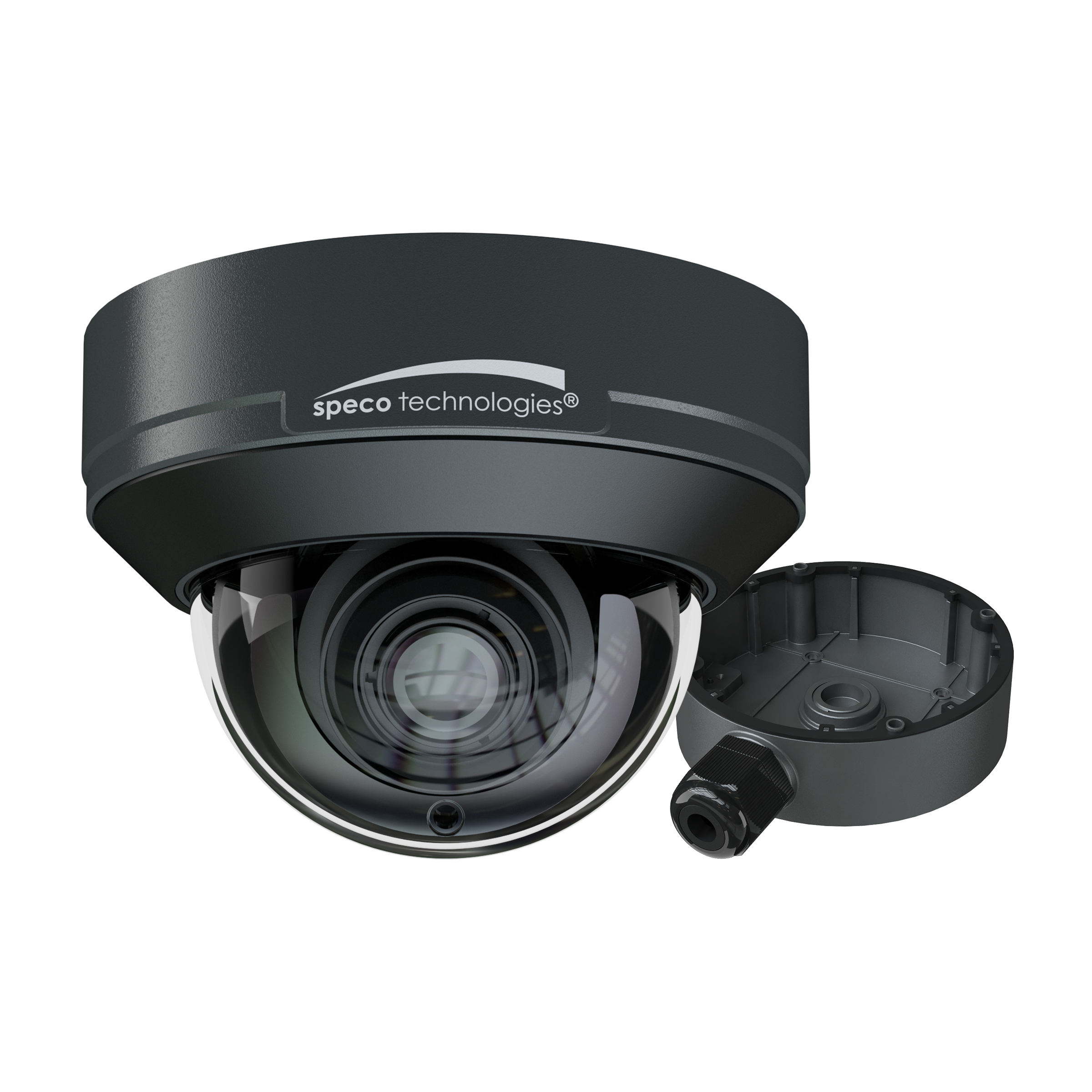

Speco - O4FD2M - 4MP Flexible Intensifier® IP Dome Camera with Advanced Analytics, NDAA
Part number:
Price:
Product Overview
4MP Flexible Intensifier® IP Dome Camera with Advanced Analytics, NDAA 2.8-12mm motorized lens, dark gray housing
Key Configuration
Model: O4FD2M
Key Features
- • Flexible Intensifier® Technology to fit any lighting application.
- • Captures up to 4MP @ 30fps real time.
- • Captures color in extreme low light conditions and monochrome in absolute darkness.
- • IR range: up to 164’ (depending on scene reflection).
- • True WDR operation.
Installation Notes
5.55" (Φ) × 3.94" (H)
| Full Specifications | |
| Housing Color | Gray |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/1.8"CMOS |
| Maximum Resolution | 2576 × 1452 |
| Field of View | Horizontal: 109° ~ 46°; Vertical: 74.5° ~ 27.1°; Diagonal: 116° ~ 52.4° |
| Minimum Illumination | 0.0014 lux@F1.5, AGC ON; 0 lux with IR |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Compensation | True WDR (120dB), BLC, HLC |
| Day/Night | Smart IR |
| Electronic Shutter Speed | 1s ~ 1/100000s |
| DNR | 3D DNR |
| Angle Adjustment | Pan: 0° ~ 345°; Tilt:0° ~ 77°; Rotation: 0° ~ 345° |
| Video Specifications | |
| Main Resolution | 2560×1440, 2304×1296, 1920×1080, 1280×720, D1, CIF, 480×240 @30fps |
| Substream | 1280×720, D1, CIF, 480×240 @30fps |
| Third Stream | D1, CIF, 480×240 @30fps |
| Compression | Main stream: H.265+ / H.265 / H.264+ / H.264Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEGThird stream: H.265+ / H.265 / H.264+ / H.264/MJPEG |
| Bitrate Control | VBR, CBR (64Kbps ~ 8Mbps) |
| Multiple Streaming | 3 streams |
| Video Settings | Region of Interest, Privacy masking, Brightness, Contrast, Hue, Saturation, Denoise, Antiflicker, Day/Night mode, Exposure, Gain, Corridor Pattern, Image flip/mirror |
| Audio Specifications | |
| Audio Compression | G.711A / G.711U |
| Audio input | Built-in mic and 3.5mm input |
| Audio output | 3.5mm output |
| Client Specifications | |
| Web Browser Support | Google Chrome, Microsoft Edge, Internet Explorer, Apple Safari |
| PC Application | SecureGuard® VMS and SecureGuard CMS |
| Mobile | SecureGuard® App, Speco Blue |
| Interfaces | |
| Ethernet | RJ45 Jack, 10/100 Mbps, PoE |
| Power | 12VDC input jack |
| Video | CVBS out (BNC) |
| Audio | Built-in mic, 3.5mm input, 3.5mm output |
| Card slot | MicroSD, up to 256GB (not included) |
| Alarm | 1CH alarm input; 1CH alarm output |
| Reset | Yes |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & Password protection, IP/MAC address filtering, digest authentication |
| User Access | Max. 10 simultaneous users Actual number of users may vary depending on bandwidth |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion detection, Object abandoned/missing detection, region entrance/exiting/intrusion detection (people/vehicle classification), line crossing detection (people/vehicle classification), video tampering detection, scene change detection, face detection, face capture. |
| Alarm Triggers | Motion detection, Sensor detection, SD card error, SD card full, IP address conflict, cable disconnection |
| Alarm Events | FTP upload, email upload |
| Image Settings | Watermark, IP address filtering, video mask, heartbeat, illegal login lock, image distortion correction |
| Operating & Unit Specifications | |
| Power Consumption | 9.0W (max) |
| Operating Temperature | -40°F - 140°F |
| Operating Humidity | less than 95% (non-condensing) |
| Unit dimensions | 5.55" (Φ) × 3.94" (H) |
| Unit Weight | 2.05 lbs |
| Certifications | FCC |
