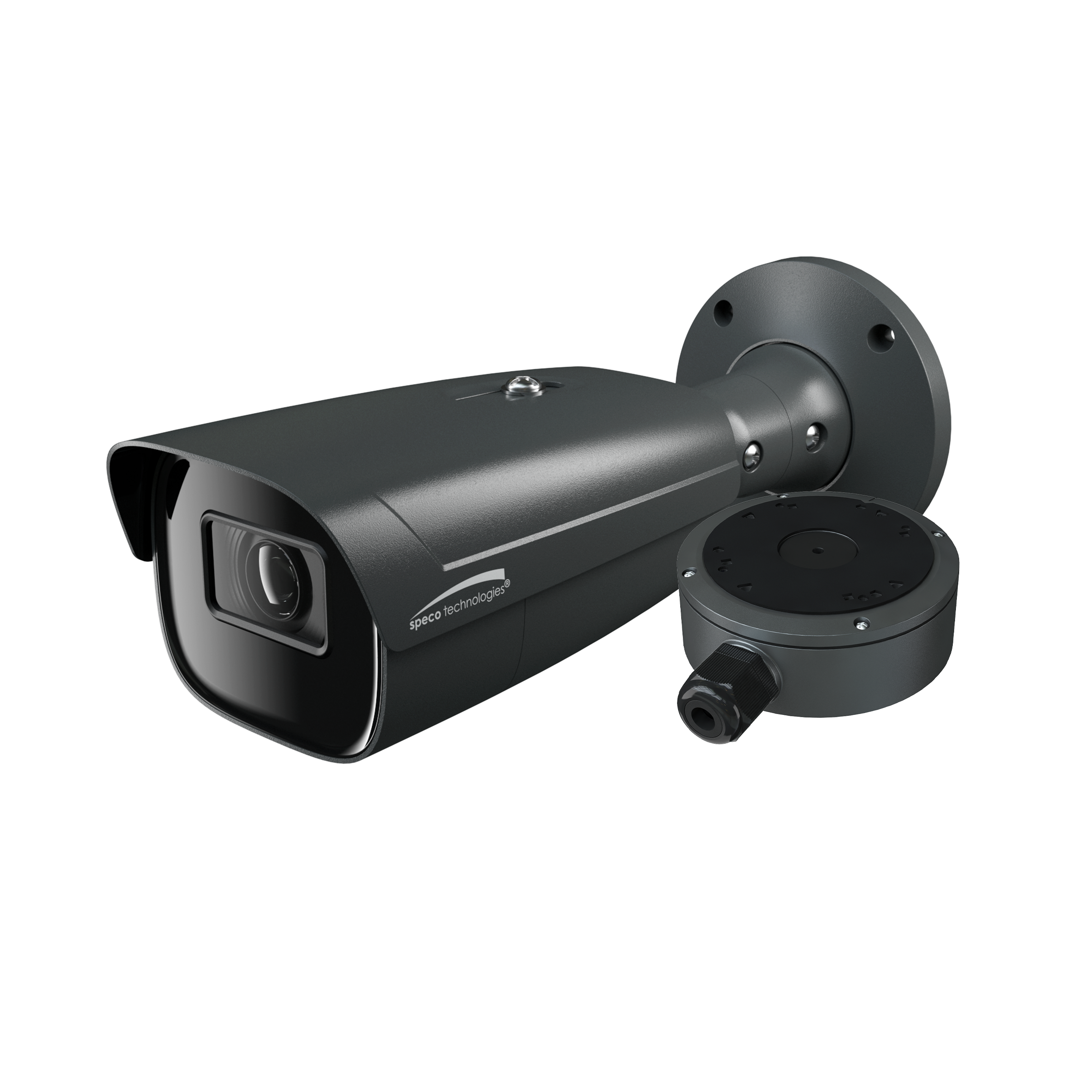

Speco - O4iB2M - 4MP Intensifier® IP Bullet Camera with Advanced Analytics
Part number:
Price:
Product Overview
Intensifier® Technology captures in full color in extreme low-light scenes. Captures up to 4MP @ 30fps real time.
Key Configuration
Model: O4iB2M
Key Features
- • True WDR operation.
- • Micro SD card slot (card not included).
- • Conformant with ONVIF Profile G,S,T.
- • IP67 Weather Resistance.
- • Built-in standard PoE (IEEE 802.3af).
Installation Notes
10.95" (L) x 3.93" (W) x 3.49" (H)
| Full Specifications | |
| Housing Color | Gray |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/1.8"CMOS |
| Maximum Resolution | 2560 × 1440 |
| Field of View | Horizontal: 110°~48°; vertical: 57°~27°; diagonal: 130°~56° |
| Minimum Illumination | 0.001 lux@F1.3, AGC ON |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Compensation | True WDR (120dB), BLC, HLC |
| Electronic Shutter Speed | 1s ~ 1/100000s |
| DNR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt: 0°~90°; Rotation: 0°~360° |
| Video Specifications | |
| Main Resolution | 2560×1440/2304×1296/1920×1080/1280×720/D1/CIF/480×240/@30fps |
| Sub Stream | 1280×720, D1, CIF, 480×240 @30fps |
| Third Stream | D1, CIF, 480×240 @30fps |
| Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Bitrate Control | VBR, CBR (64Kbps ~ 8Mbps) |
| Multiple Streaming | 3 streams |
| Video Settings | Region of Interest, Privacy masking, Brightness, Contrast, Hue, Saturation, Denoise, Antiflicker, Intensifier Presets, Exposure, Gain, Corridor Pattern, Image flip/mirror |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & Password protection, IP/MAC address filtering, digest authentication |
| User Access | Max. 10 simultaneous users Actual number of users may vary depending on bandwidth |
| Audio Specifications | |
| Audio Compression | G.711A / G.711U |
| Audio | 3.5mm Input / 3.5mm Output |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion detection, Object abandoned/missing detection, region entrance/exiting/intrusion detection (human/vehicle classification), line crossing detection (human/vehicle classification), video tampering detection, scene change detection, face detection. |
| Detection Events | Line crossing, object detection, region intrusion and video blurring detection |
| Alarm Triggers | Motion detection, Sensor detection, SD card error, SD card full, IP address conflict, cable disconnection |
| Alarm Events | FTP upload, email upload |
| Client Specifications | |
| Web Browser Support | Google Chrome, Microsoft Edge, Internet Explorer, Apple Safari |
| PC Application | SecureGuard® VMS and SecureGuard CMS |
| Mobile | SecureGuard Client, Speco Blue |
| Operating & Unit Specifications | |
| Power | PoE, 12VDC (power supply not included) |
| Power Consumption | 4.5W (max) |
| Operating Temperature | -40°F - 140°F |
| Operating Humidity | Less than 95% (non-condensing) |
| Unit Weight | 2.29 lbs |
| Certifications | FCC |
