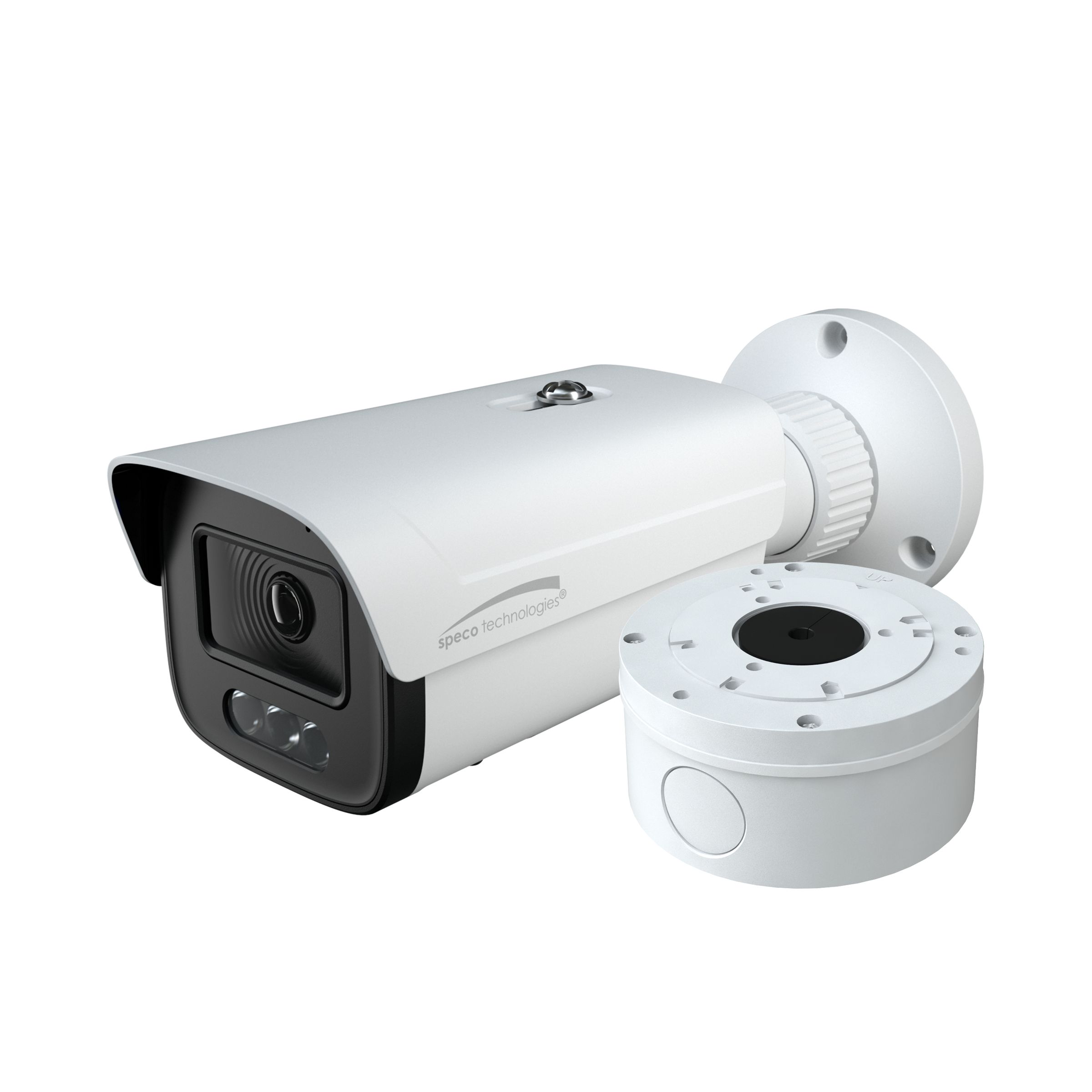

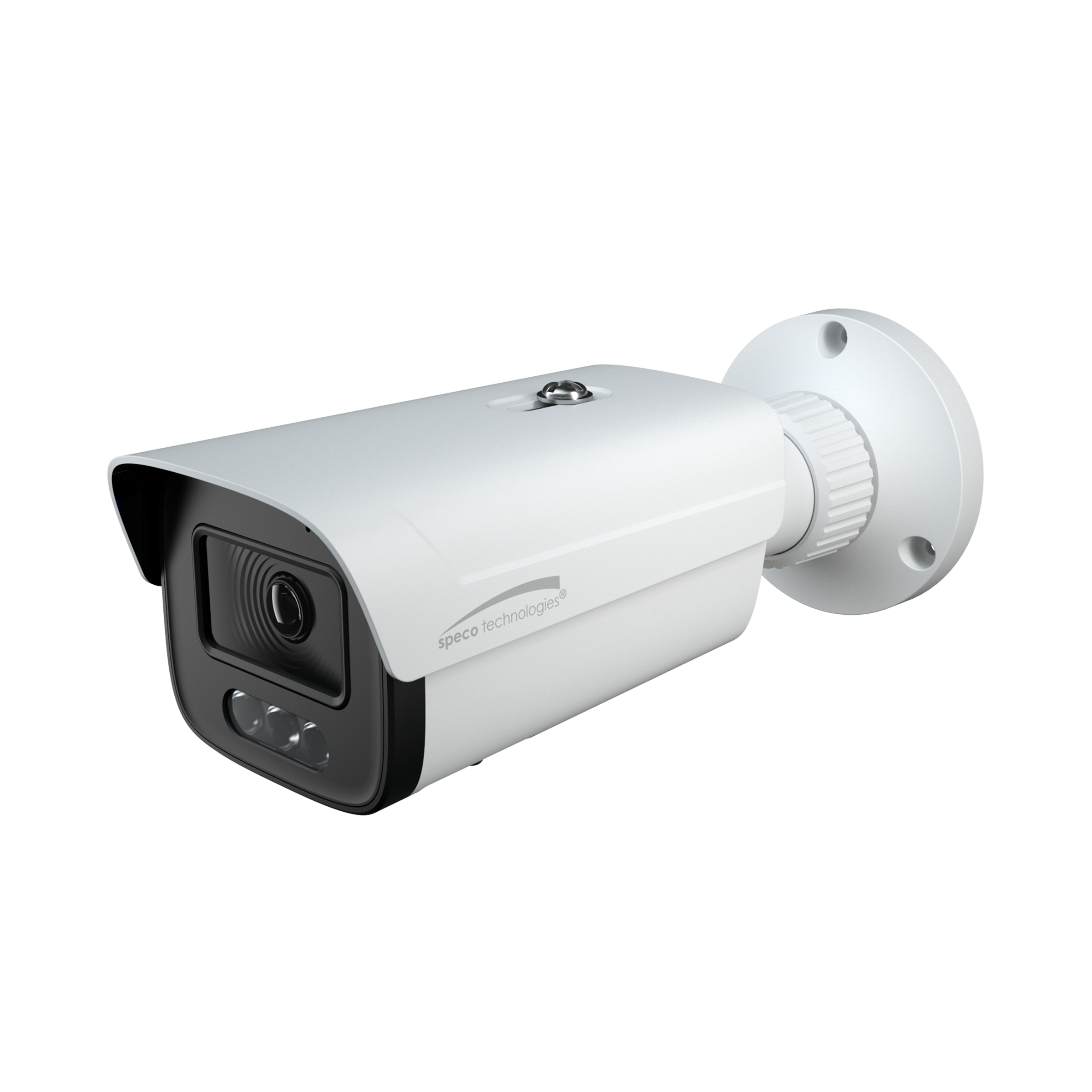

Speco - O4LB2 - 4MP IP Bullet Camera with White Light Intensifier with Advanced Analytics
Part number:
Price:
Product Overview
4MP IP Bullet Camera with White Light Intensifier with Advanced Analytics
Key Configuration
Model: O4LB2
Key Features
- • Next Generation Intensifier with Advanced Image Signal Processing.
- • Captures up to 4MP @ 30fps.
- • Full Color capture in Day and Night with white LED.
- • White LED range: up to 98’ (depending on scene reflection).
- • Micro SD card slot up to 1TB (card not included).
Installation Notes
3.16” (W) x 3.16” (D) x 8.54” (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/3” CMOS, 4M pixels |
| Minimum Illumination | 0.0003 lux@ F1.0, AGC ON; 0 lux with White LED ON |
| White Balance | Auto, Indoor, Outdoor, Manual |
| H.FoV | 112° |
| V.FoV | 61° |
| D.FoV | 133° |
| Digital WDR, BLC, HLC | |
| White LED | |
| Shutter Speed | 1/2s ~ 1/100000s |
| 3D DNR | |
| Pan | 0°~360° |
| Tilt | 0°~90° |
| Rotation | 0°~360° |
| Network Specifications | |
| Protocols | UDP, IPV4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PPPOE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPP, HTTPS, HTTP POST, QoS |
| DDNS support | Speco DDNS (free of charge) |
| Security | Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP |
| Max. simultaneous users | 3 simultaneous users. Actual number of users may vary depending on bandwidth |
| User Access | |
| Video Specifications | |
| Main Resolution | 4MP/2K/3MP/1080P up to 30fps |
| Sub Stream | 1080P/720P/D1 up to 30fps |
| Third Stream | 720P/D1/VGA/CIF/480x240 up to 30fps |
| Fourth Stream | D1/VGA/CIF/480x240 up to 30fps |
| Fifth Stream | D1/VGA/CIF/480x240 up to 30fps |
| Compression | H.265, H.264 (HP/MP/BP), MJPEG |
| Bitrate Control | VBR, CBR (64Kbps ~ 8Mbps) |
| Audio Specifications | |
| Audio Codec | G.711A / G.711U |
| Audio Input | 3.5mm audio in or built-in mic |
| Audio Output | 3.5mm audio out |
| Client Specifications | |
| Web Browser Support | Chrome, Edge, Safari, Firefox, Internet Explorer |
| PC Application | Speca Blue VMS, SecureGuard® VMs, SecureGuard CMS® |
| Mobile | Speco Blue App- SecureGuard® (iPhone® and Android™) |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Detection Events | Motion detection, Video exception detection, Line crossing, region intrusion/entrance/exiting, counting (people/vehicle classification with descriptive metadata), abandoned/ missing object detection, crowd density detection, Face detection and capture. |
| Alarm Triggers | Card slot |
| Alarm Events | Detection events, SD card error |
| FTP upload | FTP upload, email upload |
| Operating & Unit Specifications | |
| Power | PoE, 12VDC (power supply not included) |
| Power Consumption | 5.OW (max) |
| Operating Temperature | -40°F ~ 140°F |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 3.16” (W) x 3.16” (D) x 8.54” (H) |
| Unit Weight | 1.52 lb |
| Certifications | FCC |
