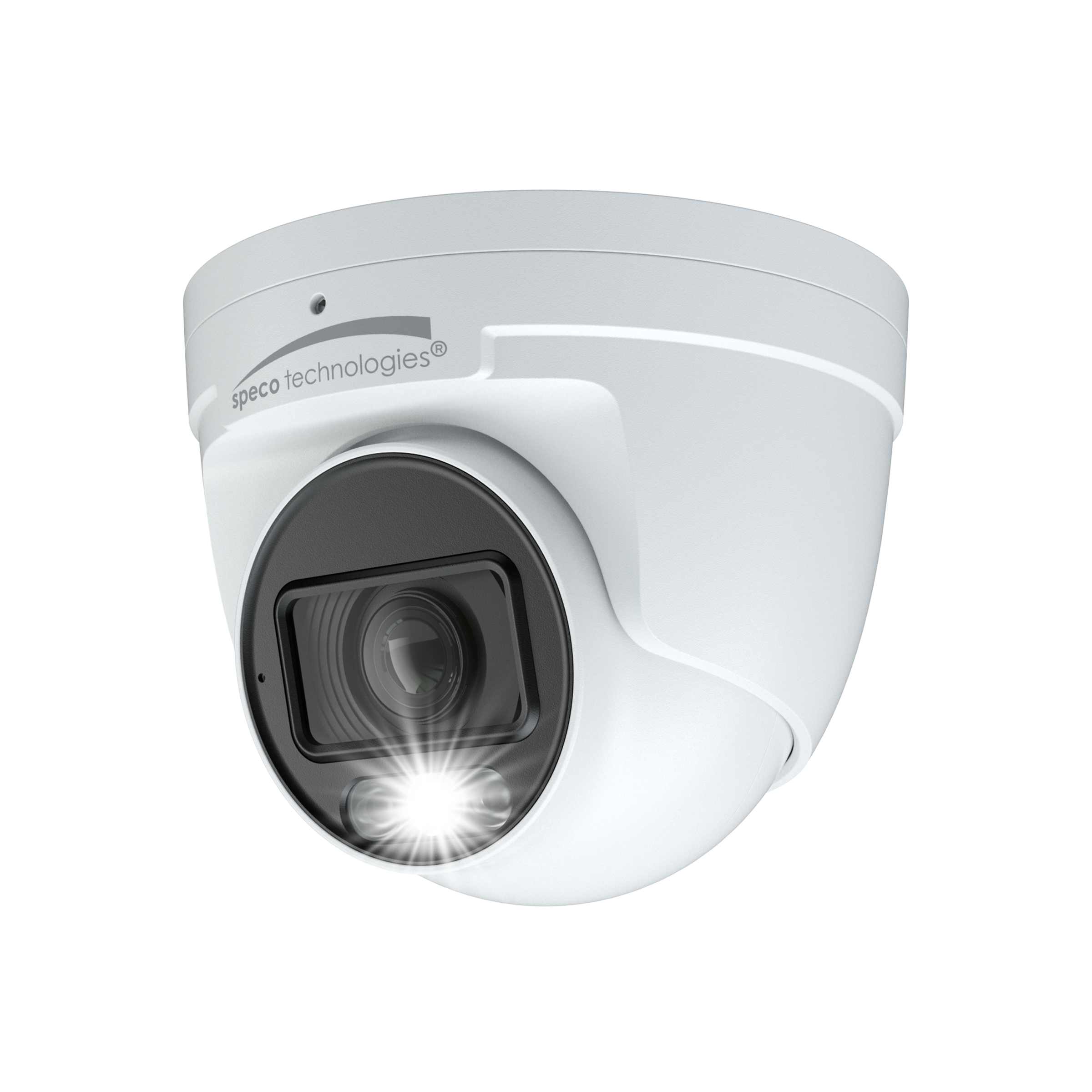

Speco - O4LT1M - 4MP IP White Light Intensifier® Turret Camera with People & Vehicle Detection - Includes Junction Box
Part number:
Price:
Product Overview

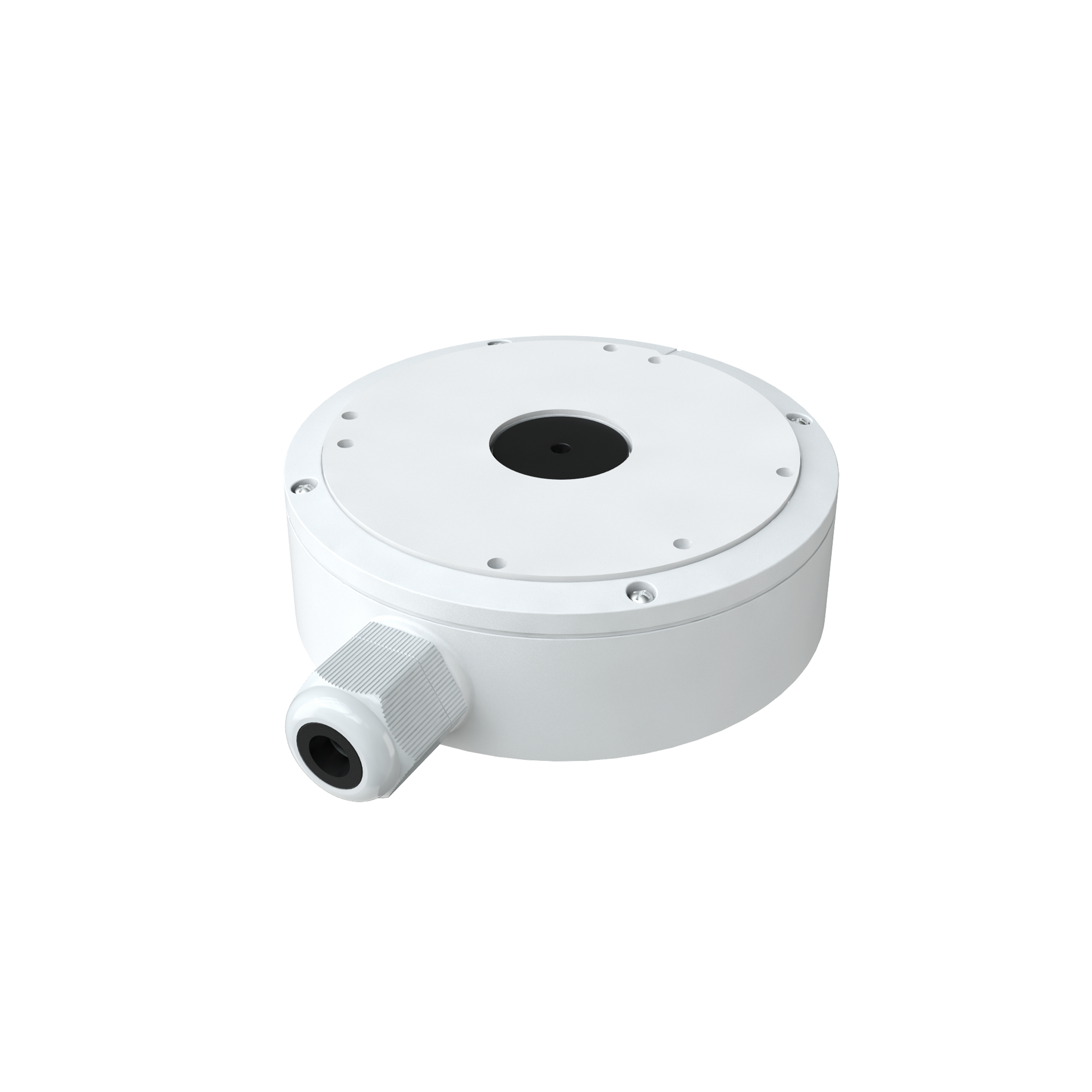

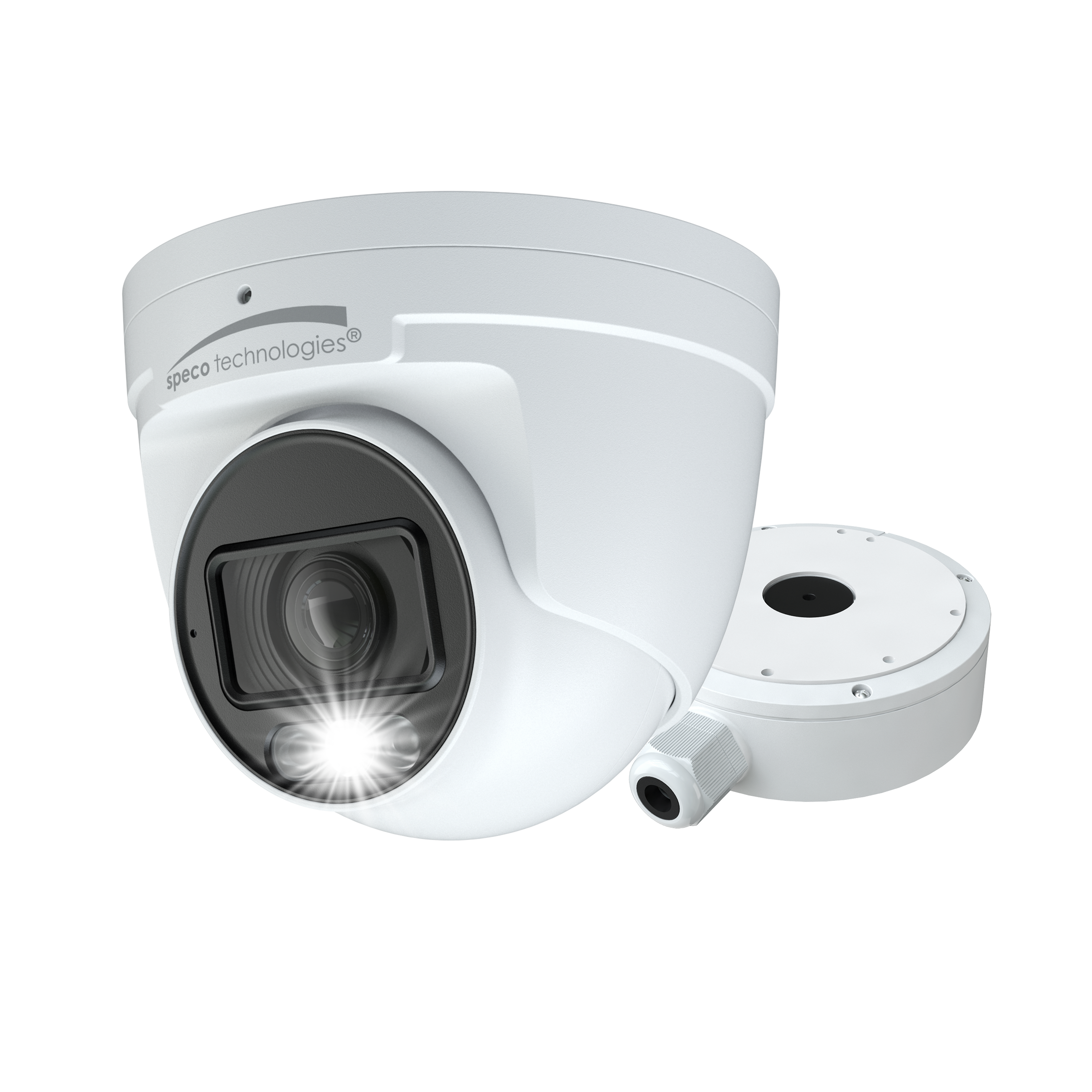

4MP IP White Light Intensifier® Turret Camera with People & Vehicle Detection – Includes Junction Box
Key Configuration
Model: O4LT1M
Key Features
- • Captures up to 4MP @ 30fps.
- • White LED provides full color all the time or on event trigger.
- • Dual LED IR and White LED range: up to 131FT (depending on scene reflection).
- • True WDR operation.
- • Micro SD card slot up to 256GB (card not included).
Installation Notes
5.125” (Φ) x 4.1” (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/3” CMOS, 4M pixels |
| Maximum Resolution | 2560 x 1440 |
| Field of View | Horizontal: 97~33°; Vertical:52~18°; Diagonal: 115~37° |
| Minimum Illumination | 0.003 lux@ F1.0, AGC ON; 0 lux with LED ON |
| White LED, IR LED | Auto, Indoor, Outdoor, Manual |
| True WDR (120dB), BLC, HLC | White LED, IR LED |
| Exposure Time | 1s ~ 1/100000s |
| Video Specifications | |
| Main Resolution | 2560x1440 / 2304x1296 / 1980x1080 / 1280x720 @ 30fps |
| Sub Stream | 1280x720/D1/CIF/480x240 @ 30fps |
| Third Stream | D1/CIF/480x240 @ 30fps |
| Compression | H.265, H.264 (HP/MP/BP), MJPEG |
| Bitrate Control | VBR, CBR (128Kbps ~ 8Mbps) |
| Multiple Streaming | 3 streams |
| Audio Specifications | |
| Audio Codec | G.711A / G.711U |
| Mono Input | Built-in mic or 3.5mm audio in |
| Mono Output | No |
| Interfaces | |
| Network Specifications | 10/100 Mbps |
| DC jack | DC jack |
| 3.5mm + built-in mic | 3.5mm + built-in mic |
| MicroSD, up to 256GB (not included) | MicroSD, up to 256GB (not included) |
| No | No |
| Yes | Yes |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS |
| DDNS support | Speco DDNS (free of charge) |
| User Access | User ID & Password protection, IP/MAC address filtering, digest authentication |
| Max. users | Max. 3 simultaneous users. Actual number of users may vary depending on bandwidth |
| Client Specifications | |
| Web Browser Support | Chrome, Safari, Firefox, Edge, Windows (Internet Explorer 8 and up) |
| PC Application | Speco Blue VMS, SecureGuard® VMS, SecureGuard® CMS |
| Mobile | Speco Blue, SecureGuard® App (iPhone® and Android™) |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Detection Events | Motion, Video exception, people detection, vehicle and abandoned / missing object, line crossing, intrusion |
| Alarm Triggers | Detection events, SD card error |
| Alarm Events | FTP upload, email upload |
| Image Settings | Watermark, IP address filtering, video mask, password protection |
| Operating & Unit Specifications | |
| Power | PoE, 12VDC (power supply not included) |
| Power Consumption | 8.5W (max) |
| Operating Temperature | -40°F to 140°F |
| Operating Humidity | less than 95% (non-condensing) |
| Unit Dimensions | 5.125” (Φ) x 4.1” (H) |
| Unit Weight | 1.41 lb |
| Certifications | FCC |
Name
Description
Size
Downloads
File
Specification
1.4mb
File
Quick Guide
1.9mb
File
User Manual
2.5mb
