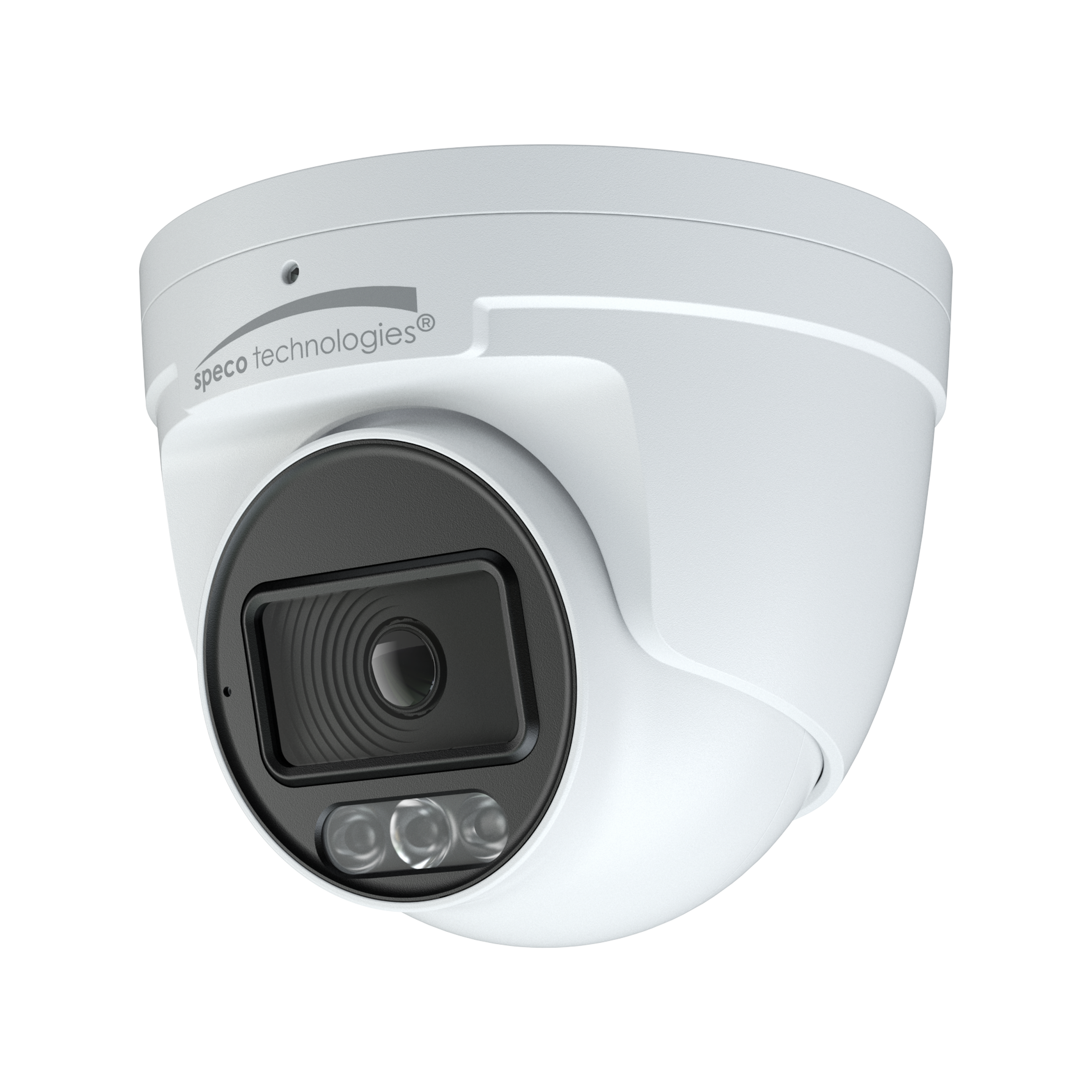

Speco - O4LT2 - 4MP IP Turret Camera with White Light Intensifier with Advanced Analytics
Part number:
Price:
Product Overview
4MP IP Turret Camera with White Light Intensifier with Advanced Analytics
Key Configuration
Model: O4LT2
Key Features
- • Next Generation Intensifier with Advanced Image Signal Processing.
- • Captures up to 4MP @ 30fps.
- • Full Color capture in Day and Night with white LED.
- • White LED range: up to 98FT (depending on scene reflection).
- • Micro SD card slot up to 1TB (card not included).
Installation Notes
4.2" (Φ) × 3.75 (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Camera Specifications | |
| Progressive scan | 1/1.79” CMOS, 4M pixels 2688 x 1520 |
| Minimum Illumination | 0.0003 lux@ F1.0, AGC ON; O lux with White LED ON |
| White Balance | Auto, Indoor, Outdoor, Manual |
| H.FoV; V.FoV; D.FoV | H.FoV: 112°; V.FoV:61°; D.FoV:133° |
| Pan; Tilt; Rotation | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° |
| Day/Night | |
| Angle Adjustment | |
| Network Specifications | |
| Protocols | UDP, IPV4, IPV6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, FTP, PRPOE, DDNS, SMTP, SNMP, HTTP, 802.1x, UPnP, HTTPS, HTTP POST, QoS |
| DDNS support | Speco DDNS (free of charge) |
| Security | Video encryption, firmware encryption, HTTPs encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and digest authentication for HTTP |
| User Access | Max. 3 simultaneous users. Actual number of users may vary depending on bandwidth |
| Video Specifications | |
| Main Resolution | 4MP/2K/3MP/1080P up to 30fps |
| Sub Stream | 1080P/720P/D1 up to 30fps |
| Third Stream | 720P/D1/VGA/CIF/480x240 up to 30fps |
| Fourth Stream | D1/VGA/CIF/480x240 up to 30fps |
| Fifth Stream | D1/VGA/CIF/480x240 up to 30fps |
| Compression | H.265, H.264 (HP/MP/BP), MJPEG |
| Bitrate Control | VBR, CBR (64Kbps ~ 8Mbps) |
| Multiple Streaming | 5 streams |
| Image Settings | ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, Image, Flip, Image Mirror, Corridor mode, Watermark, video mask, heartbeat, image distortion correction. |
| Audio Specifications | |
| Audio Codec | G.711A / G.711U |
| Audio Input | Built-in mic or 3.5mm audio in |
| Audio Output | 3.5mm audio out |
| Client Specifications | |
| Client Specifications with White LED ON | Digital WDR, BLC, HLC |
| Web Browser Support | Chrome, Safari, Firefox, Edge, Windows (Internet Explorer 8 and up) |
| PC Application | Speco Blue VMS, SecureGuard® VMS, SecureGuard® CMS |
| Mobile | Speco Blue, SecureGuard® App (iPhone and Android™)® |
| Interfaces | |
| Ethernet | 10/100 Mbps |
| Power | DC jack |
| Microphone Input | 3.5mm + built-in mic |
| Card Slot | MicroSD, up to 1TB (not included) |
| Alarm Out | 1 channel in/out |
| Operating & Unit Specifications | |
| Power Consumption | 5.5W (max) |
| Operating Temperature | -40°F to 140°F |
| Operating Humidity | less than 95% (non-condensing) |
| Unit Dimensions | 4.2" (Φ) × 3.75 (H) |
| Unit Weight | 1.0 lb |
| Certifications | FCC |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Detection Events | Motion detection, Video exception detection, Line crossing, region intrusion/entrance/exiting, counting (people/vehicle classification with descriptive metadata), abandoned/ missing object detection, crowd density detection, Face detection and capture. |
| Alarm Triggers | Detection events, SD card error, Tampering |
| Alarm Events | FTP upload, email upload |
Name
Description
Size
Downloads
File
Quick Guide
1.9mb
File
Specification Sheet
0.9mb
File
User Manual
2.4mb

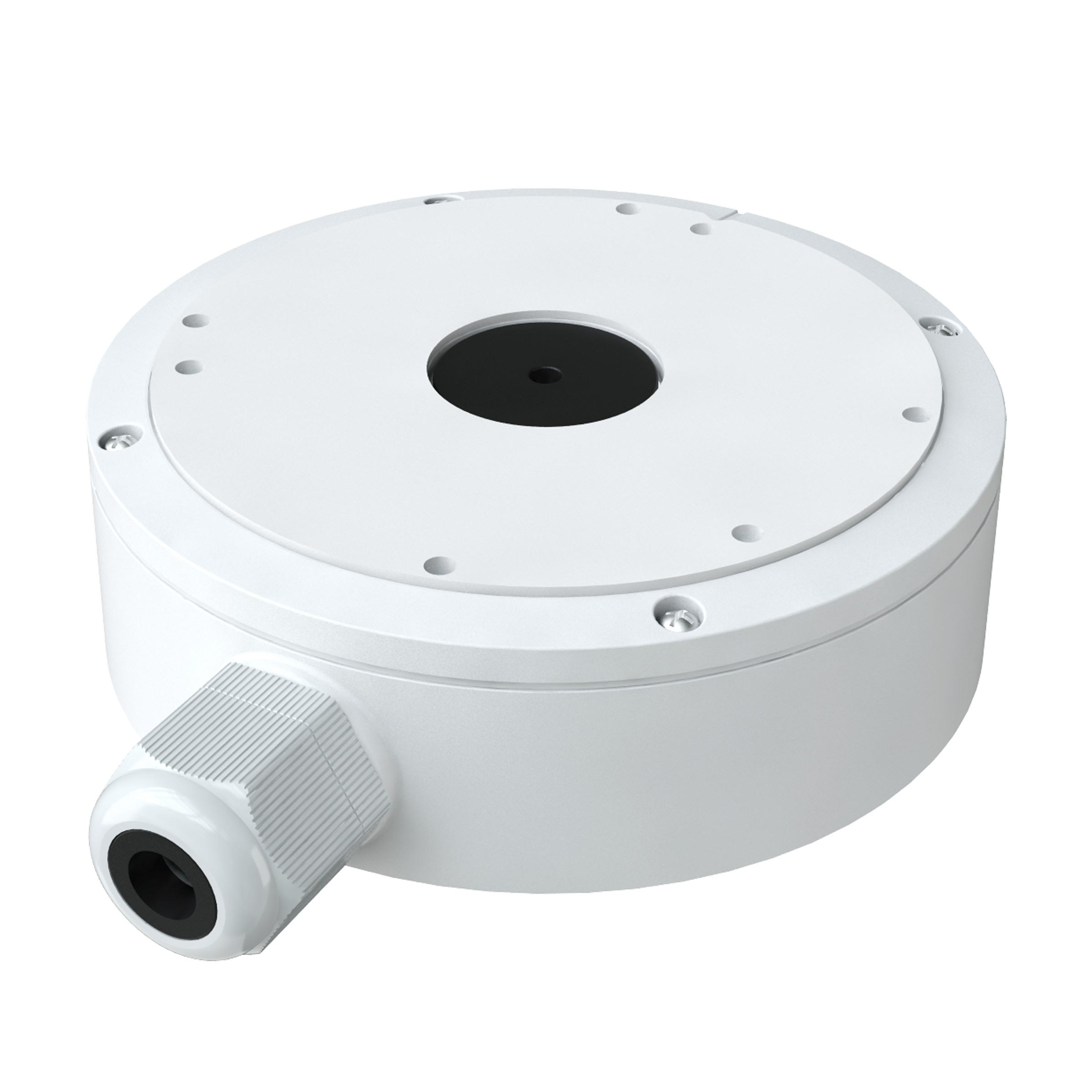

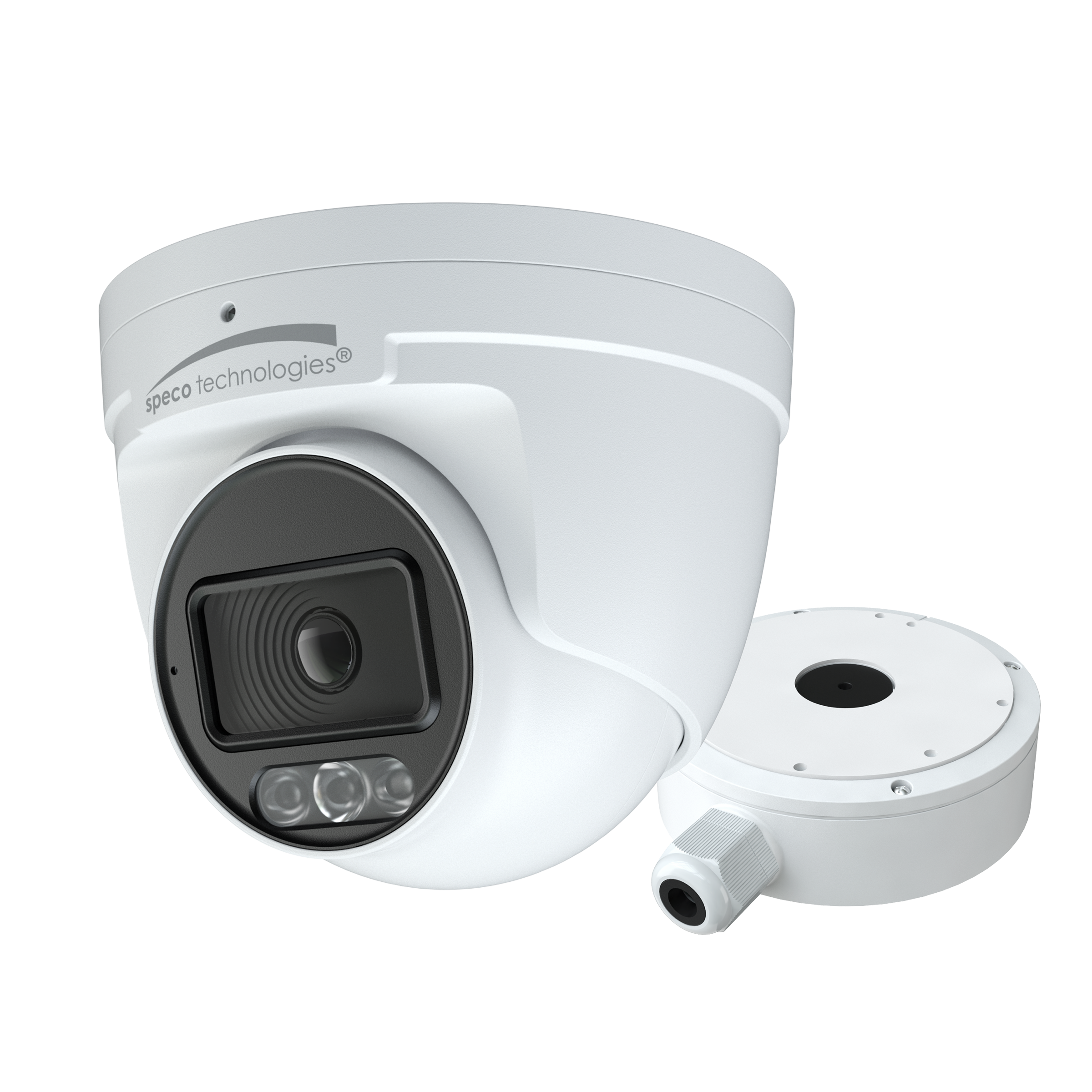

accessories
