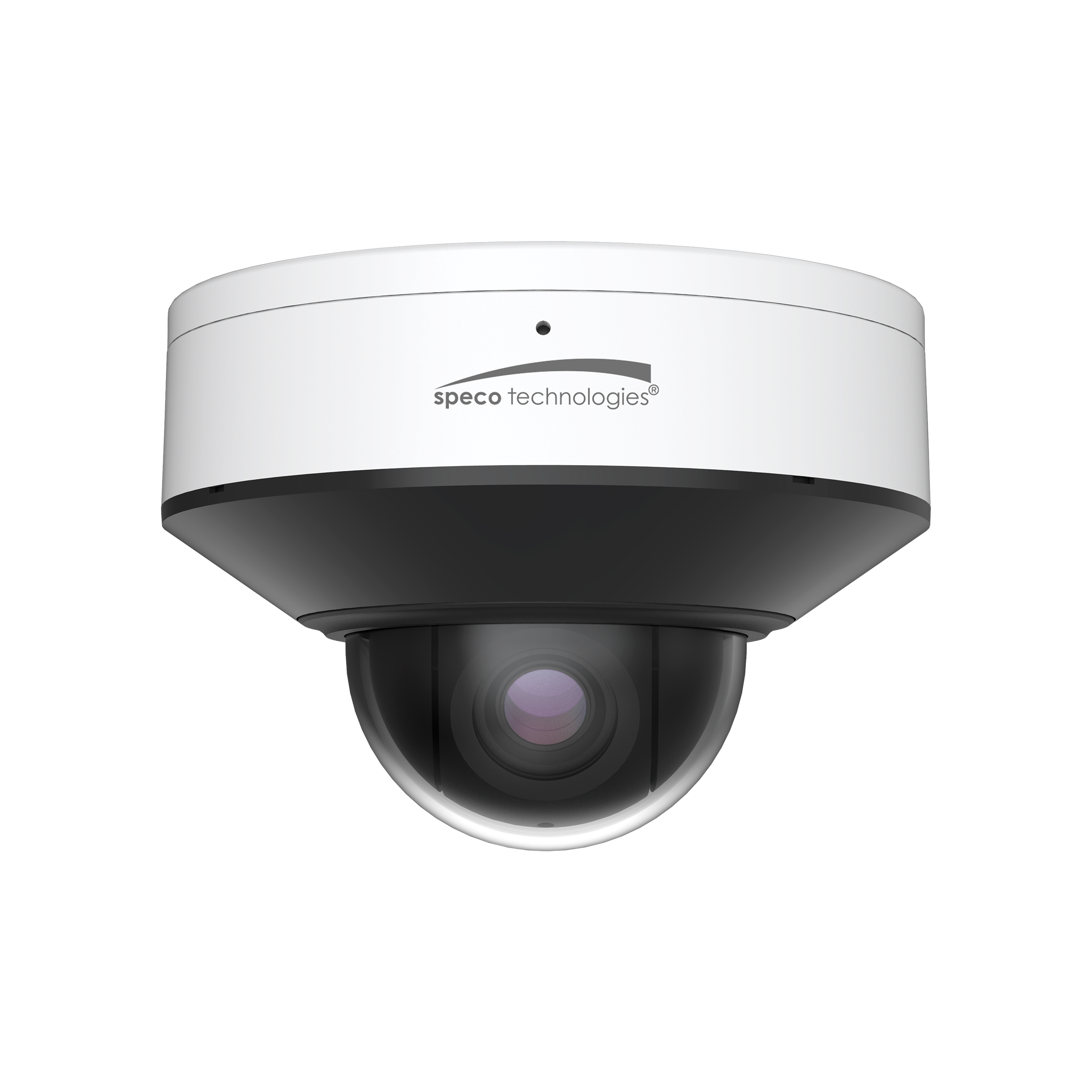

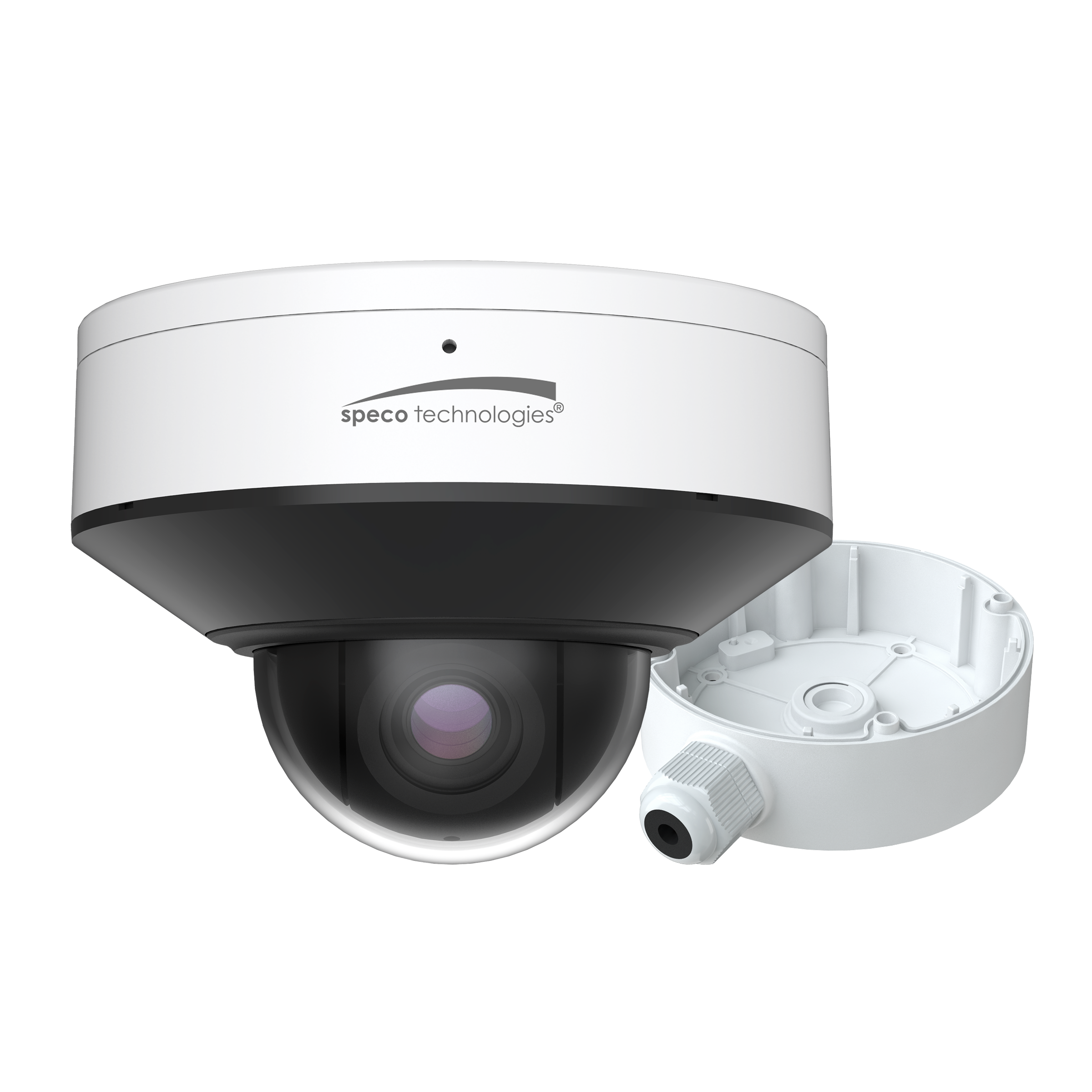

Speco - O4P3X - 4MP IP PTZ Camera with Advanced Analytics and Smart Tracking
Part number:
Price:
Product Overview
4MP IP PTZ Camera with Advanced Analytics and Smart Tracking
Key Configuration
Model: O4P3X
Key Features
- • Supports up to 4MP @ 30fps.
- • Built-in standard PoE (IEEE 802.3af).
- • H.265/H.264/MJPEG compression supported.
- • True Day/Night operation (IR cut filter).
- • Adaptive IR LEDs reduce IR saturation.
Installation Notes
4.7" (Ø) dia.) x 3.5" (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/2.7" CMOS, 4MP |
| Maximum Resolution | 2592 x 1520 |
| Field of View | Horizontal: 113.6°(W)-44.3°(T); Vertical :59.6°(W)-24.9°(T) ; Diagonal: 137.4°(W)-50.8°(T); 35% - Note (W) (Zoomed out), (T) (Zoomed in) |
| Minimum Illumination | 0.004 Lux @(F1.6 AGC ON); 0 Lux (IR LED on) 0.02 Lux @(F1.6 AGC ON) |
| Day/Night | Smart IR, IR Range: 65 ft. |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Compensation | True WDR (120dB), BLC, HLC |
| Electronic Shutter Speed | 1/3 - 1/100000 sec. |
| DNR | 3D DNR |
| Angle Adjustment | Pan 0° ~ 355°, Tilt 0° ~ 67°, Rotation 0° ~ 180° |
| Audio Specifications | |
| Audio Codec | G.711A / G.711U |
| Interfaces | |
| Ethernet | 10/100 Mbps (PoE) |
| Power | DC jack |
| Microphone Input | Built-in mic and Mono 3.5mm input |
| Audio Out | No |
| Card Slot | MicroSD, up to 256GB (not included) |
| Alarm | 1-CH alarm input; 1-CH alarm output |
| Reset | Yes |
| Client Specifications | |
| Web Browser Support | Google Chrome®, Edge®, Safari, Fire Fox®, Windows® (Internet Explorer® 8 and up) |
| PC Application | Speco Blue VMS |
| Mobile | Speco Blue (iPhone® and Android™) |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion, exception, line crossing, region intrusion, object detection, vehicle/people detection, face detection and tampering detection |
| Alarm Triggers | Analytics, SD card error |
| Alarm Events | FTP upload, email upload |
| Image Settings | Watermark, IP address filtering, video mask, password protection |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 10 simultaneous users, actual number of users may vary depending on bandwidth |
| Video Specifications | |
| Main Resolution | 2592x1520 / 2560x1440 / 2304x1296 1920x1080 / 1280x720 @ 30fps |
| Sub Stream | 720P/ D1, CIF |
| Third Stream | D1/ CIF/ 480 X 240 |
| Compression | H.265, H.264 (HP/MP/BP), MJPEG |
| Video Settings | Region of interest, privacy masking, brightness, contrast, hue, saturation, denoise, antiflicker, day/night mode, infrared settings, exposure, gain, corridor pattern, image flip/mirror |
| Bitrate Control | VBR, CBR (64Kbps ~ 10Mbps) |
| Multiple Streaming | 3 streams |
| Operating & Unit Specifications | |
| Power Consumption | < 7.0W |
| Operating Temperature | -22°F ~ 140°F |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 4.7" (Ø) dia.) x 3.5" (H) |
| Unit Weight | 1.43 lb. |
| Certifications | FCC, ONVIF Profile G/M/S/T |
| D.O.R.I (m) | |
| F = 3.18mm | Detection (25px/m) : 206 ft. (62.8m) |
| F = 7.42mm | Detection (25px/m) : 487 ft. (148.8m) |
