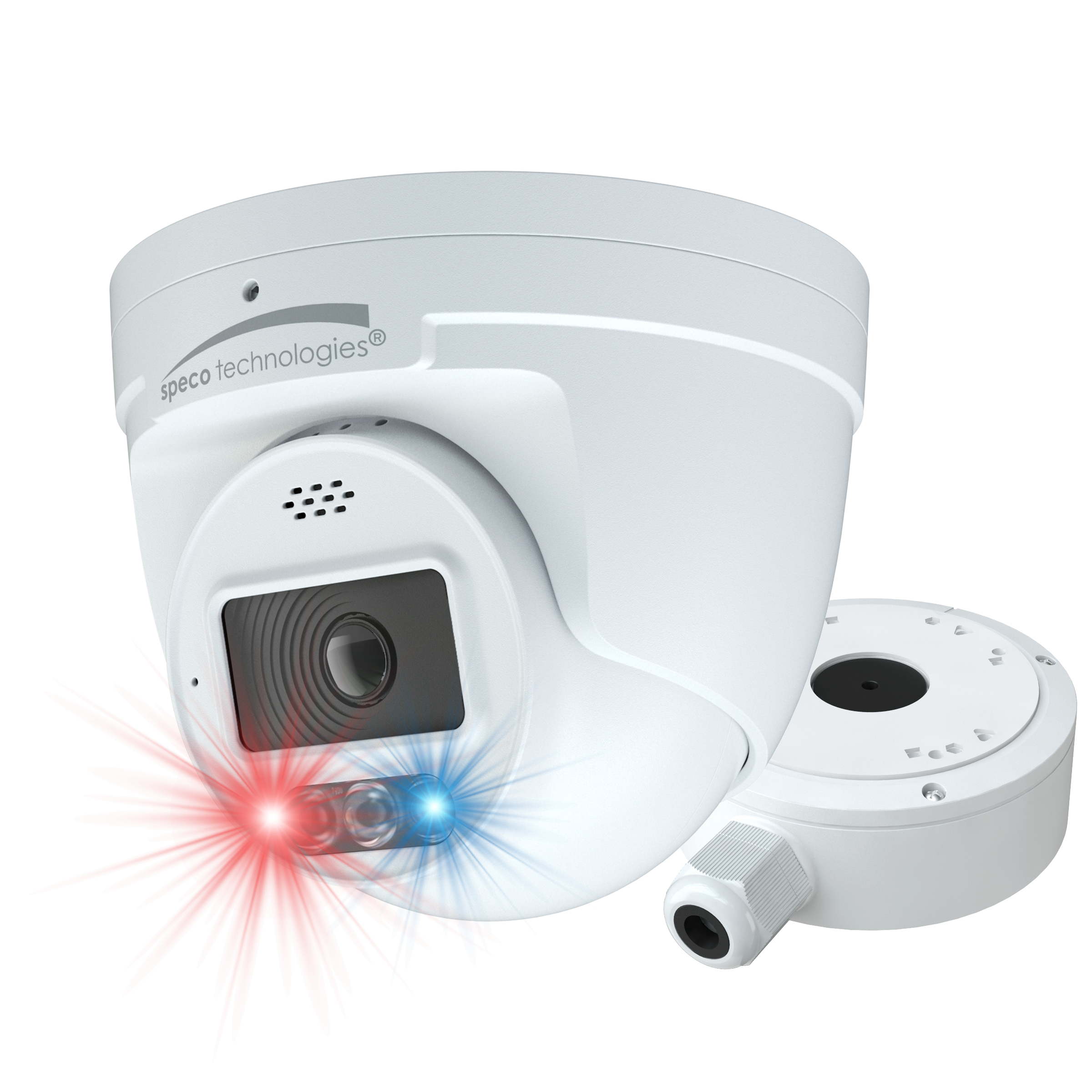

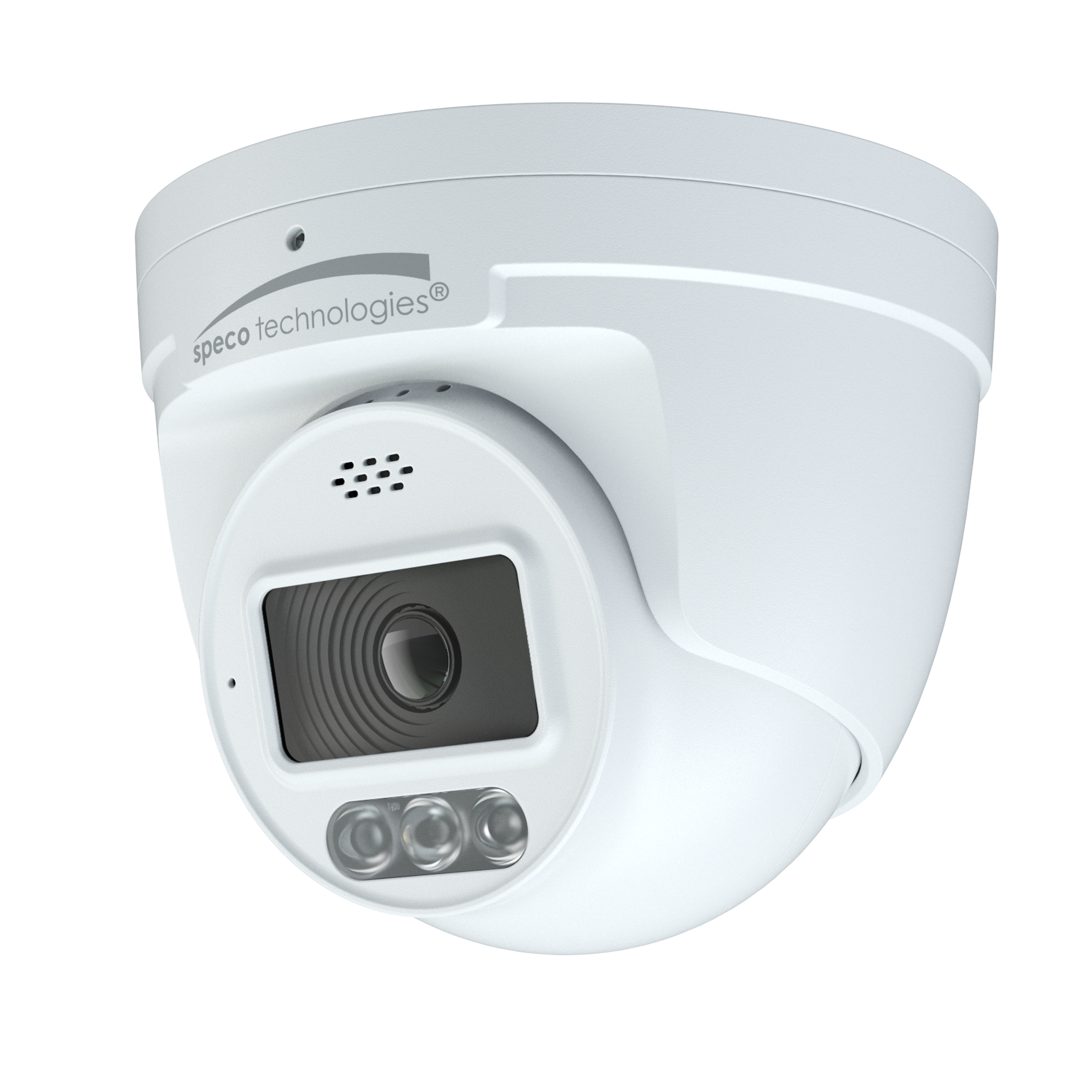

Speco - O4TDD2 - 4MP IP Turret Camera with AI, Audio, and Visual Deterrent, NDAA
Part number:
Price:
Product Overview
4MP IP Turret Camera with AI, Audio, and Visual Deterrent, NDAA
Key Configuration
Model: O4TDD2
Key Features
- • Captures up to 4MP @ 30fps real time.
- • Built-in speaker with preset and custom sounds provides audio deterrence.

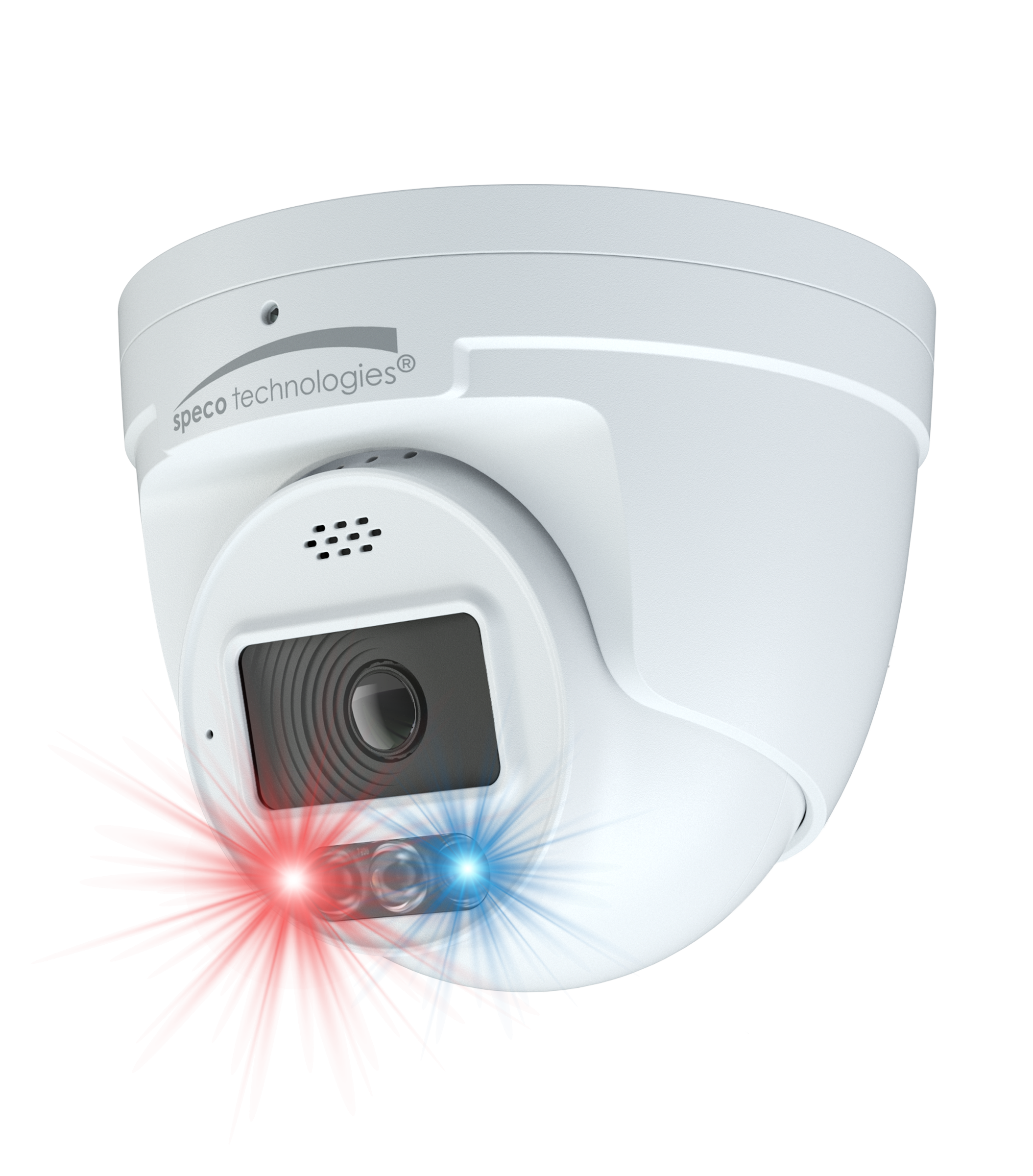

- • Built-in high-power red and blue lights provides visual deterrence.
- • True WDR operation.
- • IP66 weather resistance.
Installation Notes
5.125"Ø x 4.1"(H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/3" CMOS |
| Maximum Resolution | 2592 x 1520 (4MP) |
| Field of View | Horizontal: 96°, vertical: 53.5°, Diagonal: 113° |
| Minimum Illumination | 0.02lux @ F1.4(AGC ON) ; 0 lux @ LED ON |
| White Balance | Auto, indoor, outdoor, manual |
| Compensation | True WDR (120dB), BLC, HLC |
| Day/Night | Smart IR or supplemental white LED |
| Electronic Shutter Speed | 1/3s ~ 1/100000s |
| Angle Adjustment | Pan: 0° ~ 360°; tilt: 0° ~ 75°; rotation: 0° ~ 360° |
| Interfaces | |
| Ethernet | RJ45 Jack, 10/100 Mbps, PoE |
| Power | 12VDC input jack |
| Audio Input | Built-in mic, 3.5mm input |
| Audio Output | Built-in speaker, 3.5mm output |
| Card slot | MicroSD, up to 256GB (not included) |
| Alarm | 1-CH alarm in, 1-CH alarm out |
| Reset | Yes |
| Client Specifications | |
| Web Browser Support | Google Chrome®, Microsoft Edge®, Internet Explorer®, Apple Safari® |
| PC Application | SecureGuard® VMS and SecureGuard® CMS |
| Mobile | SecureGuard® Client, Speco Blue |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & password protection, IP/MAC address filtering, digest authentication |
| User Access | Max. 10 simultaneous users |
| Audio Specifications | |
| Audio Compression | G.711A / G.711U |
| Other Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion detection, object abandoned/ missing detection, region entrance/ exiting/intrusion detection (face/people/vehicle classification), line crossing detection (people/vehicle classification), video tampering detection, scene change detection. All listed analytics may be triggered simultaneously, except face detection. |
| Alarm Triggers | Motion detection, sensor detection, SD card error, SD card full, IP address conflict, cable disconnection |
| Alarm Events | FTP upload, email upload |
| Image Settings | Watermark, IP address filtering, video mask, heartbeat, illegal login lock, image distortion correction |
| Operating & Unit Specifications | |
| Power Consumption | 12.0W (max) |
| Operating Temperature | -40°F - 140°F |
| Operating Humidity | Less than 95% (non-condensing) |
| Unit Dimensions | 5.125"Ø x 4.1"(H) |
| Unit Weight | 1.48 lbs. |
| Certifications | FCC, ONVIF Profile G/M/S/T |
| Video Specifications | |
| Main Resolution | 2592x1520, 2560x1440 2304x1296, 1920x1080, 1280x720, D1, CIF, 480x240 @ 30fps |
| Substream | 1280x720, D1, CIF @ 30fps |
| Third Stream | D1, CIF, 480x240 @30fps |
| Compression | Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG |
| Bitrate Control | VBR, CBR (64Kbps ~ 8Mbps) |
| Multiple Streaming | 3 streams |
| Video Settings | Region of interest, privacy masking, brightness, contrast, hue, saturation, de-noise, anti-flicker, day/night mode, exposure, gain, corridor pattern, image flip/mirror |
