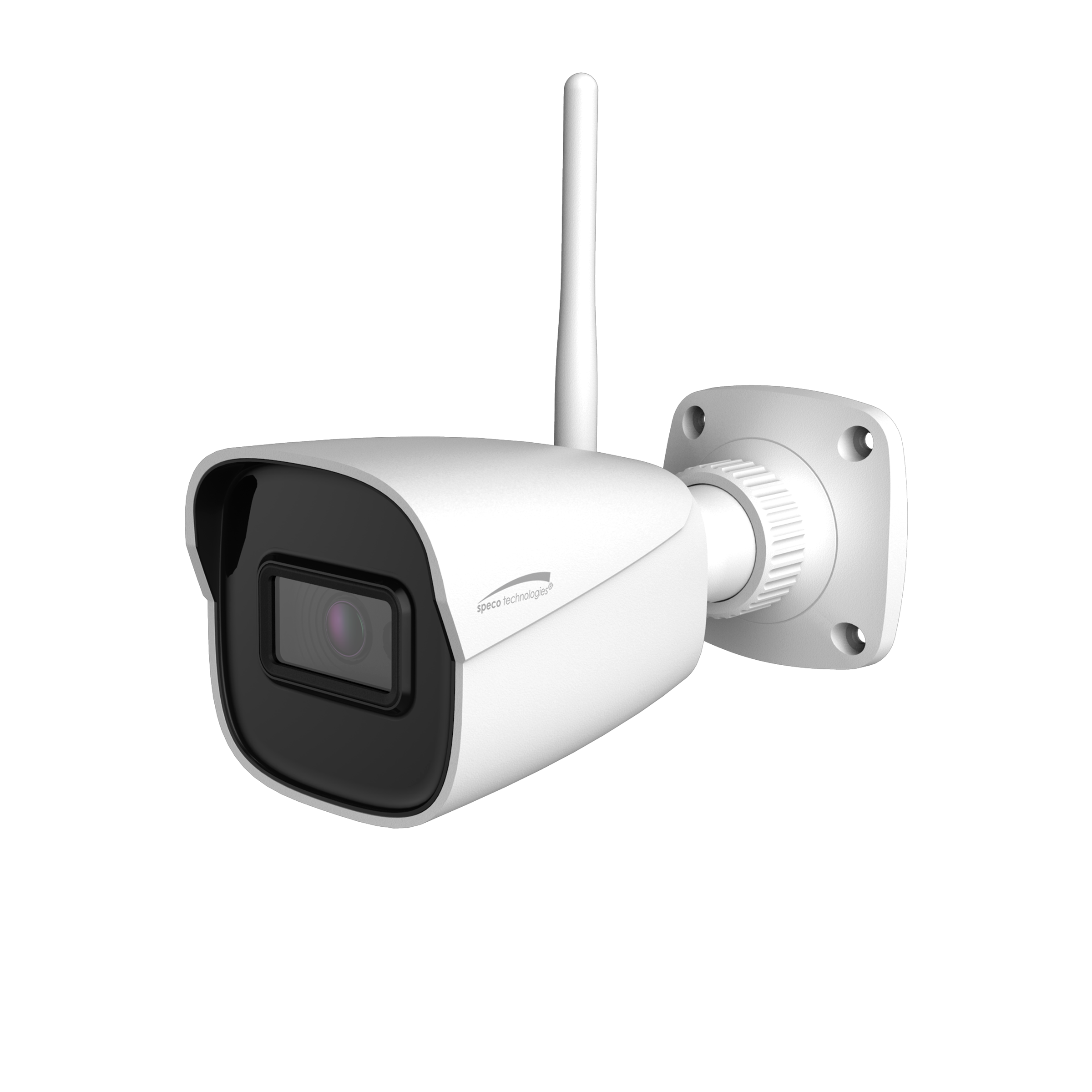

Speco - O4VBW2 - 4MP IP Wi-Fi Bullet Camera with Line Crossing and Intrusion Detection
Part number:
Price:
Product Overview
4MP IP Wi-Fi Bullet Camera with Line Crossing and Intrusion Detection
Key Configuration
Model: O4VBW2
Key Features
- • Connect via 2.4GHz Wi-Fi/DC power or PoE.
- • Captures up to 4MP @ 30fps.
- • H.265/H.264 compression supported.
- • Built-in standard PoE (IEEE 802.3af).
- • True Day/Night operation (IR cut filter).
Installation Notes
2.93" (W) x 2.93" (H) x 6.59" (D)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/3" CMOS, 4 megapixels |
| Maximum Resolution | 2560 x 1440 |
| Field of View | 2.8mm @ F1.6, Horizontal FoV: 94°; Vertical FoV:50°; Diagonal FoV:115° |
| Minimum Illumination | 0.005 lux @F1.6, AGC ON; 0 lux with IR |
| Image Settings | Region of interest, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Defog, Sharpen, Noise Reduction |
| Compensation | Digital WDR, BLC, HLC |
| Day/Night | Smart IR |
| Electronic Shutter Speed | 1/1s - 1/100000s |
| DNR | 3D DNR |
| Angle Adjustment | Pan 0°-360°, Tilt 0°-80°, Rotation 0°-360° |
| Video Specifications | |
| Main Stream Resolution | 4MP/3MP/1080P/720P(1~30fps) |
| Sub Stream Resolution | 720P/D1/VGA/CIF (1~30fps) |
| Third Stream Resolution | D1/480x240/CIF (1~30fps) |
| Compression | H.265, H.264 |
| Bitrate Control | VBR, CBR (64Kbps ~ 8Mbps) |
| Multiple Streaming | 3 streams |
| Client Specifications | |
| Web Browser Support | Edge, Chrome, Safari, Firefox |
| PC Application | SecureGuard® CMS/VMS |
| Mobile | Speco Blue App, SecureGuard® App (iPhone® and Android™) |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Line crossing, object detection, region intrusion and video blurring detection |
| Alarm Triggers | Motion, Analytics, SD card error |
| Audio Specifications | |
| Audio Compression | G.711A / G.711U |
| Operating & Unit Specifications | |
| Power | PoE, 12VDC (power supply not included) |
| Power Consumption | <5W |
| Operating Temperature | -40°F - 140°F |
| Operating Humidity | less than 95% (non-condensing) |
| Unit Dimensions | 2.93" (W) x 2.93" (H) x 6.59" (D) |
| Unit Weight | 0.93 lb |
| Certifications | FCC, RoHS |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, 802.1x, UPnP, HTTPS, HTTP, QoS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & Password protection, IP/MAC address filtering, digest authentication |
| User Access | Max. 3 simultaneous users Actual number of users may vary depending on bandwidth |
| Wireless Protocols | IEEE802.11b/g/n (up to 150Mbps) |
| Frequency Range | 2.4GHz ~ 2.4835 GHz |
| Channel Bandwidth | 20MHz |
| Wireless Range | Up to 262ft (line of sight), range may vary significantly depending on obstacles between the transmitting and receiving antenna. |
