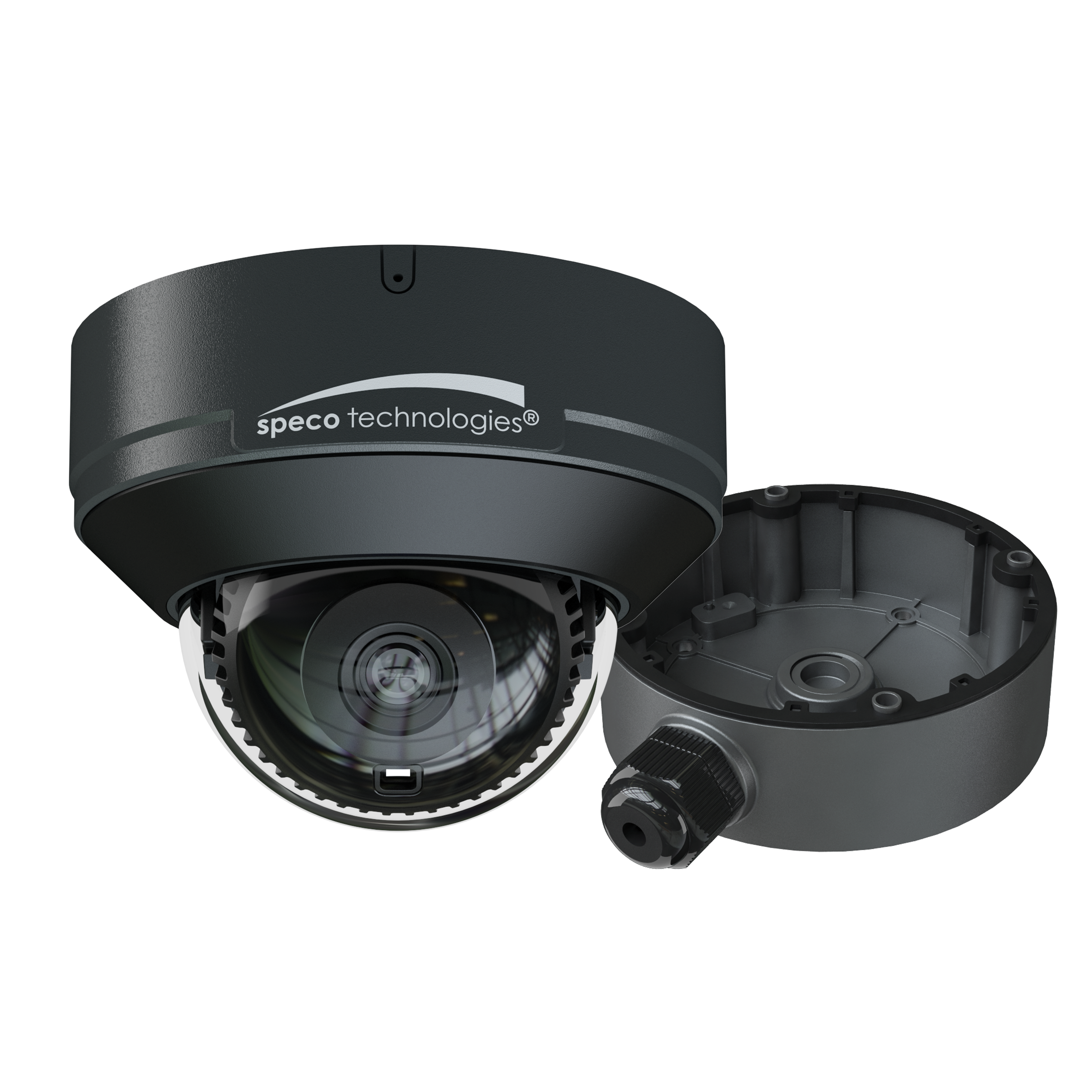

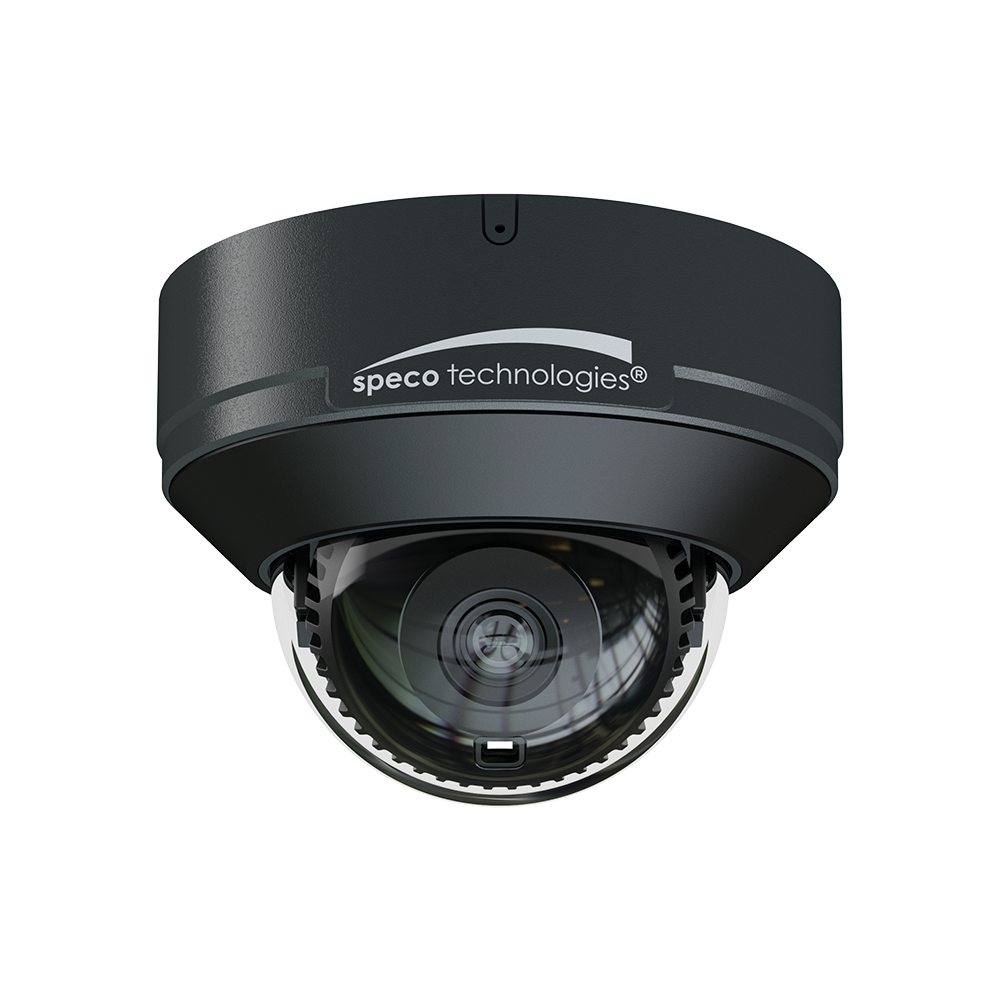

Speco - O4VD2G - 4MP IP Vandal Resistant Dome Camera, NDAA Compliant
Part number:
Price:
Product Overview
Supports up to 4MP @ 30fps, Built-in standard PoE (IEEE 802.3af), H.265/H.264 compression supported.
Key Configuration
Model: O4VD2G
Key Features
- • True Day/Night operation (IR cut filter).
- • MicroSD card slot up to 256GB max (card not included).
- • IR range: 100’ (depending on scene reflection).
- • Conformant with ONVIF Profile G/S/T.
- • True WDR.
Installation Notes
4.6" (dia.) x 3.54" (H)
| Full Specifications | |
| Housing Color | Gray |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/3" CMOS, 4MP |
| Maximum Resolution | 2560 x 1440 |
| Minimum Illumination | 0.005 lux @ F1.6 AGC ON; 0 lux with IR |
| Field of View | 94° (H), 50° (V), 115° (D) |
| Compensation | True WDR, BLC, HLC |
| Day/Night | Smart IR |
| Electronic Shutter Speed | 1/2s -1/100000s |
| DNR | 3D DNR |
| Angle Adjustment | Pan 0° ~ 355°, tilt 0° ~ 67°, rotation 0° ~ 180° |
| Video Specifications | |
| Main Resolutions | 2560 × 1440; 2304 × 1296; 1920 × 1080 @ 30fps |
| Sub Stream | 720p (1-15fps), D1, CIF ((1-30fps) |
| Third Stream | D1, CIF, 480 × 240 (1-30fps) |
| Video Settings | Region of interest, saturation, brightness, chroma, contrast, wide dynamic, defog, sharpen, noise reduction |
| Compression | H.265, H.264 |
| Bitrate Control | VBR, CBR (64Kbps ~ 5Mbps) |
| Multiple Streaming | 3 streams |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, 802.1x, UPnP, HTTPS, HTTP, QoS |
| DDNS Support | Speco DDNS (free of charge) |
| Security | User ID & password protection, IP/MAC address filtering, digest authentication |
| User Access | Max. 3 simultaneous users; actual number of users may vary depending on bandwidth |
| Interfaces | |
| Ethernet | 10/100 Mbps (RJ 45 Jack) |
| Power | DC jack |
| Card Slot | MicroSD, up to 256GB (not included) |
| Reset | Yes |
| Audio In | 3.5mm input, Built-in mic |
| Audio Out | No |
| Alarm In/Out | No |
| Client Specifications | |
| Web Browser Support | Chrome, Edge, Safari, Firefox, Internet Explorer |
| PC Application | SecureGuard® VMS, SecureGuard® CMS |
| Mobile | Speco Blue App, SecureGuard® Client (iOS and Android) |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Detection Events | Line crossing, object detection, region intrusion, people/vehicle detection and video blurring detection |
| Alert Triggers | Motion detection, SD card error, detection events |
| Image Settings | Watermark, IP address filtering, video mask, password protection, corridor mode |
| Operating & Unit Specifications | |
| Power Consumption | <6W |
| Operating Temperature | -40°F - 140°F |
| Operating Humidity | Less than 95% (non condensing) |
| Unit Dimensions | 4.6" (dia.) x 3.54" (H) |
| Unit Weight | 1.38 lbs. (without junction box) |
| Certifications | FCC |
