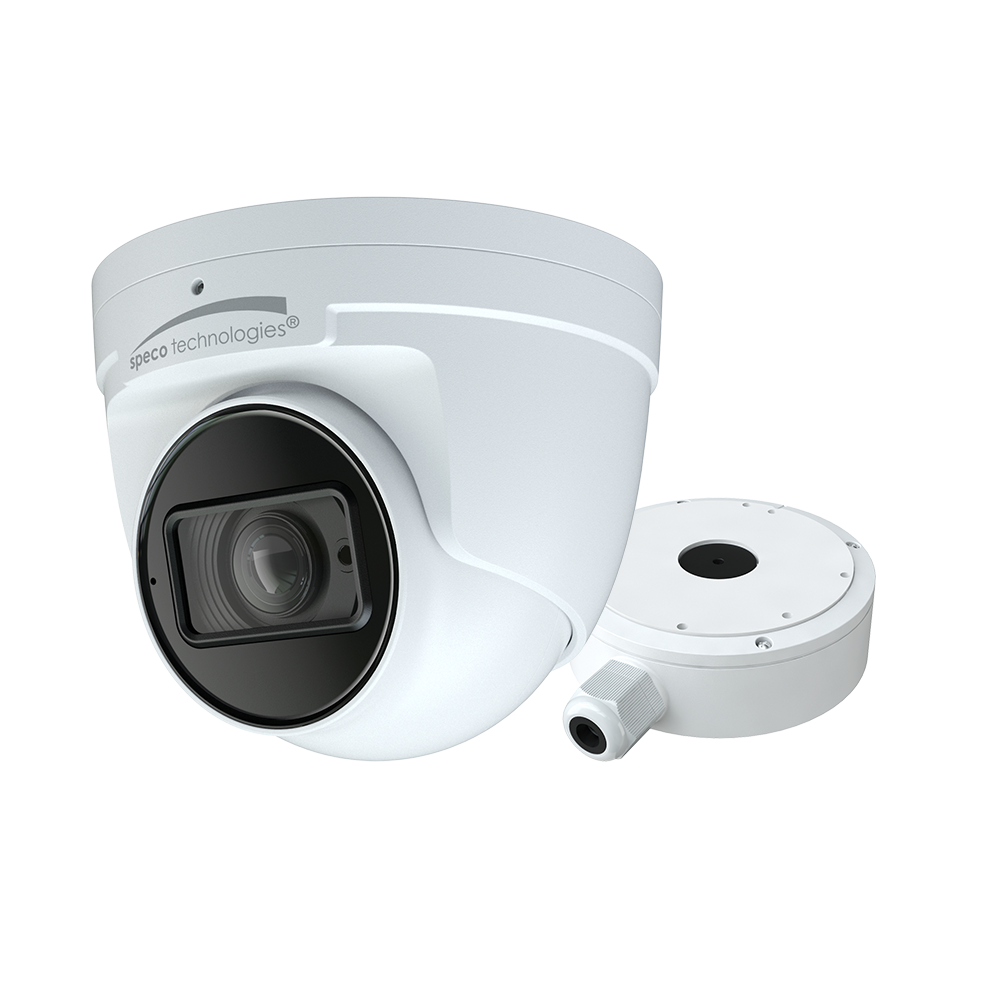

Speco - O4VT2M - 4MP H.265 IP Turret Camera, NDAA Compliant
Part number:
Price:
Product Overview
Now Integrated with CHeKT
Key Configuration
Model: O4VT2M
Key Features
- • Captures up to 4MP @ 30fps.
- • Up to 4x optical zoom.
- • H.265/H.264 compression supported.
- • Built-in standard PoE (IEEE 802.3af).
- • True Day/Night operation (IR cut filter).
Installation Notes
5.125” (Dia.) x 4.1” (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 4MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/3" CMOS, 4MP |
| Maximum Resolution | 2560 x 1440 (4MP) |
| Field of View | 92° ~ 31°(H), 48° ~ 17.2° (V), 112° ~ 35.6° (D) |
| Minimum Illumination | 0.005 lux @ F1.6, AGC ON; 0 lux with IR |
| Image Settings | Region of interest, saturation, brightness, chroma, contrast, wide dynamic, defog, sharpen, noise reduction |
| Day/Night | Smart IR up to 167' (depending on scene reflection) |
| Compensation | True WDR, BLC, HLC |
| Electronic Shutter Speed | 1/2 - 1/100000 sec. |
| DNR | 3D DNR |
| Angle Adjustment | Pan 0°-360°, Tilt 0°-80°, Rotation 0°-360° |
| Client Specifications | |
| Web Browser Support | Google Chrome, Edge, Safari, Fire Fox, Windows (Internet Explorer 8 and up) |
| PC Application | Speco Blue VMS, SecureGuard® CMS |
| Mobile | SecureGuard® Client, Speco Blue (iPhone® and Android™) |
| Interfaces | |
| Ethernet | RJ45 Jack |
| Power | DC jack |
| Audio Input | 3.5mm input, built-in mic |
| Audio Out | No |
| Card Slot | MicroSD, up to 256GB (not included) |
| Alarm In/Out | No |
| Reset | Yes |
| Audio Specifications | |
| Audio Codec | G.711A / G.711U |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, 802.1x, UPnP, HTTP, HTTPS, QoS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 4 simultaneous users, actual number of users may vary depending on bandwidth |
| Video Specifications | |
| Main Resolution | 2560x1440 / 2304x1296 / 1920x1080 up to @30fps |
| Sub Stream | 720p (1-15fps), D1, CIF (1-30fps) |
| Third Stream | D1, CIF, 480x240 (1-30fps) |
| Compression | H.265, H.264 |
| Bitrate Control | VBR, CBR (64Kbps ~ 10Mbps) |
| Multiple Streaming | 3 streams |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Line crossing, object detection, region intrusion, people/vehicle detection and video blurring detection |
| Alarm Triggers | Motion, detection events, SD card error |
| Operating & Unit Specifications | |
| Power Consumption | < 9W |
| Operating Temperature | -40°F ~ 140°F |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 5.125” (Dia.) x 4.1” (H) |
| Unit Weight | 1.41 lb. |
