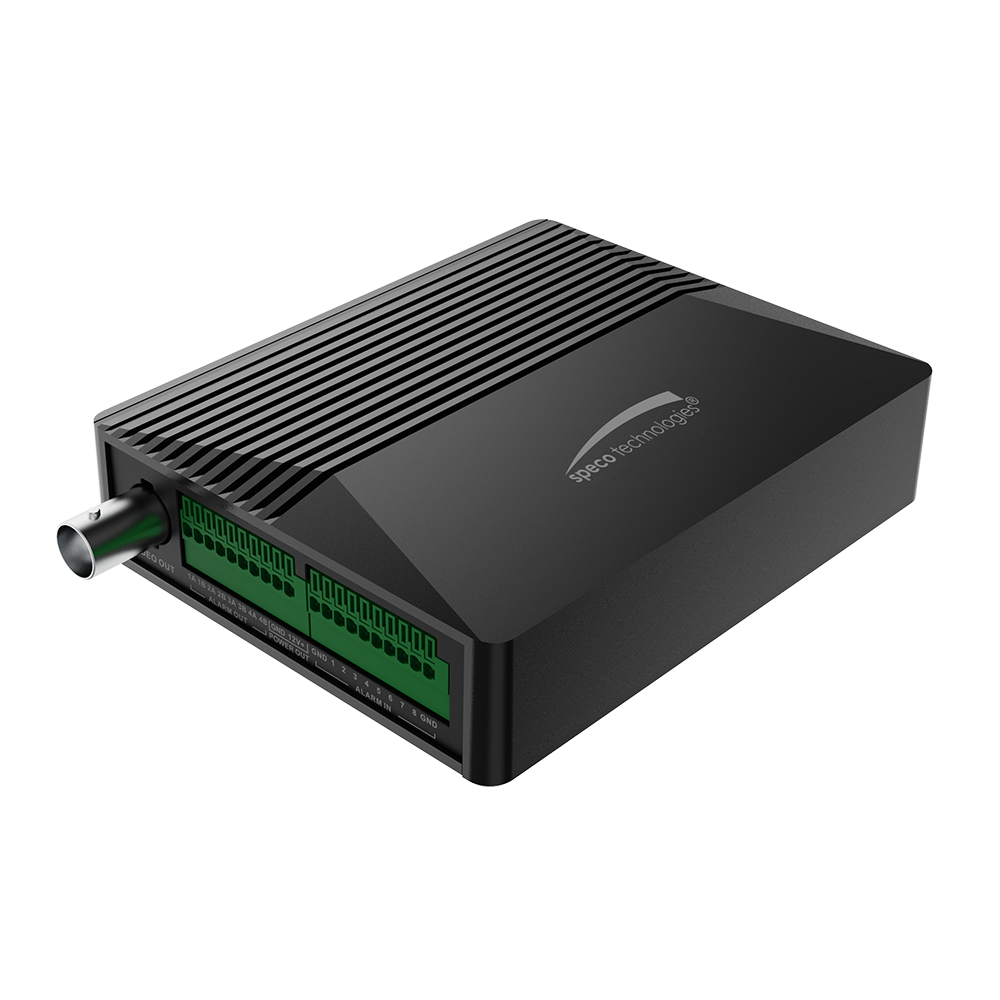

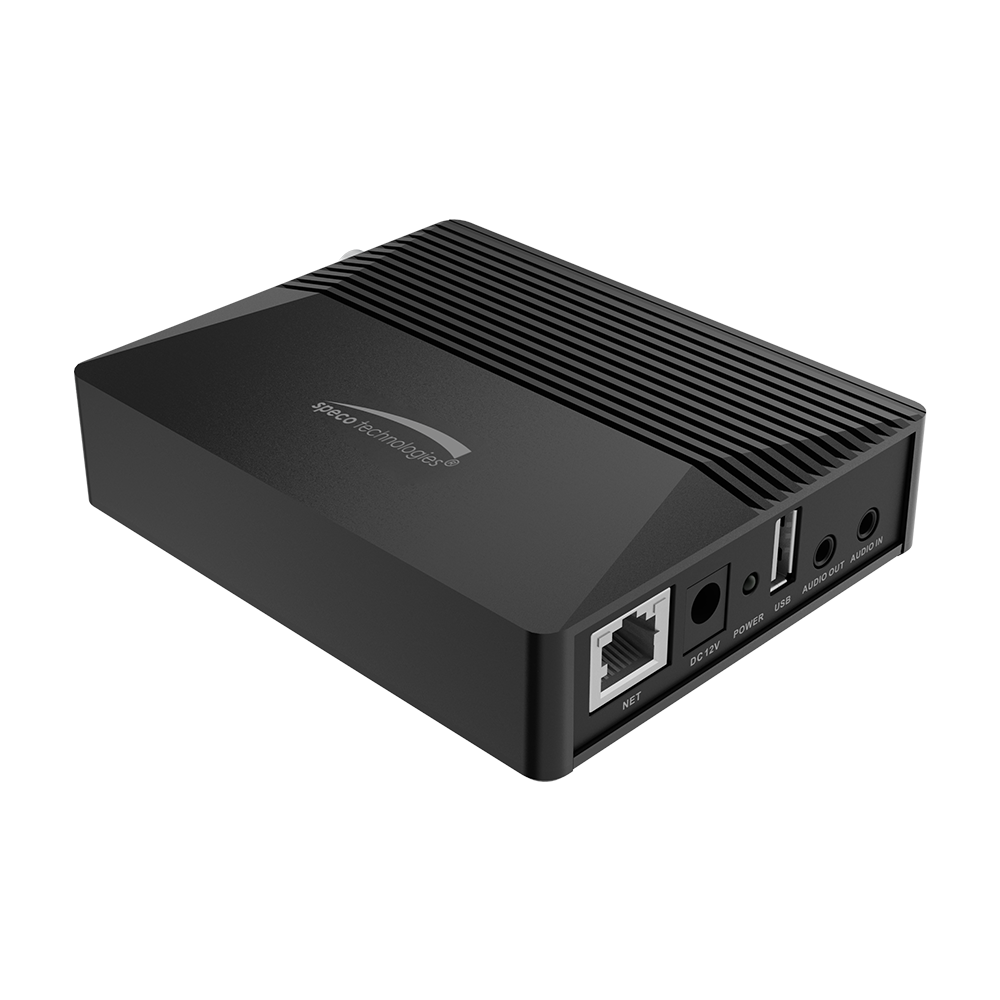

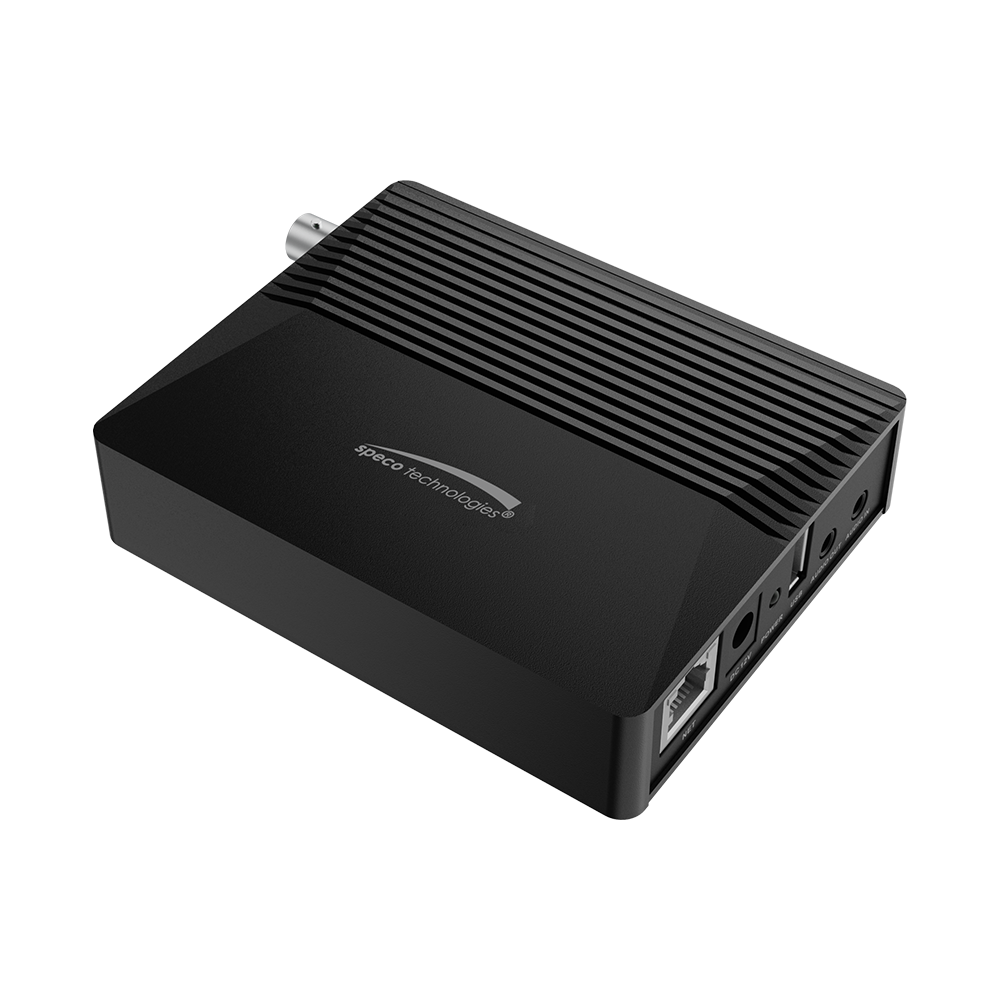

Speco - O5E1 - 5MP IP Encoder with Advanced Analytics – Converts Analog/HD-TVI Cameras to IP
Part number:
Price:
Product Overview
Converts HD-TVI, CVI, and AHD Analog cameras to IP. Up to 5MP@20FPS, 4MP@30fps.
Key Configuration
Model: O5E1
Key Features
- • Built-in standard PoE (IEEE 802.3af).
- • H.265/H.264/MJPEG compression supported.
- • Micro SD card slot for edge storage.
- • DC 12V output for powering cameras.
- • Two-way audio communication.
Installation Notes
4.27” (W) x 3.45” (D) x 1.1” (H)
| Video/Audio Specifications | |
| Supported Resolutions | 2592x1944 |
| 5MP (2592x1944) @20FPS | |
| 4MP (2560x1440) @30FPS | |
| 1080P (1920 x1080) | |
| 720P (1280x720) | |
| D1 | |
| CIF | |
| 480x240 | |
| Compression | H.265, H.264 (HP/MP/BP), MJPEG |
| Bitrate Control | VBR, CBR |
| Bitrate Range | 64Kbps-8Mbps |
| Multiple Streaming | 3 streams |
| Audio Compression | G.711A / G.711U |

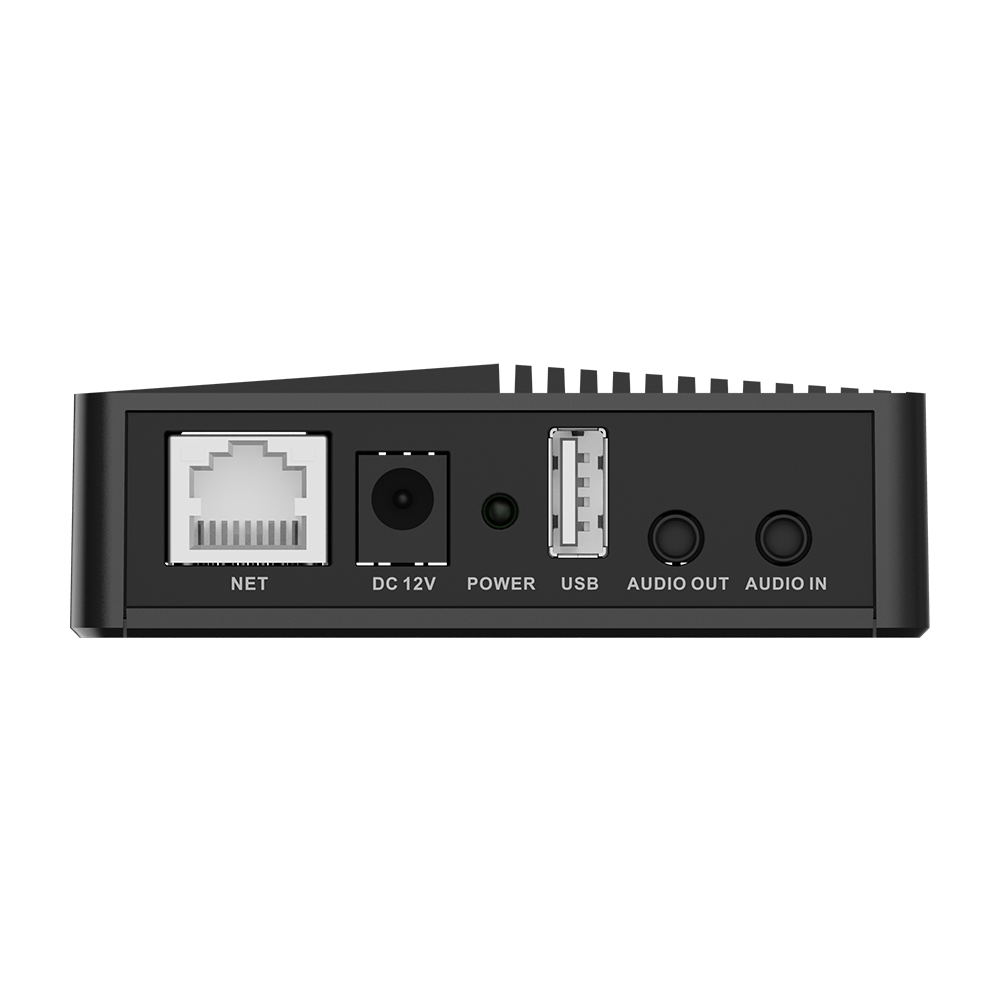

| Interface Specifications | |
| Ethernet | 10/100 Mbps |
| Power Input | DC jack |
| Power Output | 12VDC Terminal block |
| Video Input | BNC |
| Audio Input | 1CH 3.5mm |
| Audio Output | 1CH 3.5mm |
| Storage | Micro SD slot, up to 256GB |
| Alarm | 1 sensor input, 1 relay output (Terminal block) |
| Control | RS-485 for external PTZ device (Terminal block) |
| Operating & Unit Specifications | |
| Power | PoE, 12VDC (power supply not included) |
| Power Consumption | < 5.5W |
| Operating Temperature | -22°F - 140°F |
| Operating Humidity | 10% - 95% relative humidity, Indoor-use only |
| Unit Dimensions | 4.27” (W) x 3.45” (D) x 1.1” (H) |
| Unit Weight | 9.5 oz |
| Certifications | FCC, RoHS |
| Network Specifications | |
| Protocol | IPv4, IPv6, TCP, UDP, RTP, RTSP, HTTP, SMTP, FTP, DHCP |
| DDNS Support | Speco DDNS (free of charge) |
| System Specifications | |
| Security | User ID & Password protection, IP/Mac address filtering, digest authentication |
| User Access. | Max. 8 simultaneous users |
| Actual number of users may vary depending on bandwidth | |
| Image Settings | |
| Client Specifications | |
| Web Browser Support | Edge, Chrome, Firefox, Safari, Internet Explorer |
| PC Application | SecureGuard® VMS/CMS |
| Mobile | Speco Blue App, SecureGuard® Mobile (iPhone® and Android™) |
