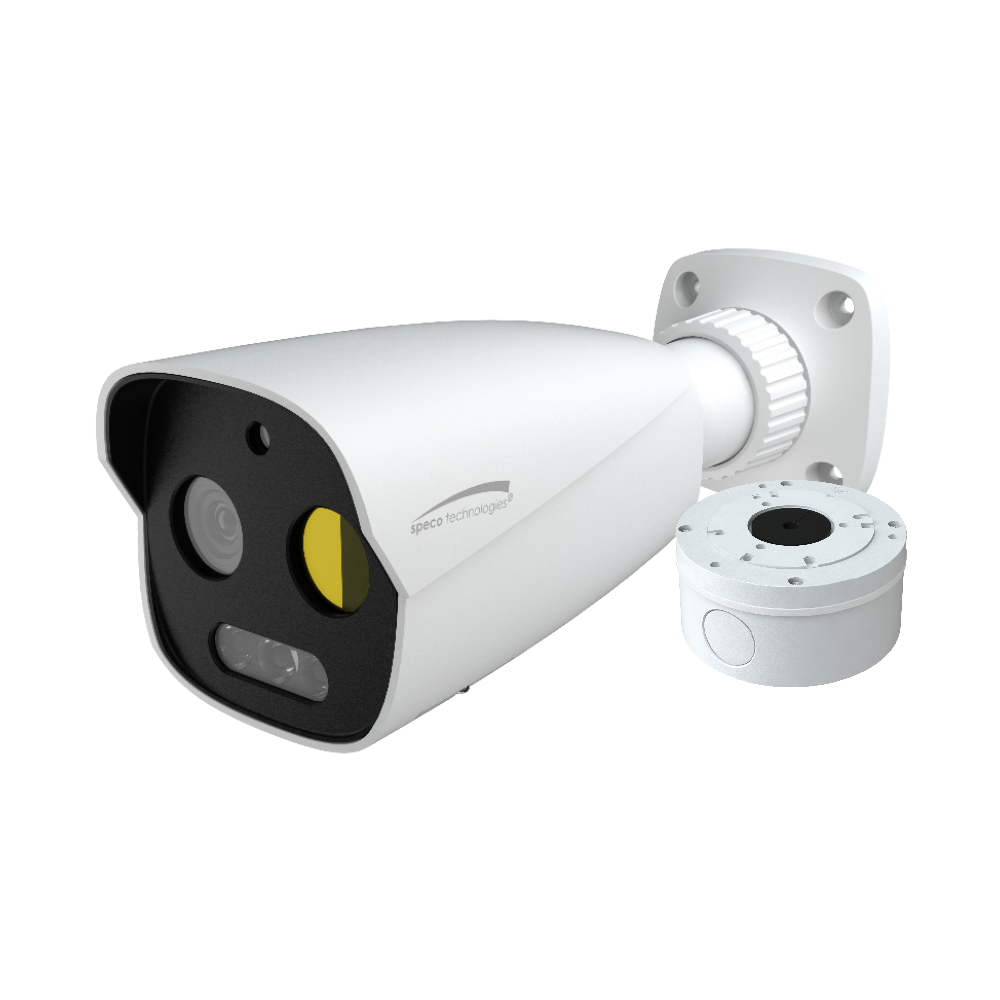

Speco - O5TMLB1 - 5MP Dual Lens AI Thermal Camera with Advanced Analytics and Digital Deterrent®
Part number:
Price:
Product Overview
Captures up to 5MP @ 30fps (optical) with a thermal resolution of 256×192. Supports true WDR operation and IP67 weather resistance. Detects people and vehicles thermally and optically, and can thermally detect fire. Micro SD card slot (card not included) and junction box included, covered by a 1-year warranty.
Key Configuration
Model: O5TMLB1
Key Features
- • Captures up to 5MP @ 30fps (optical).
- • 256×192 Thermal resolution.
- • IR range: 98’ (depending on scene reflection).
- • True WDR operation.
- • Micro SD card slot (card not included).
Installation Notes
2.9" (W) × 2.9" (H) × 6.6" (D)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 5MP |
| Optical Camera Specifications | |
| Image Sensor | Progressive scan 1/2.7" CMOS, 5MP |
| Maximum Resolution | 2592 x 1944 |
| Field of View | 81°(H), 56.7°(V) |
| Minimum Illumination | 0.02 lux @ F1.6, 0 lux (IR LED on) |
| Day/Night | Smart IR |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Compensation | True WDR (120dB), BLC, HLC |
| Electronic Shutter Speed | 1/3s - 1/100000s |
| DNR | 3D DNR |
| Optical Video Specifications | |
| Main Resolution | 5MP/4MP/2K/3MP/1080P/720P(1~30fps) |
| Sub Stream | 720P/D1/CIF (1~30fps); 50Hz: 720P/D1/CIF (1~25fps) |
| Third Stream | D1/CIF/480 x 240(1~30fps) |
| Compression | H.265, H.264, MJPEG |
| Bitrate Control | VBR, CBR (128Kbps ~ 8Mbps) |
| Multiple Streaming | 3 streams |
| Audio Specifications | |
| Protocol | G.711A / G.711U |
| Audio Input | Mono 3.5mm MIC, LIN in audio input |
| Audio Output | Built-in speaker |
| Digital Deterrent® | |
| Features | Built-in white flashing LED and audio alarm supported |
| Client Specifications | |
| Web Browser Support | Edge, Chrome, Safari, Firefox, Internet Explorer |
| PC Application | Speco Blue VMS |
| Mobile | Speco Blue App (iPhone® and Android™) |
| Operating & Unit Specifications | |
| Power | PoE, 12VDC (power supply not included) |
| Power Consumption | 9W (max) |
| Operating Temperature | -22°F - 140°F |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 2.9" (W) × 2.9" (H) × 6.6" (D) |
| Unit Weight | 1 lb. |
| Certifications | FCC, RoHS |
| Network Specifications | |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 10 simultaneous users, actual number of users may vary depending on bandwidth |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics (Optical) | Motion detection, region entrance/ exiting/intrusion detection (people/vehicle classification), line crossing detection (people/vehicle classification), video tampering detection, scene change detection, face detection. |
| Analytics (Thermal) | Fire detection, temperature exception alarm, intrusion detection/line crossing detection (human/motor vehicle classification) |
| Alarm Triggers | Analytics, SD card error |
| Alarm Events | FTP upload, email upload |
| Image Settings | Watermark, IP address filtering, video mask, password protection, thermal overlay |
| Thermal Camera Specifications | |
| Detector Type | 12Qm 256 × 192 Vanadium oxide un-cooled focal x plane detector |
| Resolution (all streams) | 256x192 (the resolution of output im-age is 720P) (1-30fps) |
| NETD | ≤50mK(@25°C, F#=1.0) |
| IRIS Type | Fixed Iris |
| Lens | 3.2mm@F1.1 |
| Min. Focusing Distance | 0.5m |
| Color Palettes | Black hot, White hot, iron oxide red, etc. |
| DRI Distance (Person) | Detection: ~436ft, Recognition: ~108ft, Identification: ~56ft |
| DRI Distance (Vehicle) | Detection: ~1342ft, Recognition: ~335ft, Identification: ~167ft |
| Thermal Functions | |
| Temperature Range | -20°C-150°C (-4°F-302°F) |
| Temperature Accuracy | 38°C |
| Temperature Alarm | Over temperature alarm, low temperature alarm |
| Temperature Measurements | 10 rules in total (Points: up to 10, Line: 2, Area:2, (recommended) |
| Fire Detection | Dynamic fire detection, up to 10 fire points detectable |
