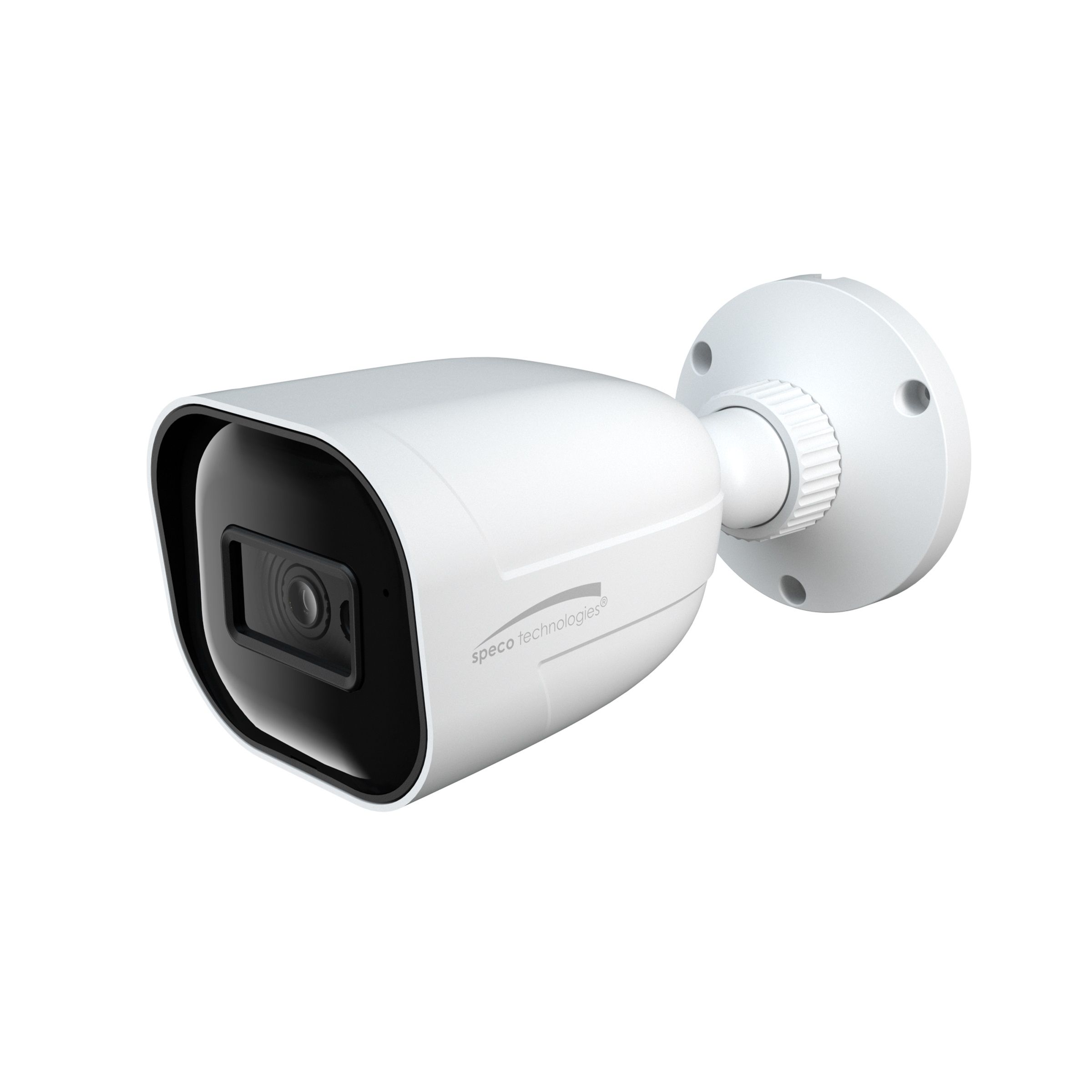

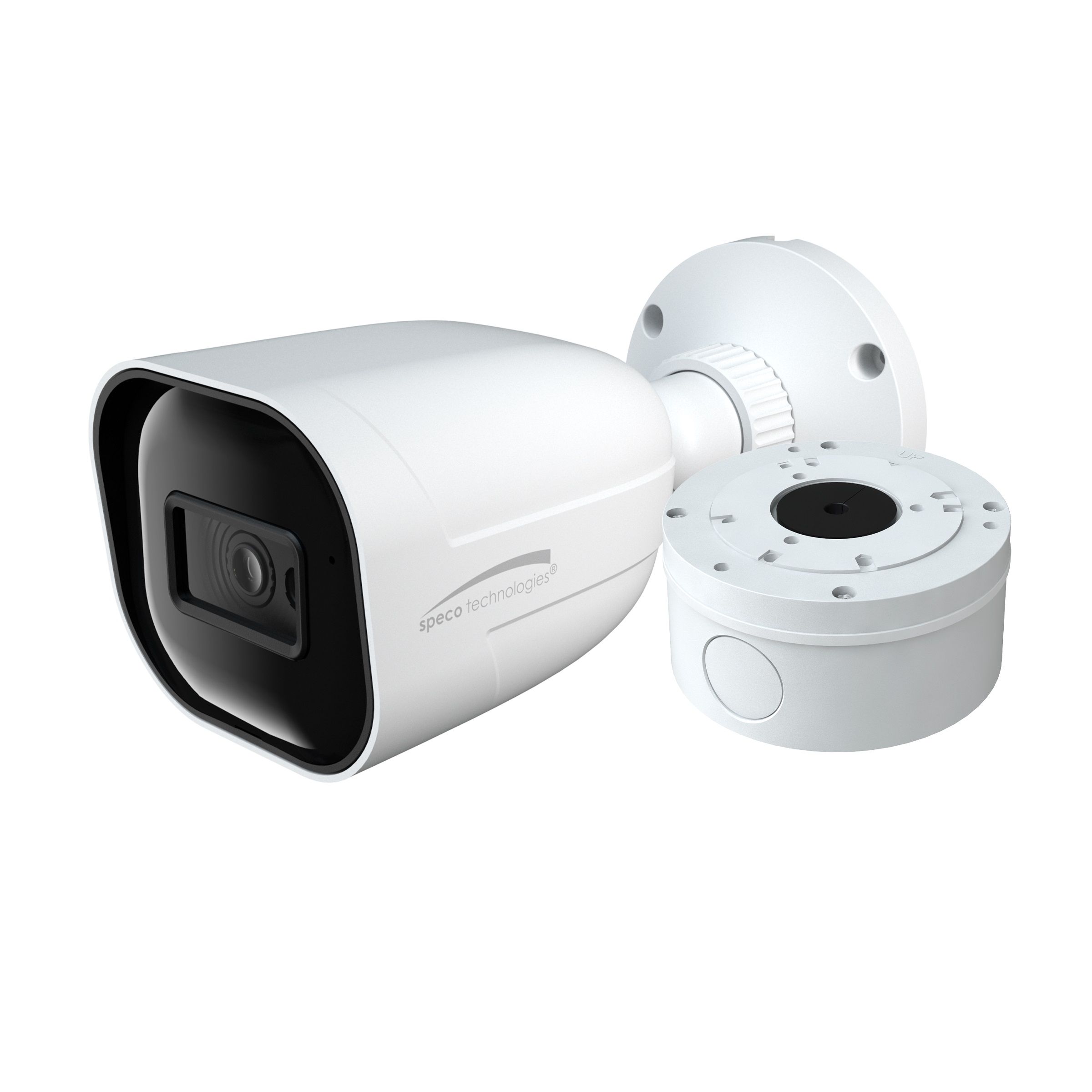

Speco - O6B1 - 6MP Vandal Resistant IP Bullet Camera with Advanced Analytics
Part number:
Price:
Product Overview
The O6B1 is a 6 Megapixel IP bullet camera with advanced analytics designed to provide unparalleled clarity and security for your monitoring needs.
Key Configuration
Model: O6B1 | SKU | Model No
Key Features
- • Supports up to 6 Megapixel @ 30fps.
- • Built-in standard PoE (IEEE 802.3af).
- • H.265/H.264/MJPEG compression supported.
- • True Day/Night operation (IR cut filter).
- • Adaptive IR LEDs reduce IR saturation.
Installation Notes
2.9" (W) x 2.9" (H) x 6.6" (D)
| Specifications | |
| Features | Audio, Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Mirror, Privacy Masking, Weather Resistant, Wide Dynamic Range, Facial Recognition |
| Connection Type | Wired |
| Infrared Distance | 61~100 Feet |
| Resolution | 6 Megapixel |
| Lens Type | Fixed |
| Lens Size | 2.8mm |
| Mount Type | Ceiling, Wall |
| Compression Method | H.264, M-JPEG, H.265; H.265, H.264 (HP/MP/BP), MJPEG (Specification Sheet (O6B1 column)) |
| Durability | Weather Resistant |
| Voltage | 12vDC, PoE |
| Dimensions (W x H) | 2.9" (W) x 2.9" (H) x 6.6" (D) |
| Electronic Shutter | 1/4 - 1/100000 sec. |
| Image Device | Progressive scan 1/2.5" CMOS, 6MP |
| Minimum Scene Illumination | 0.008 lux @ F1.6, AGC ON, 0 lux (IR LED on) |
| Operating Humidity | Less than 95 % (non-condensing) |
| Operating Temperature | -22°F ~ 140°F |
| Power Consumption | Max 7.5W |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS |
| Weatherproof | IP67 |
| Digital Noise Reduction | 3D DNR |
| Angle of View | 104°(H) , 54.5°(V), 130°(D) |
| Rotation Angle | 0°~360° |
| Back Light Compensation | True WDR (120dB), BLC, HLC |
| Automatic White Balance | Auto, Indoor, Outdoor, Manual |
| Day/Night | Smart IR |
| Camera Specifications | |
| Maximum Resolution | 3296 x 1856 |
| Audio Specifications | |
| Audio Codec | G.711A / G.711U |
| Interfaces | |
| Ethernet | 10/100 Mbps (PoE) |
| Power | DC jack |
| Microphone Input | Built-in mic and Mono 3.5mm input |
| Audio Out | 3.5mm mono output |
| Card Slot | MicroSD, up to 256GB (not included) |
| Alarm | 1CH alarm input; 1CH alarm output |
| Reset | Yes |
| Network Specifications | |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 10 simultaneous users, actual number of users may vary depending on bandwidth |
| Video Specifications | |
| Main Resolution | 3296x1856 / 3200x1800 / 2880x1624 / 2688x1520 / 2560x1440 / 2304x1296 / 1920x1080 / 1280x720 @ 30fps |
| Sub Stream | 720P/ D1, CIF/ 480x240 @ 30 fps |
| Third Stream | D1/ CIF/ 480 X 240 @ 30 fps |
| Video Settings | Region of interest, privacy masking, brightness, contrast, hue, saturation, denoise, antiflicker, day/night mode, infrared settings, exposure, gain, corridor pattern, image flip/mirror |
| Bitrate Control | VBR, CBR (64Kbps ~ 10Mbps) |
| Multiple Streaming | 3 streams |
| Operating & Unit Specifications | |
| Power | PoE, 12VDC (power supply not included) |
| Certifications | FCC, UL Listed. |
| Client Specifications | |
| Web Browser Support | Google Chrome, Edge, Safari, Fire Fox, Windows (Internet Explorer 8 and up) |
| PC Application | Speco Blue VMS, SecureGuard® CMS |
| Mobile | SecureGuard® Client, Speco Blue (iPhone® and Android™) |
| System Specifications | |
| PoE Standard | (IEEE 802.3af) |
| Analytics | Motion, exception, line crossing, loitering, sound detection, region intrusion, object detection, vehicle/people detection, face detection, people/vehicle counting, tampering detection, and heat map |
| Alarm Triggers | Analytics, SD card error |
| Alarm Events | FTP upload, email upload |
| Image Settings | Watermark, IP address filtering, video mask, password protection |
Name
Description
Size
Downloads
File
Specification
1.1mb
