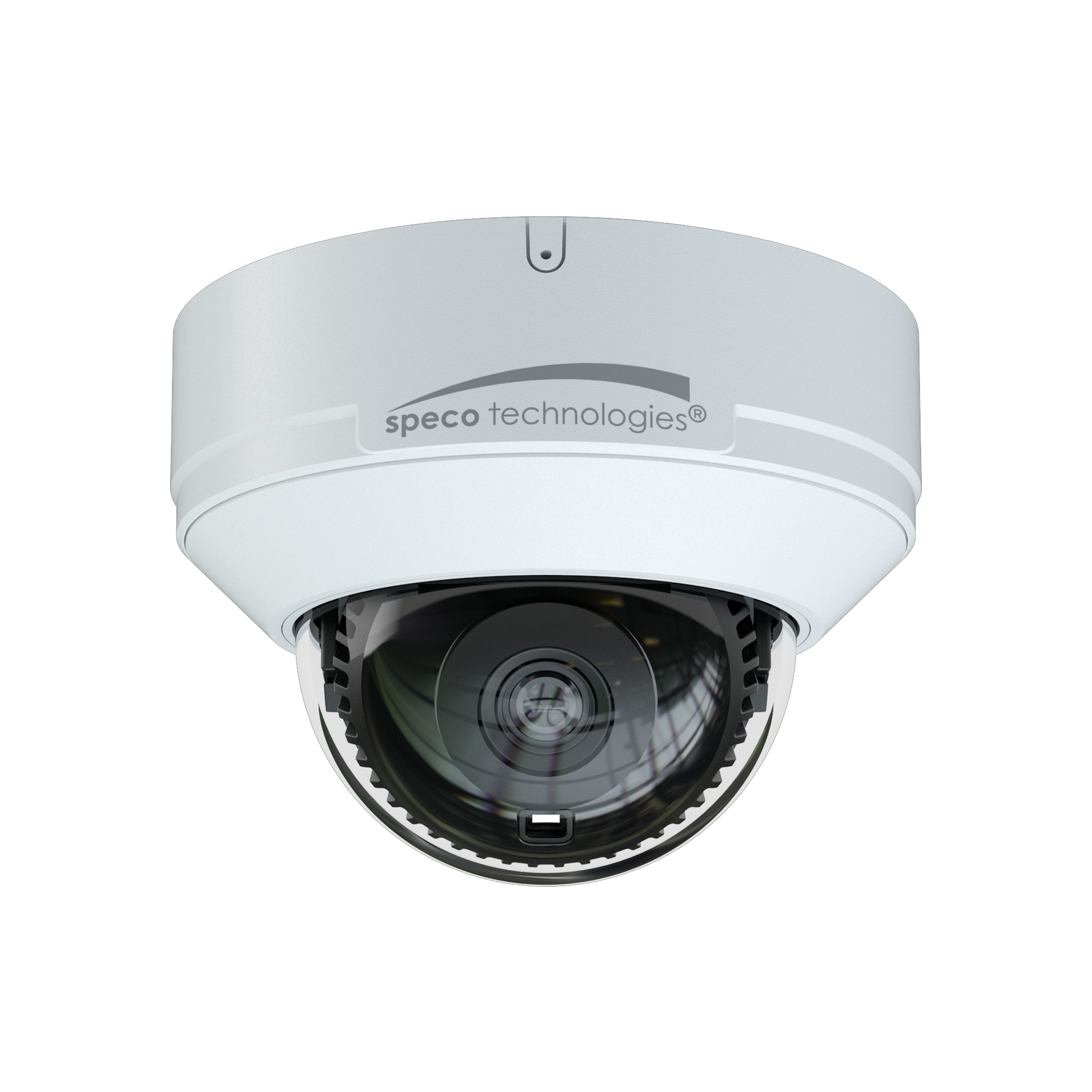

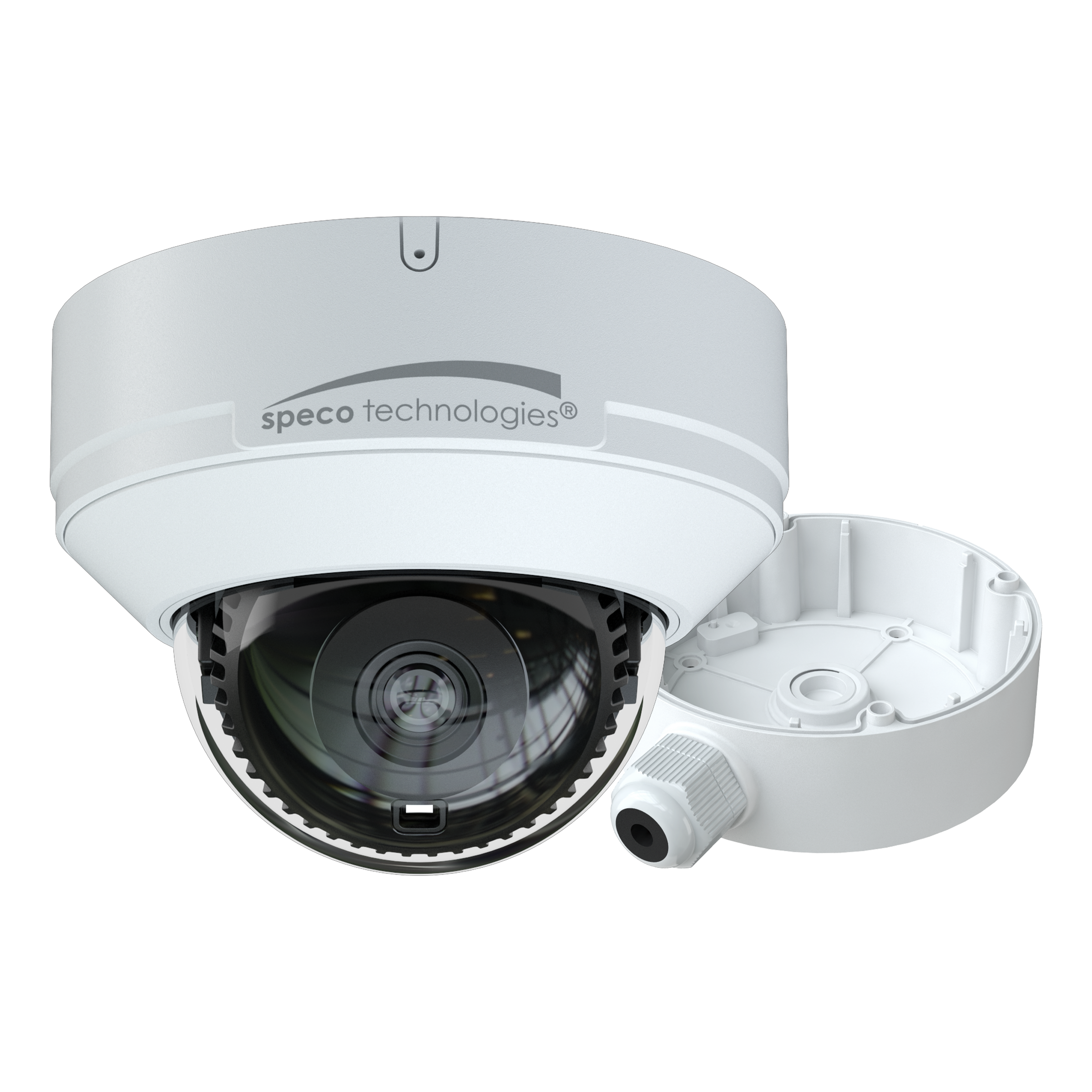

Speco - O6D1 - 6MP Vandal Resistant IP Dome Camera with Advanced Analytics
Part number:
Price:
Product Overview
6MP Vandal Resistant IP Dome Camera with Advanced Analytics
Key Configuration
Model: O6D1
Key Features
- • Supports up to 6MP @ 30fps.
- • Built-in standard PoE (IEEE 802.3af).
- • H.265/H.264/MJPEG compression supported.
- • True Day/Night operation (IR cut filter).
- • Adaptive IR LEDs reduce IR saturation.
Installation Notes
4.7” (ф) x 3.5” (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 6MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/2.5" CMOS, 6MP |
| Maximum Resolution | 3296 x 1856 |
| Field of View | 104°(H), 54.5°(V), 130°(D) |
| Minimum Illumination | 0.008 lux @ F1.6, AGC ON, 0 lux (IR LED on) |
| Day/Night | Smart IR |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Compensation | True WDR (120dB), BLC, HLC |
| Electronic Shutter Speed | 1/4 - 1/100000 sec. |
| DNR | 3D DNR |
| Angle Adjustment | Pan 0° ~ 355°, Tilt 0° ~ 70°, Rotation 0° ~ 180° |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion, exception, line crossing, loitering, sound detection, region intrusion, object detection, vehicle/people detection, face detection, people/vehicle counting, tampering detection, and heat map |
| Alarm Triggers | Analytics, SD card error |
| Alarm Events | FTP upload, email upload |
| Image Settings | Watermark, IP address filtering, video mask, password protection |
| Interfaces | |
| Ethernet | 10/100 Mbps (PoE) |
| Power | DC jack |
| Microphone Input | Built-in mic and Mono 3.5mm input |
| Audio Out | 3.5mm mono output |
| Card Slot | MicroSD, up to 256GB (not included) |
| Alarm | 1CH alarm input; 1CH alarm output |
| Reset | Yes |
| Audio Specifications | |
| Audio Codec | G.711A / G.711U |
| Network Specifications | |
| Protocols | UDP, IPv4, IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, 802.1x, UPnP, HTTP, HTTPS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 10 simultaneous users, actual number of users may vary depending on bandwidth |
| Video Specifications | |
| Main Resolution | 3296x1856 / 3200x1800 / 2880x1624 |
| Sub Stream | 720P/ D1, CIF/ 480x240 @ 30 fps |
| Third Stream | D1/ CIF/ 480 X 240 @ 30 fps |
| Compression | H.265, H.264 (HP/MP/BP), MJPEG |
| Video Settings | Region of interest, privacy masking, brightness, contrast, hue, saturation, denoise, antiflicker, day/night mode, infrared settings, exposure, gain, corridor pattern, image flip/mirror |
| Bitrate Control | VBR, CBR (64Kbps ~ 10Mbps) |
| Multiple Streaming | 3 streams |
| Client Specifications | |
| Web Browser Support | Google Chrome, Edge, Safari, Fire Fox, Windows (Internet Explorer 8 and up) |
| PC Application | Speco Blue VMS, SecureGuard® CMS |
| Mobile | SecureGuard® Client, Speco Blue (iPhone® and Android™) |
| Operating & Unit Specifications | |
| Power Consumption | < 7.5W |
| Operating Temperature | -22°F ~ 140°F |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 4.7” (ф) x 3.5” (H) |
| Unit Weight | 1.43 lb. |
| Certifications D.O.R.I (m) | FCC, UL Listed. |
| Detection (25px/m) | 199ft (60.7m) |
| Observation (63px/m) | 80ft (24.3m) |
| Recognition (125px/m) | 40ft (12.1m) |
