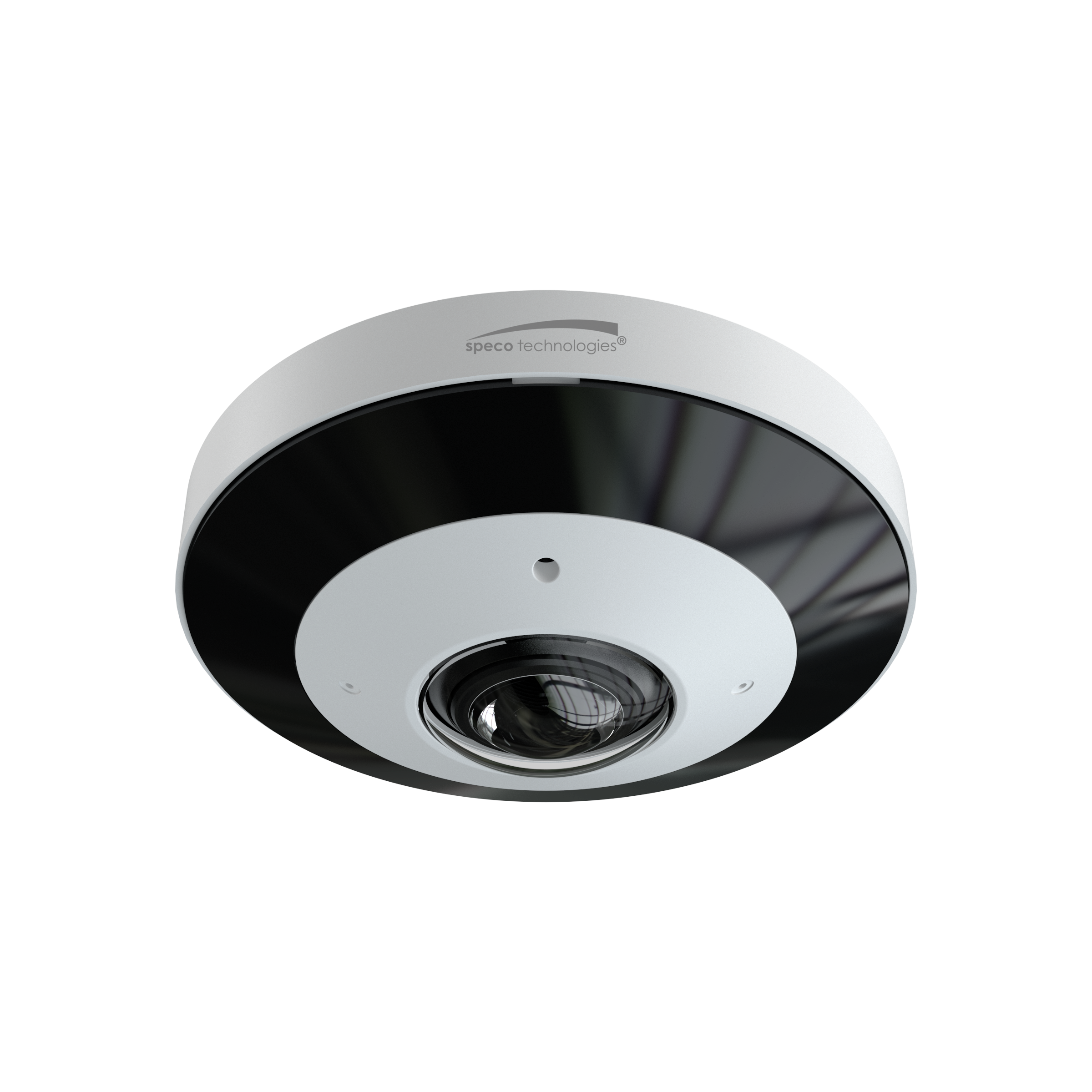

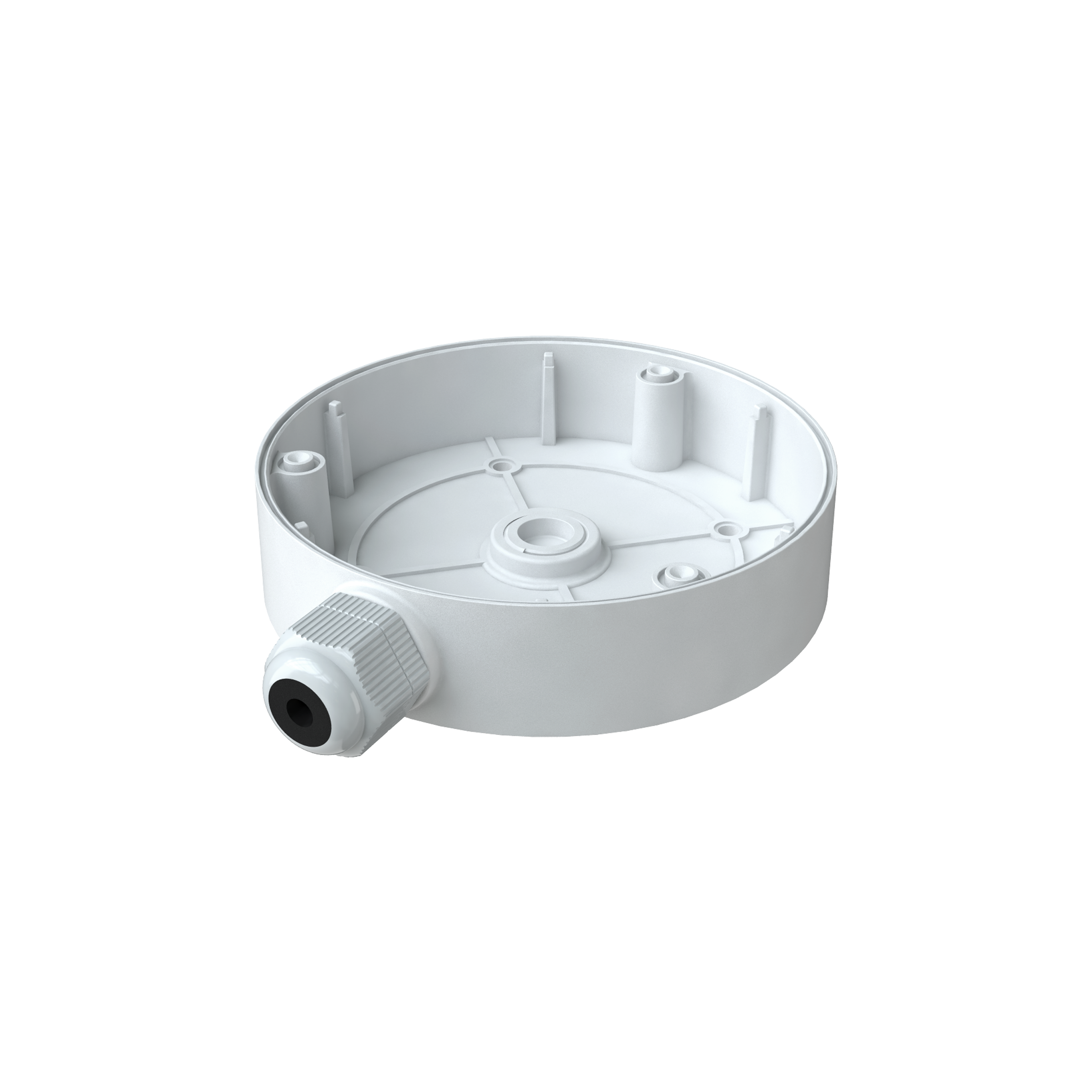

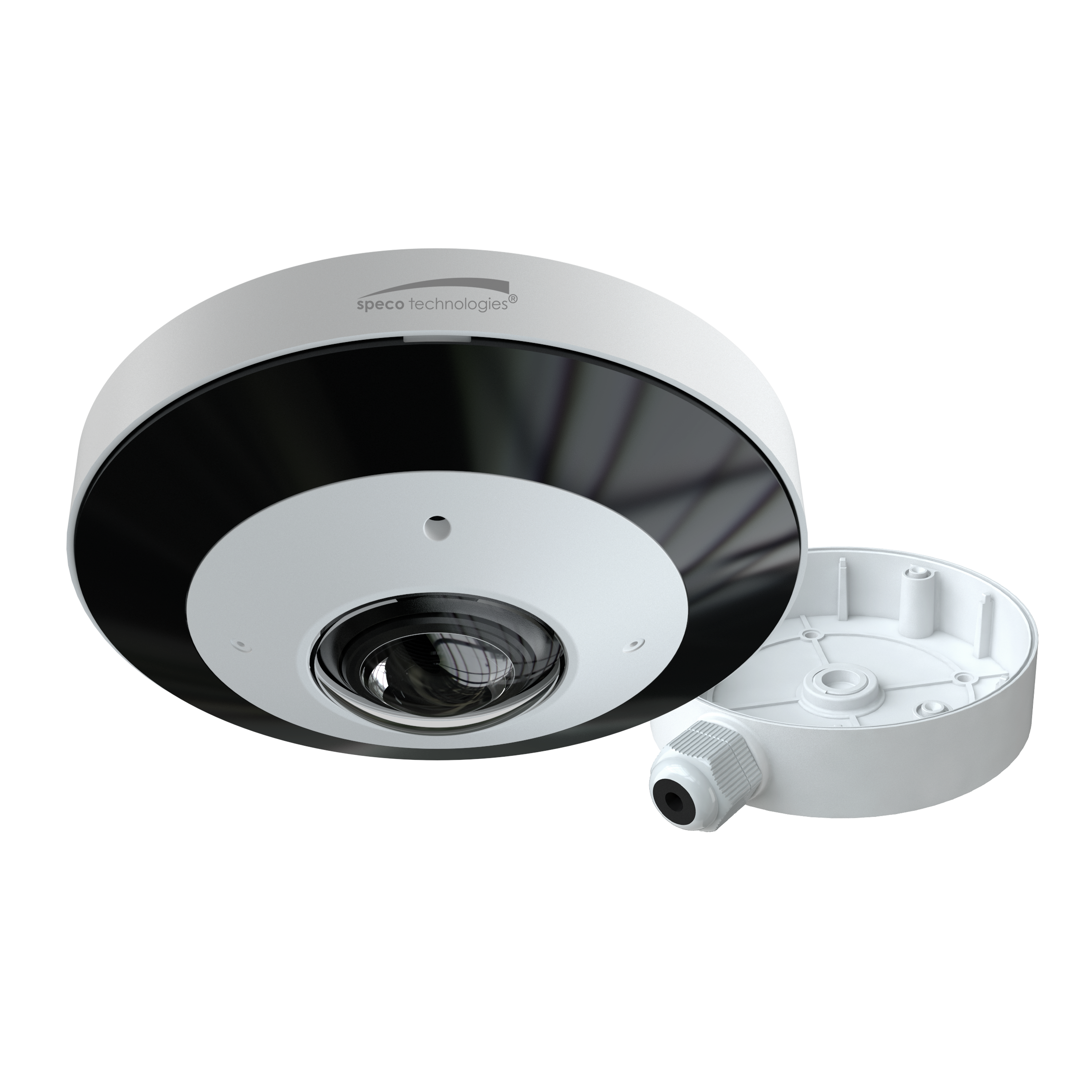

Speco - O6MDP4 - 6MP IP Indoor/Outdoor 360° Fisheye Camera with Junction Box
Part number:
Price:
Product Overview
6MP IP Indoor/Outdoor 360° Fisheye Camera with Junction Box
Key Configuration
Model: O6MDP4
Key Features
- • Captures up to a 360° view @ 30fps.
- • Provides a 360° view from ceiling or 180° view from wall.
- • De-warp views from the camera or recorder.
- • Built-in standard PoE (IEEE 802.3af).
- • Smart IR with range up to 100FT (depending on scene reflection).
Installation Notes
5.11” (Dia.) x 1.82” (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 6MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/2.5” CMOS, 6MP |
| Field of View | 180° (wall mounted); 360° (ceiling mounted) |
| Minimum Illumination | 0.01 lux @ F2.0, AGC ON; 0 lux with IR |
| Day/Night | Smart IR |
| White Balance | Auto, Indoor, Outdoor, Manual |
| Compensation | True WDR, BLC, HLC |
| Day/Night Electronic Shutter Speed | 1/3 ~ 1/100000s |
| DNR | 3D DNR |
| Video Specifications | |
| Mode 1 - Fisheye + Panoramic + 3 PTZ | Fisheye view: 2160x2160, 1440x1440 (@ 30fps) Panoramic view: 3200x1800, 1920x1080 (@ 30fps) 3PTZ view: 1280x720 *3 (@ 15fps) |
| Main Resolution | |
| Mode 2 - Fisheye + 4 PTZ | Fisheye view: 2160x2160, 1440x1440 (@ 30fps) 4PTZ view: 1280x720 *4 (@ 15fps) |
| Mode 3 - Fisheye + 4 PTZ Fusion | Fisheye view: 2160x2160, 1440x1440 (@ 30fps) 4PTZ fusion view: 1280x720 (@ 20fps) |
| Compression | H.265, H.264, MJPEG |
| Bitrate Control | VBR, CBR (64Kbps ~ 10Mbps) |
| Multiple Streaming | 2 streams |
| Audio Specifications | |
| Audio Compression | G.711A/G7.11U |
| Audio In/Out | 2-way audio capable ready |
| Network Specifications | |
| DDNS support | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, RTMP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTPS, QoS, HTTP Post |
| Security | Speco DDNS (free of charge) |
| User Access | User ID & Password protection, IP/MAC address filtering, digest authentication Max. 6 simultaneous users. Actual number of users may vary depending on bandwidth. |
| System Specifications | |
| Alarm Events | Motion detection, sensor alarm MicroSD recording, FTP upload Region of interest, saturation, brightness, chroma, contrast, noise reduction |
| Image Settings | |
| Interfaces | |
| Audio Output | 10/100 Mbps |
| Microphone Input | 3.5mm + 2 Ch built-in mic |
| Card Slot | MicroSD, up to 256GB (not included) |
| Alarm Input/Output | 1 Ch alarm input; 1 Ch alarm output |
| Video Output | CVBS output (BNC x 1 ) |
| RS 485 (PTZ Control) | Yes |
| Reset | |
| Operating & Unit Specifications | |
| Power | PoE, 12VDC (power supply not included) |
| Power Consumption | 10W (max) |
| Operating Temperature | -40°F ~ 140°F |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 5.11” (Dia.) x 1.82” (H) |
| Unit Weight | 1.13 lb. |
| Certifications | FCC, RoHS |
| Client Specifications | |
| Web Browser Support | Chrome, Edge, Safari, Firefox, Windows (Internet Explorer 8 and up) |
| PC Application | Speco Blue VMS |
| Mobile | Speco Blue (iPhone® and Android™) |
Name
Description
Size
Downloads
File
Specification
1.1mb
File
Quick Start Guide
2.2mb
File
User Manual
3mb
