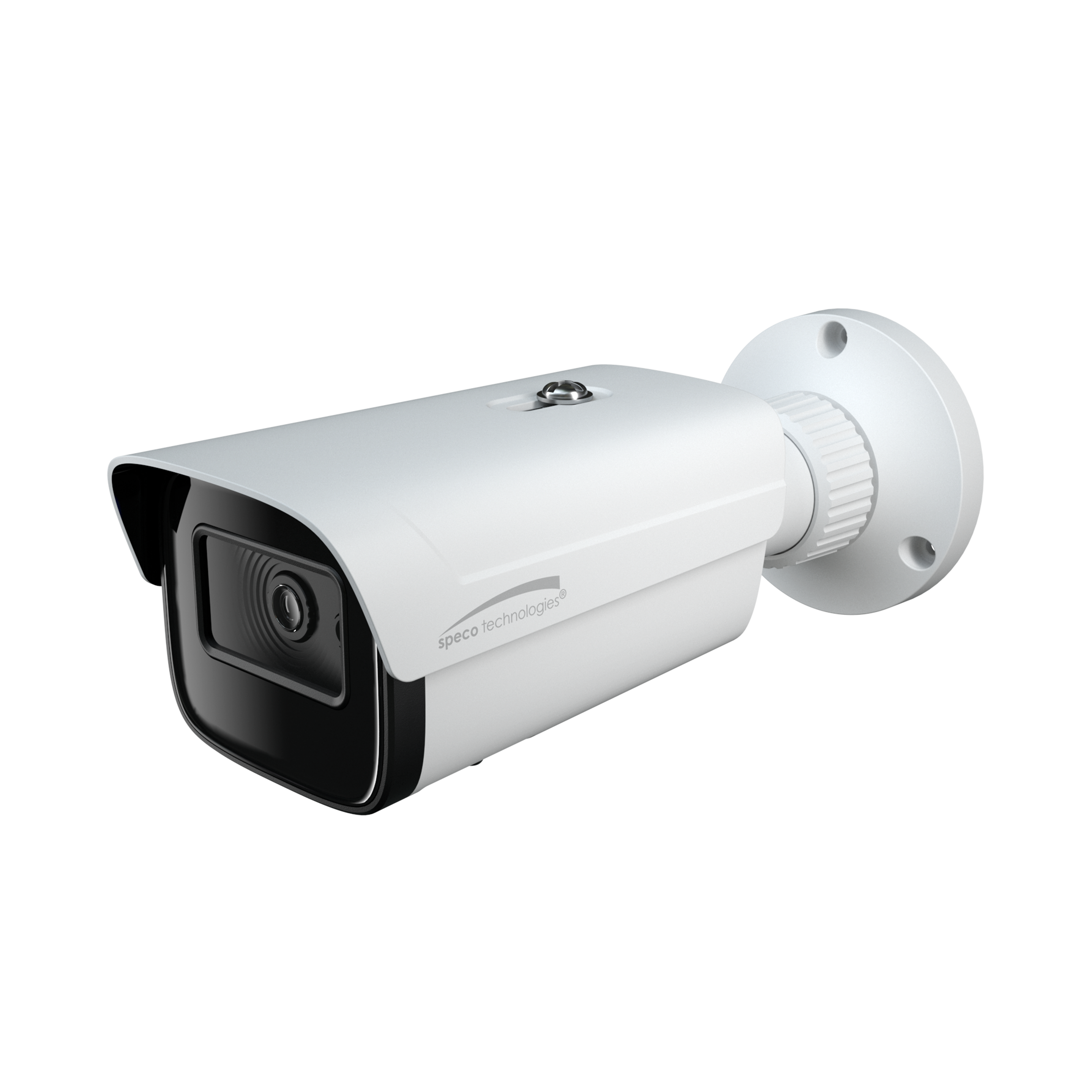

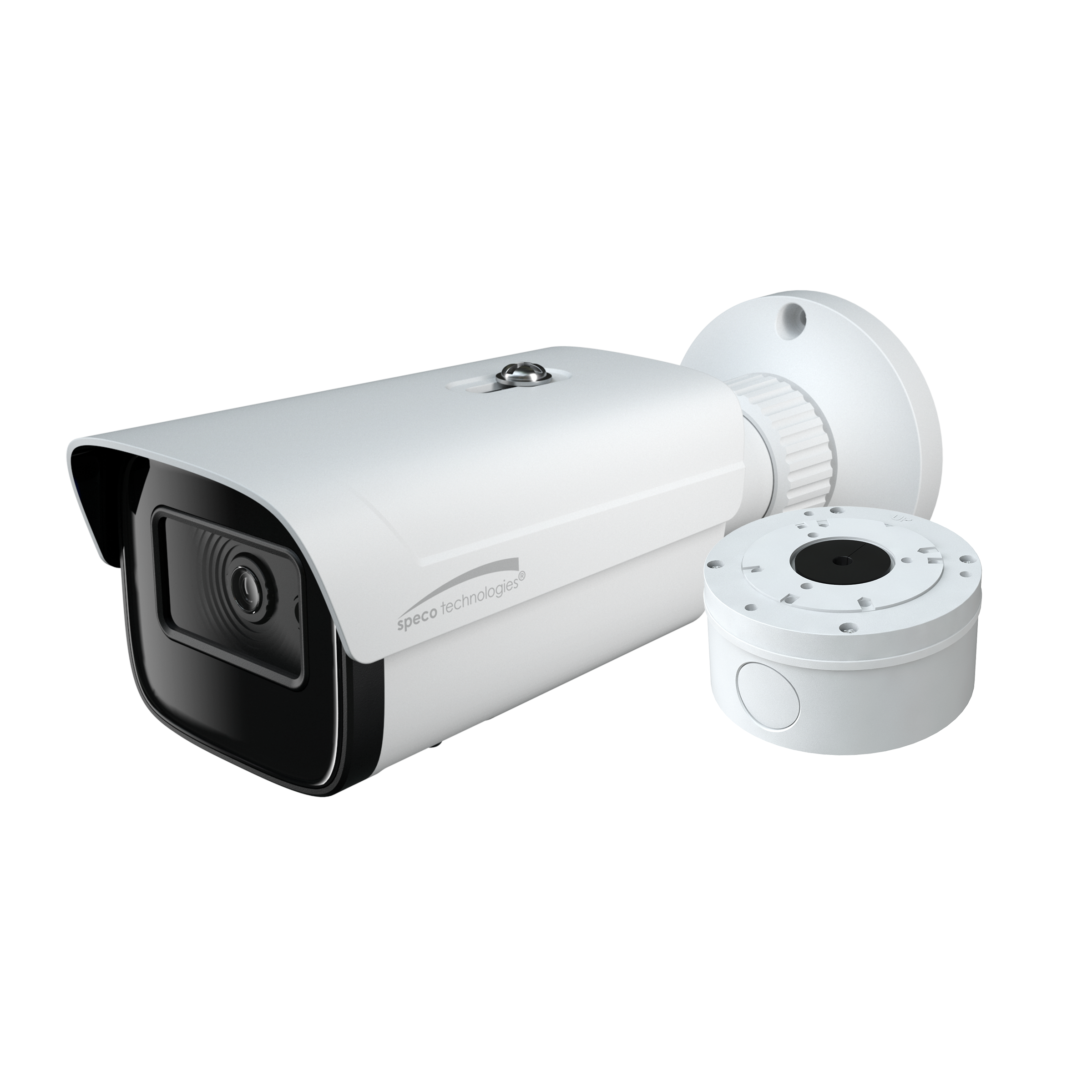

Speco - O8B9 - 8MP (4K) H.265 IP Bullet Camera with Advanced Analytics, NDAA Compliant
Part number:
Price:
Product Overview
8MP (4K) H.265 IP Bullet Camera with Advanced Analytics, NDAA Compliant
Key Configuration
Model: O8B9
Key Features
- • Captures up to 8MP @ 30fps.
- • Built-in standard PoE (IEEE 802.3af).
- • True Day/Night operation (IR cut filter).
- • IR range: up to 165’ (depending on scene reflection).
- • True WDR operation.
Installation Notes
8.54”(L)×3.16”(W)×3.16”(H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 8MP |
| Camera Specifications | |
| Main Resolution | 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P(1-30fps) |
| Sub Stream | 1080P/720P/D1/480x240(1-30fps) |
| Third Stream | 720P/D1/CIF/480x240(1-30fps) |
| Compression | H.265,H.264,MJPEG |
| Bitrate Control | VBR,CBR(64Kbps-12Mbps) |
| Multiple Streaming | 3 streams |
| Video Specifications | |
| Protocols | UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP,FTP,802.1x,UPnP,HTTP,HTTPS,QoS |
| DDNS support | Speco DDNS(free of charge) |
| Security | User ID & Password protection,IP/Mac address filtering,digest authentication |
| User Access | Max.10 simultaneous users;actual number of users may vary depending on bandwidth |
| Network Specifications | |
| Network | RJ45 jack |
| Power | DC jack |
| Audio | 3.5mm input |
| Card Slot | MicroSD, up to 256GB (not included) |
| Alarm | No |
| Reset | Yes |
| D.O.R.I. (m) | |
| Detection(25px/m) | 272 ft.(83.0m) |
| Observation(63px/m) | 108 ft.(33.0m) |
| Recognition(125px/m) | 56 ft.(17.0m) |
| Identification(250px/m) | 26 ft.(8.0m) |
| System Specifications | |
| PoE | Standard(IEEE802.3af) |
| Perimeter Protection | Line crossing,region entrance/exiting/intrusion(people/vehicle/motorcycle/bicycle) detection,loitering |
| Target Counting | Line crossing people/motor vehicle,non-motor vehicle counting |
| Exception Detection | Scene change video blur,video color cast detection,and sound detection |
| Face Detection | Face detection and face capture |
| Alarm Triggers | Motion,Analytics,SD card error |
| Image Settings | Watermark,IP address filtering,video mask,password protection |
| Operating & Unit Specifications | |
| Power Consumption | 9.0W(max) |
| Operating Temperature | -40°F-140°F(-40°C-60°C) |
| Operating Humidity | Less than 95%(non-condensing) |
| Unit Dimensions | 8.54”(L)×3.16”(W)×3.16”(H) |
| Unit Weight | 1.43lbs. |
| Certifications | FCC, RoHS |
Name
Description
Size
Downloads
File
Specification
0.7mb
File
Quick Start Guide
1.5mb
File
User Manual
2.9mb

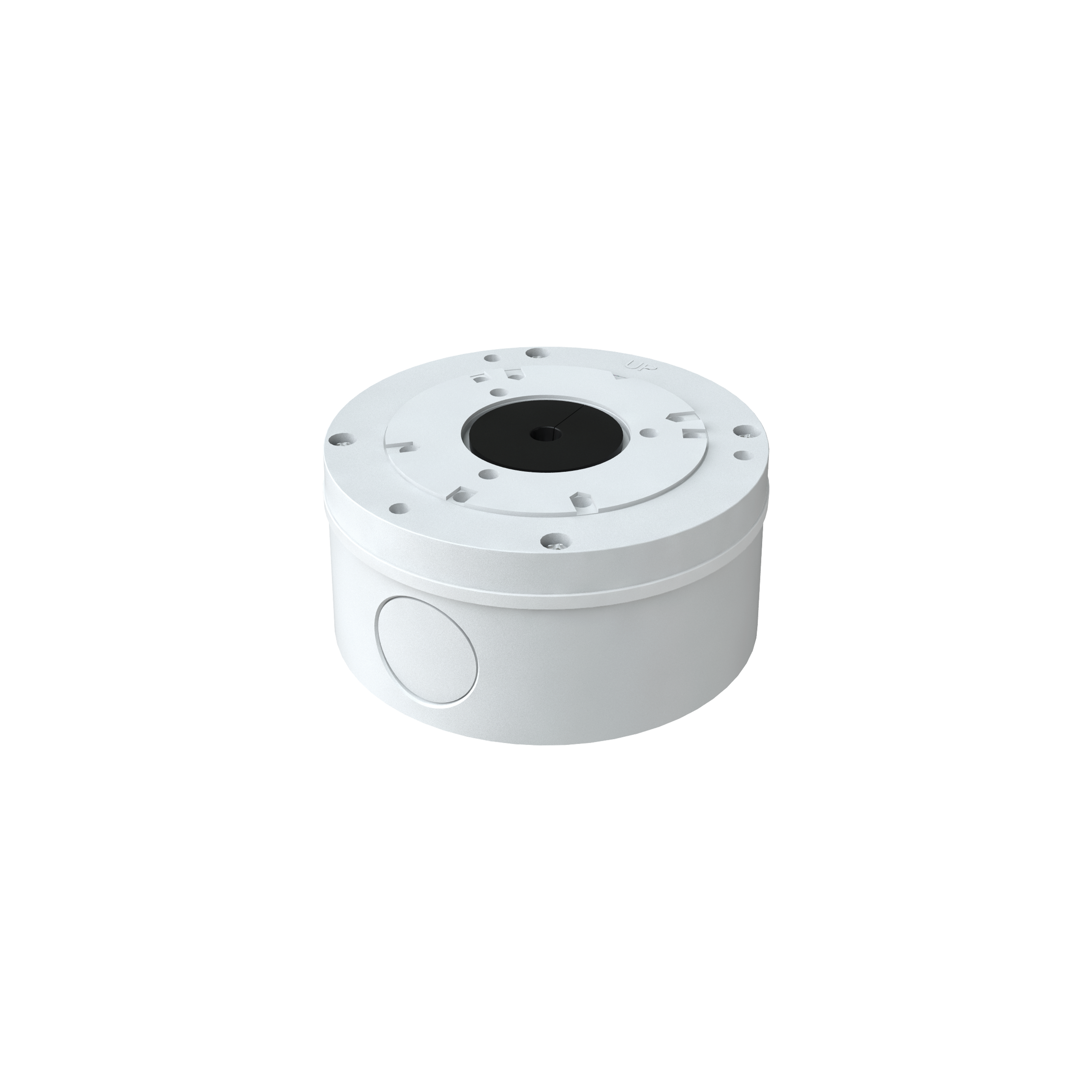

accessories
