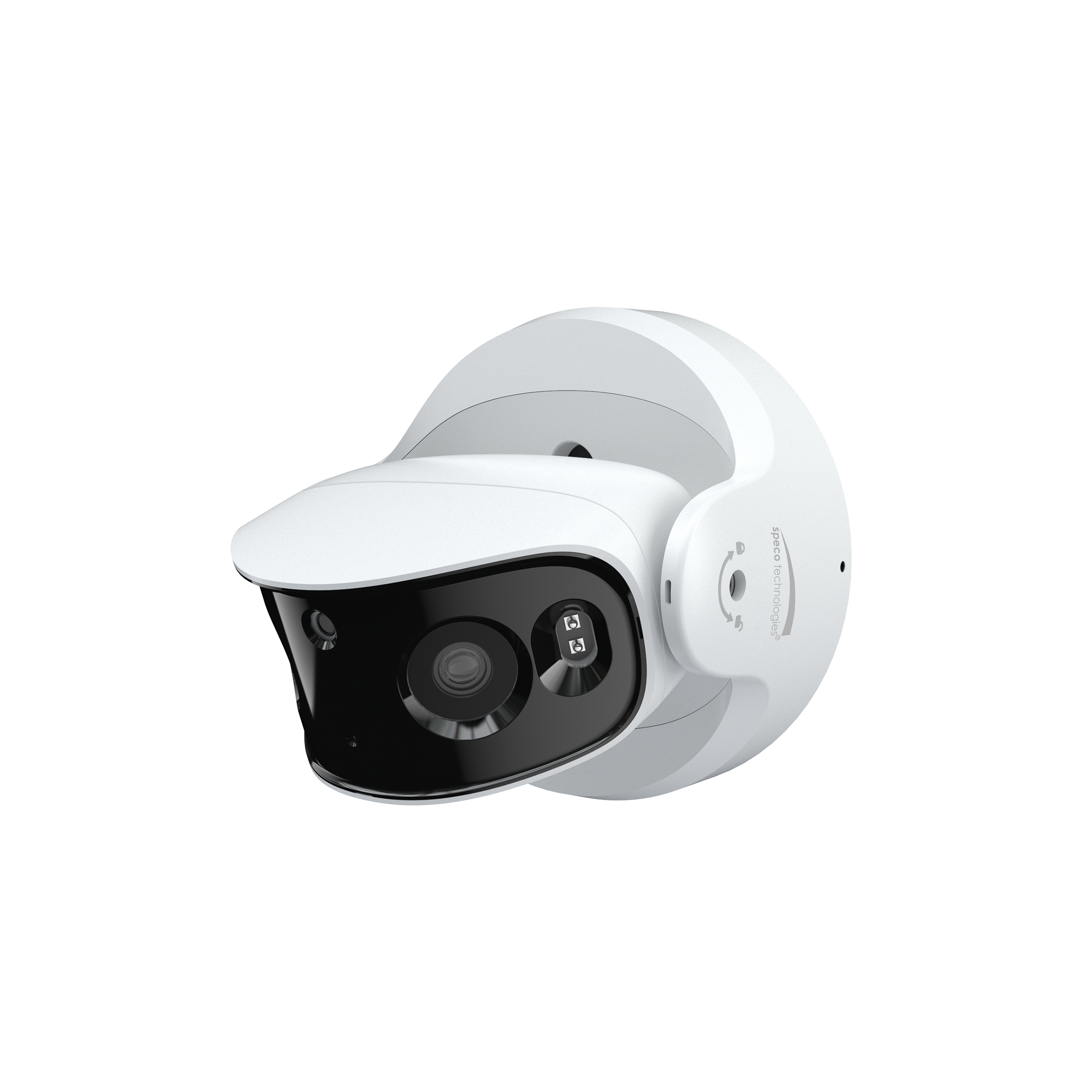

Speco - O8LMST1 - 8MP IP Multi-sensor 180° Wide-Angle Camera with White Light Intensifier® and Advanced Analytics
Part number:
Price:
Product Overview
8MP IP Multi-sensor 180º Wide-Angle Camera with White Light Intensifier® and Advanced Analytics
Key Configuration
Model: O8LMST1
Key Features
- • 8MP 180˚ multi-sensor with image stitching.
- • Advanced face and vehicle detection.
- • Built-in Standard PoE (IEEE 802.3 af).
- • Two-way audio supported.
- • Conformant with Onvif profile G/M/S/T.
Installation Notes
6.06" (L) × 5.07" (W)
| Full Specifications | |
| Megapixel | 8MP |
| Housing Color | White |
| Camera Specifications | |
| Image | 2/2.5 Progressive scan CMOS both lens |
| Max. Resolution | 4096x1800, 8MP |
| Field of view | Horizontal: 180°; vertical: 65° |
| Illumination | 0.005 lux @ (F1.1, IRE 50); B/W: 0.0005 lux @ (F1.1, IRE 50); O lux with Smart IR |
| White balance | Auto / manual / indoor / outdoor |
| DNR | 3D DNR |
| Day/Night | White Light Intensifier* |
| Shutter Speed | 1/30s-1/30,000s |
| Interfaces | |
| Ethernet | 10m / 100m |
| Power | 12V DC (input jack) |
| Mic | 3.5mm jack with line in supported |
| Micro SD | Up to 256GB |
| Alarm | 1-CH alarm input; 1-CH alarm output; alarm INR with ground input & ground cable |
| Reset | Yes |
| Operating & Unit Specifications | |
| Power Comp | 12W max |
| Operating Temperature | -40°F - 131°F |
| Operating Humidity | Less than 95% (non-condensing) |
| Unit Dimensions | 6.06" (L) × 5.07" (W) |
| Unit Weight | 2.86 lbs. |
| Certifications | FCC and RoHS |
| Client Specifications | |
| Web browser support | IE8-11 with plug-in; Microsoft Edge*, Google Chrome*, FireFox* with plug-in free |
| PC Application | SecureGuard* VMS, SecureGuard* CMS, Speco Blue VMS |
| Mobile | SecureGuard* Client, Speco Blue (iPhone* & Android™) |
| Audio Specifications | |
| Speaker | 1 built-in speaker, 4, 2W nom, 750HzLFR, 100dB @ 0.1m, two-way audio |
| Microphone | 1 built-in microphone, omnidirectional,2K, -36dB @ 1 KHz sensitivity, THD115dB SPL @ 1 KHz |
| Input Codec | G.711A/G.711U |
| Video Specifications | |
| Main | 4K / 1080p / 720p @ 20fps |
| Codec | H.265, H.264, H.265+, H.264+, MJPG |
| Bitrate | VBR/CBR (64 Kbps to 16MBs) |
| Streams | 3 Streams |
| Compression | Main stream, sub stream |
| Network Specifications | |
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, DHCP, PPPoE, P2P, SSL/TLS |
| DDNS Support | Speco DDNS (free of charge) |
| Security | User ID & password protection, IP/Mac address filtering, digest authentication |
Name
Description
Size
Downloads
File
Specification Sheet
1.3mb
File
User Manual
2.7mb
File
Quick Start Guide
2.3mb
