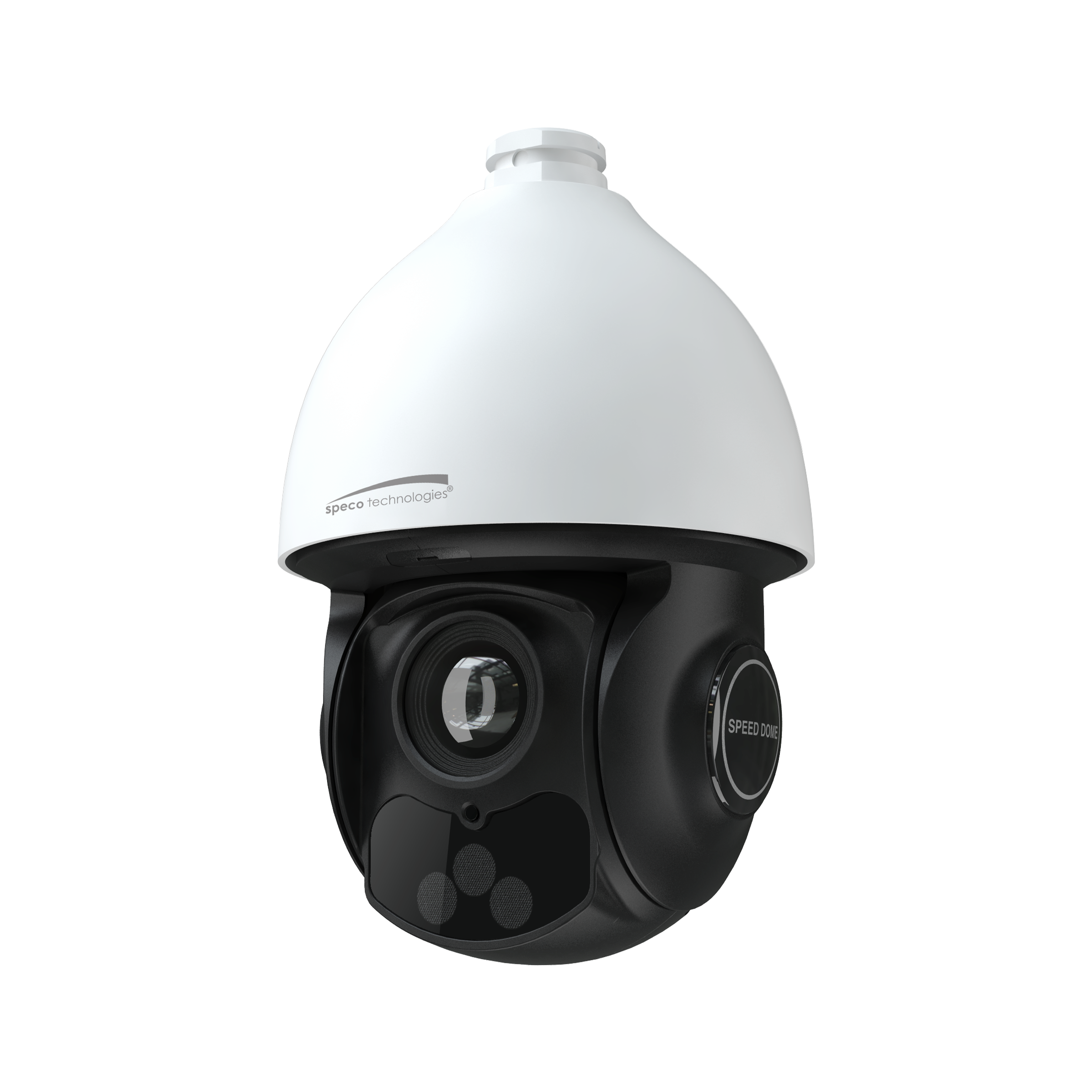

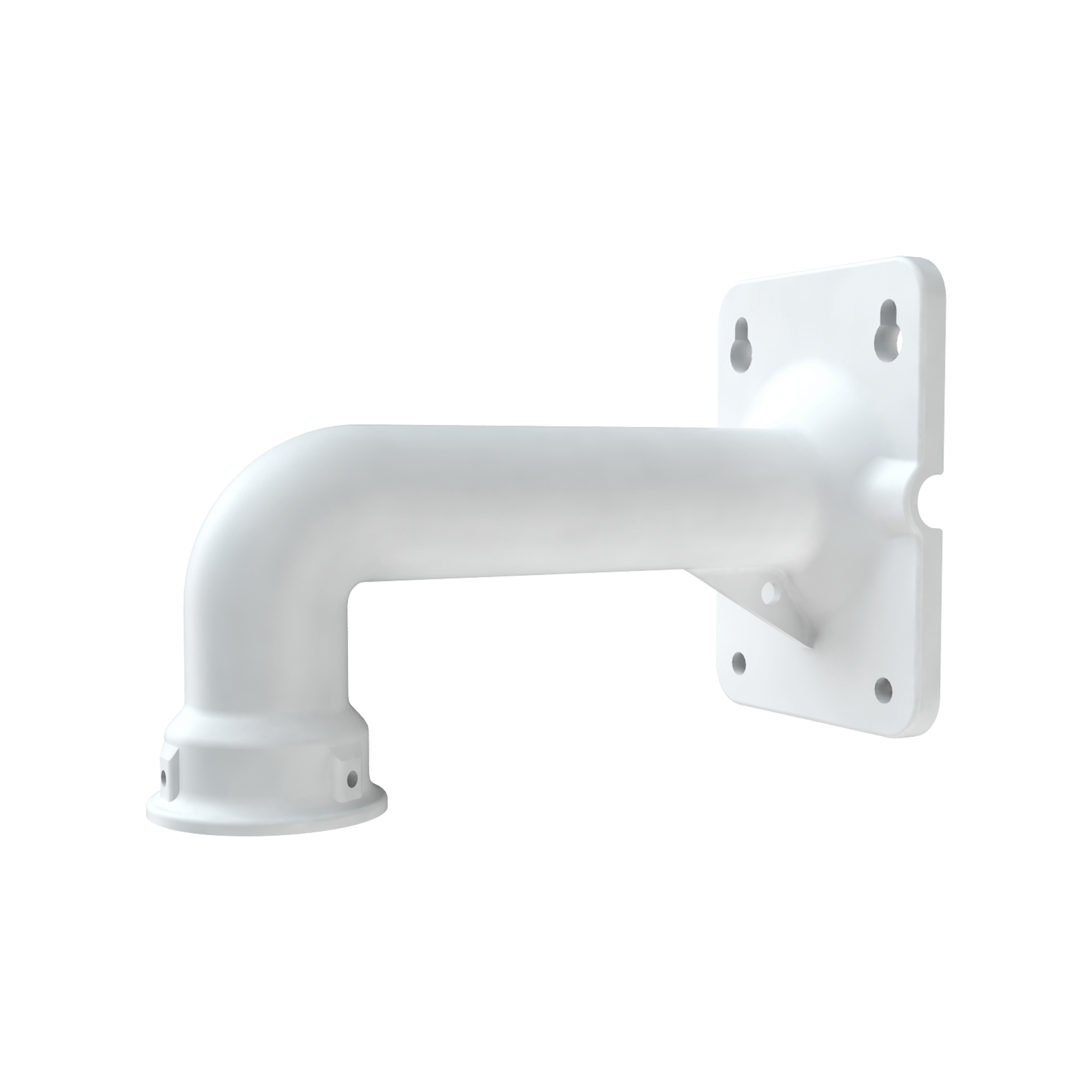

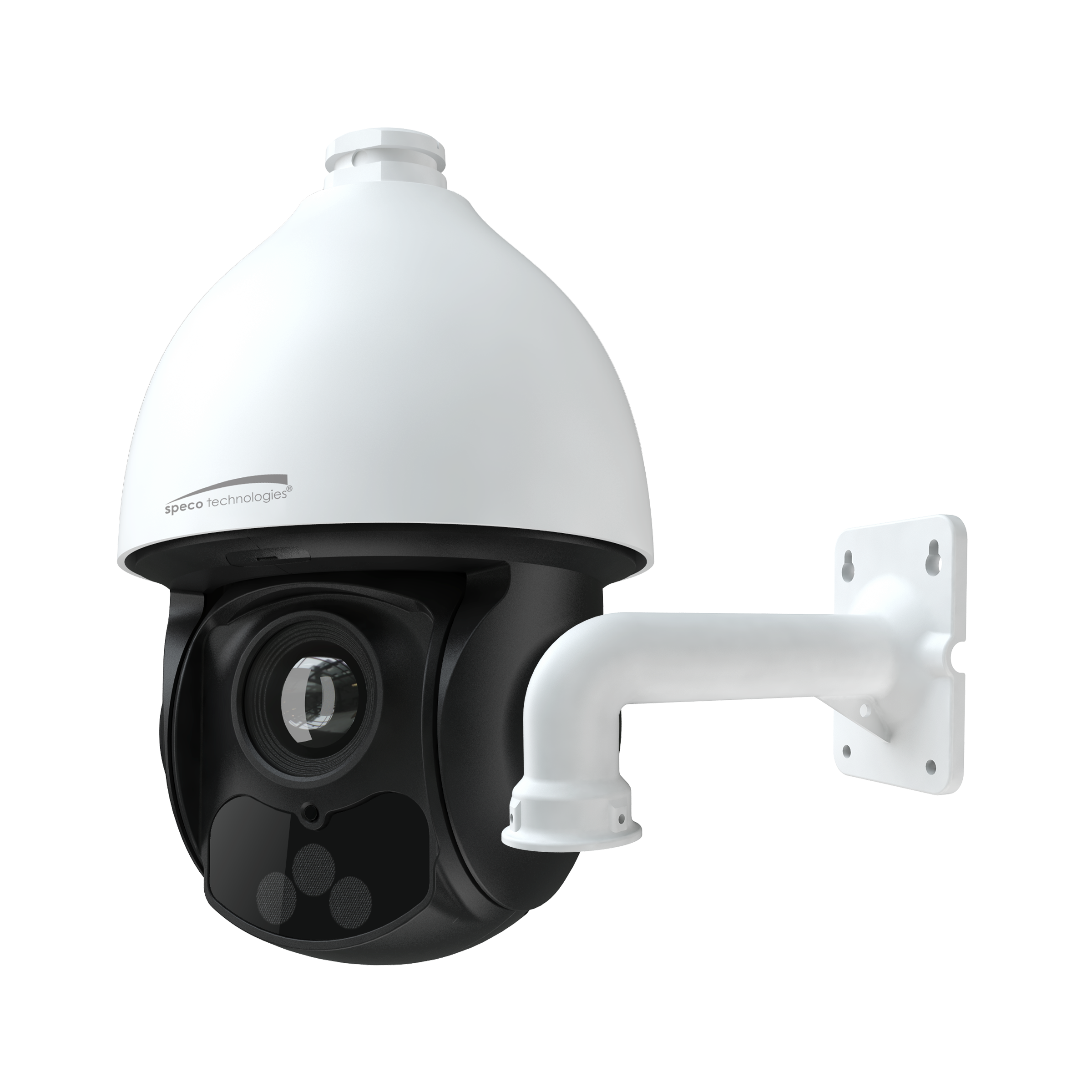

Speco - O8P32X - 8MP 32x Indoor/Outdoor IP PTZ Camera with Auto Tracking – Includes Wall Mount
Part number:
Price:
Product Overview
8MP 32x Indoor/Outdoor IP PTZ Camera with Auto Tracking – Includes Wall Mount
Key Configuration
Model: O8P32X
Key Features
- • Captures up to 8MP @ 30fps.
- • Up to 32x Optical Zoom.
- • 60W PoE Injector Included.
- • True Day/Night operation (IR cut filter).
- • IR range up to 656ft (depending on scene reflection).
Installation Notes
7.7" (w) x 12.5" (H); 196mm x 317mm
| Full Specifications | |
| Housing Color | White |
| Megapixel | 8MP |
| Camera Specifications | |
| Image Sensor | 1/2.8" SONY® latest progressive scan CMOS |
| Maximum Resolution | 3840 x 2160 (8MP) |
| Field of View | Horizontal: 61.3° ~2.18°; Vertical: 36.9° ~ 1.22°; Diagonal: 68.4° ~ 2.5° ±5% |
| Minimum Illumination | Color: 0.01 Lux@(F1.3, AGC ON); B/W: 0.002Lux@(F1.3, AGC ON); O Lux with IR |
| Image Settings | Flip, Mirror, Saturation, Brightness, Contrast, Sharpness |
| Compensation | True WDR, BLC, HLC |
| Day/Night | Smart IR with cut filter |
| Electronic Shutter Speed | 1/30s ~ 1/30,000s |
| DNR | 3D DNR |
| Angle Adjustment | Pan: 0°~360°; Tilt: -25° ~ 155° |
| Cruise/Presets | 8 cruises, up to 16 presets for each cruise |
| Video Specifications | |
| Main Stream Resolution | 3840x2160, 2560x1440, 1920x1080,1280x960, 1280x720 (1-30fps) |
| Sub Stream Resolution | 704x480, 640x480, 352x240 (1-30fps) |
| Third Stream | 1920x1080, 1280x960, 1280x720, 704x480, 640x480, 352x240 (1-30fps) Compression H.265, H.264. MJPEG |
| Compression | H.265, H.264. MJPEG |
| Multiple Streaming | 3 streams |
| Interfaces | |
| Network | RJ45 jack (PoE++) |
| Power | 24VDC jack |
| Microphone Input | 3.5mm |
| Audio output | 3.5mm |
| Card slot | MicroSD, up to 256GB (card not included) |
| Alarm | 1-CH alarm input; 1-CH alarm output |
| Reset | Yes |
| Network Specifications | |
| Protocols | HTTP, HTTPS, IPv4/IPv6, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE |
| DDNS support | US-based Speco DDNS (No fee) |
| Security | User ID & password protection, IP/MAC address filtering, digest authentication |
| User Access | Max. 16 simultaneous users (Actual number of users may vary depending on bandwidth) |
| Client Specifications | |
| Web Browser Support | Chrome, Edge, Safari, Firefox, Windows (Internet Explorer 8 and up) |
| PC Application | Speco Blue VMS, SecureGuard* VMS, SecureGuard* CMS |
| Mobile | Speco Blue app, SecureGuard* App (iPhone* and Android™) |
| Audio Specifications | |
| Audio Compression | G.711A / G.711U |
| System Specifications | |
| PoE | PoE++ (IEEE 802.3bt) |
| Detection events | Motion, Line crossing, Intrusion (people/vehicle/non-motor vehicle classification), face detection, video tampering. |
| Alarm Triggers | Detection events, Sensor alarm, SD card error |
| Action Modes | Preset/Cruise/Track/Auto Scan/Random Scan |
| Operating & Unit Specifications | |
| Power Consumption | 34W (max) |
| Operating Temperature | -40°F - 149°F (-40°C - 65°C) |
| Operating Humidity | Less than 95% (non-condensing) |
| Unit Dimensions | 7.7" (w) x 12.5" (H); 196mm x 317mm |
| Unit Weight | 8.31 lb (3.7kg) |
| Certifications | IP67, FCC, RoHS |
Name
Description
Size
Downloads
File
Specification
0.7mb
File
User Manual
3.8mb
File
Quick Start Guide
1mb
