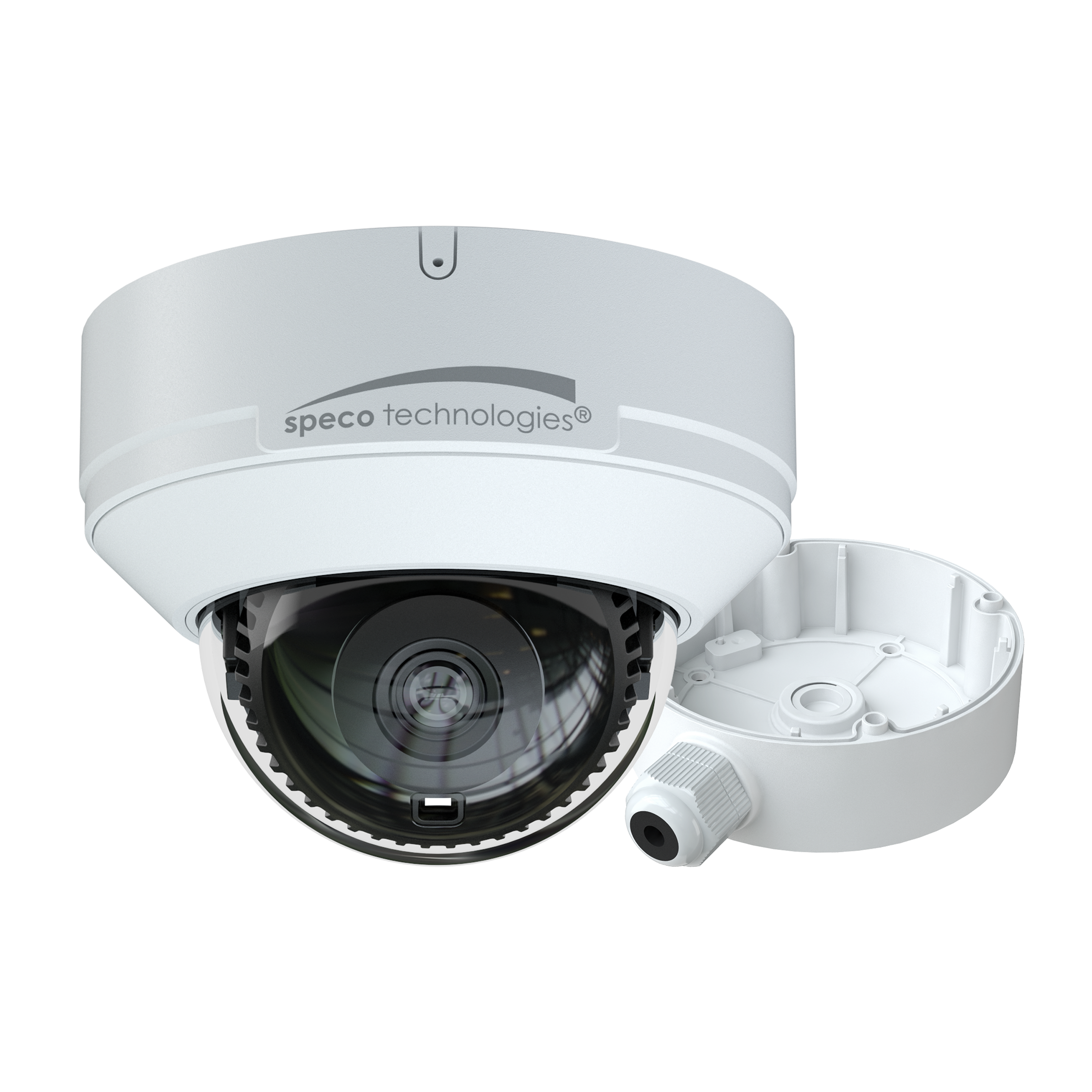

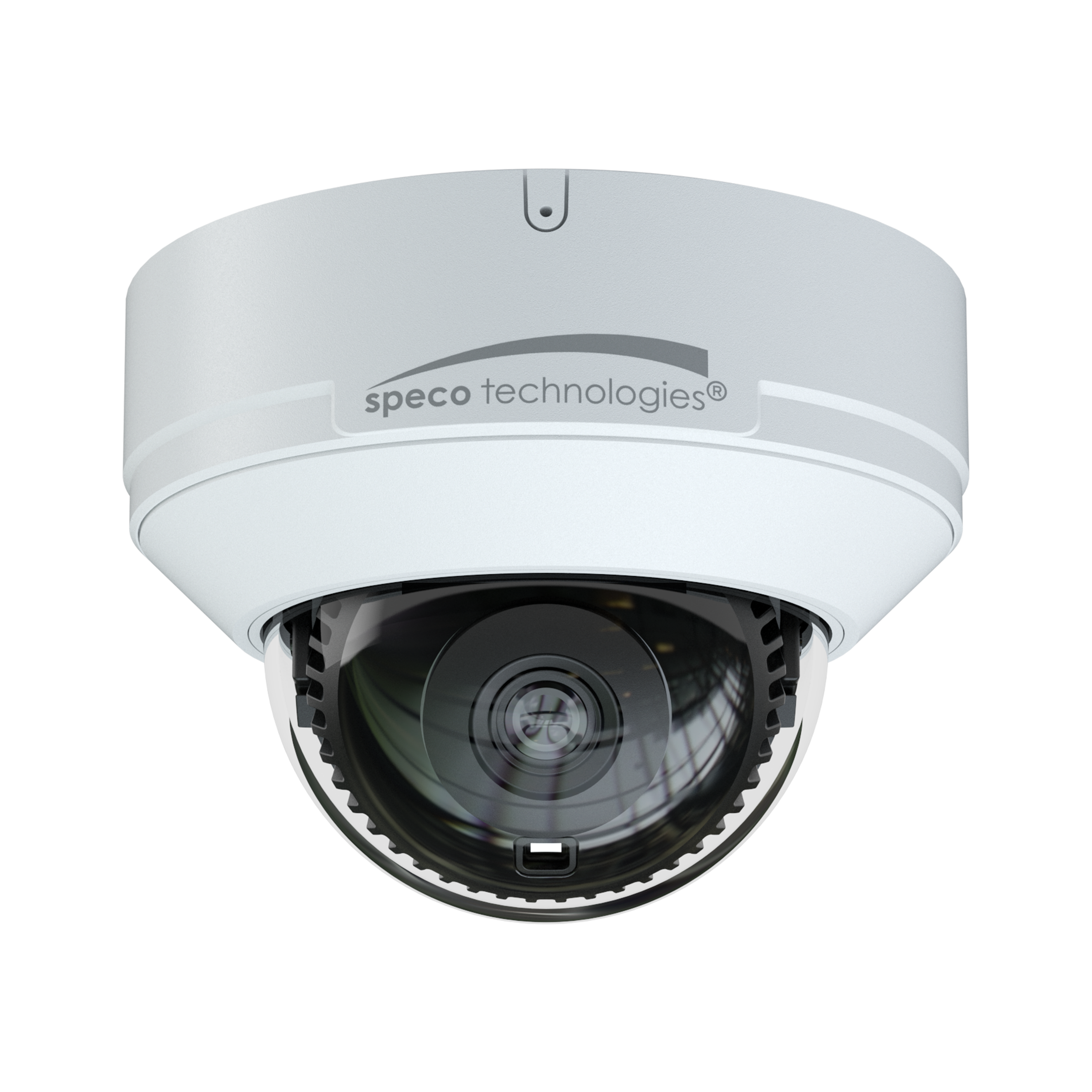

Speco - O8VD3 - 8MP (4K) IP Dome Camera with Line Crossing and Intrusion Detection, NDAA Compliant
Part number:
Price:
Product Overview
8MP (4K) IP Dome Camera with Line Crossing and Intrusion Detection, NDAA Compliant
Key Configuration
Model: O8VD3
Key Features
- • Captures up to 8MP @ 20fps.
- • Built-in standard PoE (IEEE 802.3af).
- • H.265/H.264/MJPEG compression supported.
- • True Day/Night operation (IR cut filter).
- • IR range: Up to 100’ (depending on scene reflection).
Installation Notes
4.68" (Dia.) x 3.45" (H); 119mm (Dia.) x 87.8mm (H)
| Full Specifications | |
| Housing Color | White |
| Megapixel | 8MP |
| Camera Specifications | |
| Image Sensor | Progressive scan 1/2.8" CMOS, 8MP |
| Maximum Resolution | 3840 x 2160 (8MP) |
| Field of View | 108.9°(H); 76.4°(V); 116.2°(D) |
| Minimum Illumination | 0.02 lux @ F1.6, AGC ON, 0 lux with IR |
| Day/Night | Smart IR |
| White Balance | Auto, indoor, outdoor, manual |
| Compensation | True WDR, BLC, HLC |
| Electronic Shutter Speed | 1 - 1/100000 sec. |
| DNR | 3D DNR |
| Angle Adjustments | Pan 0° ~ 355°, tilt 0° ~ 67°, rotation 0° ~ 180° |
| Video Specifications | |
| Main Resolution | 8MP/ (1 ~ 20fps) |
| Sub Stream | 720p/D1/480x240 (1 ~ 30fps) |
| Third Stream | D1/CIF/480 x 240 (1 ~ 30fps) |
| Compression | H.265, H.264, MJPEG |
| Image Settings | Region of interest, saturation, brightness, chroma, contrast, wide dynamic, defog, sharpen, noise reduction, corridor mode |
| Bitrate Control | VBR, CBR (64Kbps ~ 12Mbps) |
| Audio Specifications | |
| Audio Codec | G.711A / G.711U |
| Network Specifications | |
| Protocols | UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPS, QoS |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & password protection, IP/Mac address filtering, digest authentication |
| User Access | Max. 10 simultaneous users; actual number of users may vary depending on bandwidth |
| Interfaces | |
| Network | RJ45 jack |
| Power | DC jack |
| Microphone Input | 3.5mm |
| Card Slot | MicroSD, up to 256GB (not included) |
| Alarm | No |
| Reset | Yes |
| Client Specifications | |
| Web Browser Support | Chrome, Edge, Safari, Firefox |
| PC Application | SecureGuard* VMS, SecureGuard* CMS |
| Mobile | SecureGuard* Client, Speco Blue (iPhone* and Android*) |
| System Specifications | |
| PoE | Standard (IEEE 802.3af) |
| Analytics | Motion, exception, line crossing, region intrusion, people/vehicle detection and video blurring detection |
| Alarm Triggers | Motion, analytics, SD card error |
| Security Settings | Watermark, IP address filtering, video mask, password protection |
| Operating & Unit Specifications | |
| Power Consumption | < 7.0W |
| Operating Temperature | -40°F ~ 140°F (40°C ~ 60°C) |
| Operating Humidity | Less than 95 % (non-condensing) |
| Unit Dimensions | 4.68" (Dia.) x 3.45" (H); 119mm (Dia.) x 87.8mm (H) |
| Unit Weight | 1.41 lbs. (0.64kg) |
| Certifications | FCC, RoHS |
