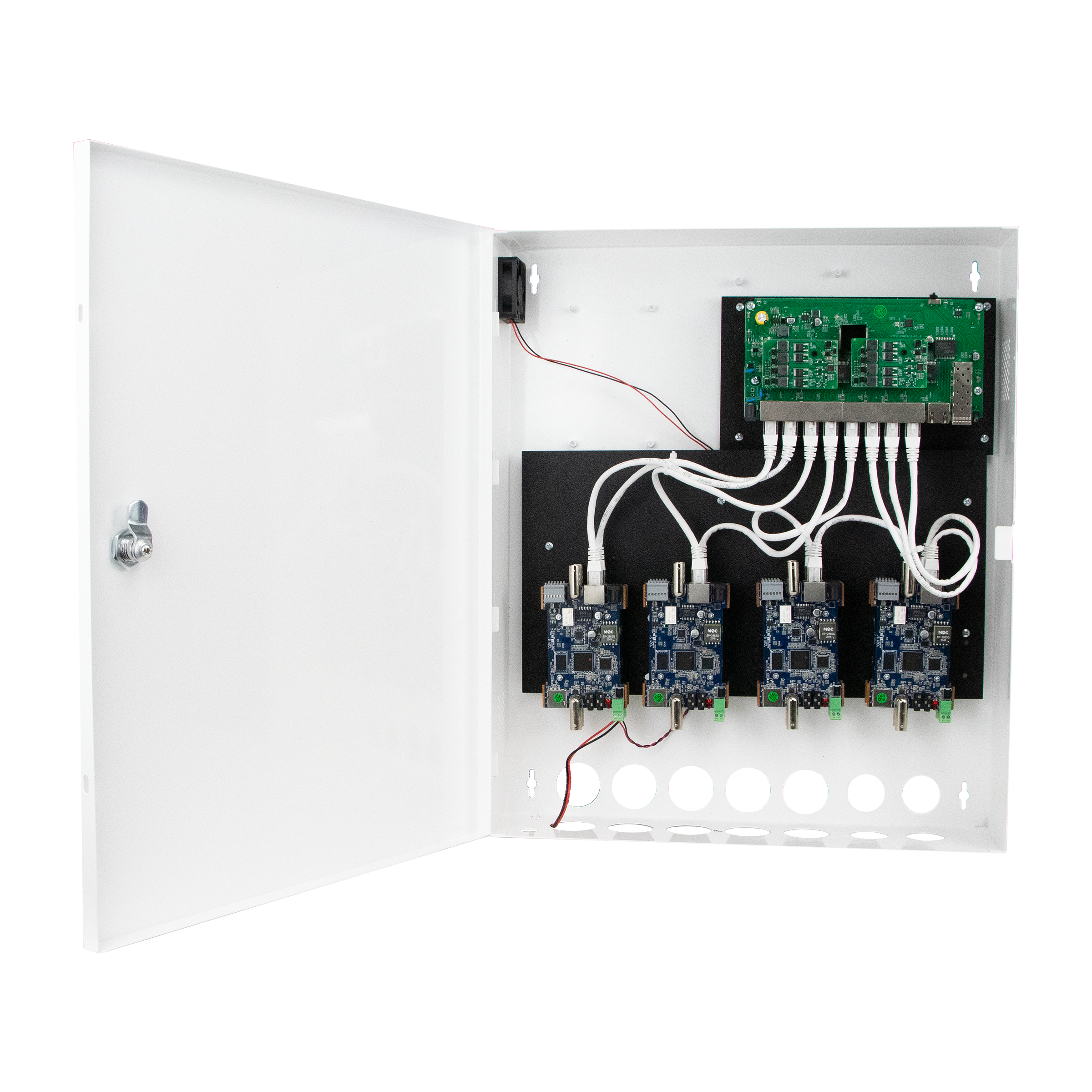

Speco - OSW8T2 - 8-Channel Wall Mount Encoder for HD-TVI and Analog Cameras
Part number:
Price:
Product Overview
8-Channel Wall Mount Encoder for HD-TVI and Analog Cameras
Key Configuration
Model: OSW8T2
Key Features
- • Can convert up to 8 HD-TVI/Analog cameras to IP @ 30FPS.
- • Includes Built-on PoE (802.3af/at) Switch with uplink port (1Gbps).
- • H.265/H.264/MJPEG compression supported.
- • Can power up to 8 TVI/Analog cameras with the DC 12V output on each channel.
- • Micro SD card slots for each channel for edge storage.
Installation Notes
19.25” (L) x 16.25” (W) x 3.5” (D)
| Full Specifications | |
| Channels | 8 |
| Compression | H.265/H.264/MJPEG |
| PoE | 802.3af/at |
| Output | DC 12V per channel |
| Encoder Specifications | |
| Maximum Resolution | 5MP (2592 x 1944) @20fps/2560 x 1440/1280 x 720/ D1/CIF/480x240 @ 30fps |
| Number of Streams | |
| Main Resolution | |
| Bitrate Control | VBR, CBR |
| Feature Specifications | |
| PoE (per encoder) | |
| Analytics | Motion detection, Object Removal, Abnormality, Line Crossing, Intrusion, Target counting, Face detection, People & Vehicle detection, Motion |
| Alarm Triggers | |
| Alarm Events | Email, FTP |
| Image Settings | Privacy Mask, Region of Interest, OSD |
| Operating & Unit Specifications | |
| Power | DC 48V |
| Power Consumption | Standby Power Consumption: ≤8W: Full-load Power Consumption: 120W |
| Unit Dimensions | 19.25” (L) x 16.25” (W) x 3.5” (D) |
| Encoder Interfaces | |
| Ethernet | 10/100 (POE) |
| Power Input | 12V DC Jack |
| Power Output | 12V Terminal Block (500 mA max) |
| BNC Video Input | |
| Audio Input | 3.5 mm |
| Audio Output | 3.5 mm |
| Storage | Micro SD slot |
| Alarm | 8 Sensor inputs, 4 relay outputs (256 GB max relay output terminal block) |
| Network Specifications | |
| Protocols | IPv4, IPv6, TCP, UDP, RTP, RTSP, HTTP, SMTP, FTP, DHCP |
| DDNS support | Speco DDNS (free of charge) |
| Security | User ID & Password protection, IP/MAC address filtering, digest authentication |
| User Access | 6 users max |
| Audio Compression Specifications | |
| Input | G.711A / G.711U |
| Client Specifications | |
| Web Browser Support | Chrome, Safari, Firefox, Edge, Windows (Internet Explorer 8 and up) |
| PC Application | Speco Blue VMS, SecureGuard® CMS |
| Mobile Application | Speco Blue, SecureGuard® App (iPhone® and Android™) |
