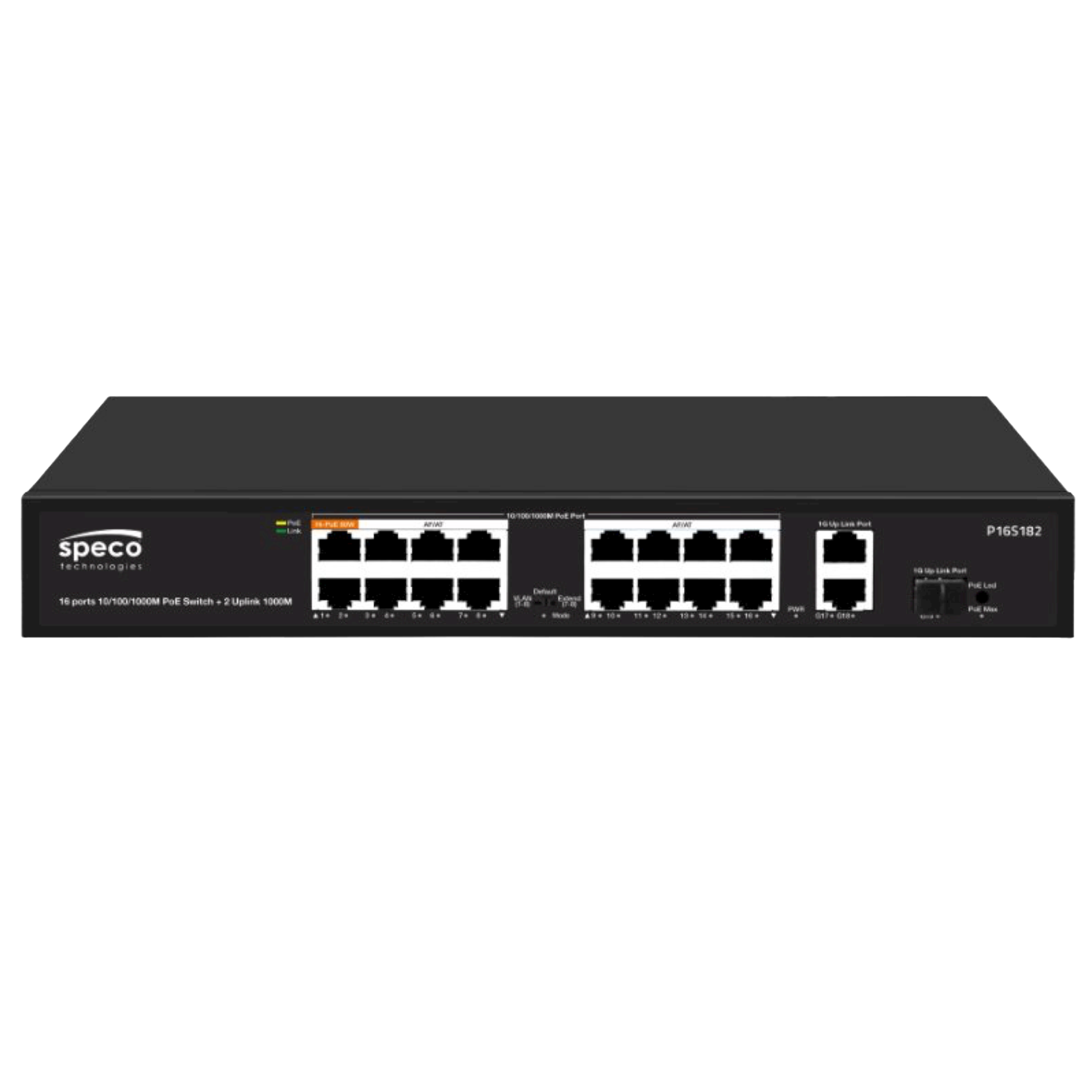

Speco - P16S182 - 16 Port 100Mbps & 2-Port Gigabit PoE Switch
Part number:
Price:
Product Overview
16*100Mbps PoE ports+2*1Gbps RJ45 ports+1*1Gbps SFP port
Key Configuration
Model: P16S182 | Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, and IEEE802.3z standards | Ethernet Ports support 10/100Mbps self-adaptive | PoE ports in Extend mode force 10Mbps to activate the PoE watchdog mode | Support PoE priority with a priority order of 1-16 | Flow control method: IEEE 802.3x standard for full duplex, Back pressure for half duplex | Panel indicator LED monitors working status | Plug and Play VLAN with three modes: VLAN, Default, and Extend | Port 1 supports 60W, 802.3bt type 3
Key Features
- • Comply with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, and IEEE802.3z standards.
- • Ethernet Ports support 10/100Mbps self-adaptive.
- • When the PoE ports is in Extend mode, ports 1-16 force 10Mbps to automatically activate the PoE watchdog mode.
- • Support PoE priority to be enabled by default, with a priority order of 1-16.
- • Flow control method: IEEE 802.3x standard is used for full duplex, and Back pressure standard is used for half duplex.
| Full Specifications | |
| Ports | 16*100Mbps PoE + 2*1Gbps RJ45 + 1*1Gbps SFP |
| PoE Priority | Enabled by default with priority order of 1-16 |
| Model | P16S182 |
| Interface | 16*100Mbps PoE ports | 2*1Gbps RJ45 ports | 1*1Gbps SFP port |
| Port Standard | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3x (Flow Control), IEEE 802.3z (Gigabit Ethernet Fiber Standard) |
| Switching Bandwidth | 9.2Gbps |
| Packet Forwarding Rate | 6.84Mpps |
| Packet Buffer | 768Kbit |
| MAC Address Table | 2K |
| Transmission Method | Store and Forward |
| PoE Standard | IEEE802.3af (15.4W) | IEEE802.3at (30W), Ports 2-16 PoE power output <30W Port 1 supports 60W |
| PoE Port Output Voltage | DC 44-57V |
| PoE Power Budget | 290W |

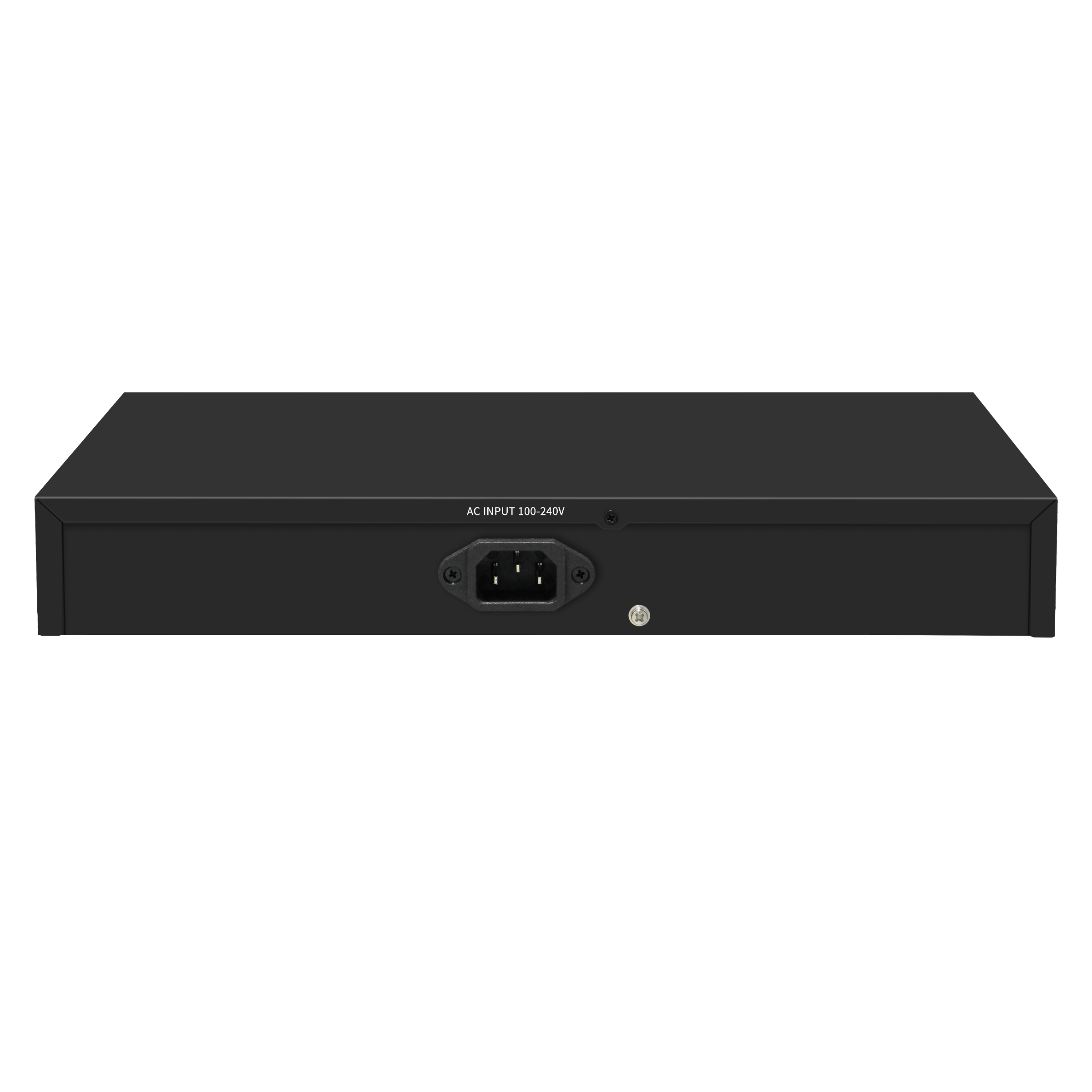

| Power Supply | AC 100-240V 50/60Hz | DC 52V 5.76A |
| Mainboard Power Consumption | 5.3W |
| Installation | Desktop, Rack-Mounting |
| Surge Protection | Port Surge: Common mode 4KV, Differential mode 2KVElectrostatic ESD: Air 8KV, Contact 6KV (Class B) |
| Operating Temperature | 32F-104F |
| Storage Temperature | -40F-150F |
| Operation Humidity | 10%-90%, non condensing |
| Storage Humidity | 5%-95%, non condensing |
| PWR Green LED | On: Powered onOff: Powered off |
| Mode Green LED | On: VLANFlashing: ExtendOff: Default |
| Ports 1-16 Green LED | On: 10/100Mbps Link normalOff: Link blockedFlashing: Data transmitting |
| Ports 17-19 Green LED | On: 10/100/1000Mbps Link normalOff: Link blockedFlashing: Data transmitting |
| PoE Yellow LED | On: PoE powered onOff: PoE powered off |
| PoE Max Green LED | Off: Indicate that the PoE power usage is less than 90%Flashing(Once per second): Indicate that the PoE power usage of 90% ≤ P ≤ 95%On: Indicate that the PoE power is used at 95%<P<100% |
| PoE LED Buttons | Dual color LED selection: default green (link data), switch yellow LED (PoE) |
| VLAN/Default/Extend Modes Buttons | VLAN: VLAN mode, ports 1-16 are isolated from each other, communicating with ports 17-19, and automatically activate the PoE watchdog modeNormal: Normal mode, all ports can communicate with each other, transmission distance is within 100 meters, transmission rate is 10/100Mbps adaptive (PoE Watchdog off)Extend: Extend mode, when the PoE port is in Extend mode, ports 1-16 force 10Mbps to extend the transmission distance to 250meters, and automatically activate the PoE watchdog mode |
