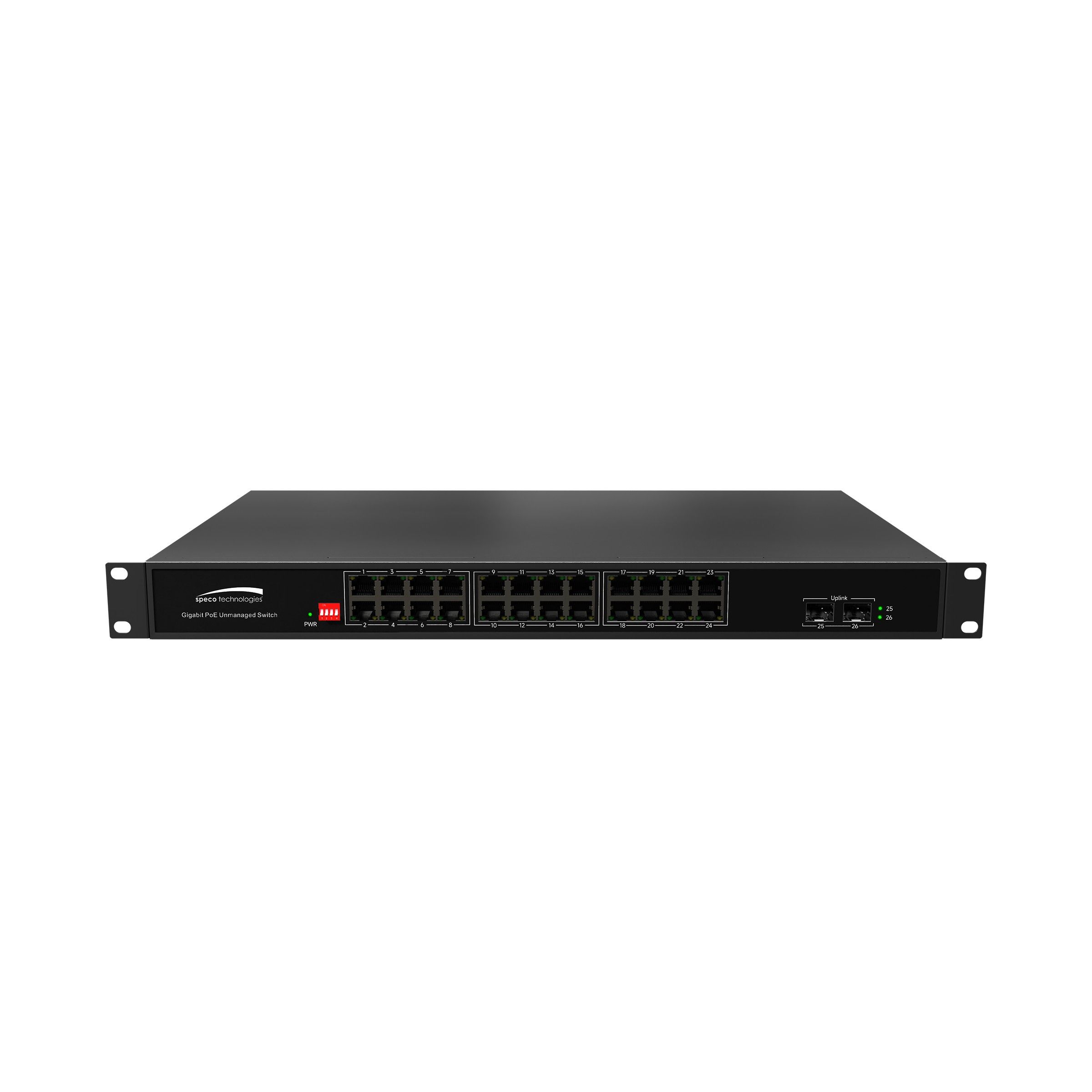

Speco - P24S26G2 - 26-Port Switch, 24-Port PoE, Full Gigabit, 802.3af/at
Part number:
Price:
Product Overview
The P24S26G2 from Speco is a 26-port switch, 24-port PoE, full gigabit, 802.3af/at that provides reliable connectivity and advanced features tailored for efficient network management, making it an ideal choice for surveillance systems and demanding applications.
Key Configuration
Model: P24S26G2
Key Features
- • PoE Watchdog: Resets port automatically when data is not being transmitted. Great for surveillance cameras, ensuring uninterrupted operation.
- • Link Extension Mode: Provides up to 250 meters long-distance power transmission at 10Mbps, enhancing deployment flexibility across larger areas.
- • Port Isolation Mode: Isolates each port except for the uplink ports to provide extra security and network performance, protecting against potential threats.
- • Storm Control: Enables the switch to monitor traffic levels and drop unnecessary packets when a specified level is exceeded, ensuring efficient bandwidth usage.
- • PoE Support: Supports 802.3af/802.3at with a total PoE budget of 378W, accommodating a variety of powered devices.
Installation Notes
17.3" x 8" x 1.73" (440 x 205 x 44mm)
| Specifications | |
| NDAA | Compliant |
| # of Ports | 24 PORT |
| Data Rate | 10/100/1000 Mbps |
| Form Factor | Rackmount |
| PoE | Yes |
| Details | |
| Lightning Protection | Offers surge protection with common mode 2KV, differential mode 1KV, and static ESD protection of air 15KV, contact 8KV, safeguarding your investment. |
| I/O Interface | |
| Power Input | AC 100-240V, 50/60Hz |
| Ethernet | 24*10/100/1000M Port |
| SFP | 2* Gigabit SFP Port |
| Environmental | |
| Operating Temperature | 14 to 122F (-10 to 50C), 10% to 90% non-condensing humidity |
| Storage Temperature | -40 to 158F (-40 to 70C), 5% to 90% non-condensing humidity |
| Performance | |
| Switching Capacity | 52Gbps |
| Throughput | 38.6Mpps |
| Packet Buffer | 4.1M |
| MAC Address | 8K |
| Jumbo Frame | 10KB |
| Transfer Mode | Store and forward |
| MTBF | 100000 hours |
| Power Voltage | |
| Input Voltage | AC100-240V, 50/60Hz |
| Power Supply | 52V, 7.69A (included) |
| Per Port Max PoE Power | 30W |
| Total Power Budget of unit | 378W |
| Standard | |
| Network Protocol | IEEE802.3 (10Base-T) / IEEE802.3u (100Base-TX) / IEEE802.3ab (1000Base-TX) / IEEE802.3z (1000Base-FX) / IEEE802.3x (Flow control) |
| PoE Protocol | IEEE802.3af (15.4W) / IEEE802.3at (30W) |
