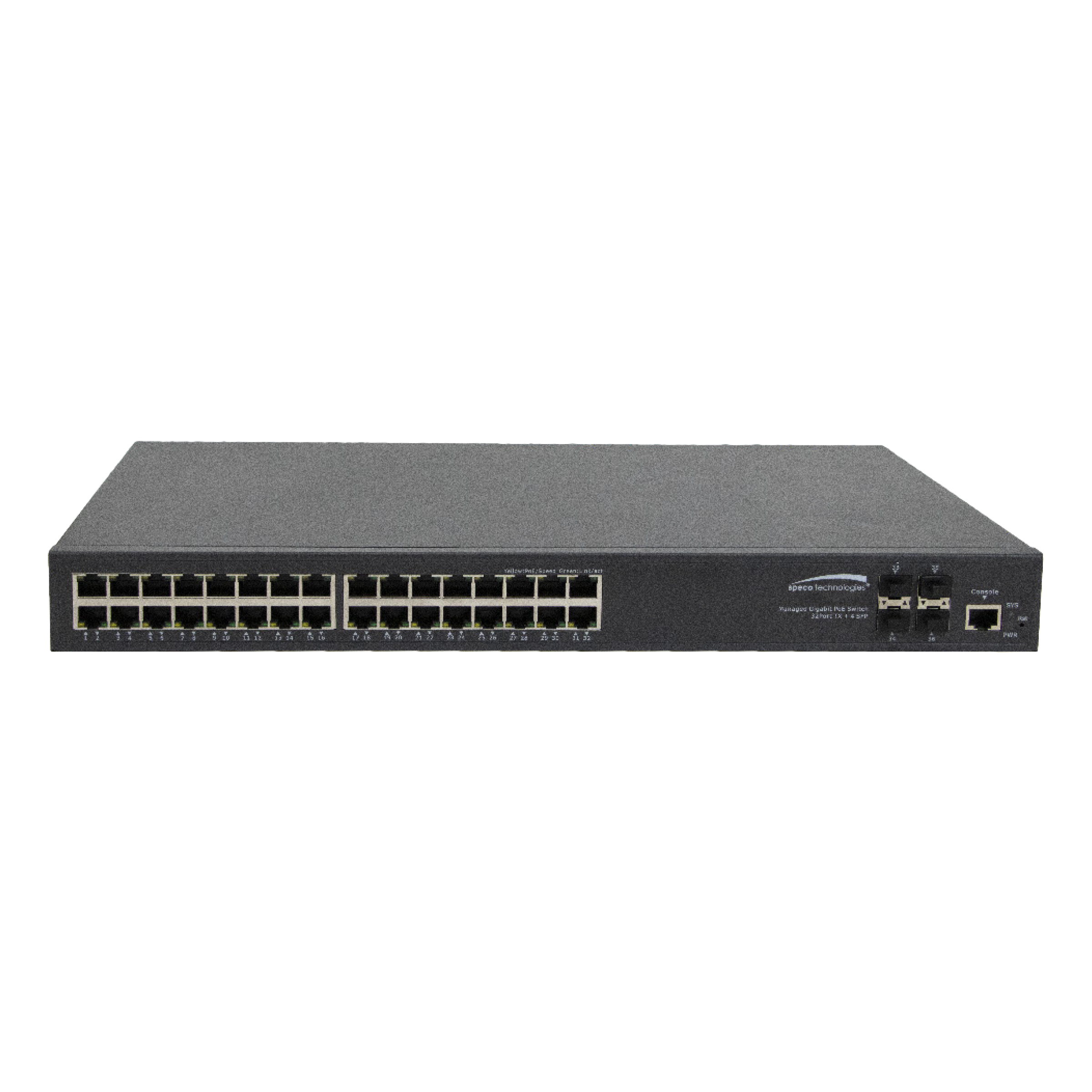

Speco - P32S36GM - 36-Port Managed Gigabit Switch with 32-ports PoE and 4xSFP Uplink
Product Overview
Layer-2 managed switch (supporting PoE function). 32 x 10/100/1000Mbps adaptive RJ45 ports and 4 x SFP Gigabit optical ports. Two SFP to RJ45 adapters included. Up to 30W per port, total 400W PoE Budget. Each RJ45 port supports MDI/MDIX auto flip and wire-speed forwarding functions. Ports 1-32 support Power over Ethernet and follows the IEEE802.3af/at standard. Can automatically detect and identify a power-receiving device and supply power to it through a network cable. Uses store-and-forward mode, combined with QoS technology, to ensure that the bandwidth is effectively allocated to each port. Provides stable and reliable power and data transmission for high-power AP, network cameras, PTZ network dome cameras, PoE lighting and other security monitoring equipment. Products are in compliance with NDAA Section 889 Part B Guidelines.
Key Configuration
Model: P32S36GM
Installation Notes
Product Dimension (LxWxH): 17.3 x 11 x 1.7 inches Package Dimension (LxWxH): 20.7 x 15.6 x 3.7 inches
| Full Specifications | |
| RJ45 Ports | 32 x 10/100/1000Mbps |
| SFP Ports | 4 x SFP Gigabit optical |
| Power Output | Up to 30W per port, total 400W PoE Budget |
| Auto Detection | Automatically detects power-receiving devices |
| Operating Mode | Store-and-forward mode with QoS technology |
| Ports | |
| Fixed Ports | 32*10/100/1000 Base-T + Uplink 4*1000 Base-X |
| Management Port | Supports console |
| LED Indicators | PWR, SYS, Link/ACT LED |
| Cable Type & Transmission Distance | |
| Twisted-Pair | Non PoE: 0-100m (CAT5e, CAT6) |
| Mono-mode Optical Fiber | 20/40/60/80/100KM |
| Multi-mode Optical Fiber | 550m |
| Network Topology | |
| Ring Topology | ✓ |
| Star Topology | ✓ |
| Bus Topology | ✓ |
| Tree Topology | ✓ |
| Hybrid Topology | ✓ |
| Electrical Specifications | |
| Input Voltage | 100-220V/AC 50/60Hz 1A-5A |
| Total Power Consumption | Non PoE full load < 40W PoE full load < 440W |
| PoE Support | |
| PoE Ports | 1-32 up to 30W per port, total 400W PoE Budget |
| PoE Protocol | 802.3af, 802.3at |
| Pin Assignment | 1,2+:3,6- |
| PoE Management | Supports |
| Layer 2 Switching | |
| Switching Capacity | 72G |
| Packet Forwarding Rate | 53.568 Mpps |
| MAC Address Table | 16K |
| Buffer | 12M |
| Forwarding Delay | <10us |
| MDX/MIDX | ✓ |
| Flow Control | ✓ |
| VLAN | Supports 4K |
| Jumbo Frame | Supports 10Kbytes |
| Spanning Tree | Supports STP/RSTP/MSTP |
| Ring Protocol | Supports ERPS |
| Link Aggregation | Supports 12 pairs |
| Multicast | Supports IGMP Snooping |
| Port Mirroring | ✓ |
| Storm Control | ✓ |
| Interface Counters | ✓ |
| QINQ | ✓ |
| 802.1X | ✓ |
| Port Isolation | ✓ |
| Rmon | ✓ |
| NTP Client | ✓ |
| DHCP Client | ✓ |
| DHCP Snooping | ✓ |
| Ping/Tracert Test | ✓ |
| Fiber Transceivers DDM | ✓ |
