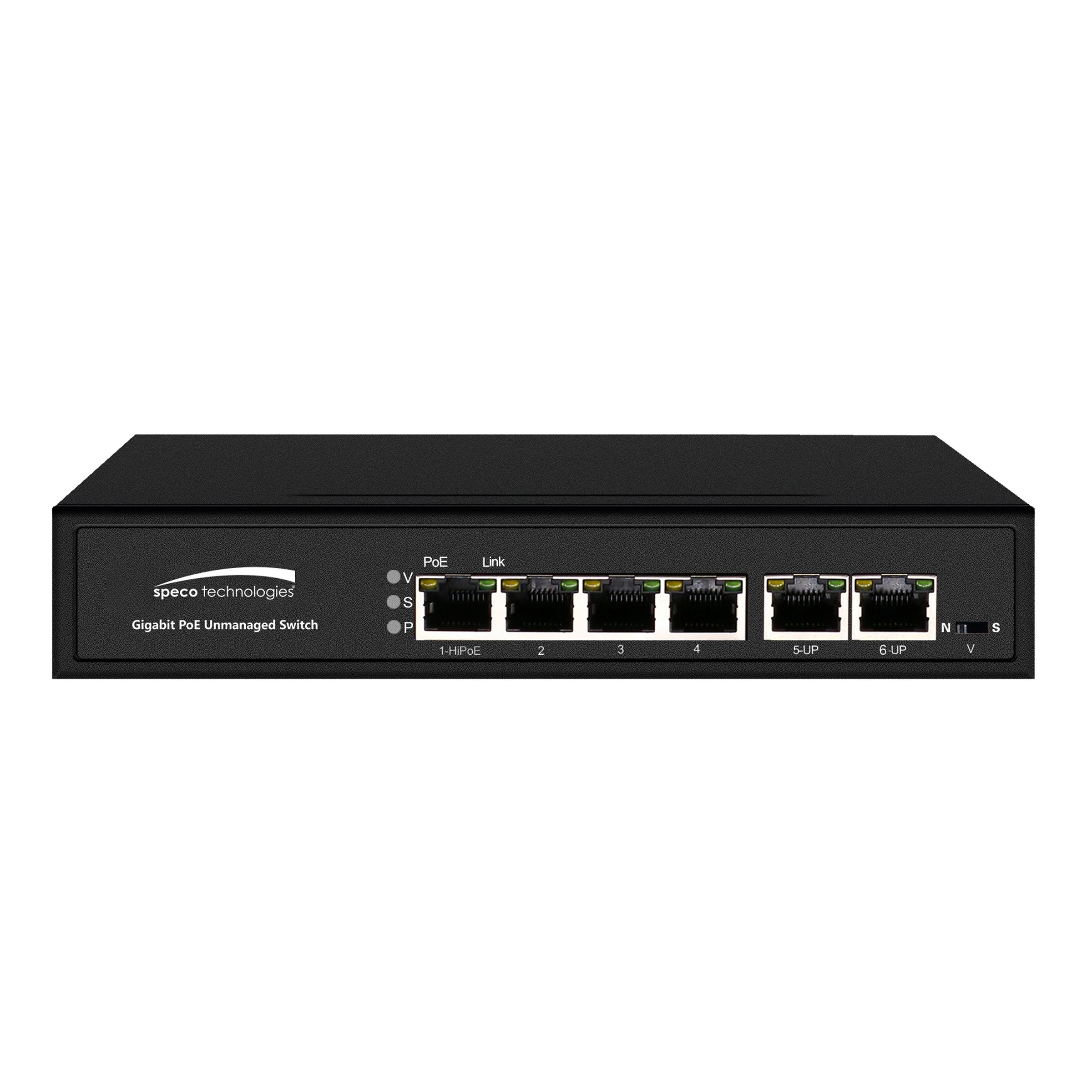

Speco - P4S6G - Gigabit Network PoE Switches 6-Port Gigabit Network Switch (4 ports PoE, 2 ports uplink)
Part number:
Price:
Product Overview
Gigabit performance on all ports (uplink and downlink) PoE watchdog mode: PoE will continuously monitor for lost device connections and reset the port when detected VLAN Mode: When the VLAN mode is selected, each PoE port is isolated and independently connects with cameras, computers or other switches, while the uplink port connects with a router The VLAN function helps avoid broadcast storms and ARP spoofing Surge Protection: Each port is equipped with a surge absorber, which can survive under 6,000V air ESD Port 1 supports 802.3bt 60W and all ports support 802.3at/802.3af All ports can be extended up to 800’ (250M) @ 10MBPs using high quality CAT6 cable
Key Configuration
Model: P4S6G
Installation Notes
(L x W x H): 7.5” x 5.1” x 1.4 (190mm x 130mm x 35mm)
| Specifications | |
| Downlink Ports Uplink Ports Network Standards | 4 x 10/100/1000 Base-TX (PoE) 2 x 10/100/1000 Base TX IEEE 802.3/IEEE 802.3i 10BASE-T/IEEE 802.3u 100BASE-TX/IEEE 802.3x |
| PoE Standards | IEEE 802.3af/at/PoE++ |
| Switch Capacity | 10Gbps |
| Throughput | 8.93Mpps |
| Exchange Type | Storage and Forwarding (full wire speed) |
| MAC Address List PoE Pin | 2K af/at: 12 + 36-; af/at/poe++/bt:12 + 45 + 36 - 78- |
| PoE Output Surge Protection | Single port ≤ 30W (First Port Max 60W), Total for all ports ≤ 65W 6KV (General), 4KV (Differential Mode), 8KV (ESD) |
| Power Supply | Input AC: 100~240VAC 50-60Hz/ Output 57V 1.7A |
| Power Consumption Operating Temperature Storage Temperature | Standby Power Consumption: ≤5W: Full-load Power Consumption: ≤65W 14 to 131°F (-10 to 55°C) -40 to 167°F (-40 to 75°C) |
| Operating Humidity | 5% - 90% (Non-condensing) |
| Material | Metal |
