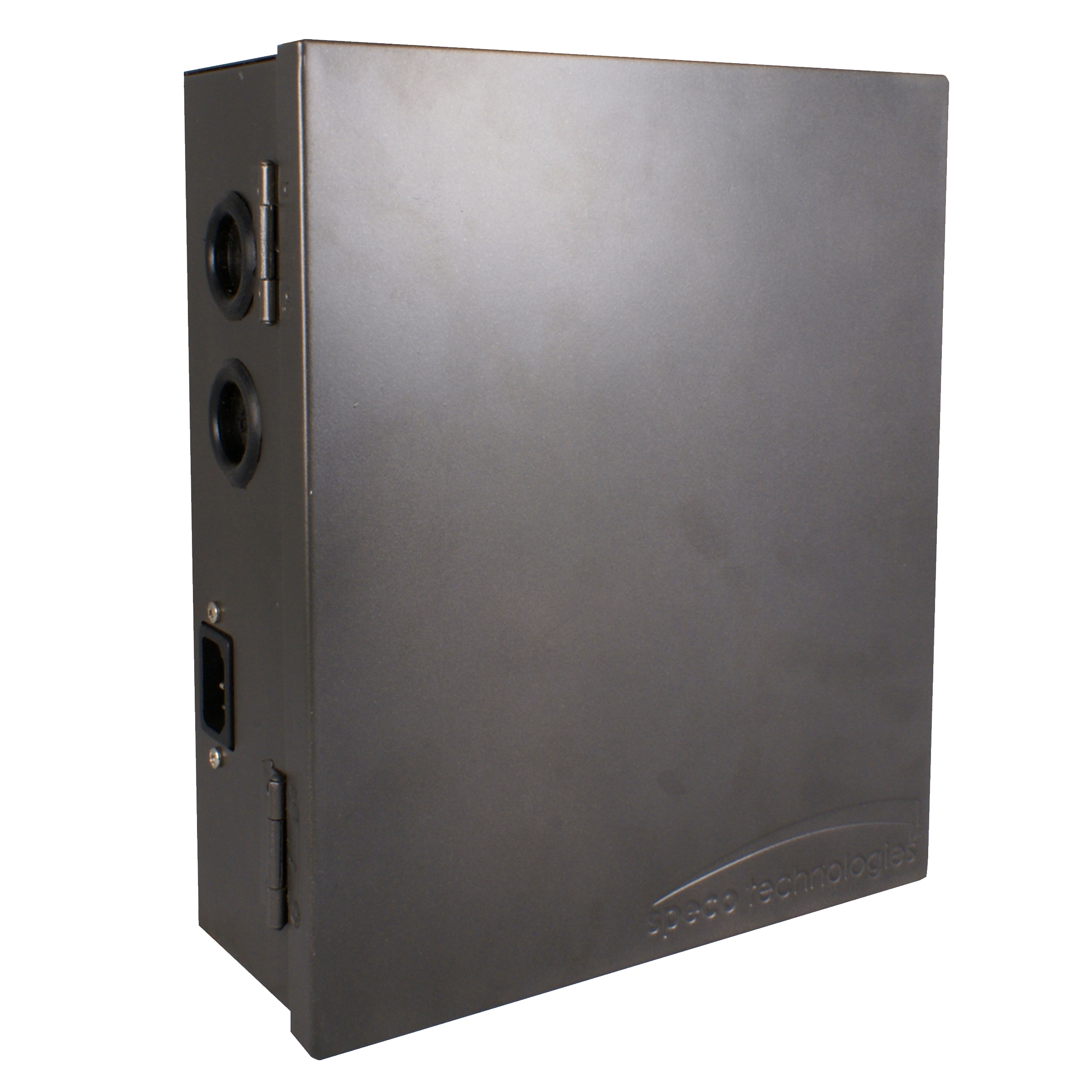

Speco - P4W5DUL - 4CH @ 5A DC Camera Power Supply – UL Certified (W-12VDC-4P/5A(UL)AP)
Part number:
Price:
Product Overview
• UL listed • 12VDC fused output for 4 or 9 cameras • More than 1A per channel output • Individual PTC auto reset fuse for each output • Individual LED status indicator for each output • Main power switch with surge protection • 5 year warranty **Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: P4W5DUL
Installation Notes
8" (W) x 9.5" (H) x 3.25" (D)
| Full Specifications | |
| Warranty | 5 year |
| Output | 12VDC fused output for 4 or 9 cameras |
| Power Switch | Main power switch with surge protection |
| Fuse Type | 4 ch PTC 1.6A / 60V 9 ch PTC 1.3A / 60V |
| Input | 3 pin AC socket |
| Power Requirement | 4 CH. 110VAC, 50 / 60HZ 9 CH. 110VAC, 50 / 60HZ |
| Operating Temperature/ Humidity | 32° F - 104° F / RH 20% - 90% |
| Storage Temperature | -4° F - 140° F |
| Dimensions | 8" (W) x 9.5" (H) x 3.25" (D) |
| Weight | 4.5 lbs. |
Name
Description
Size
Downloads
File
Specification Sheet
0.3mb
