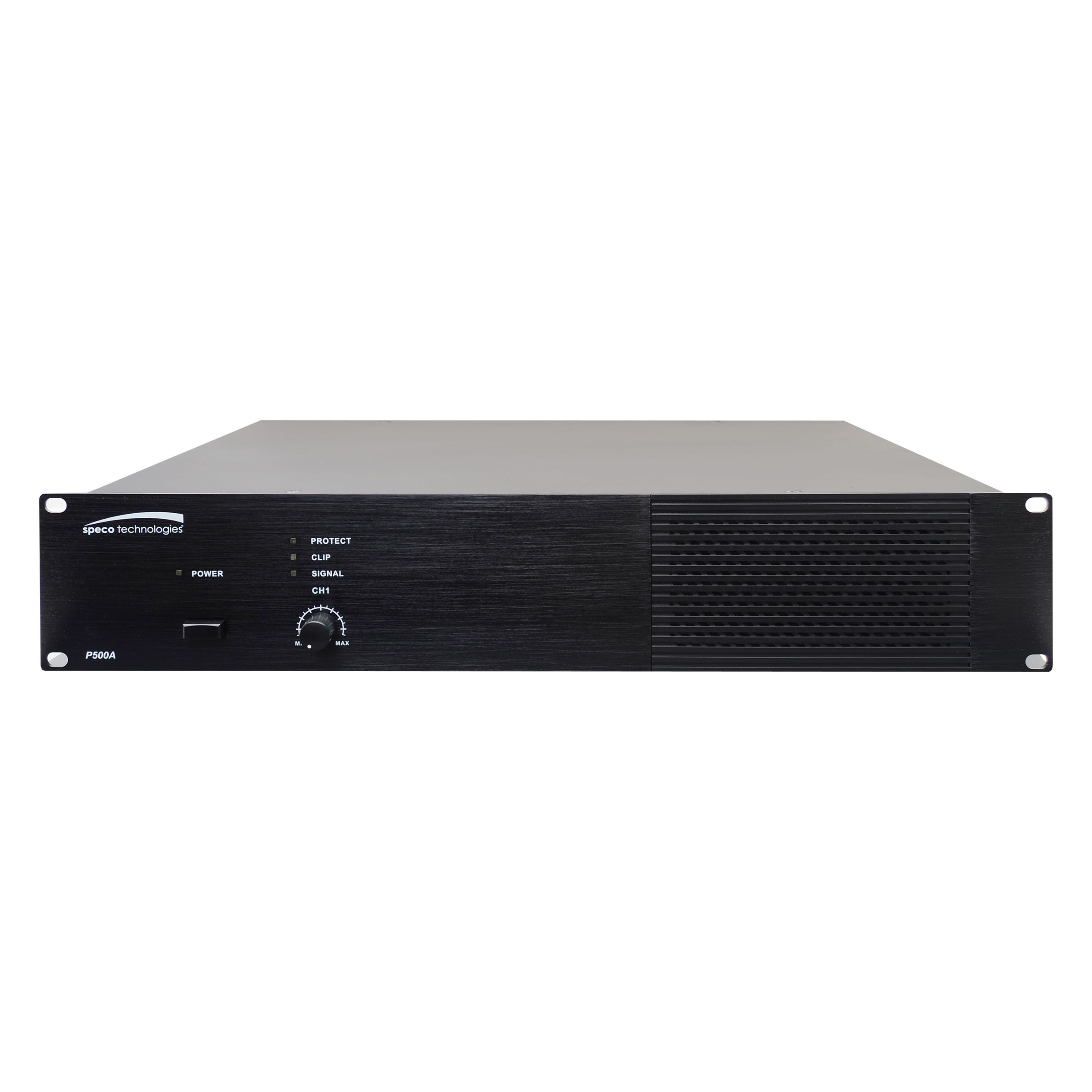

Speco - P500A - 500W Class D Power Amplifier
Part number:
Price:
Product Overview
• Single speaker output works with either 70V and 8 Ohm speakers • Auxiliary inputs and outputs to “daisy-chain” amplifiers • Class D amplification • Built-in rack mount **Products are in compliance with NDAA Section 889 Part B Guidelines** This is manufacturer documentation for product model P500A.
Key Configuration
Model: P500A
Key Features

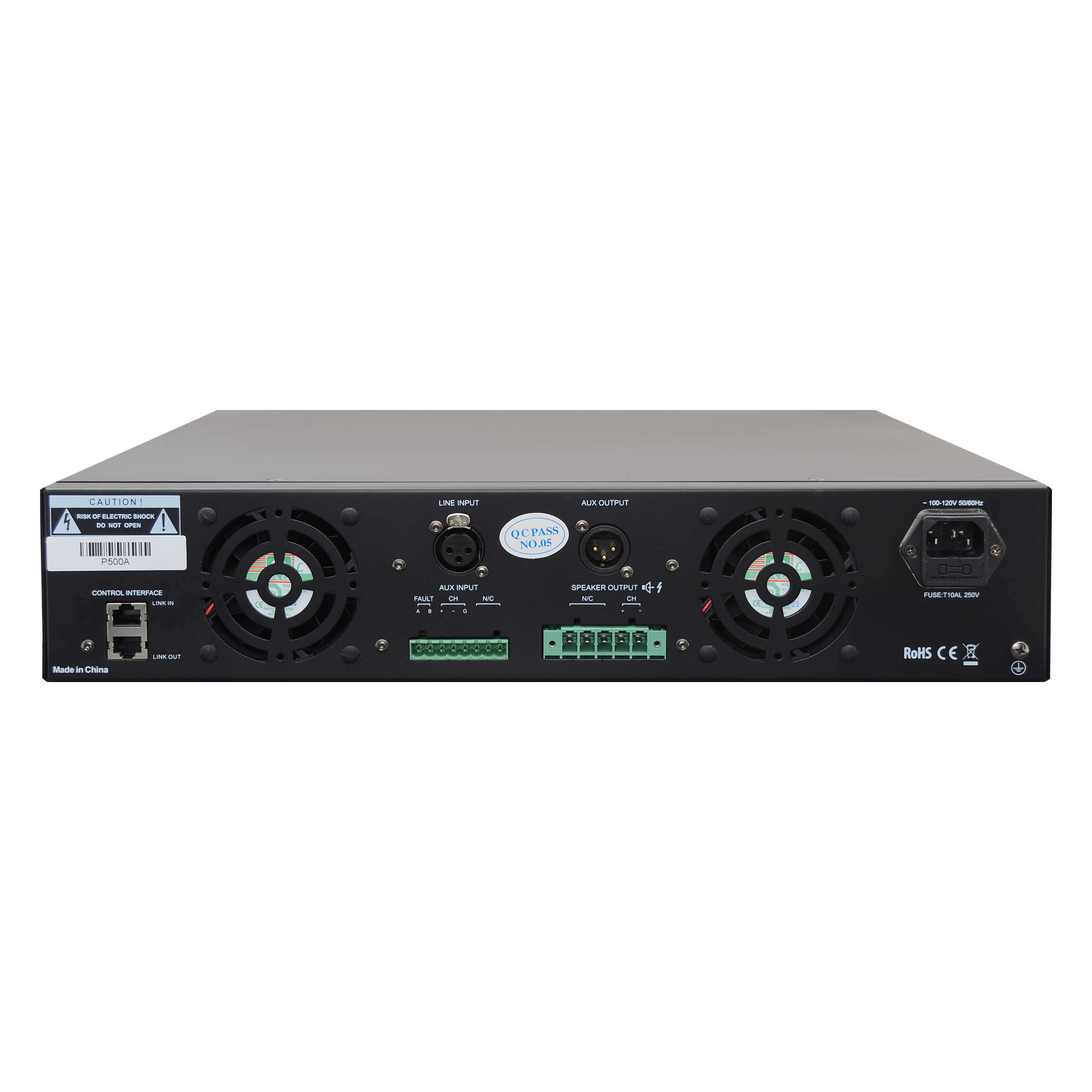

- • Built-in rack mount rear of unit.
Installation Notes
19” (W) x 3.46” (H) x 15.75” (D)
| Full Specifications | |
| Type of Amplifier | Power |
| RMS Output Power | 500W |
| Max. Output Power | 1000W |
| AC Power Consumption | <720W |
| Power Supply | AC 110V-120V, 50/60Hz |
| Zones | 1 |
| Speaker Outputs | 8 Ohms, 70V |
| Other Outputs | Aux (XLR) |
| Inputs | 1 x Aux (XLR or Terminal) |
| Frequency Response | 70Hz ~ 18KHz (±3dB) |
| THD | Less than 0.1% @1KHz |
| Signal/Noise Ratio | >90dB |
| Controls | Master Volume |
| Indicators | Power, power level |
| Includes | Built-in Rack Mount |
| Listings | CE, FCC, RoHS |
Name
Description
Size
Downloads
File
Specification Sheet
0.3mb
File
User Manual
0.4mb
