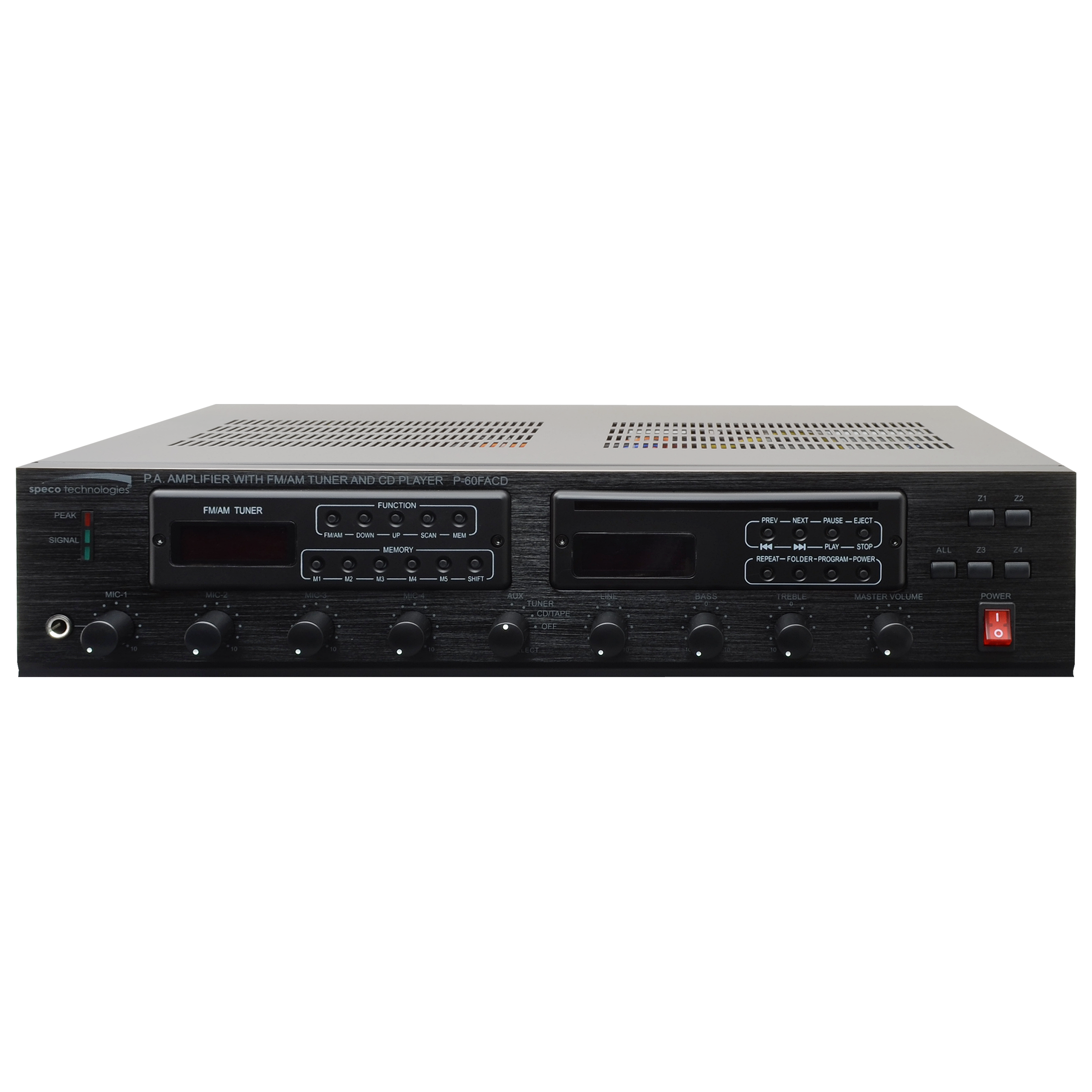

Speco - P60FACD - 60W PA Amplifier with AM/FM Tuner and CD Player
Part number:
Price:
Product Overview
• 4 zoned 70 or 25V speaker outputs • AM/FM Tuner with 8-function CD player • Telephone paging input and Music-on-hold output • Individual volume control for each Mic input • Front bass and treble controls • Mic1 selectable priority paging • UL & CSA listed • 5 year warranty **Products are in compliance with NDAA Section 889 Part B Guidelines
Key Configuration
Model: P60FACD | Type of Amplifier: Built-In-Source, Mixer
Installation Notes
16.9” (W) x 3.5” (H) x 11.6” (D)
| Specifications | |
| RMS Output Power | 60W |
| Max. Output Power | 90W |
| AC Power Consumption | 170W |
| Power Supply | AC 115V, 50Hz/60Hz |
| Zones | 4 |
| Speaker Outputs | 4/8/16 Ohms (non-zoned), 70/25V (zoned) |
| Other Outputs | Aux (RCA) |

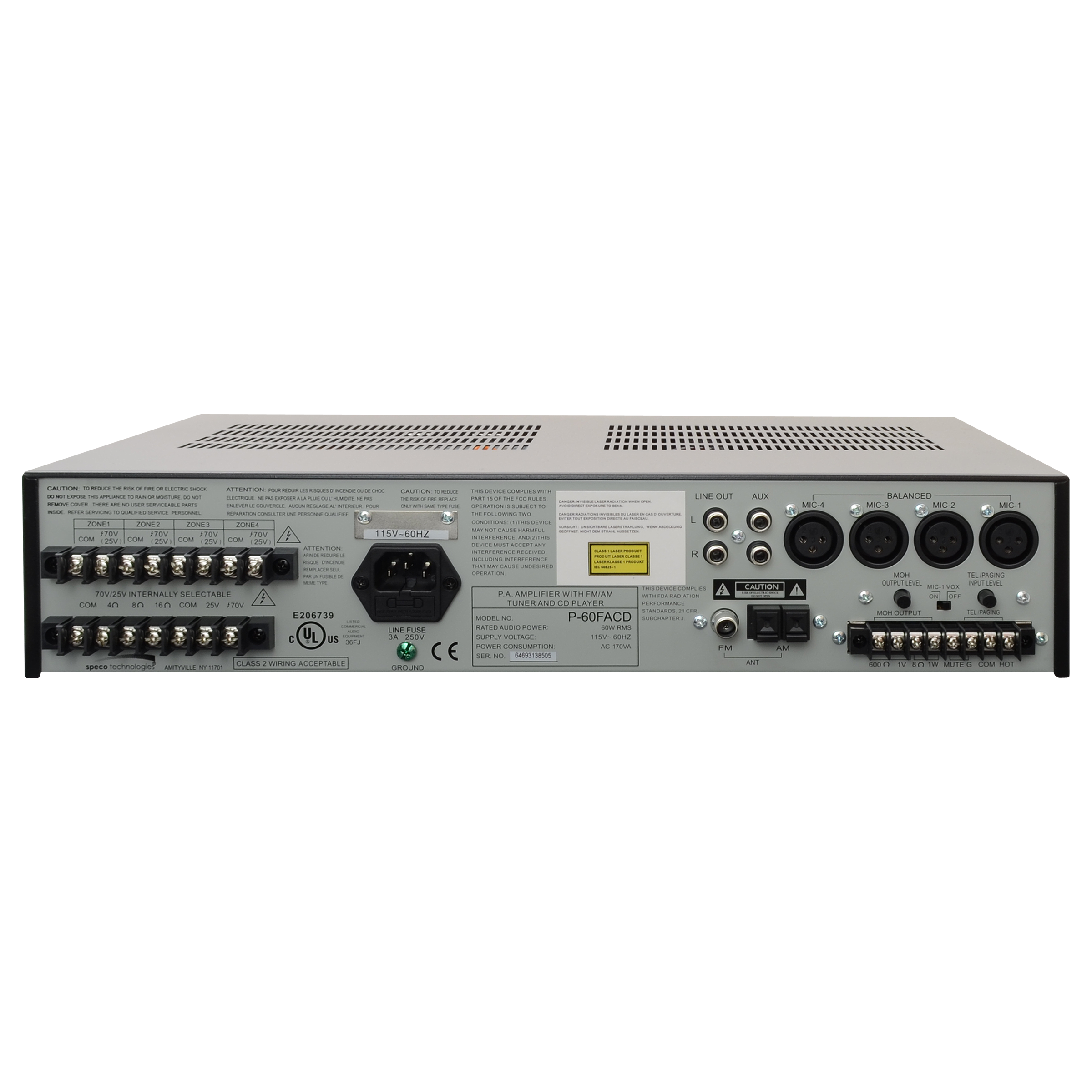

| Inputs | 1 x AM Antenna (Press terminal), 1 x FM Antenna (BNC), 1 x Aux (Stereo RCA), 4 x Mic (XLR), 1 x TEL (terminal) |
| Frequency Response | 60Hz ~ 15kHz (±3dB) |
| Tone Control | Bass ± 10dB, Treble ± 10dB |
| THD | Less than 1% @ 1kHz |
| Signal/Noise Ratio | 70dB |
| Controls | Volume for each Mic, Master Volume, Vox Volume, MoH Volume, Vox Selector, Tone, Source Selector, Zone Selector, Tuner and CD |
| Telephone | TEL in and MoH Out |
| Indicators | Tuner, CD, power, power level |
| Listings | UL, cUL, CSA, CE, FCC |
Name
Description
Size
Downloads
File
Specification Sheet
0.3mb
File
User Manual
0.7mb
