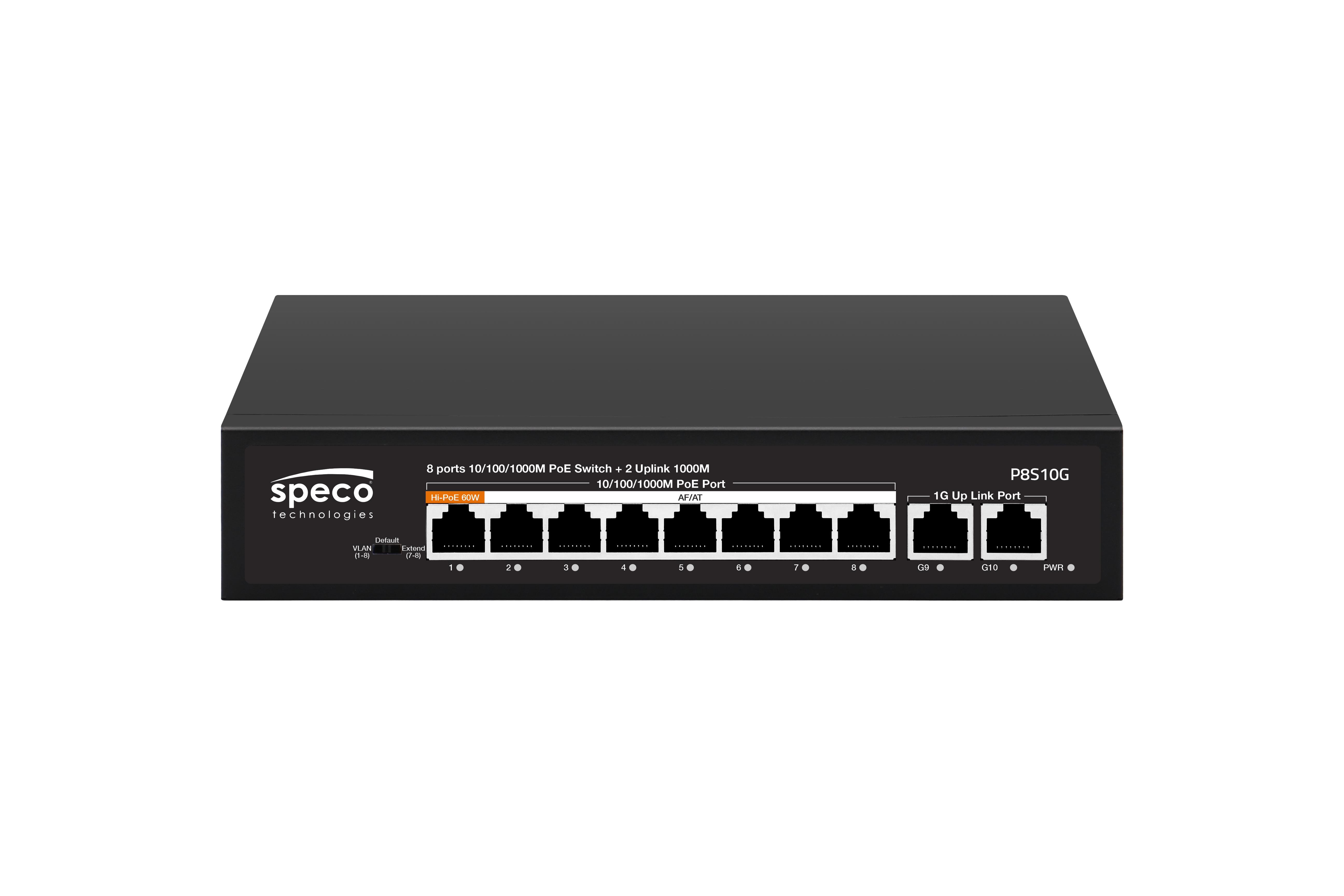

Speco - P8S10G - 10-Port Gigabit PoE Switch
Part number:
Price:
Product Overview
8*1gbps PoE ports + 2*1Gbps RJ45 ports, Port 1 supports 60W, 802.3bt type 3 8 ports 10/100/1000M PoE Switch + 2 Uplink 1000M 10/100/1000M PoE Port
Key Configuration
Model: P8S10G
Key Features
- • Comply with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x standards.
- • Ethernet Ports support 10/100/1000Mbps self-adaptive.
- • PoE ports automatically open PoE watchdog in VLAN and Extend modes.
- • Flow control method: Full duplex uses IEEE 802.3x standard, while half duplex uses Back pressure standard.
- • The panel indicator LEDs will monitor the working status and assist in fault analysis.
Installation Notes
Product Dimension (LxWxH): 210x150x35mm
| Full Specifications | |
| Ports | 8*1gbps PoE ports + 2*1Gbps RJ45 ports |
| Compliance | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, and IEEE 802.3x standards |
| Flow Control | Full duplex uses IEEE 802.3x standard, while half duplex uses Back pressure standard |
| PoE Support | Port 1 supports 60W, 802.3bt type 3 |
| Model | P8S10G |
| Interface | 8*1Gbps PoE ports | 2*1Gbps uplink RJ45 ports |
| Port Standard | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab (Gigabit Ethernet), IEEE802.3x (Flow Control) |
| Switching Bandwidth | 20Gbps |
| Packet Forwarding Rate | 14.88Mpps |
| Packet Buffer | 1Mbit |
| MAC Address Table | 2K |
| Transmission Method | Store and Forward |
| PoE Standard | IEEE802.3af (15.4W)IEEE802.3at (30W) |
| PoE Port Output Voltage | DC 44-57V |
| PoE Ports | Port 1 supports 60WPorts 2-8 PoE power output <30W |
| PoE Power Budget | 110W |
| Power Supply | AC 100-240V 50/60HzDC 52V 2.3A |
| Mainboard Power Consumption | 6.5W |
| Installation | Desktop |
| Surge Protection | Port Surge: Common mode 4KV, Differential mode 2KVElectrostatic ESD: Air 8KV, Contact 6KV(Class B) |
| Operating Temperature | 32F-104F |
| Storage Temperature | -40F-150F |
| Operation Humidity | 10%-90%, non condensing |
| Storage Humidity | 5%-95%, non condensing |
| PWR Green LED | On: Powered onOff: Powered off |
| Ports 1-10 Green LED | On: Link normalOff: Link blockedFlashing: Data transmitting |
| VLAN/Default/Extend Modes Buttons | VLAN: VLAN mode, ports 1-8 are isolated from each other, communicating with ports 9-10, and automatically activate the PoE watchdog modeDefault: Normal mode, all ports can communicate with each other, transmission distance is within 100 meters, transmission rate is10/100/1000Mbps adaptive(PoE Watchdog off)Extend: Extend mode, when the PoE port is in Extend mode, ports 7-8 force 10Mbps to extend the transmission distance to 250meters, and automatically activate the PoE watchdog mode |
